AUDIX A131

AUDIX A131

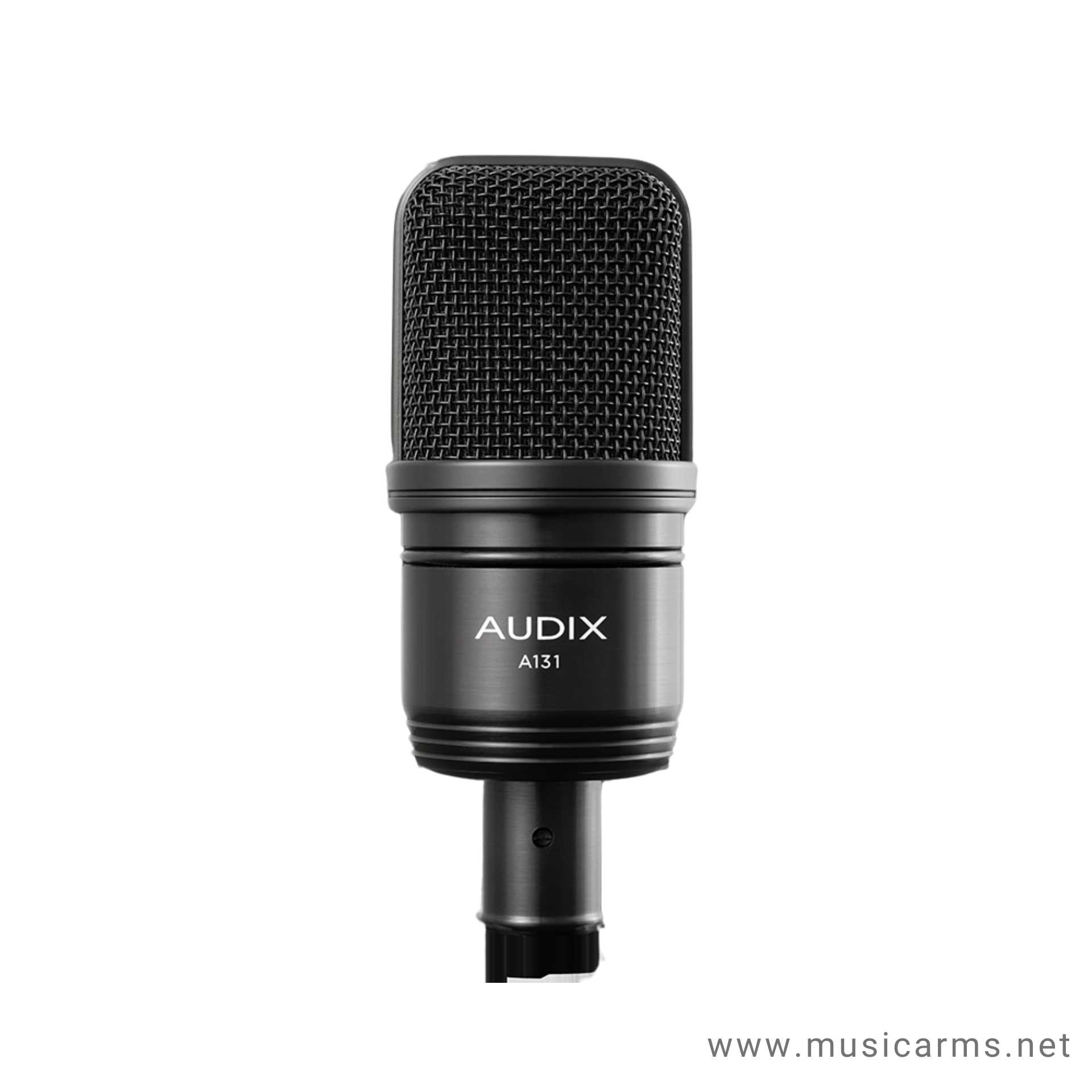

The A131

is a large-diaphragm condenser microphone ideal for vocals, choir, piano, acoustic instruments, and overheads. Featuring a contemporary, compact design, the A131 is the perfect choice for podcasting, professional audio production, studios, and live stage performances.

Housed in a precision-machined aluminum body, the 33 mm fixed-charge capsule features a gold-sputtered diaphragm for wide, natural frequency response. With its well-behaved cardioid polar pattern, the A131 faithfully captures the detail of the performance while rejecting room noises and other unwanted, off-axis sounds.

A double woven steel mesh grille and ultra-thin acoustic foam offer exceptional pop resistance for podcasting and vocals. Behind the grille, the open-air design of the capsule mounting system allows the A131 to deliver transparent, uncolored sound. Proprietary impedance control between the capsule and circuitry ensures consistent and reliable performance across a wide range of environments.

A unique and highly effective internal shock mount isolates the capsule from mechanical vibrations and touch noise, eliminating the need for a bulky external shock mount.

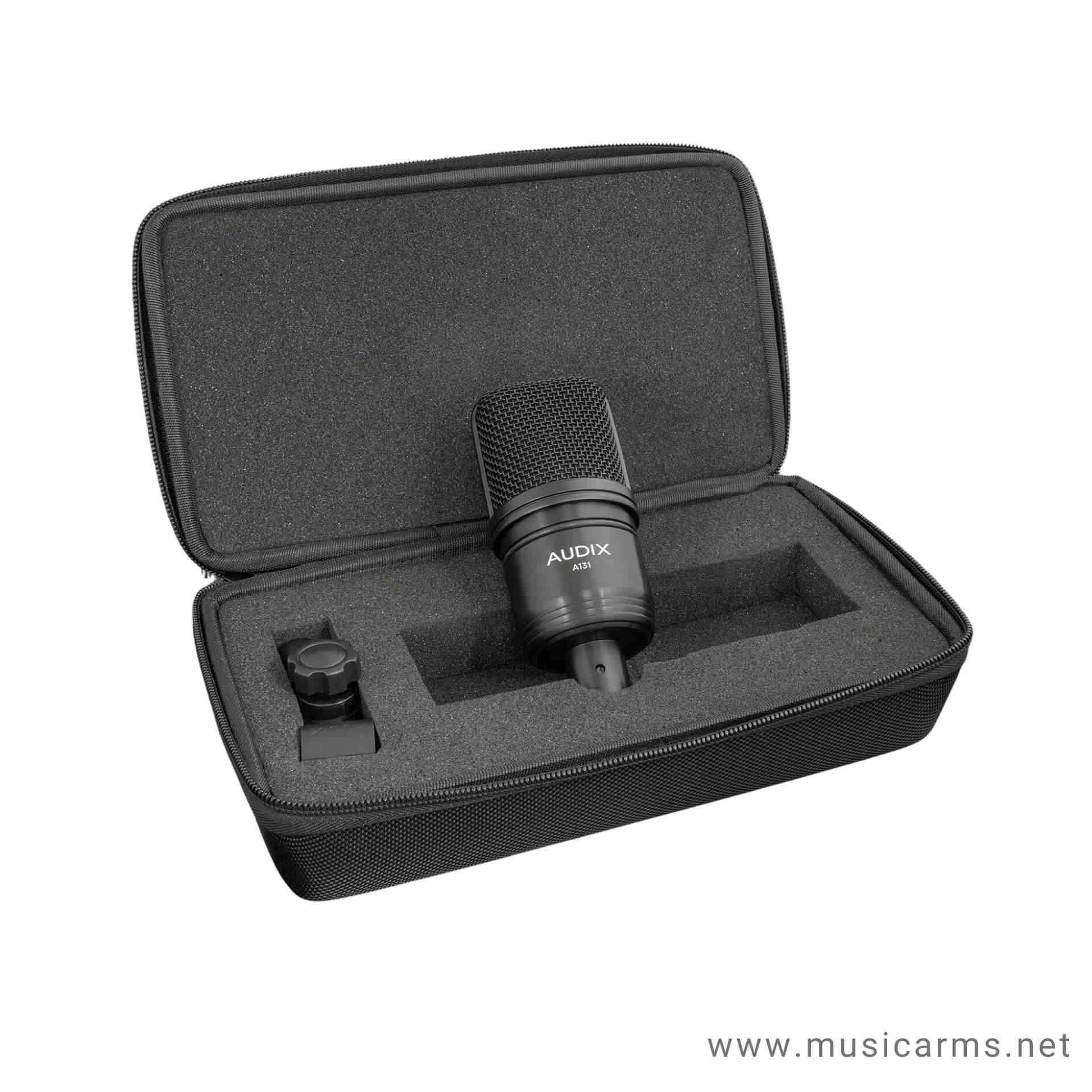

Offering studio performance in a road-worthy package, the A131 also comes with a protective zippered carrying case.

Requires 48-52 V phantom power. For best results, the A131 should be used with a high-quality mic preamplifier and microphone cable

Specification

• Transducer / Capsule Technology 33 mm fixed-charge condenser / 29 mm 3.4 micron gold-sputtered diaphragm
• Frequency Response 40 Hz – 20 kHz
• Polar Pattern  Cardioid
• Output Impedance 150 ohms
• Sensitivity  23 mV / Pa @ 1 kHz
• Signal to Noise Ratio 84 dB
• Maximum SPL 140 dB
• Dynamic Range 130 dB
• Equivalent Noise Level 10 dBA
• Operating Voltage  48 V (± 4 V) Phantom
• Connector  3-pin XLR m
• Materials / Finish Body : Machined aluminum Grille: Steel alloy
• Weight  280 g / 10 oz

สเปค

• ย่านความถี่: 40 Hz – 20 kHz
• รูปแบบการรับเสียง: Cardioid (รูปหัวใจ)
• ค่าอิมพีแดนซ์: 150 ohms
• ความไว: 23 mV / Pa @ 1 kHz
• สัญญาณต่อสัญญาณรบกวน: 84 dB
• แรงดันเสียงสูงสุด : 140 dB
• ช่วงไดนามิก: 130 dB
• ระดับเสียงรบกวนเทียบเท่า : 10 dBA
• แรงดันไฟเลี้ยง: 48V (± 4 V) Phantom Power
• ขั้วต่อ: XLR ตัวผู้ 3 ขา
• วัสดุ: ตัวเครื่อง – อลูมิเนียมขึ้นรูป, ตะแกรง – โลหะผสมเหล็ก
• น้ำหนัก: 280 กรัม
