AUDIX GS1

GS1

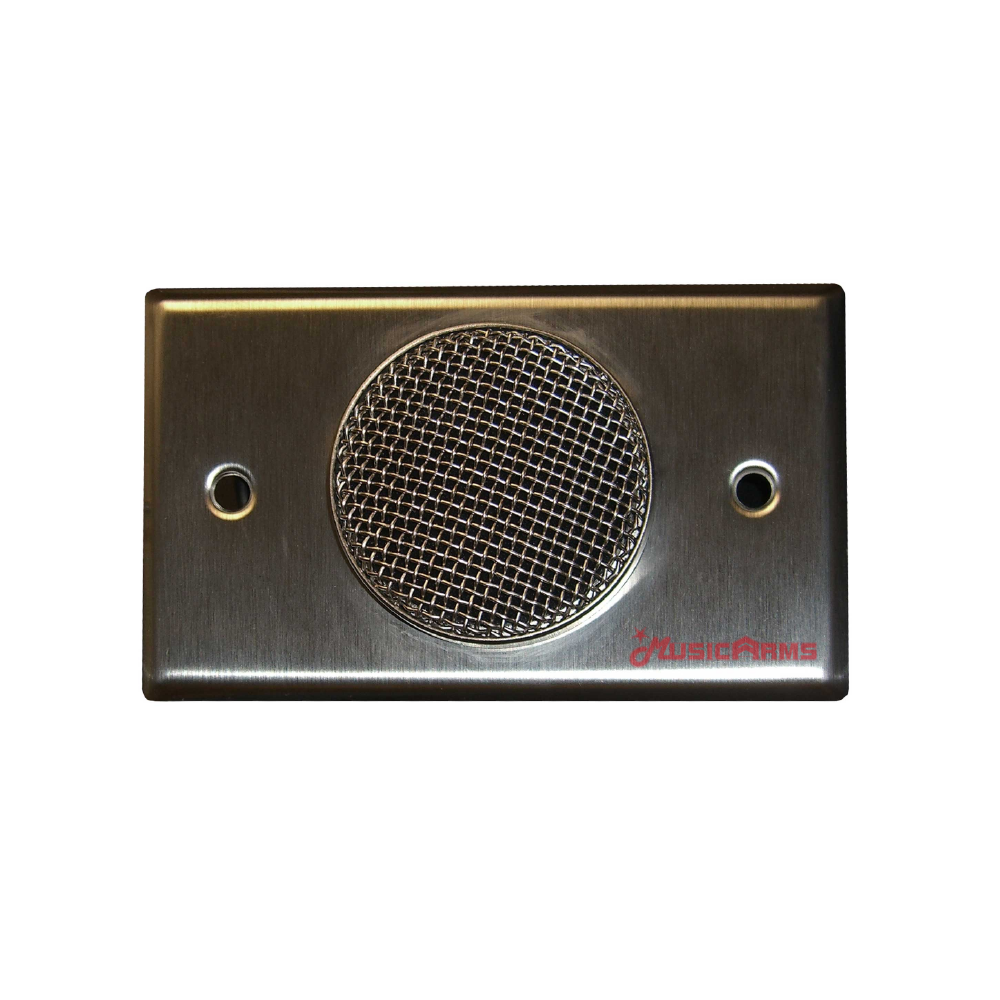

FLUSH-MOUNT WALL / CEILING MICROPHONE

The GS1 is an innovative flush-mount wall or ceiling microphone designed for distance miking. Features include a fully integrated preamp, an extremely high sensitivity rating of 38 millivolts, and complete immunity from RF interference caused by cell phones and GSM devices.

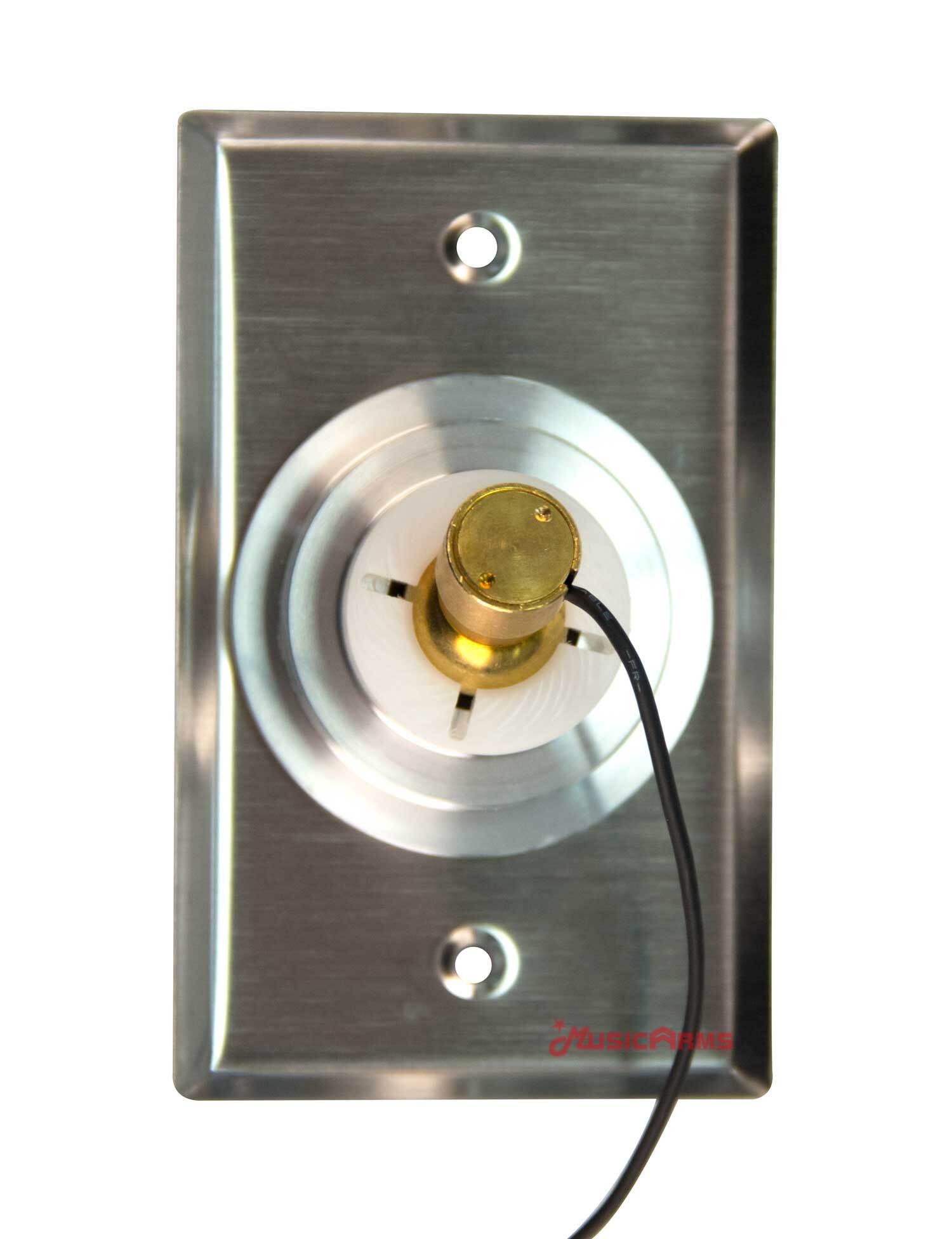

The GS1 capsule is housed within a patented cradle that enables the microphone to be aimed up to an angle of 45 degrees towards the sound source. Its small footprint and flush-mount configuration allow the microphone to be unobtrusive without sacrificing sound quality.

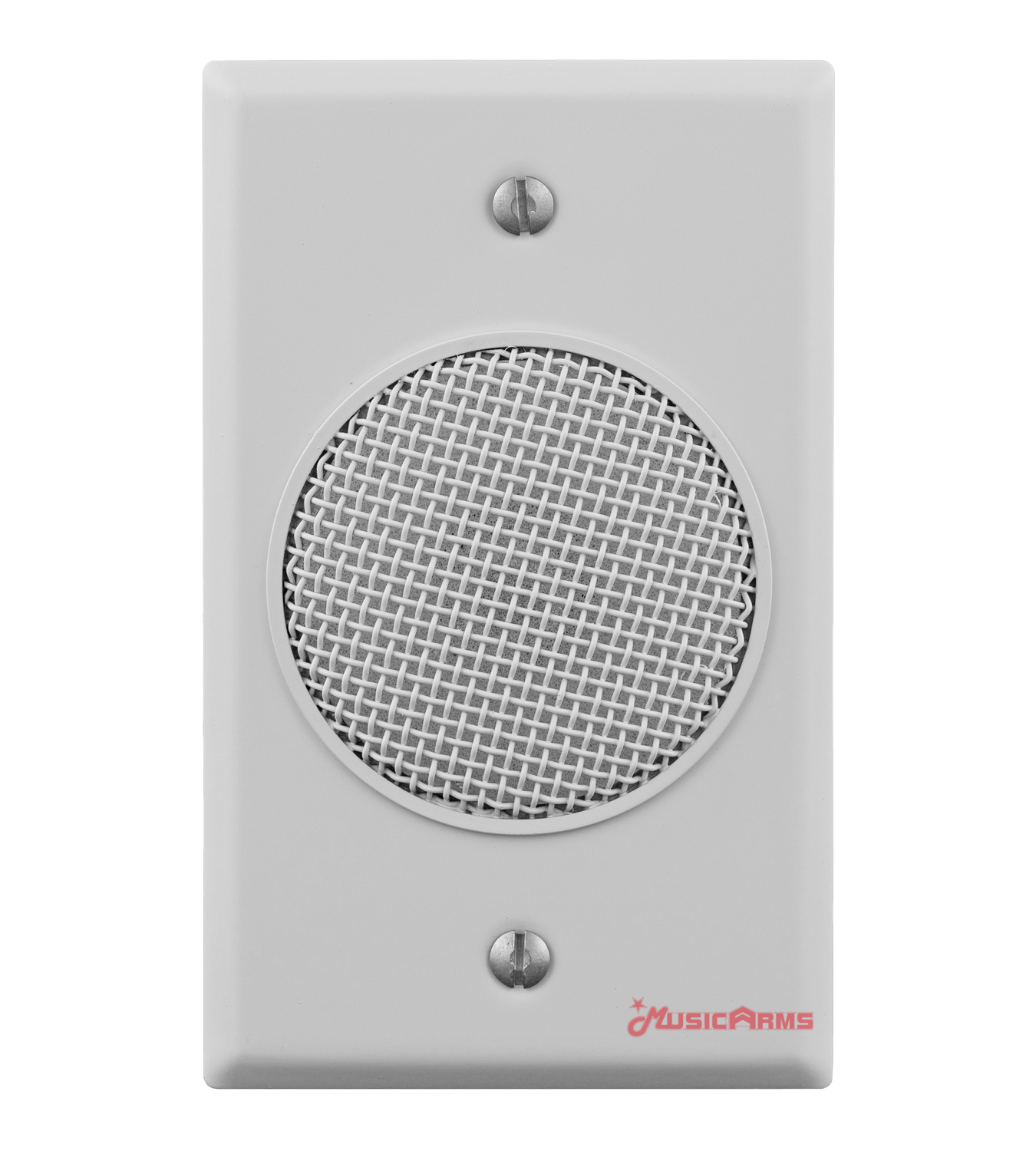

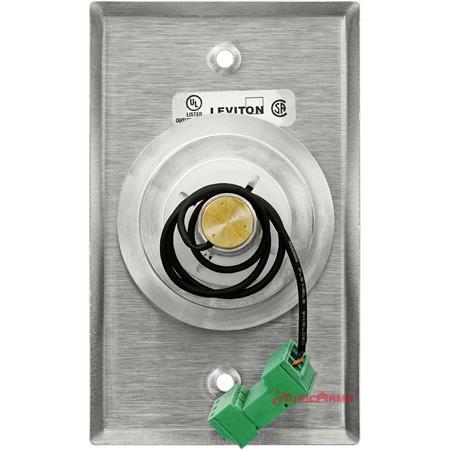

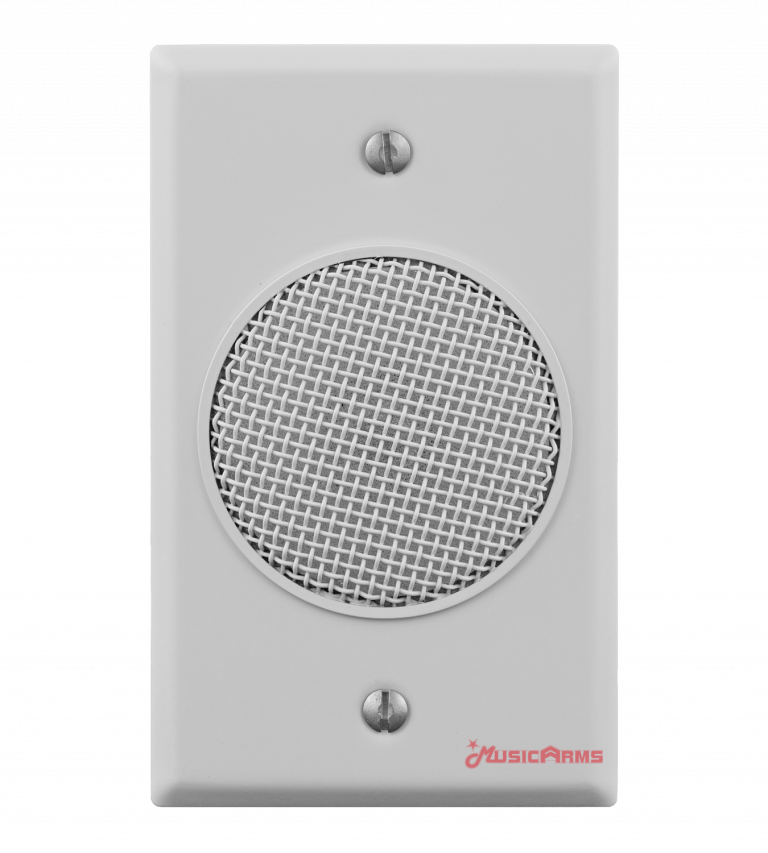

The GS1 terminates in a terminal block connector and is easy to install into a standard single gang box. A 2.75″ by 4.5″ mounting plate is included. The GS1 comes in a stock satin nickel finish and is also available in white.

FEATURES

• High output for distance miking
• Immunity from RF interference
• Miniaturized integrated preamp circuitry
• Includes x 2.75″ by 4.5″ metal mounting plate · No external power adapter
• Point and shoot directivity
• Designed, assembled & tested in the USA
• 3-year warranty

• Transducer Type Condenser
• Frequency Response 60 Hz – 10 kHz
• Polar Pattern Cardioid
• Output Impedance 150 ohms
• Sensitivity 38 mV / Pascal @ 1k
• Equivalent Noise Level 22 dB
• Signal to Noise Ratio 72 dB
• Maximum SPL ≥130 dB
• Dynamic Range 108 dB
• Power Requirements 18 – 52 V phantom
• Connector 3-pin Phoenix fe
• Polarity Positive pressure on diaphragm produces positive voltage on blue (center) Phoenix conductor
• Materials / Finish Brass aluminum and steel White or Nickel
• Weight Belden 9451 P or 82761
• Length 176 mm / 6.9 in
