Cambridge Audio DacMagic 200
ราคา : 23,900 บาท
Why You Need Some DacMagic
Perhaps your vintage amp lacks the digital inputs for today’s listening choices. Maybe the DACs in your hi-fi setup just need a helping hand. Or you hate how your computer down-samples audio streams before they’ve hit your headphones. One thing’s for sure, DacMagic 200M is a dedicated hi-fi separate that beats integrated DACs for pure sound performance.
Desktop Dream Team
DacMagic 200M can be used with a variety of digital sources, maybe kit you already own. Alternatively, you can pair it with its sibling – our MXN10 compact network player. These half-width hi-fi heroes share the same family look and are now available in a choice of special edition black or lunar grey. Together they make a very credible desktop hi-fi system – or ‘head-fi’ if you prefer.

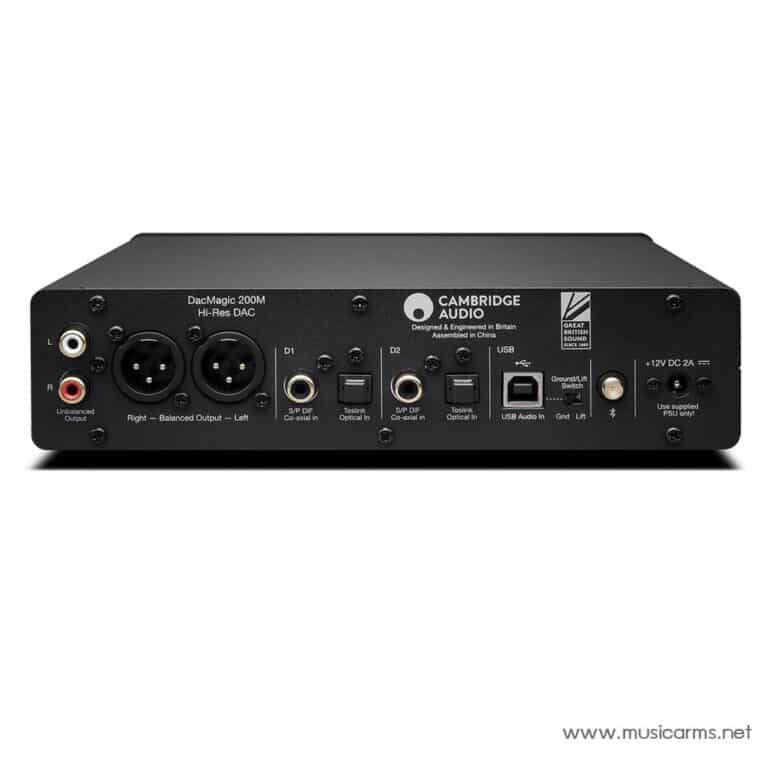

Being compact, but not miniscule, means that DacMagic 200M has room for a plethora of digital inputs and analogue outputs. Two pairs of co-ax and optical inputs, a USB computer in and Bluetooth aptX for wireless connection keep the most demanding listener happy. A pair of balanced XLRs, unbalanced RCAs and a ¼” (6.3mm) headphone-out complete the picture.
Sounds Like Team Spirit
Looking for fast, accurate retrieval with no upsampling to keep your music intact? Then DacMagic 200M’s powerful XMOS processor can handle 1000 million instructions per second, to send digital information to the dual DACs, which work asynchronously at a clock speed of 100Mhz to convert digital to analogue in a ‘bit perfect’ way.
Choice and Status

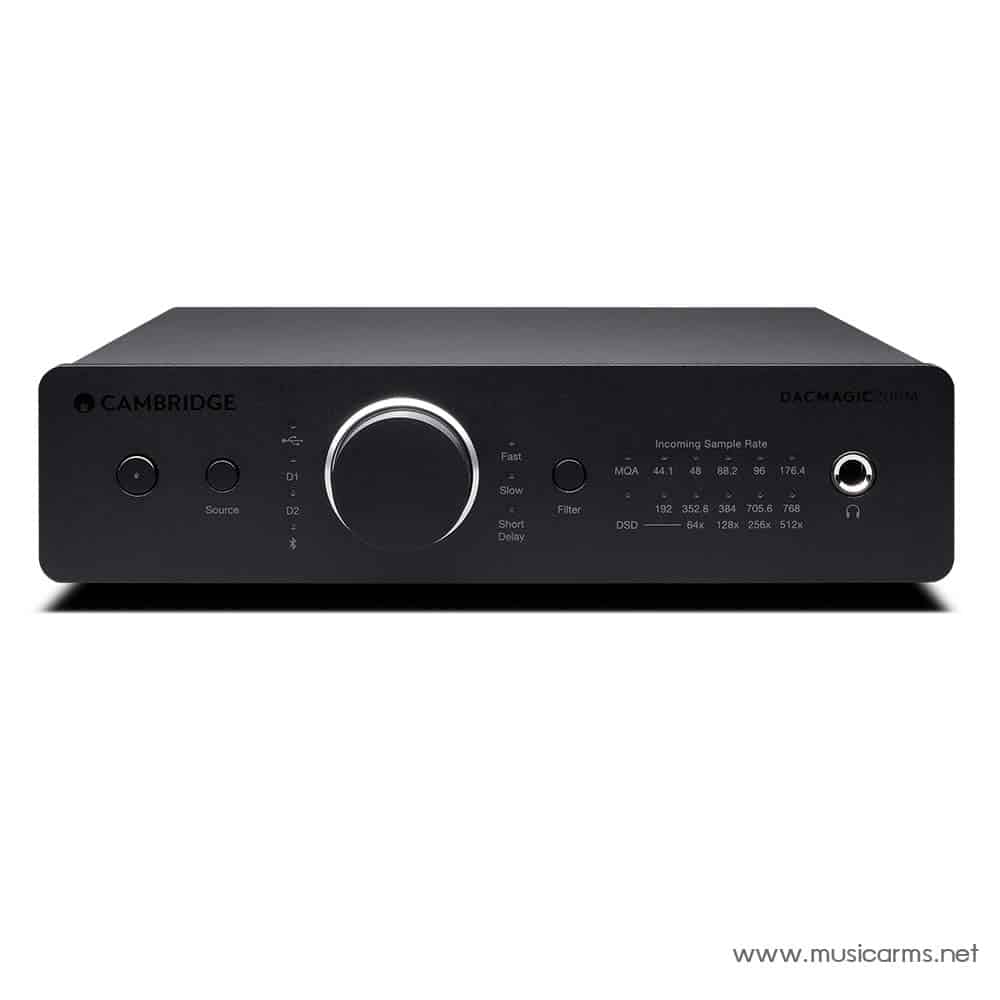

DacMagic 200M’s aluminium fascia has a button to select one of 4 possible digital inputs, another to pick one of 3 digital filters to suit your listening taste, and a volume control if you’re using it as a headphone amp. There are LED lights to confirm your input and filter selection, with additional ones that indicate the incoming music resolution.
|DIGITAL TO ANALOGUE CONVERTERS||Dual ESS ES9028Q2M DACs|
|DIGITAL FILTER||Selectable, Fast – Slow – Short delay|
|FREQUENCY RESPONSE||10Hz to 50kHz (±1dB)|
|THD+N @ 1KHZ 0DBFS||<0.0005% (A-Weighted)|
|SIGNAL TO NOISE RATIO||>115dB (A-Weighted)|
|CROSSTALK @ 10KHZ||< -110dB|
|OUTPUT IMPEDANCE||<50 Ohms (unbal), <100 Ohm (bal)|
|MAX. OUTPUT LEVEL (UNBALANCED)||2.1V rms (fixed or variable – user selectable)|
|MAX. OUTPUT LEVEL (BALANCED)||4.2V rms (fixed or variable – user selectable)|
|DIGITAL INPUT WORD WIDTHS SUPPORTED||16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB)|
|DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED||44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)|
|MQA COMPATIBILITY||Full decoding (Core + Renderer)|
|BLUETOOTH||v4.2, A2DP profile, SBC and AptX codecs|
|HEADPHONE OUTPUT THD+N||< 0.001% at 1kHz 0dBFS @ 100mW into 32ohm|
|HEADPHONE OUTPUT S/N||> 115dB (A-Weighted)|
|MAX OUTPUT POWER||>300mW @ 32ohm, >65mW @ 150ohm|
|FREQUENCY RESPONSE||10Hz – 50kHz (±1dB)|
|RECOMMEND HEADPHONE IMPEDANCE||10 Ohm to 600 Ohm|
|MAX POWER CONSUMPTION||12W|
|DIMENSIONS (HXWXD)||52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)|
