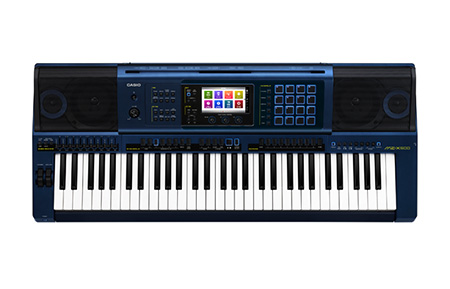

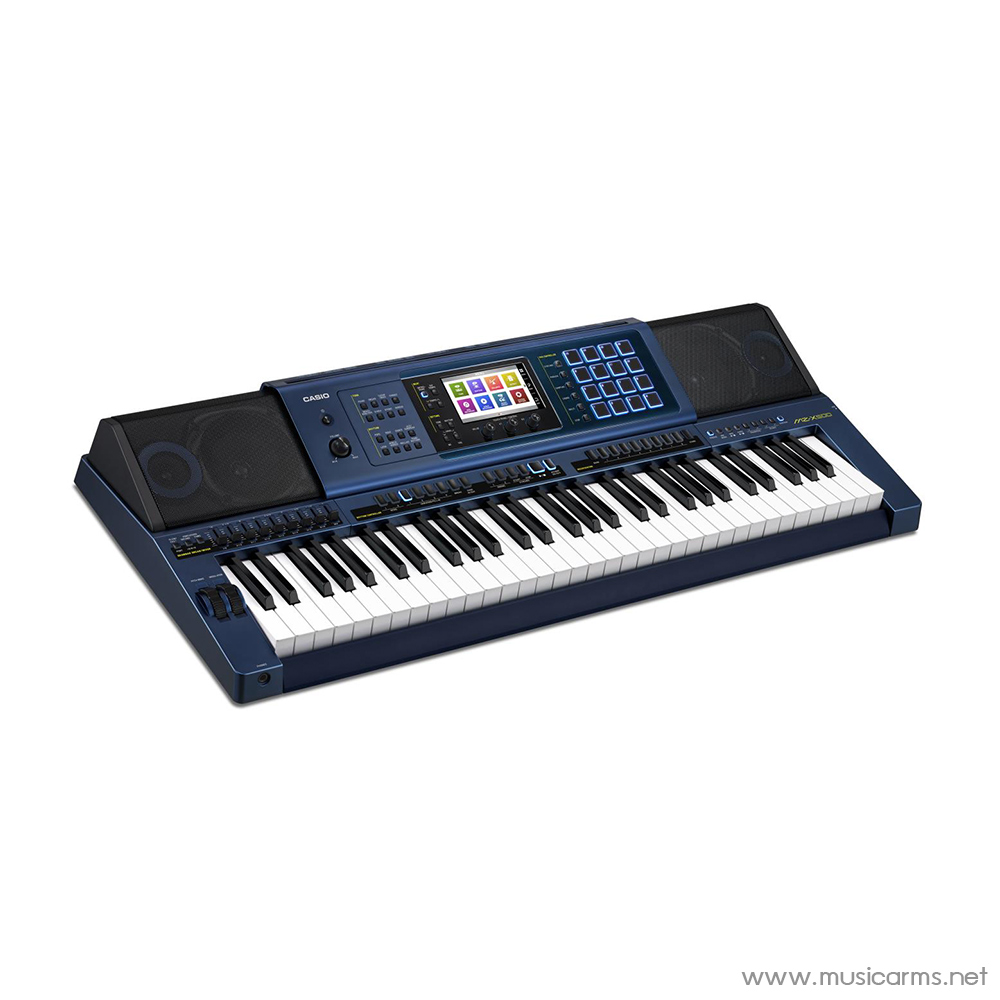

Casio MZ-X500

61 keys (Piano-style)

3 sensitivity levels, Off

MXi (Multi-Expressive Integrated) Sound Source

128

1100 built-in tones including 75 drawbar organ tones (650 user tones)

Layer: Lower 1 – 4, Upper 1 – 4 assignable (max. 4 tones)
Split: Variable split point

• Reverb: 20 types
• Chorus: 25 types
• Delay: 20 types
• DSP: Equalizer, Compressor, Limiter, Enhancer, Early Reflection, Phaser, Chorus, Flanger, Tremolo, Auto Pan, Rotary, Drive Rotary, LFO Wah, Auto Wah, Distortion, Pitch Shifter, Multi Chorus, Ring Modulator, Delay, Piano Effect
• Master EQ: 4 Bands Parametric EQ
• Auto Harmonize: 12 types
• Arpeggiator: 100 types

330 built-in rhythms (100 user rhythms)

• Modes: CASIO Chord, Fingered 1, Fingered 2 (6th off), Fingered 3 (on bass), Full Range Chord
• Controllers: Start/Stop, Intro1 – 2, Variation1 – 4 / Fill-in, Break, Fade In /Out, Ending1 – 2, Synchro Start, Synchro Stop, Accomp On /Off, Ritardando, Auto Fill-In, Tap Start

6 (demo songs)

0 (Off), 1 – 9 beats (Tempo Range: quarter note = 20 to 255 per minute)

• MIDI Recorder: Real-time Recording, Track Edit, Event Edit (Delete, Copy, Insert, Quantize, Step Recording), Punch-In / Out, Over Dubbing, SMF Import
• User Songs: 100 songs, 17 tracks per song (1 system track + 16 multi tracks)
• Approximate Data Capacity: 50,000 notes (1 song)

Audio Recording/ Playback

• Recording Source: Keyboard Play, Keyboard Play with Auto Accompaniment and with Music Preset, MIDI Recorder playback, Sound Input from EXT IN (LINE IN, MIC IN)
• Audio File Format: .wav (16-bit, 44.1 kHz, Stereo)
• Recording Capacity: Up to 100 audio files (Max. recording time: approximately 90 minutes for a single audio file)
• Requirement: USB memory, up to 32 GB

• Pad Function: 16pads, Velocity, Number of Banks(Phrase: 30, Sampling: 30, Chord: 20, Multi: 20, User: 100), LED, Sampling(30banks, 367 data), Sampling Time(Long: 9 seconds x 4, Short: 3 seconds x 32), Phrase(30 banks, 300 data), Event Edit, Chord Sync, Synchro, Chord(20 banks, 60 data)
• Mixer: 48 channels + EXT IN (INST IN, MIC IN), 9-slider operation
• Pattern Sequencer: Real-time Recording, Event Edit (Delete, Copy, Insert, Quantize, Step Recording), Part Parameters, SMF Import
• Drawbar Organ: 9 drawbars / 75 built-in tones / 50 user tones
• Tone Edit: 650 user tones
• Registration: 96 setups (8 sets x 12 banks)
• Music Preset: 305 presets with chord progression, chord edit (100 user presets)
• One Touch Preset: 330 presets
• Scale Tuning: Equal temperament + 16 types, Scale Fine Tune ±99 cents
• Octave Shift: ±3 octaves
• Pitch Bend Wheel : 0 to 24 semitones
• Modulation Wheel
• Sliders (9 sliders used for drawbar organ and mixer)
• Knobs: 3 (Assignable x 2, Value x 1)

±1 octave (-12 to +12 semitones)

A4 = 415.5 – 440.0 – 465.9 Hz (0.1 Hz units)

Standard jack (sustain, soft, sostenuto, start/stop)

5.3-inch touch panel
(5.0-inch 528 x 320-dot TFT Color LCD)

• Supported USB Memory: Up to 32 GB
• Functions: SMF Playback (up to 320 KB per file), File Storage, File Recall, File Delete, Format, Audio Data Playback / Storage
• Save / Load: User Tone, User Rhythm, User MIDI Data, User Music Preset, User Registration Memory, User Pad Bank, User Sample, User Phrase, User Chord Sequence, User Arpeggio

• General MIDI: 16 channel multi-timbre received, GM Level 1 standard

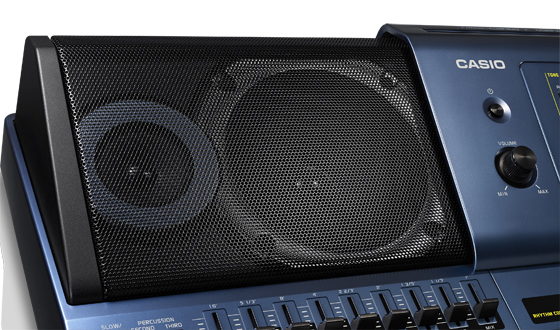

12 cm x 2 + 5 cm x 2 (2-way, 4-speaker), Bass-reflex System, Speaker ON / OFF

20W＋20W

• PEDAL 1: Mono standerd jack
• PEDAL 2 / EXPRESSION: Stereo standard jack
• PHONES: Stereo standard jack, Front
• LINE OUT: L/MONO, R; Standard jack
• LINE IN: L/MONO, R; Standard jack
• MIC IN: Mono standard jack, MIC volume
• AUDIO IN: Stereo mini jack, AUDIO IN volume
• USB TO HOST
• USB TO DEVICE
• MIDI IN, OUT / THRU
• DC IN (24 V)

* NO USB cable is bundled with this product. Use a commercially available adaptable USB cable to connect it with a computer.

AC adaptor: AD-A24250LW

950 x 400 x 151mm
* Excluding music stand, and other projections

7.6kg

AC Adaptor (AD-A24250LW), Music Stand
