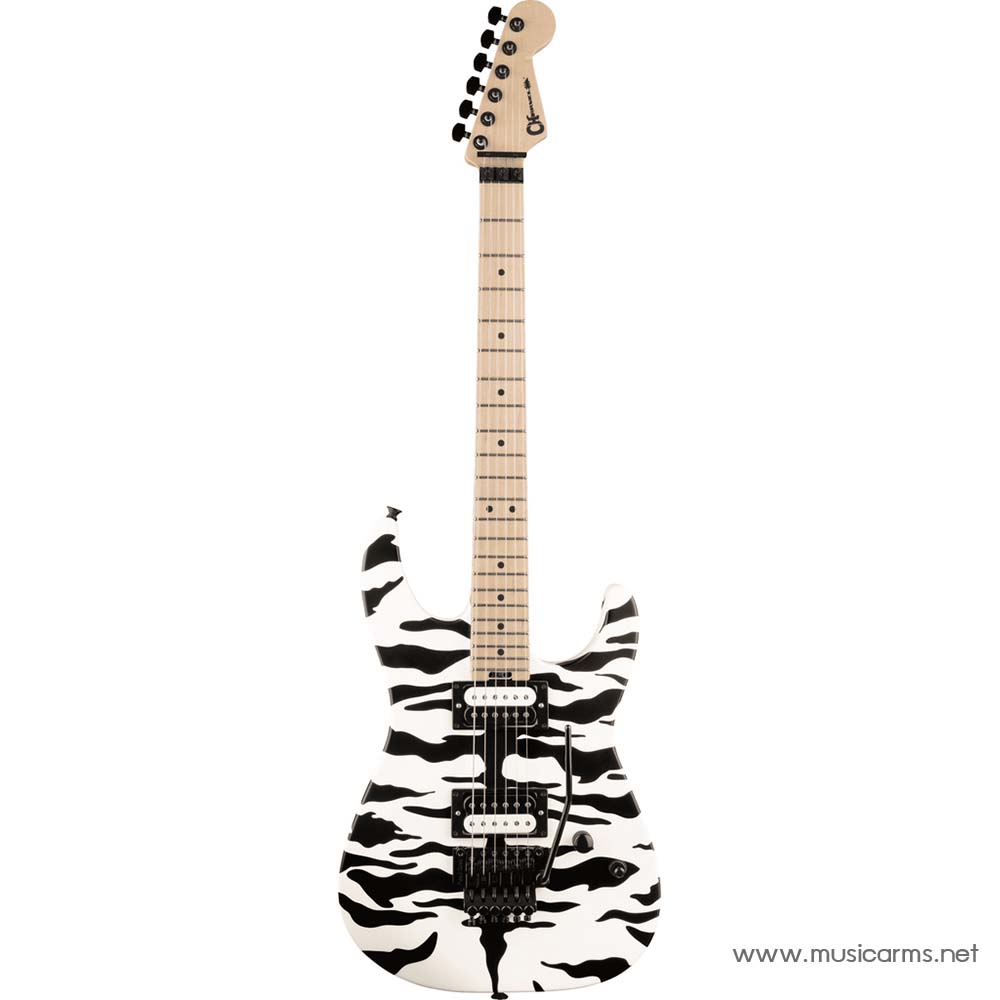

Charvel Satchel Signature Pro-Mod DK22 HH FR M

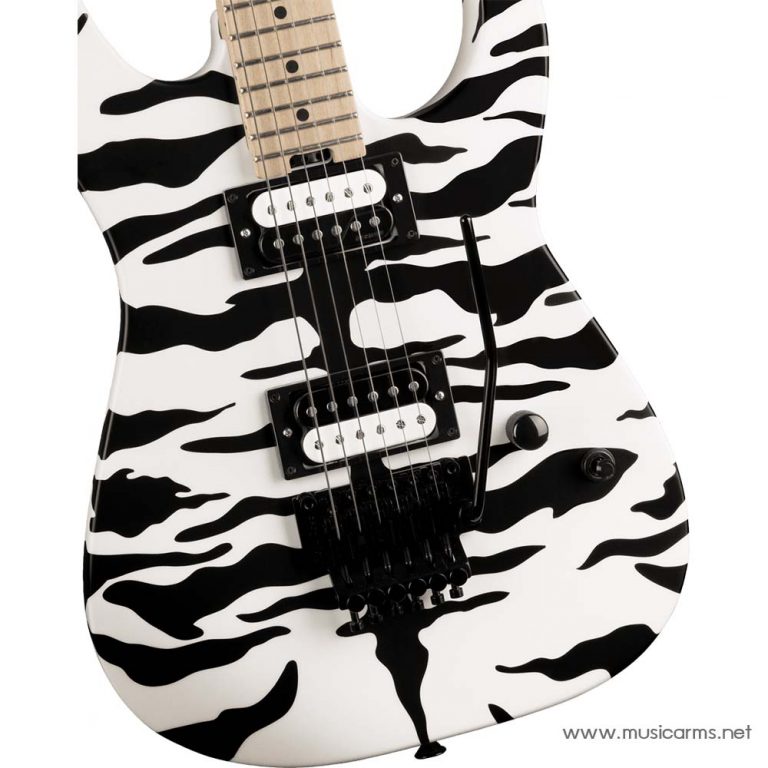

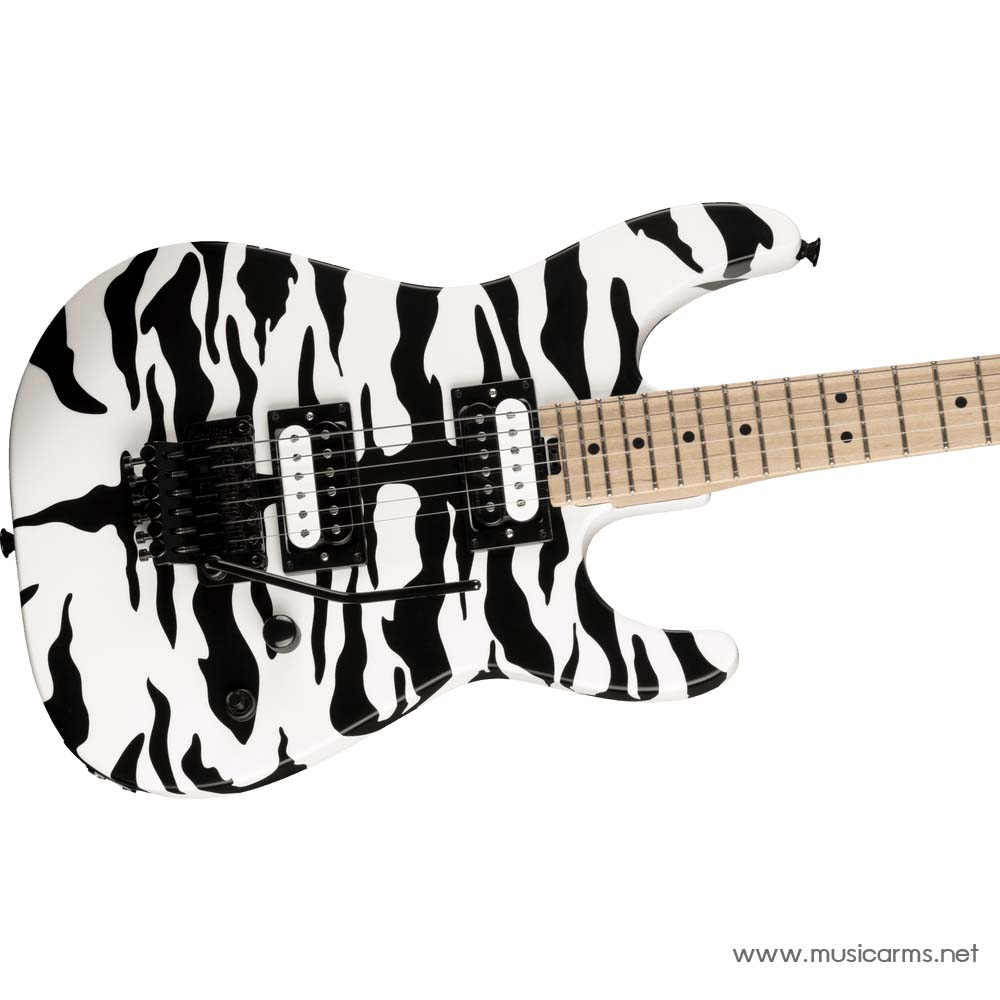

The instrument has an alder Dinky™ body with sharper-radius top edges and a flamboyant tiger sriped finish. Of special note are the two Fishman® Fluence® Classic humbucking pickups topped with black/purple bobbins, which share a single volume control knob with special push/pull dual voice activation. Using this control, the PRF-CHB neck pickup delivers ideal-but-elusive vintage PAF humbucking neck pickup tone with just the right dynamics and output (voice one), or a Fluence-exclusive neck tone with clear and airy chime, unreal high end, highly vocal midrange and tight lows (voice two). Similarly, the PRF-CHB bridge pickup delivers ideal vintage PAF humbucking tone calibrated for perfect output (voice one), or quintessential hot-rodded humbucking bridge tone without all the baggage (voice two). You get the idea—it sounds %$#@& huge.

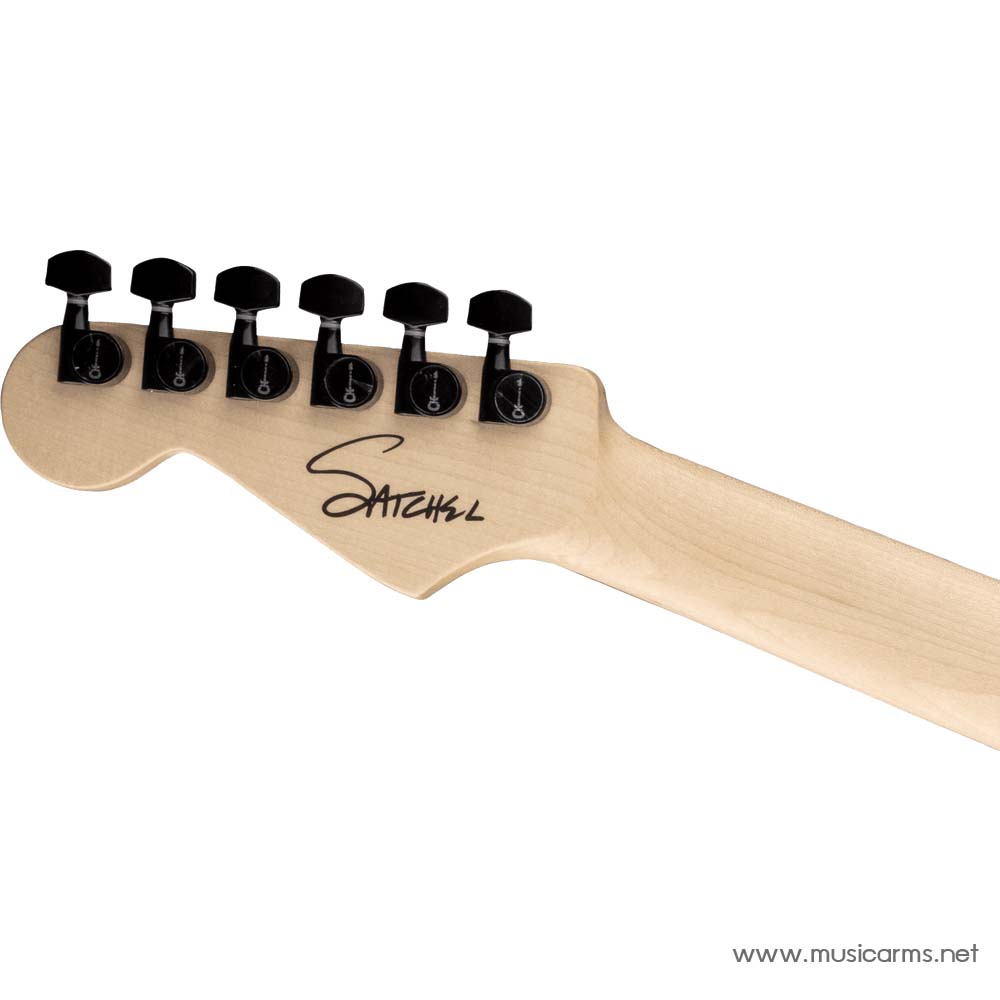

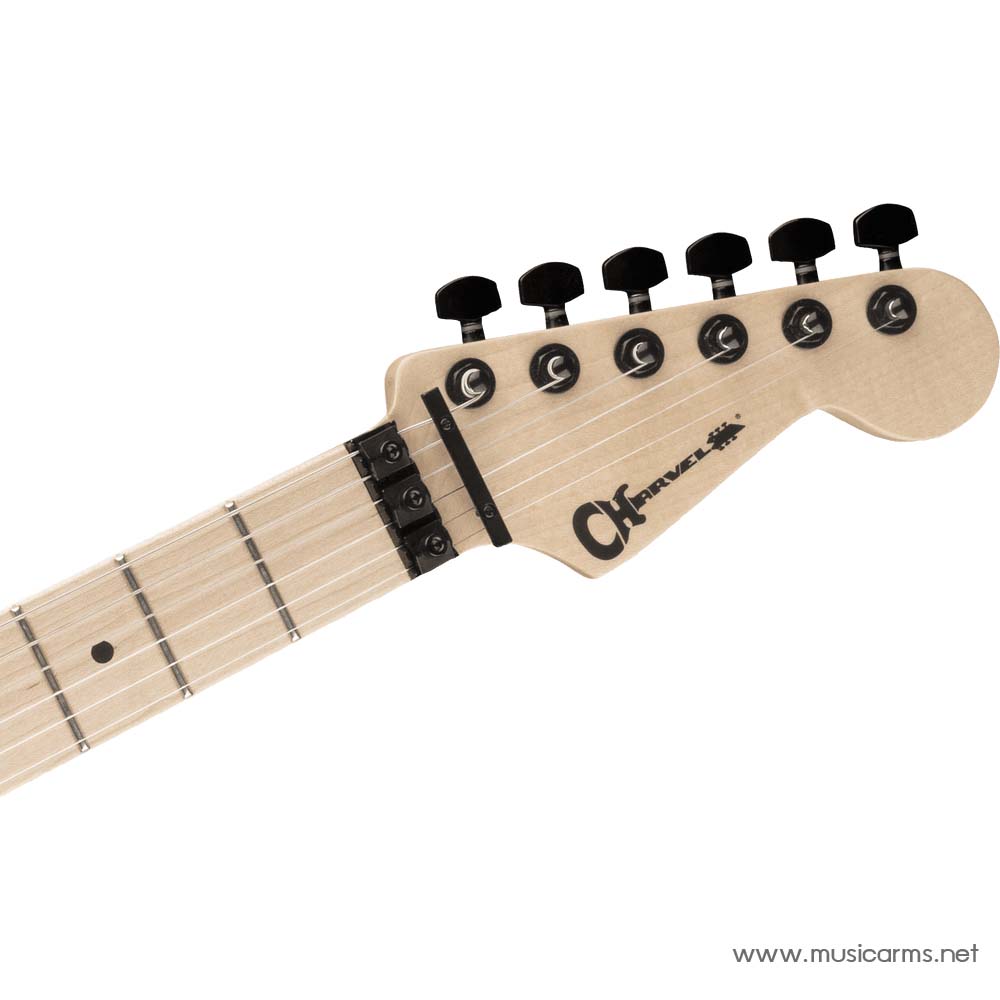

The bolt-on maple neck has a Fender® Stratocaster® headstock with Charvel-branded die-cast tuners, graphite reinforcement, heel-mount truss rod adjustment wheel and Charvel neck plate. Atop that is a 12”-16” compound-radius maple fingerboard with 22 jumbo frets and black dot inlays. Other features include a three-way toggle pickup switch, top-loaded Floyd Rose® 1000 Series double-locking tremolo bridge system, and more.

GENERAL

• Model Number: 2969001576
• Series: Artist Signature
• Platform: Artist
• Color: Satin White Bengal
• Number of Strings: 6
• Orientation: Right-Hand

ELECTRONICS

• Bridge Pickup: Fishman® Fluence® Classic PRF-CHB
• Neck Pickup: Fishman® Fluence® Classic PRF-CHB
• Pickup Color: Zebra (Black/White)
• Controls: Volume (Push/Pull Voice Activation)
• Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
• Special Electronics: Active Electronics
• Pickup Configuration: HH

BODY

• Body: Finish Satin
• Body Shape: Dinky™
• Body Material: Alder
• HARDWARE
• Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Top-Loaded)
• Hardware Finish: Black
• Tremolo Arm: Floyd Rose® 1000 Series Locking
• Tuning Machines: Charvel®-Branded Die-Cast
• Pickguard: None
• Control Knobs: Dome-Style
• Switch Tip: Black
• Saddle Height Wrench: N/A

NECK

• Neck Material: Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Binding: None – Rolled Fingerboard Edges
• Scale Length: 25.5″ (64.77 cm)
• Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Maple
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® 1000 Series Locking
• Nut Width: 1.6875″ (42.86 mm)
• Position Inlays: Black Dot
• Side Dots: Black
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Trees: Floyd Rose® Retainer Bar
• Headstock: Licensed Fender® Stratocaster®
• Neck Plate: 4-Bolt Serialized
• MISCELLANEOUS
• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Standard
