Crest Audio Stage 2x2D Audio Interface
ราคา : 19,800 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ
Description
Crest Audio Stage 2x2D: The Most Feature-Rich Dante-Enabled DI Box for Professionals
The Crest Audio STAGE 2x2D is a PoE-powered Dante/AES67 capable pro-audio A-D/D-A interface and a low-noise microphone/line-level pre-amp direct injection (DI) box. Featuring high-quality, low-noise pre-amplifiers with extended dynamic range for microphones, line-level signals, and Hi-Z instruments, the Stage 2x2D stands as the industry’s most complete and feature-rich DI box. Housed in a robust aluminum extruded case with recessed protected controls and removable rubber protective bumpers, it is perfectly suited for touring, live stage performances, recording, post-production ADR, and high-end network audio installations in hotels, casinos, and convention centers.
Key Features
- Dante® and AES67 Connectivity: Seamlessly converts and routes audio to a streaming network with two network return channels available as line-level outputs.
- Advanced Mic Pre-amp: Offers a wide gain range of -60 to +4dBu without the need for pads, maintaining a consistent 20dB of headroom across all settings with selectable +48V phantom power.
- High-Voltage Line Input Capability: The line pre-amp can accept extremely high signal levels up to +44dBu, making it capable of interfacing directly with 70V distributed power amplifier sound systems.
- 1MΩ Hi-Z Instrument Input: Ideally suited for classic guitar pickups, ensuring the highest fidelity for instrument direct recording or live performance.
- PoE Powered Efficiency: Powered via a suitable network switch or PoE injector, streamlining your setup by eliminating the need for external power adapters.
The Ultimate Network Audio Solution
The Crest Audio STAGE 2x2D combines professional-grade pre-amplification with modern network flexibility, addressing the most demanding needs of audio engineers worldwide. Whether you are managing a complex live stage or a large-scale integrated facility, this interface delivers the transparency and reliability you expect. Upgrade your audio workflow with the versatile power of the Stage 2x2D today.
Specification
Crest Audio Stage 2x2D Details |
|
|---|---|
| Type | Dante®/AES67 Interface & Professional DI Box |

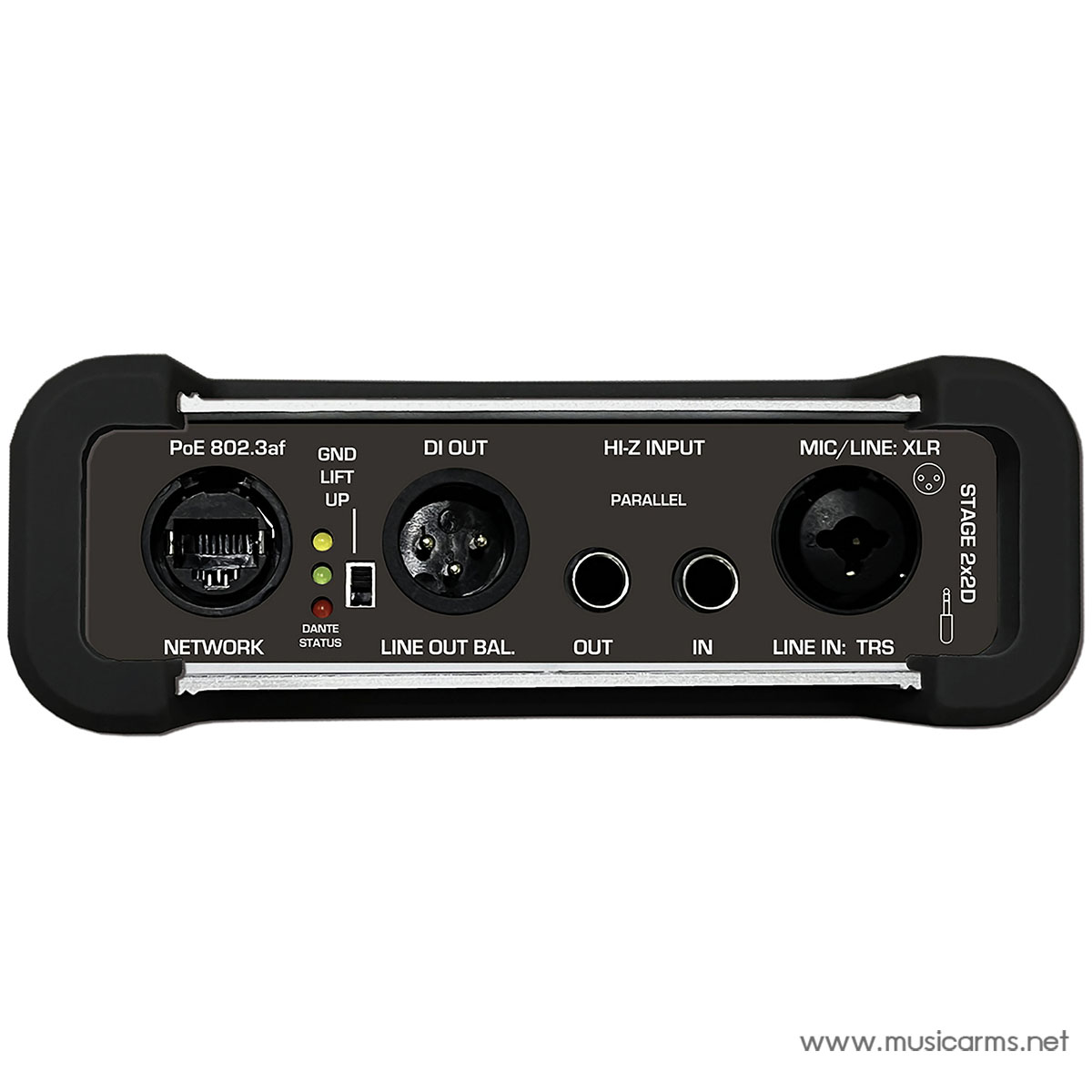

| Input Connectors | Combo XLR / 1/4” (Mic/Line), Hi-Z Instrument (optimized for pickups) |
| Output Connectors | DI-OUT +4dBu (selectable), Dante/AES67 2Ch Return Output |
| Pre-amplifiers | High Performance, low noise with 20dB Headroom and +48V Phantom Power |
| Mic Gain Range | -60 to +4dBu continuous gain range with no pad |
| Line Input Range | -40 to +24dBu, +44dBu peak (accepts 70Volt system or Amp output levels) |
| A-D Conversion | Two channel Analog to Digital converter to Dante/AES67 network |
| Power Supply | PoE powered IEEE 802.3 af/at |

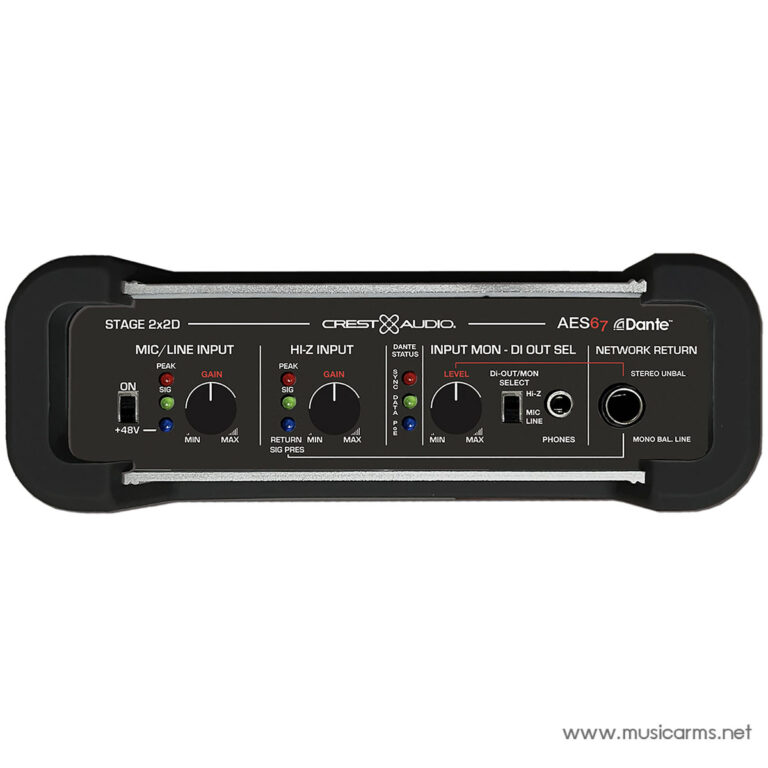

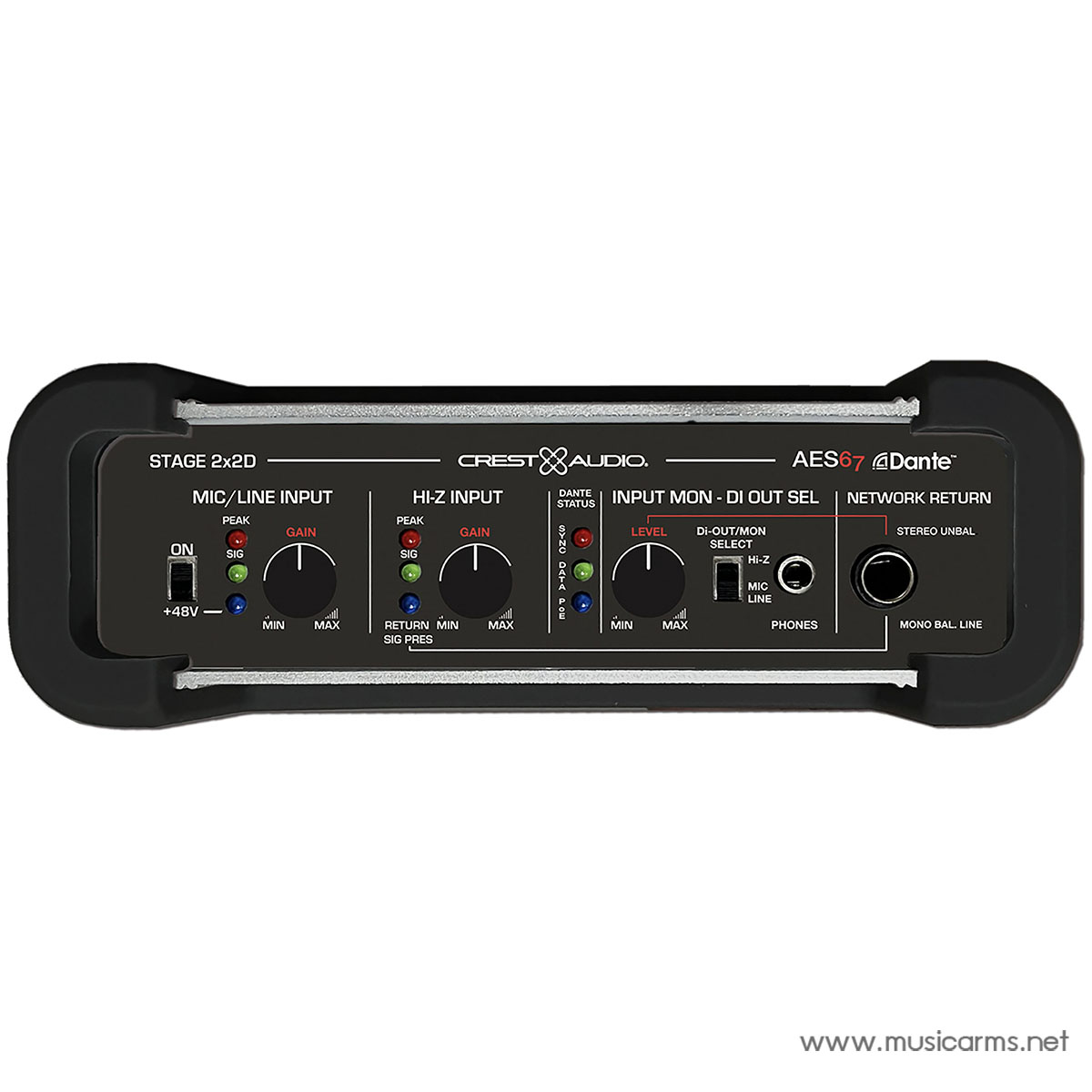

| LED Indicators | Front panel Signal Present/Peak, Network Status (PoE and Data) |
| Additional Features | Ground Lift switch, Headphone selection, Protective rubber bumpers |
| Mounting Options | Rack mount kit available (1U dual or single mount) |
ข้อมูลสินค้า
Crest Audio Stage 2x2D: อินเทอร์เฟซ Dante ระดับโปรและ DI Box ที่เพียบพร้อมที่สุดในหนึ่งเดียว
Crest Audio Stage 2x2D คืออินเทอร์เฟซเสียง A-D/D-A แบบใช้พลังงาน PoE ที่รองรับ Dante และ AES67 โดยทำหน้าที่เป็นทั้งปรีแอมป์ไมโครโฟนสัญญาณรบกวนต่ำ และ Direct Injection (DI) Box คุณภาพสูง รุ่นนี้ได้รับการออกแบบมาเพื่อให้เป็น DI Box ที่มีฟีเจอร์ครบถ้วนที่สุดตามความต้องการของมืออาชีพทั่วโลก โดดเด่นด้วยภาคปรีแอมป์ที่รองรับทั้งไมโครโฟน, สัญญาณ Line Level และเครื่องดนตรี Hi-Z ที่มีช่วงไดนามิกกว้างพิเศษ ตัวเครื่องบรรจุในเคสอลูมิเนียมฉีดขึ้นรูปที่แข็งแรงทนทาน พร้อมยางกันกระแทกที่ถอดออกได้ เหมาะสำหรับการใช้งานทั้งในสตูดิโอ งานแสดงสด และงานติดตั้งระบบเสียงผ่านเครือข่าย
คุณสมบัติเด่น
- รองรับระบบ Dante และ AES67: เชื่อมต่อและส่งสัญญาณเสียงผ่านเครือข่ายได้อย่างรวดเร็วและแม่นยำ พร้อมช่องรับสัญญาณ Network Return 2 ช่อง
- ปรีแอมป์ประสิทธิภาพสูง: รองรับสัญญาณไมโครโฟน (-60 ถึง +4dBu) โดยไม่ต้องใช้ Pad และมี Headroom สูงถึง 20dB ในทุกการตั้งค่า พร้อมจ่ายไฟ Phantom Power +48V
- อินพุต Hi-Z 1MΩ สำหรับเครื่องดนตรี: ออกแบบมาเป็นพิเศษเพื่อรองรับสัญญาณจากปิ๊กอัพกีตาร์คลาสสิก ให้เสียงที่ใสสะอาดและคงบุคลิกของเครื่องดนตรีไว้ครบถ้วน
- รองรับแรงดันสัญญาณสูงพิเศษ: ช่อง Line Input สามารถรับสัญญาณได้สูงสุดถึง +44dBu ซึ่งสามารถรับสัญญาณโดยตรงจากระบบลำโพง Volt Line 70V ได้
- ระบบจ่ายไฟผ่าน PoE: ทำงานสะดวกผ่านสายแลนเส้นเดียวโดยใช้ไฟจาก Network Switch หรือ PoE Injector ลดความยุ่งยากในการเดินสายไฟ
บทสรุปแห่งเครื่องมือเสียงยุคใหม่
หากคุณต้องการความสมบูรณ์แบบในการแปลงสัญญาณเสียงเข้าสู่ระบบเครือข่ายดิจิทัล Crest Audio Stage 2x2D คือโซลูชันที่ตอบโจทย์ทั้งความยืดหยุ่นและความทนทาน ไม่ว่าจะใช้ในการทำ ADR งานโพสต์โปรดักชัน หรือระบบกระจายเสียงในคาสิโนและศูนย์ประชุม ยกระดับมาตรฐานเสียงของคุณด้วยเทคโนโลยีที่ทันสมัยที่สุดจาก Crest Audio ได้แล้ววันนี้
รายละเอียดคุณสมบัติ
Crest Audio Stage 2x2D Details |
|
|---|---|
| ประเภทอุปกรณ์ | Dante®/AES67 Interface & Professional DI Box |
| อินพุต | Combo XLR / 1/4” (Mic/Line), Hi-Z Instrument ( optimized for guitar) |
| เอาต์พุต | DI-OUT +4dBu (เลือกจาก Hi-Z หรือ Mic/Line), Dante/AES67 2Ch Return Output |
| ภาคปรีแอมป์ | Low noise Mic/Line/Hi-Z พร้อมค่า Headroom 20dB และ Phantom Power +48V |
| ช่วงรับสัญญาณไมโครโฟน | -60 ถึง +4dBu (Continuous gain range โดยไม่ต้องใช้ Pad) |
| ช่วงรับสัญญาณ Line Input | -40 ถึง +24dBu (รองรับ Peak สูงสุด +44dBu สำหรับระบบ 70V หรือ Output จาก Power Amp) |
| การแปลงสัญญาณ | Analog to Digital (2 Channel) รองรับเครือข่าย Dante/AES67 |
| การใช้พลังงาน | PoE (Power over Ethernet) มาตรฐาน IEEE 802.3 af/at |
| ไฟสถานะ LED | Signal Present/Peak (หน้าเครื่อง), PoE และ Data Status |
| คุณสมบัติเสริม | Ground Lift switch, Headphone output selection, ขอบยางกันกระแทก (Rubber bumpers) |
| การติดตั้ง | รองรับชุด Rack mount kit (1U single หรือ dual mount) |
