DENON PROFESSIONAL DN108LF (PC)

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Denon

ราคา : 6,990 บาท

รุ่น :  Denon DN108LF ตู้ลำโพง Active Speaker
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ DENON PROFESSIONAL DN108LF (PC)ผ่านline สั่งซื้อ DENON PROFESSIONAL DN108LF (PC)ผ่าน messenger

วีดีโอ


Description

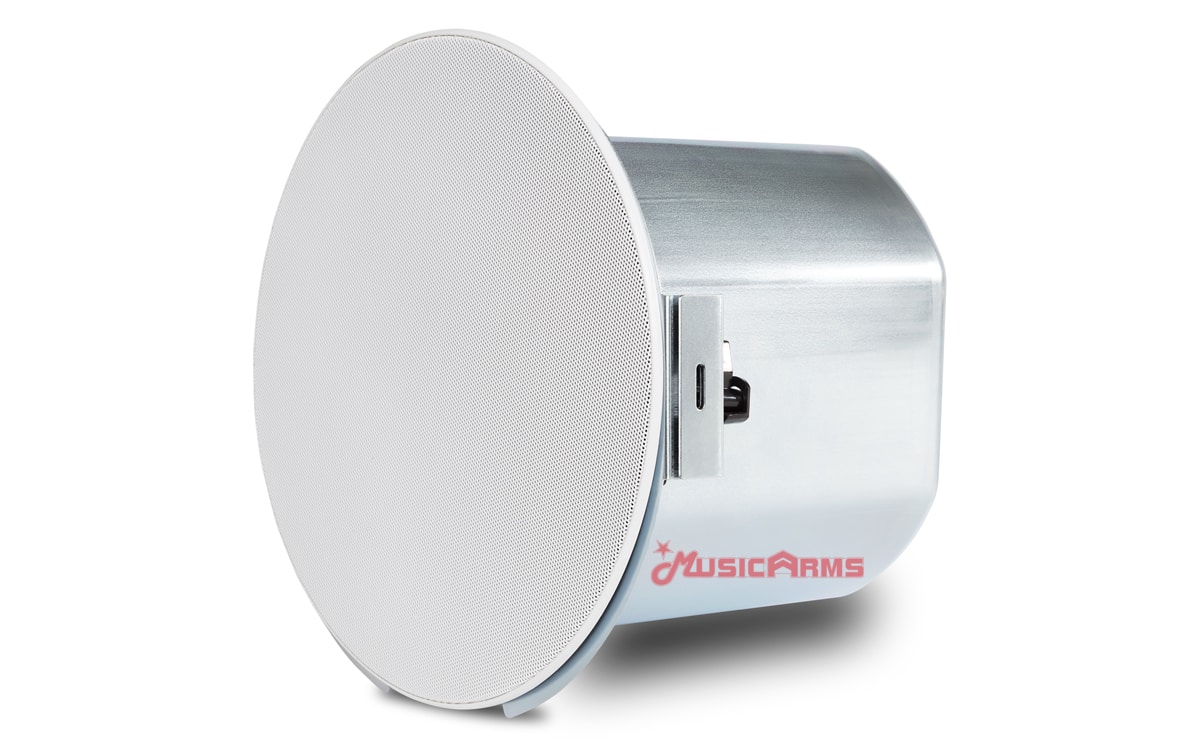

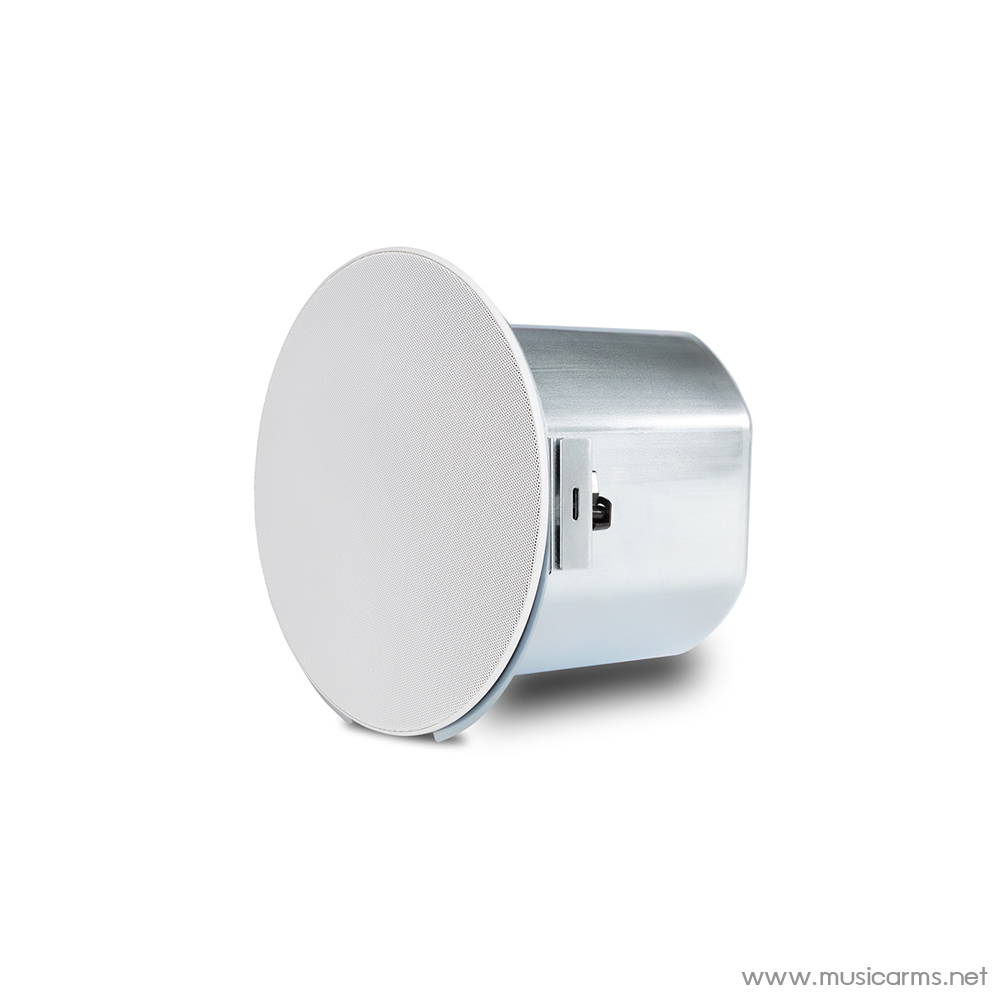

The Denon Professional DN-108LF ceiling subwoofer is designed to deliver exceptionally accurate, articulate low frequency reinforcement while easily meeting commercial requirements for fire-resistance and suitability for multiple unit installation. To achieve this it employs a single 8.25″ long-excusrion, low frequency driver in a ported enclosure.

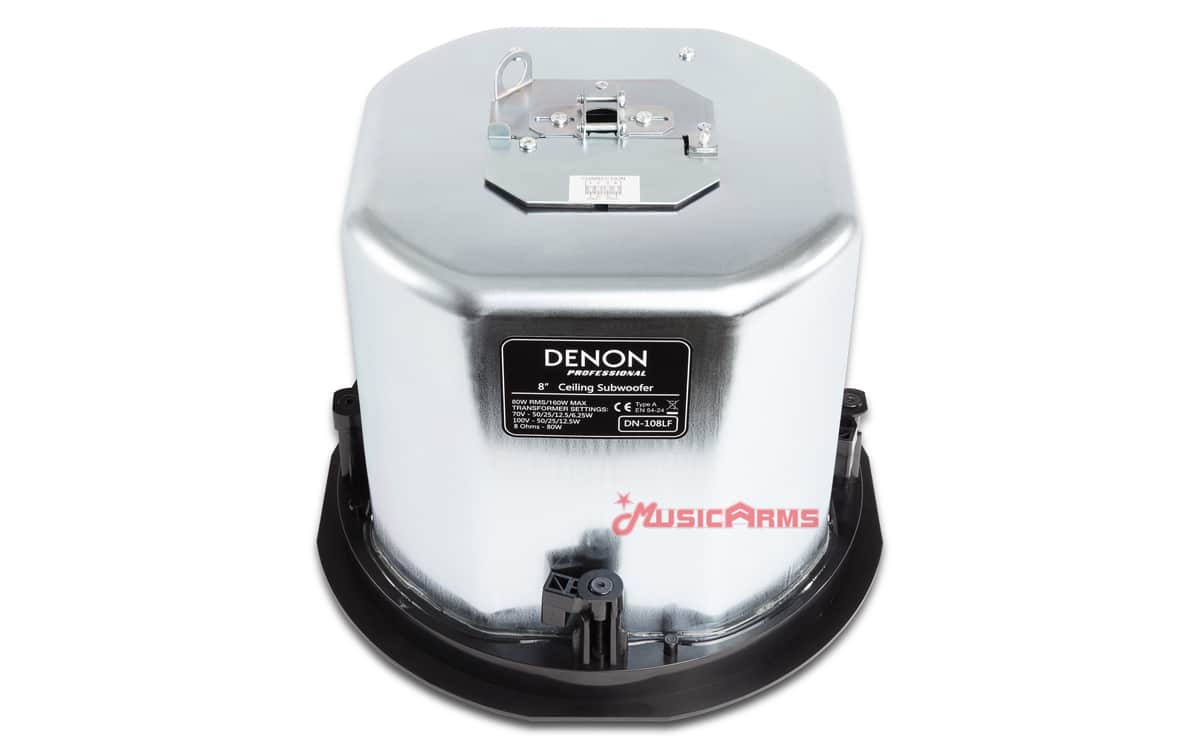

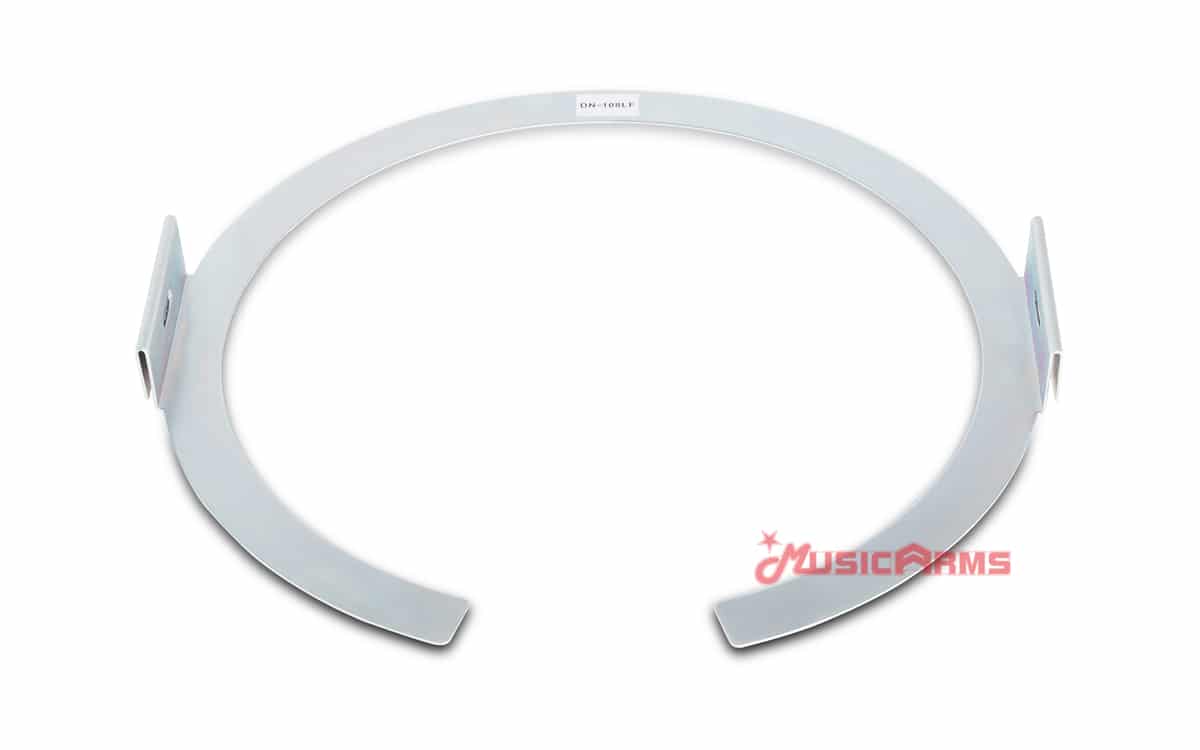

The DN-108LF features a metal can rear enclosure, which provides a fire barrier behind the speaker to meet local commercial fire codes. It also serves as the woofer’s enclosure to optimize bass tuning and low-frequency response. Mounting is accomplished via the familiar “dog leg” bracket design. The speaker has 70/100-volt transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformerless speakers. Low impedance use is also accomodated via the 8-ohm transformer bypass. The DN-108LF utilizes a 4-pin Euroblock for easy connection to subsequent speakers.

A built-in crossover network enables the DN-108LF to be connected directly to a full-range audio source or paralleled from existing full-range speakers for operation. This high-quality speaker in a tuned reflex enclosure is perfect for music applications, public address demands and business/educational presentations, while meeting safety and fire codes as required by commercial venues.

  • 8″ Ceiling subwoofer
  • 80W Power handling (160W peak)
  • Designed for 70V/100V/8Ω installations
  • Built-in crossover network, no external processing necessary
  • 4-pin Euroblock connection
  • Mounting hardware included
  • EN 54-24 compliant

Specification

System Specification

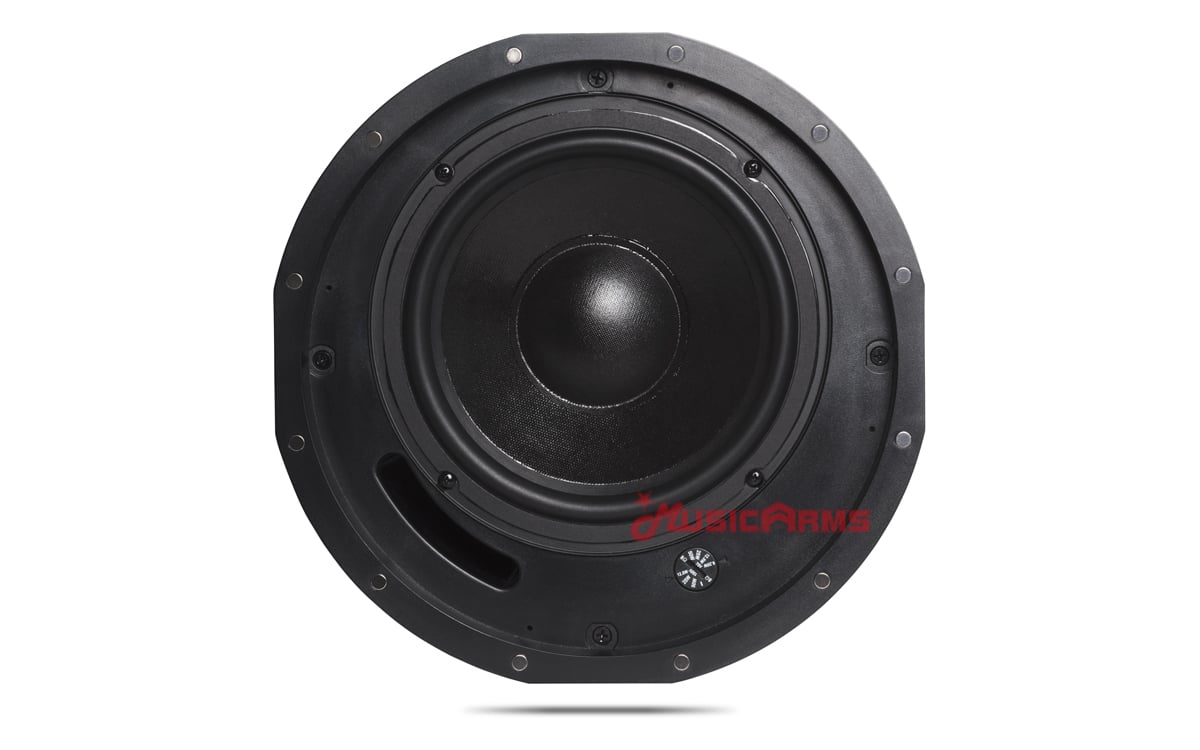

  • Driver Diameter:8.25″ (210mm)
  • Voice Coil:35mm
  • Frequency Response:53 – 2.3kHz
  • Power Handling:80W continuous (160W peak)
  • Sensitivity:89dB (1W/1m)
  • Speaker Connection:4-pin Euroblock
  • Regulatory Compliance:EN 54-24

Transformer Power Taps

  • 70V – 50, 25, 12.5, 6.25W
  • 100V – 50, 25, 12.5W

Physical

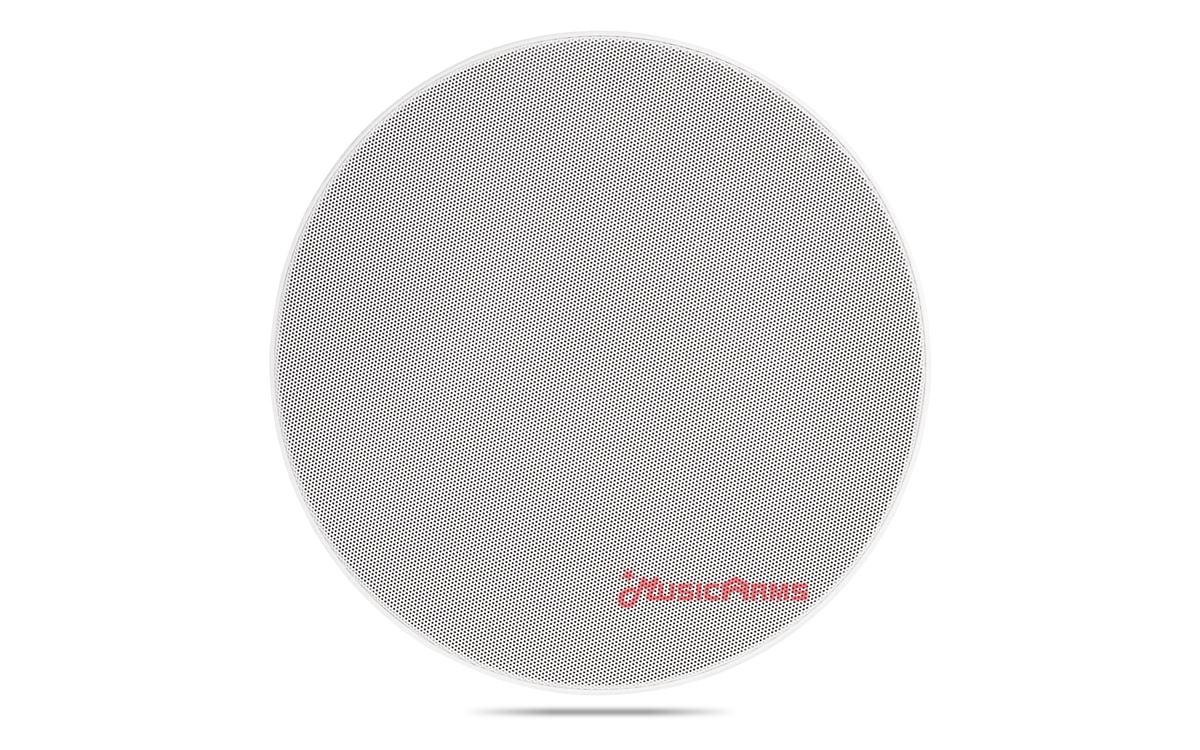

  • Grille Material:Steel
  • Cut-out Hole Diameter:10.75″ (273mm)
  • In-ceiling Clearance:8.75″ (222mm)
  • Weight:13.9 lbs. (6.3kg)
