EFNote Pro 701 กลองไฟฟ้า

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Efnote

ราคา : 219,000 บาท

รุ่น :  Efnote Pro 701 กลองไฟฟ้า Electronic Drum
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com

สั่งซื้อ EFNote Pro 701 กลองไฟฟ้าผ่านline สั่งซื้อ EFNote Pro 701 กลองไฟฟ้าผ่าน messenger

วีดีโอ


Description

Enhance the Stage

EFNOTE PRO is designed to digitize your drum riser, then elevates your stage.

By simply connecting up to 12-ch XLR outputs to your stage snake or sound-board, you will be receiving the highest quality drum sounds on the market with absolute consistency and perfect isolation.

No More Acrylic Panel

There is no need to isolate your drummer from the choir, acoustic instruments, the audience and congregation. Your drummer is now free to connect and engage with everyone!

EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity and balance.

Stage-Box Reliability

EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.

Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.

Each channel is equipped with HPF, 2-band EQ, compressor (Bus 1-6) and ground lift switches.

Flexibility for All Music

EFNOTE PRO supports 7 shells and 8 cymbals, and all pads are individually wired, so players can adapt to any musical environment.

All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.

With a full 12-ch of multitrack USB Audio and 16-ch USB MIDI simultaneously, allowing a drummer, producer or mixer access to quick editing, in order to meet artist’s budget requirements.

Specification

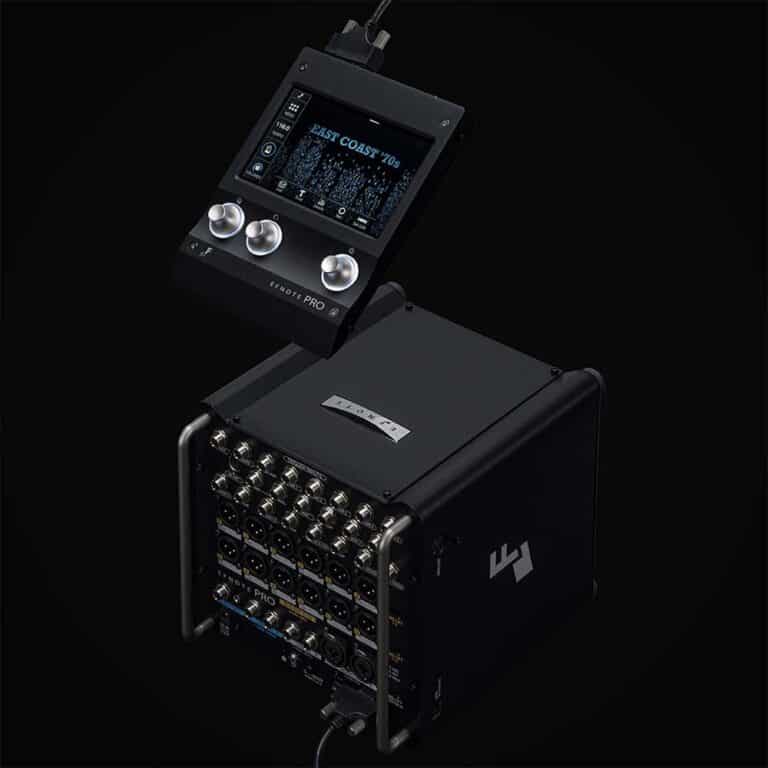

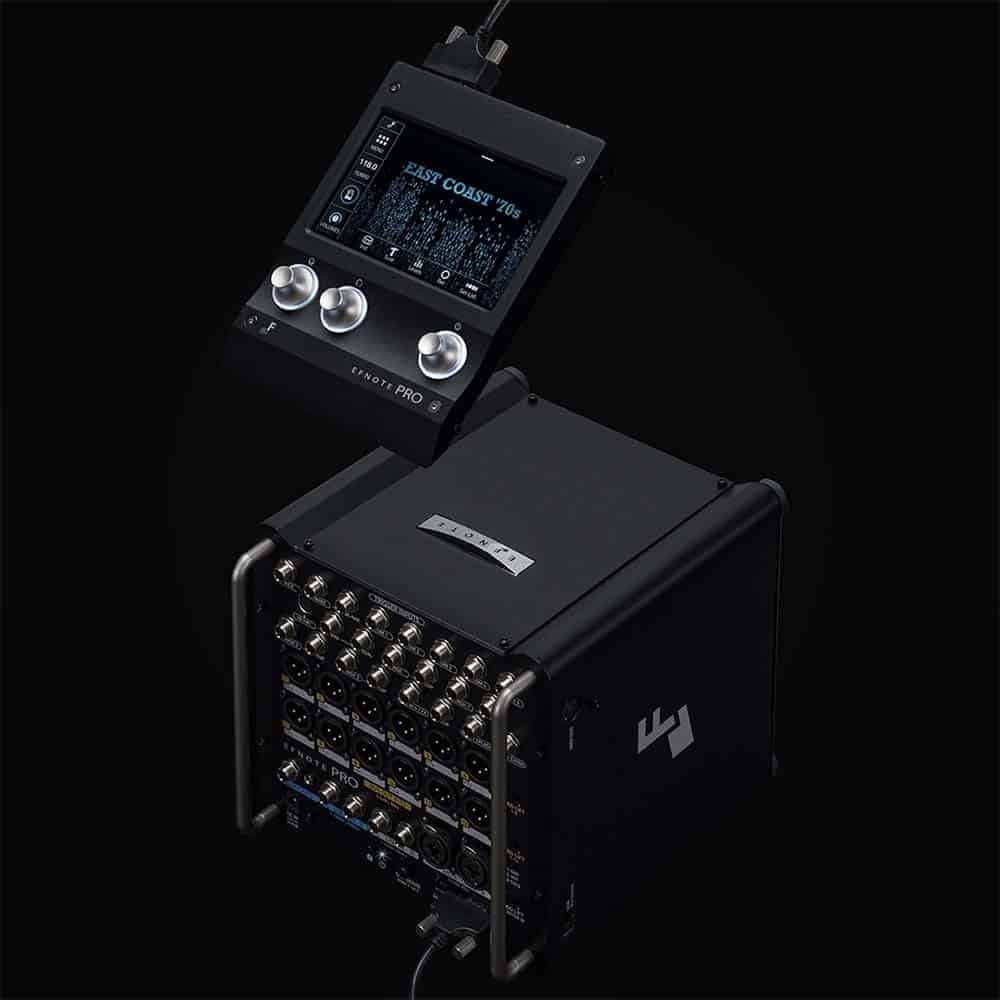

EFNOTE PRO Sound Module: EFD-PRO

User Interface
  • Full Color, Capacitive Touchscreen Display
  • 2x Multi-Function Knob (with Ring LED)
  • 1x Value Knob (with Ring LED)
Trigger Interface
  • 3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat
  • 2-Zone (7x): Tom 1/2/3/4/5, Crash 5(Splash), Crash 6(China)
  • 1-Zone (1x): Kick
  • ELISE™ 2.0 Trigger Sensing Chip
Audio / MIDI Interface
  • Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12)
  • Line Out: 2x 1/4” TS Phone (-10dBV, Unbalanced, +14dBV Max)
  • Phones Out: 1x 1/4” Stereo (320 + 320 mW @32Ω), 1x 1/8” Stereo (320 + 320 mW @32Ω)
  • Monitor In: 2x XLR(F) + 1/4” TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw
  • Line In: 2x 1/4” TS Phone (-10dBV, Unbalanced, +10dBV Max)

0dBu = 0.775Vrms, 0dBV = 1.0Vrms

    • USB: B Type USB 2.0 Hi-Speed
      Audio: 12ch Out (48kHz/24bit) / 2ch In (48kHz/16bit), Mac/Windows ASIO
      MIDI: In/Out
    • Bluetooth: Audio Input (A2DP)
    • Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT)

Transmission Frequency: 2402-2480 MHz, Maximum Transmit Power: 2.5 mW EIRP

  • MIDI Out: 5-pin DIN
Other Interfaces
  • Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only)
  • USB (Flash Drive): A Type USB 2.0 (supports flash drive only)
  • USB (For Service): B Type (for service purpose only)
Drum Kits / Instruments
  • Preset Drum Kits: 23 (editable)
  • User Drum Kits: 100
  • Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements
  • Tru-Aco™ Sound Technology
Edit Parameters
  • Level, Pan, Tuning, Muffling (for each pad)
  • 2-Band EQ (for each pad)
  • Overlay Tone (for each zone)
  • Global Pan (for all drum kits in common)
  • Changable Kit Name Color and Background Kit Image (for each user drum kit)
Click
  • 4x Click Setup Memory
  • Tempo (BPM): 40.0-240.0 (0.1 Step)
  • Beat (Time Signature): 1/4-13/4, 2/8-13/8
Set-List
  • 15x Set-List (20 slots for each list)
  • Array-style 20 slot buttons
  • Slot Tag Color and Slot Notes feature
  • Tempo and Beat Settings for each slot
  • Each set-list can be saved to a USB flash drive
Recorder
  • Tracks: 15
  • Resolution: 480 TPQN
Buses
  • 16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R)
  • Bus HPF and EQ (Bus 1-12), Bus Compressor (Bus 1-6)
  • 12x Bus Outputs (12x XLR Analog and 12ch USB Audio)
  • Bus Mixer
  • Main HPF and EQ (Main L/R)
Other Features
  • Inst Expansion
  • Foot Light
  • Ground Lift Switches (for Bus Out and Monitor In)
  • Full Metal Cabinet
  • Guard Handles
Dimensions / Weight
  • Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g
  • Base Unit: 206 (W) x 210 (D) x 238 (H) mm / 3,250 g

Excluding protrusions
Power Supply / Current Draw
  • AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A
Accessories
  • 1x Link Cable 2.0m (EFD-DSUB9-2)
  • 1x AC Adapter (FJ-SW1202000N-EFNOTE)
  • 10x Trigger Cable 3.0m (EFD-TRS-LL3)
  • 1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3)
  • Module Mount Set
  • Smartphone Tray Set
  • Tuning Key
  • Cable Ties
  • Cable Labels
  • Quickstart Guide

×
