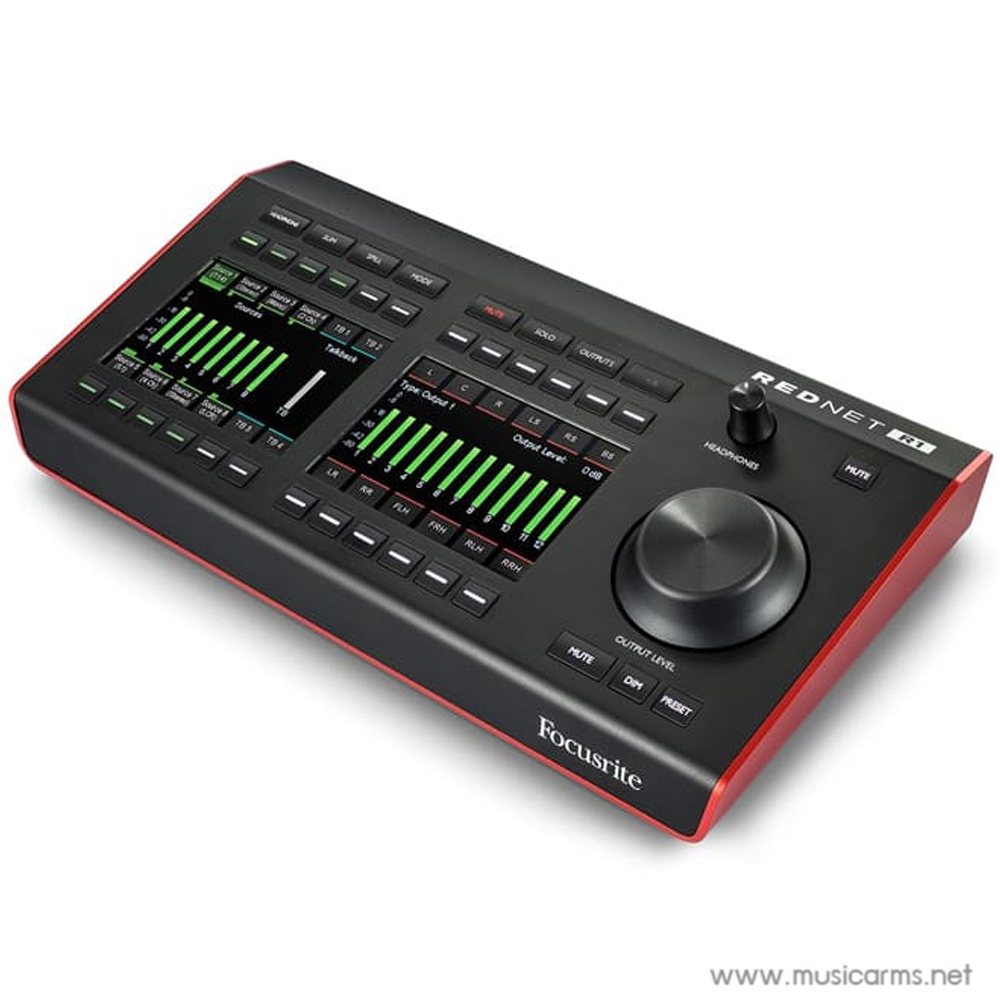

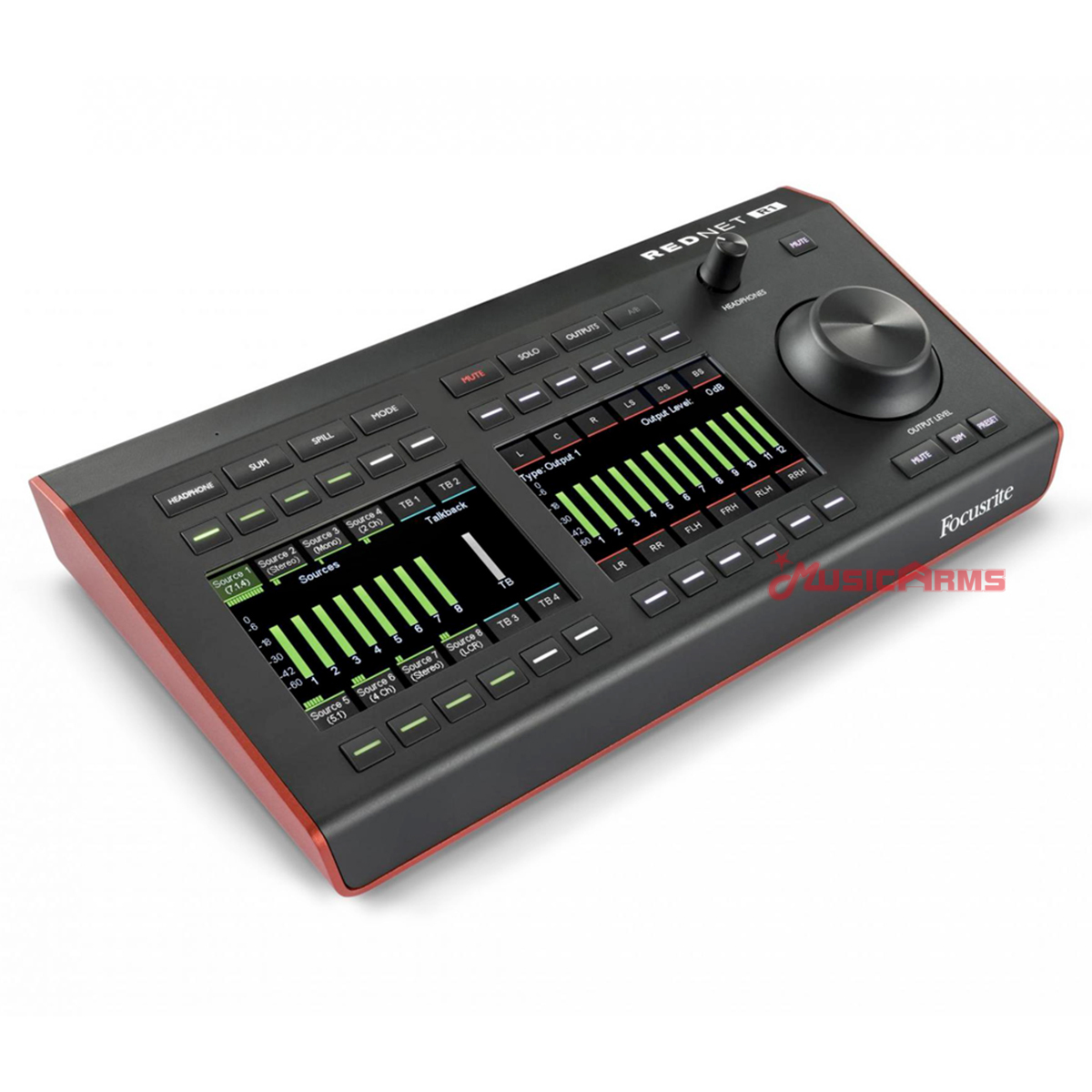

Focusrite REDNET R1

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Focusrite
รุ่น :  Focusrite REDNET R1 ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 34,900 บาท

การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ Focusrite REDNET R1ผ่านline สั่งซื้อ Focusrite REDNET R1ผ่าน messenger

วีดีโอ


YouTube video

YouTube video

Description

Unleash The Power Of Red

RedNet R1 is designed for professionals who need to adapt their audio configurations quickly to suit the ever-increasing demands of the studio environment, and interact with their audio system like never before. Inputs from one of eight source groups (each of up to 12 channels per source, from 32 total channels) can be mixed and routed to up to 12 monitor output channels, formatted from mono through to 7.1.4 surround, providing the flexibility to monitor in a range of common setups including Dolby Atmos® and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations.



RedNet R1 can be set up to control groups of outputs from the multitude of sources and destinations available to Red interface users. From Pro Tools™ | HD and other DAWs, analogue inputs and outputs, ADAT and S/PDIF connections, and from entire Dante® audio ecosystems, audio can be switched and summed cross platforms, simultaneously and interchangeably. Top-panel control includes level, reference level preset selection, dim, mute and a variety of solo modes. There’s an A/B switch for switching between monitoring presets, and up to four fold-down presets allow fast switching for checking downmixes.



RedNet R1 also features Dante-enabled talkback, an internal mic preamp for connecting an external talkback mic, built-in microphone and a high-powered headphones output, so you can monitor audio inputs and outputs, and interact with talent and other users on the system. Up to four talkback destination groups are available when used with a Red interface (when used with other Dante devices, a single talkback group is available).



Two LCDs display highly accurate level metering of the outputs, sources and headphone outputs, and provide visual cues for navigating menus. RedNet Control software is used to quickly set up both simple and complex monitoring and routing configurations. Other features include a quarter-inch jack socket, which accepts a footswitch for talkback management, LFE muting and more. RedNet R1 can be powered via Ethernet to reduce cabling complexity (using the PoE standard), or by the supplied DC power supply.



  • The first Dante®, Pro Tools™ | HD and Thunderbolt™ interface system with a monitor controller
  • Supports a maximum of eight source groups, each of up to 12 channels per source, to a maximum of 32 total channels.
  • Supports up to 12 monitor output channels formatted from mono through to 7.1.4 surround
  • Flexible monitor controls include level, preset level selection and lock, plus dim, mute and a variety of solo modes
  • A/B switch for switching between monitoring setups
  • Up to four fold-down presets allow fast switching for checking downmixes
  • Talkback functionality provides four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices
  • Built-in internal microphone, or users can connect their own via the rear-panel XLR
  • Two LCDs display highly accurate level metering of the outputs, sources and headphone outputs, and give visual cues for navigating menus
  • High-fidelity headphone output can take its source from a multitude of analogue or digital locations
  • RedNet Control software with hardware focused workflow is designed for quickly setting up simple or complex configurations
  • Quarter-inch jack footswitch input socket for talkback management, LFE muting and more
  • Powered via Ethernet (using the PoE standard), or using the supplied DC power supply

Specification

INTERNAL TALKBACK

  • Note:All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
  • Gain Range:0dB to 55dB
  • Type:Electronically Balanced, Zin = 3kΩ
  • Max. Input Level:+10dBu ± 0.5dB



EXTERNAL TALKBACK

  • Note:All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
  • Gain Range:0dB to 55dB
  • Max. Input Level:+10dBu ± 0.5dB
  • Frequency Response:20Hz – 20kHz ± 2dB
  • THD + N:Less than -98dB (0.0012%) @ -1dBFS
  • EIN:Less than -128dBu ‘A’-Weighted (typical)
  • Signal-To-Noise Ratio:-111dB ‘A’-Weighted (typical), min gain
  • Common-Mode Rejection Ratio:50/60Hz CMRR: <-77dB
  • Type:Electronically Balanced, Zin = 3kΩ



HEADPHONE OUTPUT

  • Note:All measurements taken at +19dBm reference level, maximum gain, RL = 600Ω
  • 0 DBFS Reference Levels:+11dBm
  • Frequency Response:20Hz to 20kHz ±0.5dB
  • THD + N:-100dB (0.001%) @ -1dBFS, Rs = 150R
  • Dynamic Range:108dB ‘A’-weighted (typical), 20Hz – 20kHz
  • Noise In Presence Of Signal (NiPoS):Greater than -97 dBu ‘A-Weighted’
  • Output Impedance:5Ω
  • Headphone Impedance:32Ω – 600Ω



MICROPHONE/ LINE CROSSTALK

  • Mic Input To Headphone Output:Less than -122dB; 20Hz – 20kHz (all other channels at 0dBFS)
  • Headphone Output To Mic Input:Less than -84dB; 20Hz – 20kHz (all other channels at 0dBFS)



HEADPHONE CROSSTALK

  • Left To Right:Less than -85dB; 20Hz – 20kHz (all other channels at 0dBFS)
  • Right To Left:Less than -85dB; 20Hz – 20kHz (all other channels at 0dBFS)



DIGITAL PERFORMANCE

  • Supported Sample Rates:44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
  • Clock Sources:Internal or from Dante Network Master

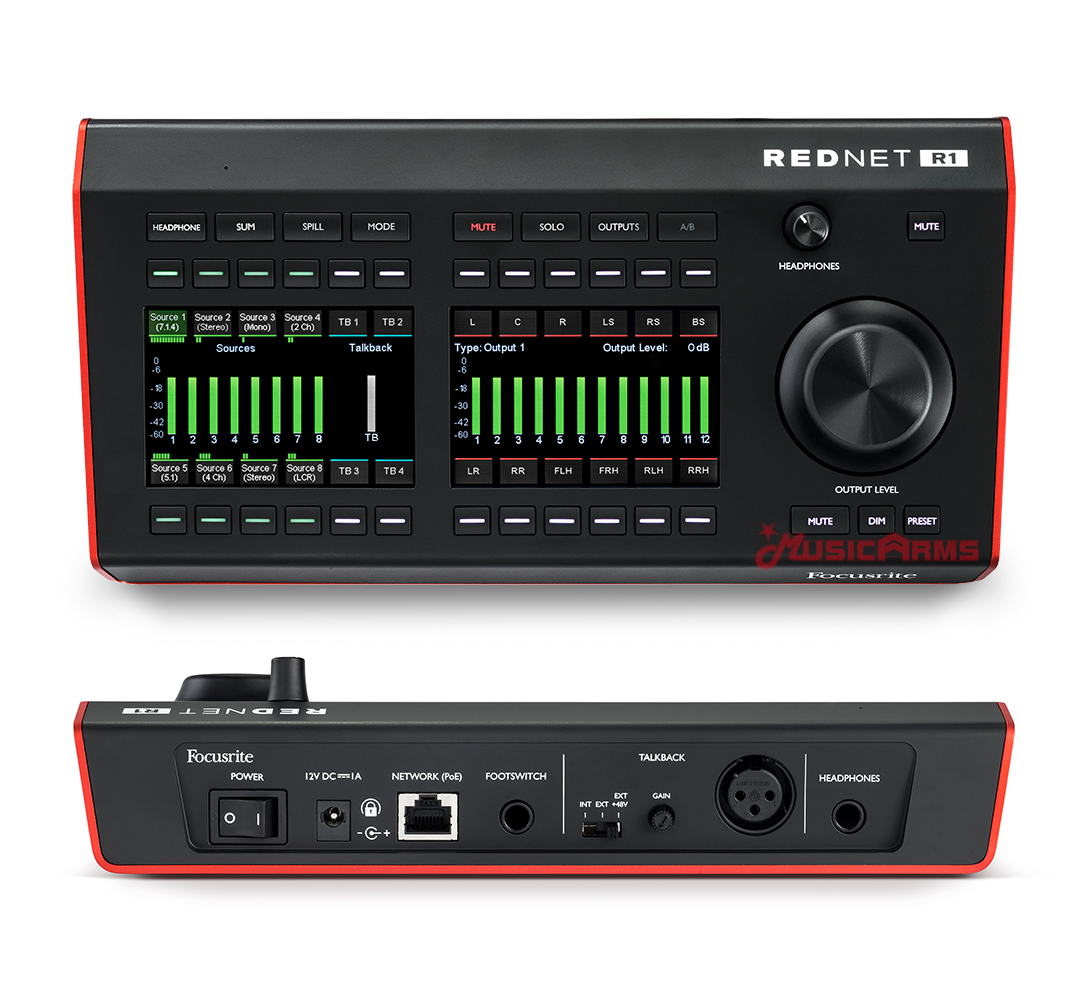

REAR PANEL CONNECTIVITY, POTS & SWITCHES

  • External Talkback Mic Input:1 x XLR (F)
  • Foot Switch:1 x 1/4″ stereo jack



OUTPUTS

  • Headphone Outputs:1 x 1/4″ stereo jack
  • POTS & SWITCHES
  • Power Switch:1 x Switch
  • Talkback Gain Pot:1 x Pot
  • Talkback Switch:1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback)



INPUTS

  • PSU & NETWORK CONNECTIONS
  • PSU (PoE And DC):1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector
  • Network:1 x Standard RJ45 connector

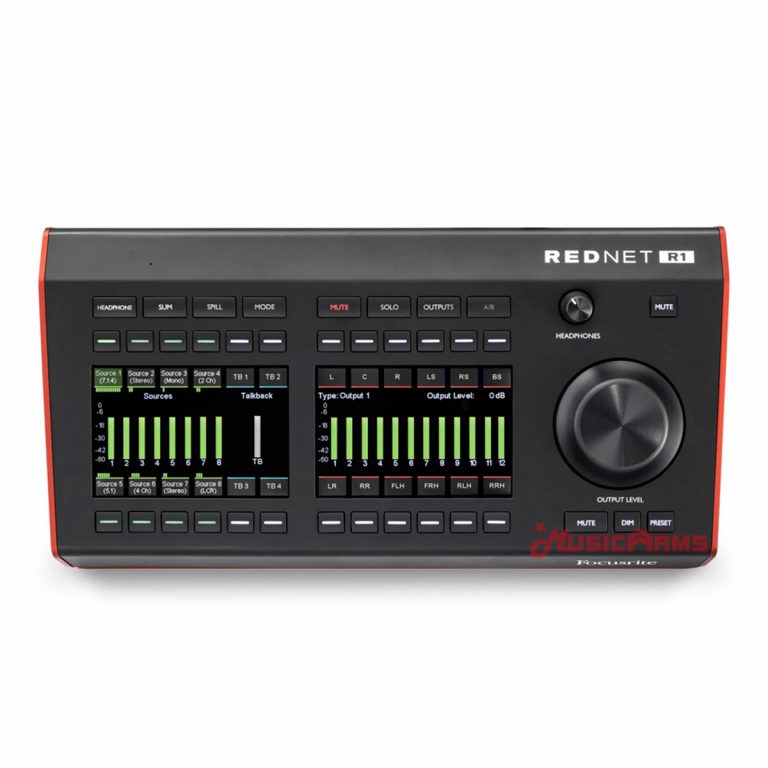

TOP PANEL INDICATORS

  • LCD Screens:2 x Screens (Control, Status, Metering & Menus)
  • Control Functions:2 x Continuous Pot (Level & Dim). 1 x Pot (Headphone Output). 24 x Multi-Function Switches (Sources, Talkback, Monitor Outputs & Menu Items). 12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock)



POWER

  • Power Over Ethernet (PoE):Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
  • DC Power Supply:1 x 12V 1.2A DC Power Supply
  • Power Consumption:PoE: 10.3W – DC: 9W (When using supplied DC PSU)



HEAT PERFORMANCE

  • Operating Temperature:Operates at up to an ambient temperature of 40 degrees Celsius
