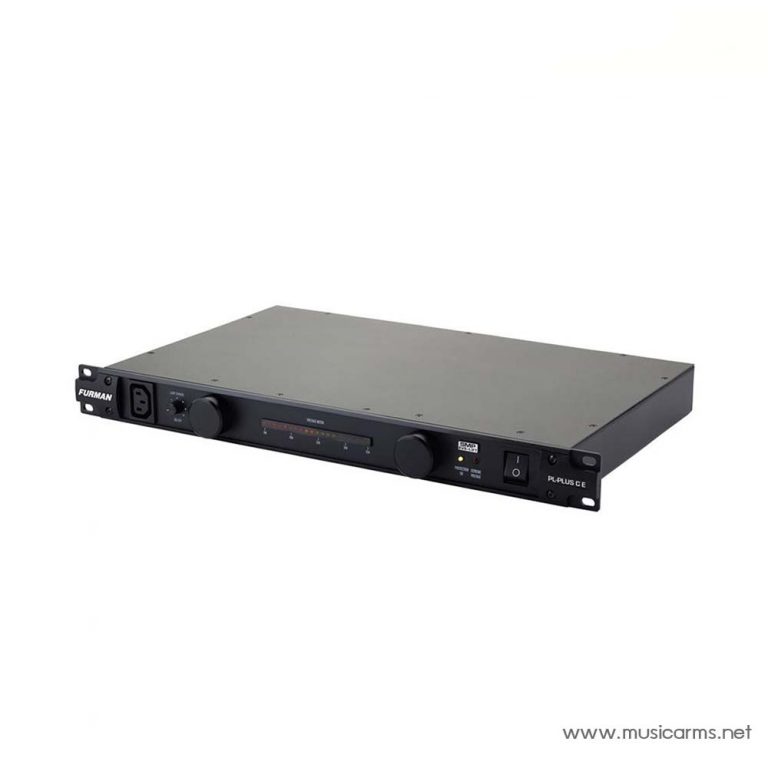

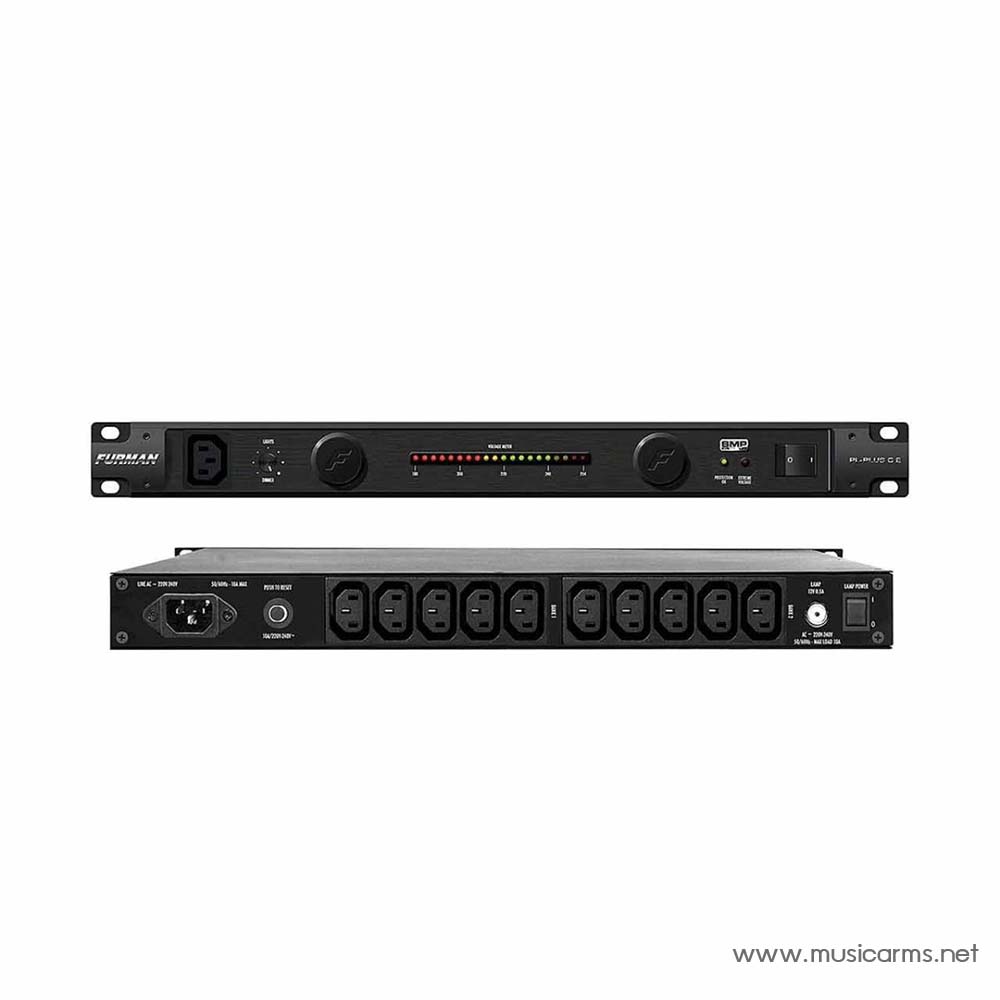

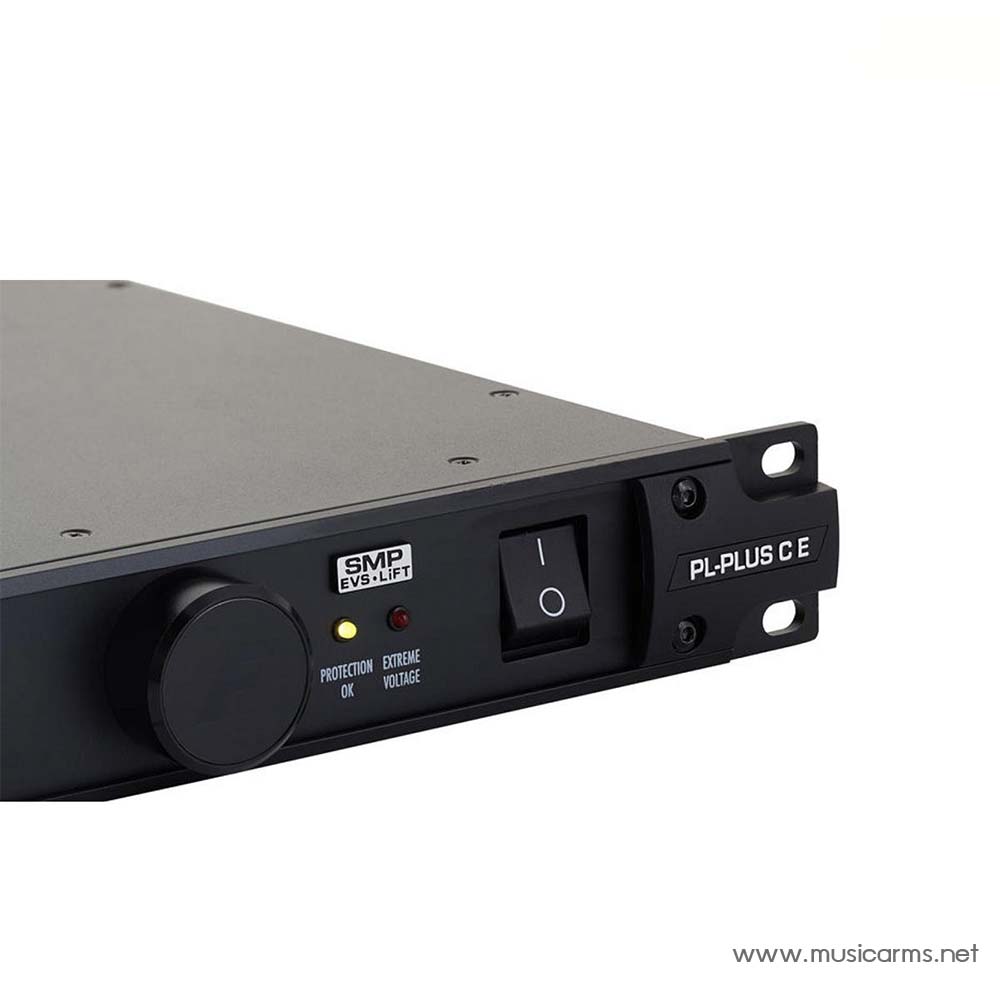

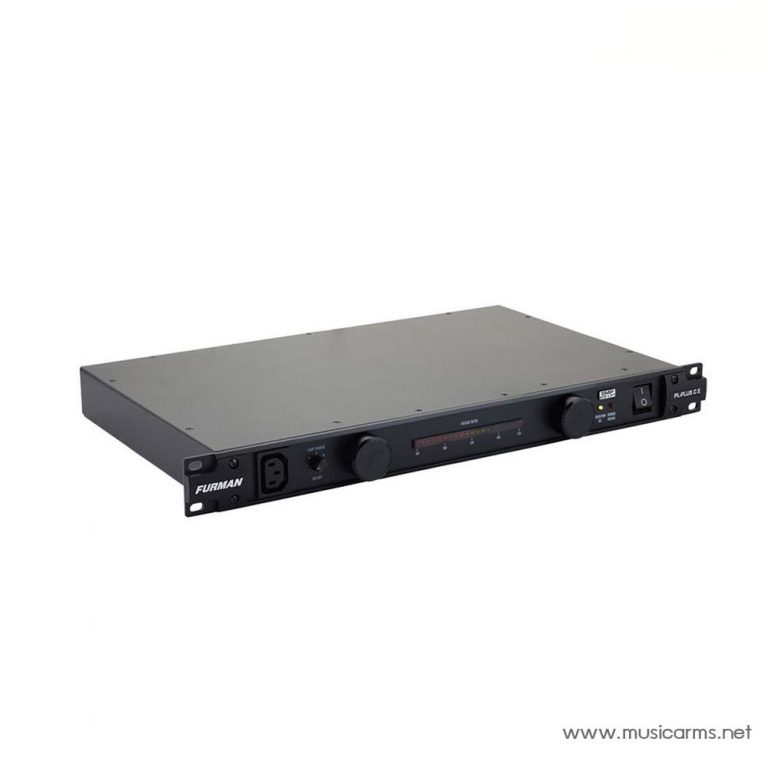

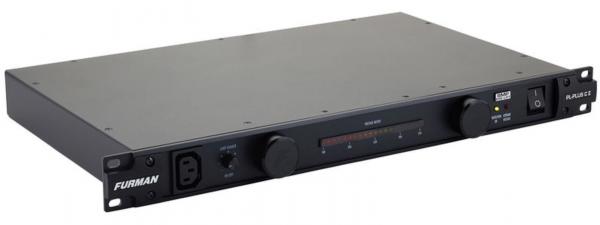

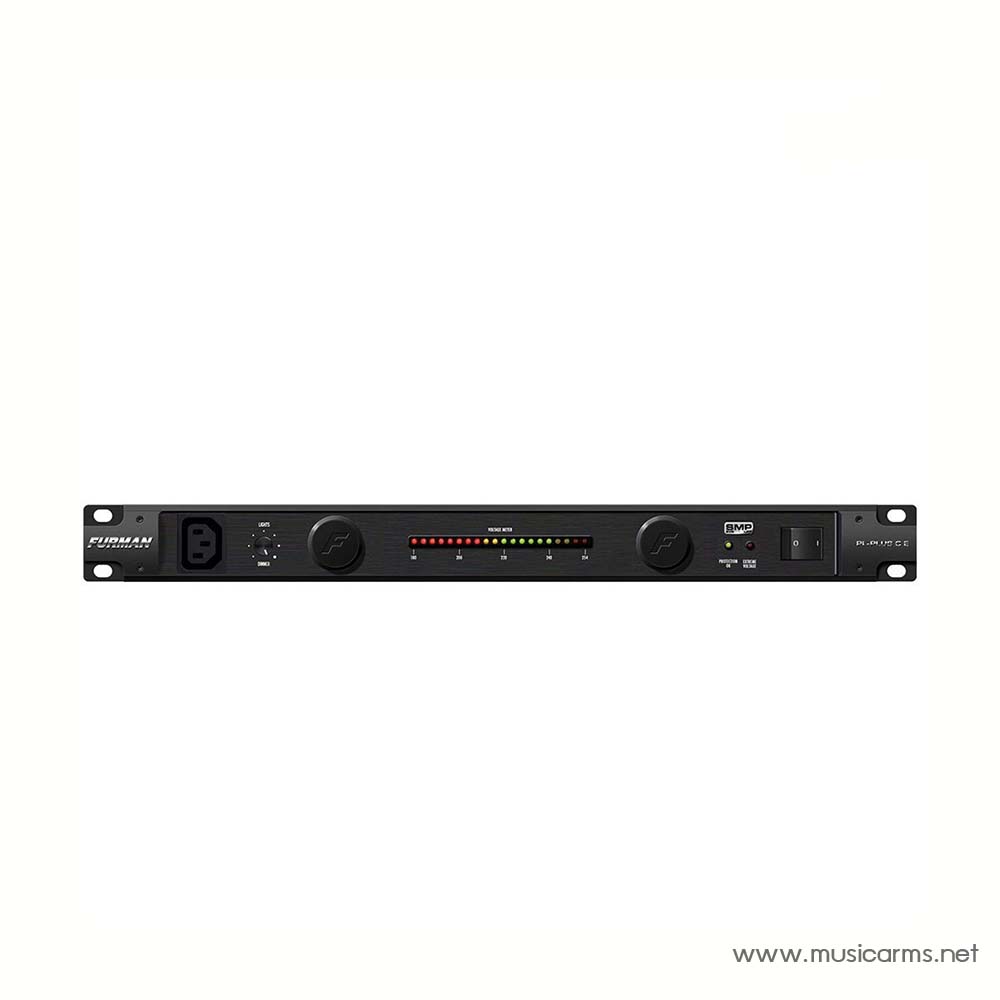

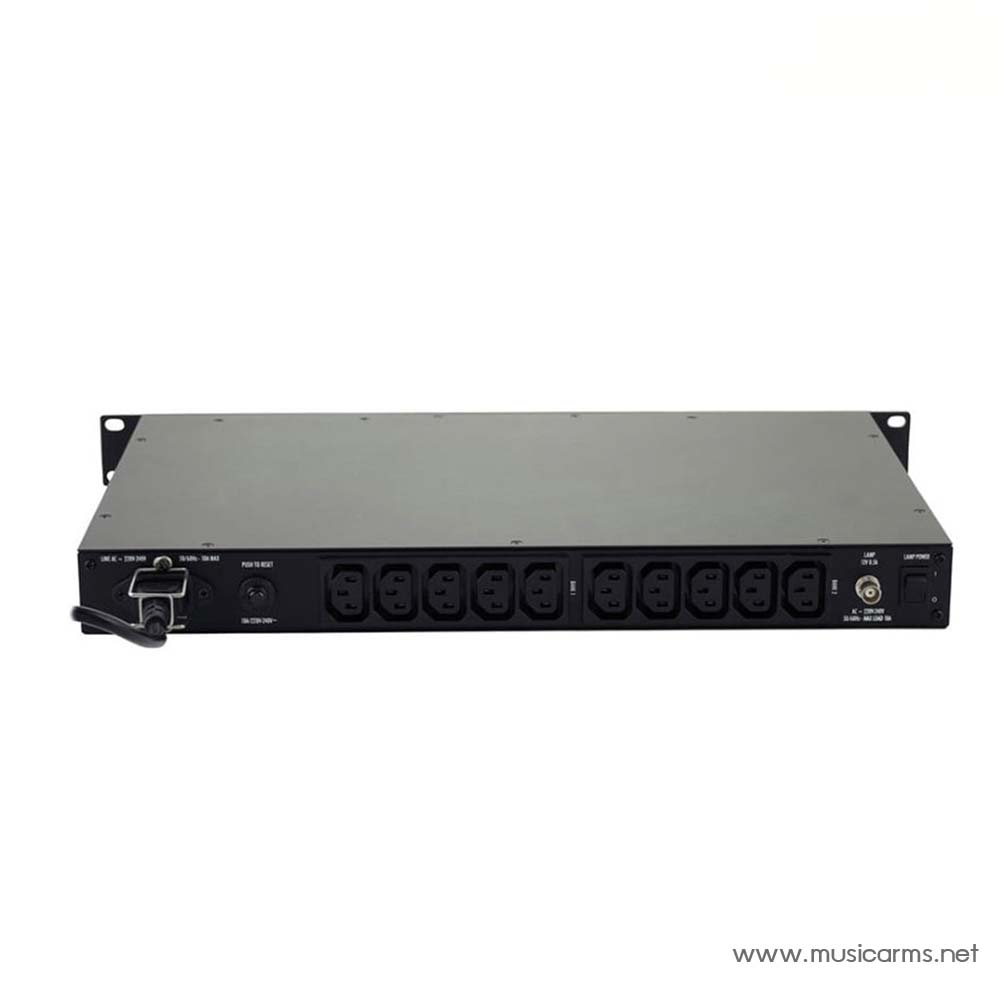

Furman PL-PLUS C E เครื่องกรองกระแสไฟฟ้า

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Furman

ราคา : 19,800 บาท

22,000 บาท ประหยัด10%
รุ่น :  Furman PL-PLUS C E เครื่องกรองไฟ
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ Furman PL-PLUS C E เครื่องกรองกระแสไฟฟ้าผ่านline สั่งซื้อ Furman PL-PLUS C E เครื่องกรองกระแสไฟฟ้าผ่าน messenger

วีดีโอ


Description

Furman PL-PLUS C E

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner…You’re going to plug that into the wall? One big spike and your rig is up in smoke. Furman’s advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman’s advanced Linear Filtering Technology, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With Furman’s advanced Linear Filtering Technology you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman’s advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman’s advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes it toll – that’s why it’s smart to plug into Furman’s advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Specification

Furman PL-PLUS C E Specifications

General
  • FamilyClassic Series 240V
  • Line Voltage240 (Volts)
AC Protection
  • AC Protection TechnologyExtreme Voltage Shutdown
    Series Multi-Stage Protection
    Non-sacrificial protection with zero ground contamination
Shipping Info
  • Length21.5 (Inches)
  • Width14.9 (Inches)
  • Height4.1 (Inches)
  • Weight11.6 (Lbs)
  • Unit of MeasureEach
  • UPC654061028109
  • Master Pack Qty2
Other Specifications
  • CURRENT RATING:10 amps
  • OPERATING VOLTAGE:180 to 274 VAC
  • OVER VOLTAGE SHUTDOWN:275 VAC typically
  • SPIKE PROTECTION MODES:Line to neutral, zero ground leakage
  • SPIKE CLAMPING VOLTAGE:376 VAC peak @ 3,000 Amps, 266 VAC RMS
  • RESPONSE TIME:1 nanosecond
  • MAXIMUM SURGE CURRENT:6,500 amps
  • NOISE ATTENUATION:10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz Linear attenuation curve from 0.05 – 100 Ohms line impedance
  • DIMENSIONS:44.45mm H x 482.6mm W x 266.7mm D.
  • WEIGHT:5 kg
  • CONSTRUCTION:Steel chassis, 3mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
  • POWER CONSUMPTION:25 VA
  • SAFETY AGENCY LISTING:CE

ข้อมูล

Furman PL-PLUS-C-E ตัวกรองไฟที่จะช่วยป้องกันเหตุเกิดไม่คาดคิดระหว่างการใช้งานเครื่องดนตรีประเภทเอฟเฟค โดยทาง Furman จะมี 3 ระบบหลักที่คอยช่วยเหลือได้แก่ ระบบ SMP (Series Mode Protection) การป้องกันไฟกระชาก ป้องกันอุปกรณ์เสียหาย รวมถึงระบบกรองสัญญาณรบกวน LIFT คัดกรองสัญญาณรบกวนต่างๆของกระแสไฟฟ้าก่อนที่จะมาถึงอุปกรณ์ และระบบ EVS (Automatic Extreme Voltage Shutdown) ปิดระบบอัตโนมัติหากกระแสไฟเกิน สำหรับรุ่น PL-PLUS-C-E นี้จะเพิ่มแถบพารามิเตอร์สำหรับบอกสถานะการใช้งานมาให้ ช่วยให้ใช้ง่ายกว่าเดิม และป้องกันเอฟเฟคคู่ใจให้มีอายุการใช้งานยาวนาน

สเปค

รายละเอียด Furman PL-PLUS-C-E

  • แรงดันไฟฟ้า 240 โวลต์
  • เทคโนโลยีการป้องกัน AC การปิดระบบแรงดันไฟฟ้าสูงสุด
  • รองรับไฟ 10 แอมป์
  • มีหลอด LED เพิ่มความสว่าง 2 ดวง
  • ระบบ SMP (Series Mode Protection) การป้องกันไฟกระชาก
  • มีระบบกรองสัญญาณรบกวน LIFT
  • มีระบบ EVS (Automatic Extreme Voltage Shutdown) ปิดระบบอัตโนมัติหากกระแสไฟเกิน
  • วงจรเบรกเกอร์ตั้งค่าใหม่ได้
  • ช่องต่อแบบ BNC พร้อมสวิทช์ต่อแร็ค 12VAC 500MA
  • แรงดันไฟฟ้าในการทำงาน 180 ถึง 274 VAC
  • กระแสไฟกระชากสูงสุด 6,500 แอมป์
  • การลดทอนสัญญาณรบกวน 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
  • มีแถบค่าพารามิเตอร์บอกค่าสถานะเสริม
  • ขนาด 482.6  x 266.7  x 44.5 มม
  • น้ำหนัก 5 กิโลกรัม
  • กำลังไฟฟ้าที่ใช้ 25 VA

×
