Harmoniq DM16 PRO Digital Mixer

คลิ๊กที่ภาพเพื่อขยาย

ราคา : 39,500 บาท

44,168 บาท ประหยัด11%

39500

รุ่น : Harmoniq DM16 PRO ดิจิตอล มิกเซอร์ Digital Mixer

การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

การชำระเงิน : จ่ายหน้าร้าน 11 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com

Description

DM16 PRO

The HARMONIQ DM16 PRO is a 16-channel digital mixer that runs on the Linux operating system. It supports a 48kHz sampling rate and comes with high-resolution ADC and DAC converters up to 192KHz. The mixer is controlled through a large 10.1-inch touchscreen, making it suitable for recording studios, live performances, and broadcasting.

Features

16-channel digital mixer
10.1-inch capacitive touchscreen with 1280 x 800 resolution
Advanced DSP system with 48kHz resolution
9 high-quality faders with a wide 100 mm sliding range
Supports up to 28 input channels
Up to 20 output channels
2 high-quality effect buses supporting up to 8 effect types
Built-in 8×8 sound card for recording and playing up to 8 multitrack audio tracks
Versatile connectivity with LAN port and support for USB/WiFi modules for control via iOS, Android, and PC
Multilingual support with automatic language adaptation in the application

Specification

Input Processing Channels	16 mono input buses and 3 stereo input buses
Output Processing Channels	6 mono buses, 2 effect buses, 2 mono MTRX matrix output buses and 1 stereo main output bus
Internal Effects	2 mono effect buses offer 8 effects (reverb, echo, chorus, wow, tremolo, distortion, pitch shift and flanger) for flexible use.
GEQ Modules	6-channel mono AUX bus and the MAIN output bus have 31-segment GEQ module functions.
Noise Gate	Threshold: -100dB ~ -20dB Startup time: 3ms ~ 100ms. Hold time: 0 ~ 2000ms. Compression ratio: 127:1 to ∞:1. Noise gate and side chain mute mode can be configured.
Limiter	Threshold: -54dB to +12dB Start time: 3~ 100ms Release time: 2x, 4x, 6x,8x,16x,32x (Release time is the coefficient multiplied by startup time) Compression ratio: 1.0 ~ 127, ∞ Soft inflection point: 0~20dB Side chain compression function
EQ	4 bands for input, 4 bands for output, Frequency: 20Hz~ 20kHz-20dB /+12dB Q value: 0.404 ~ 28.852 Type: Parametric, high frame, low frame, low pass Gain: -18dB ~ +18dB
High/Low Pass	High pass: 20Hz ~ 600Hz, Low pass: 1500Hz ~ 20kHz
Delay	0 ~ 1000 ms.
RTA	The EQ and GEQ curves show the signal levels of 31 frequency points in real time

Scene Files	Up to 100 scenes can be saved.
Effects Library	Up to 100 effect presets can be saved.
Signal Processing Capability	40-bit floating-point processing, 48KHz sampling rate.
A/D Converter	24-bit, 192KHz, 115dB dynamic range.
D/A Converter:	24-bit, 192KHz, 123dB dynamic range.

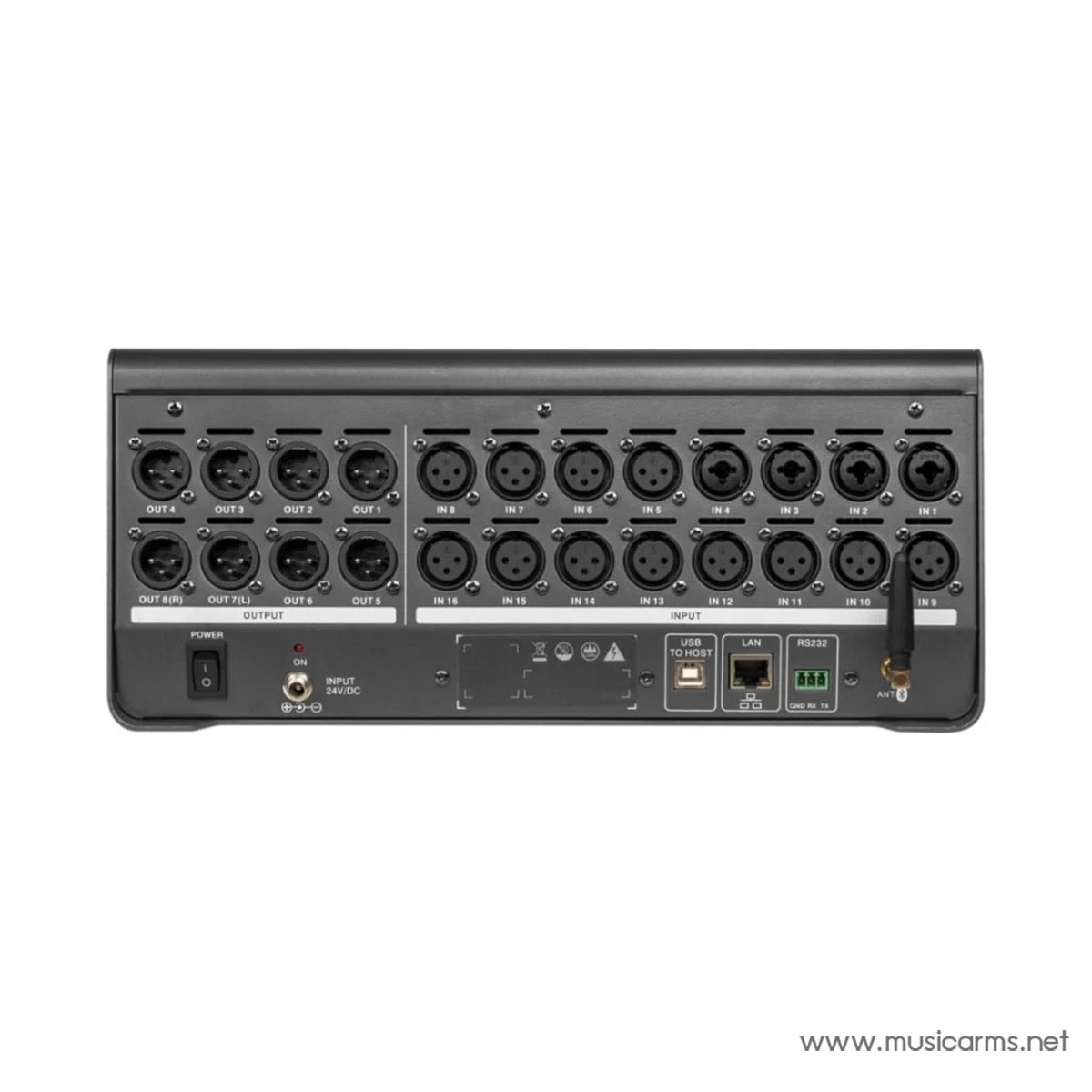

Connectors	Microphone/Line Input XLR Ports	16ports, including 4 COMBO ports for balanced input

	XLR Output Ports	8 ports

	Headphone Output TRS Port	1 port, stereo
	USB Port For Sound Card	Rear panel USB interface, 8X8 channel, 48kHz, UAC 2.0 protocol, supports ASIO, supports Windows, Linux,Android, MAC OS and IOS multiple operating systems.
	Other USB Ports	2 ports on the front panel, available to connect U disk for stereo recording and playing, firmware upgrade, scene/effect library import and export, connect Wi-Fi module for wireless control.

	LAN Port	RJ-45 Network port, used for cable network connection
IN1-16 Input Characteristics	Input Impedance	Balanced 10KΩ
	Frequency Response	20Hz~20KHz (+/-0.5dB)
	Maximum Input Level	22dBu
	Phantom Power	+48V (IN1 to IN16)
	Gain	Analog gain: 0dB ~ 64dB Digital gain: -24dB ~ +24dB
	S/N R	108dB (Gain = 0dB, A-weighted)
	Dynamic Range	110dB (Gain = 0dB, A-weighted)

OUT1-8 Output Characteristics	THD	0.01%(Gain =0dB and Output =0dBu, unweighted)
	Frequency Response	20Hz~20KHz (+/-0.5dB)
	Maximum Output Level	+22dBu
	Output Impedance	＜100Ω
	Crosstalk	-110dB @1KHz
	Background Noise	-86dBu (Gain = 0dB)
Headphone Characteristics	Output Impedance	＜50Ω
	Maximum Output Level	+20dBu
	Background Noise	-81dB (Potentiometer = MAX, Volume = 0dB)
Talkback Microphone	Input Impedance	Unbalanced 3KΩ, Balanced 6KΩ
Talkback Microphone	Maximum Input Level	+6.5dBu (Potentiometer = MAX, Talkback Volume = MAX)
Digital I/O	Digital I/O	Bluetooth, USB stereo, 8×8 sound card
	Digital I/O	USB stereo playback and recording, supports MP3, WAV, and FLAC file playback
	USB Format	3.0
	Recording Format	wav.
Overall
	Channel Crosstalk	-110dB
	Display	10.1″ touchscreen with 1280×800 resolution
	Motorized Faders	9 Stroke electric push rod potentiometer with 100mm
	System	Linux
	Network	LAN network port and external USB NIC module, supporting IOS, Android, PC control
Hardware	Power	AC 100~240V 50/60Hz
	Power Consumption	50W
	Operating Temperature	5℃~40℃
	Dimensions	(DxWxH) 481x342x143mm
	Weight	Net weight: 6.5kg; Gross weight: 9.6kg
	Accessories	Wi-Fi module (Optional)
	Accessories	Power cord
