Headrush FRFR-108 MKII ตู้ลำโพง

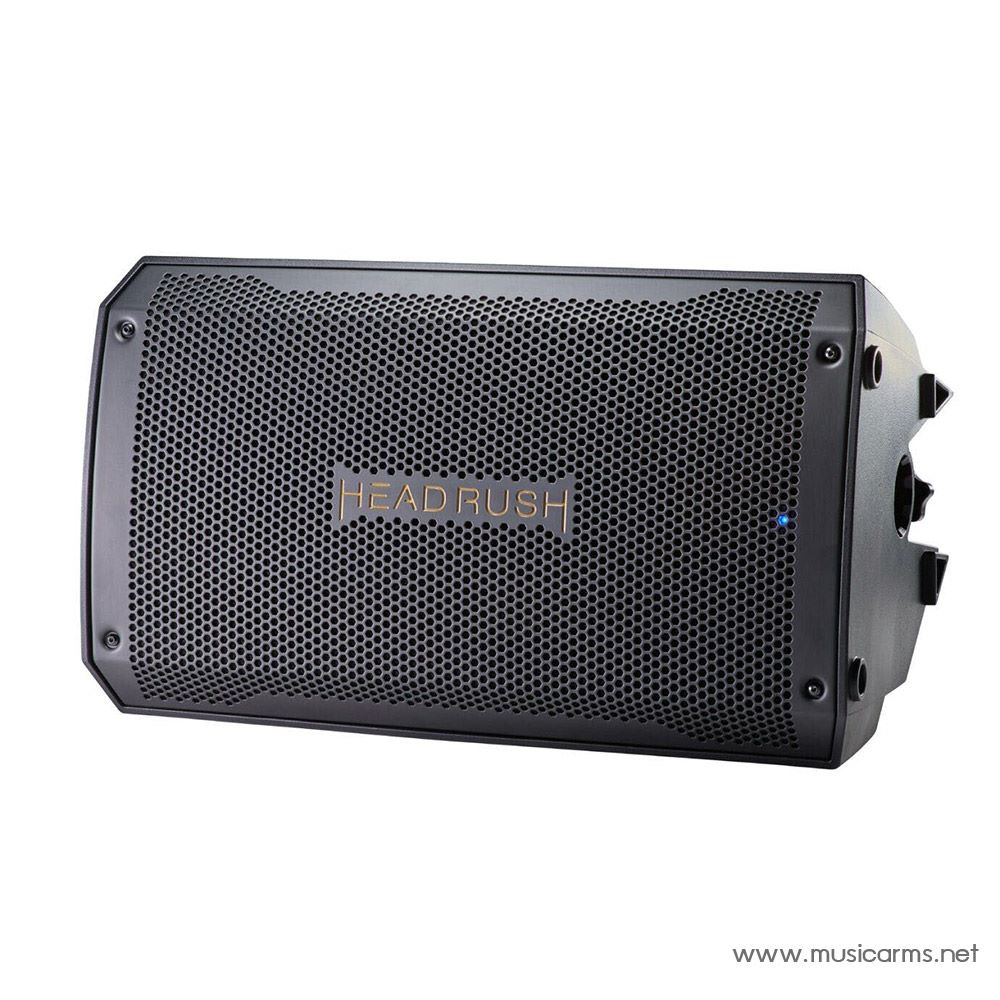

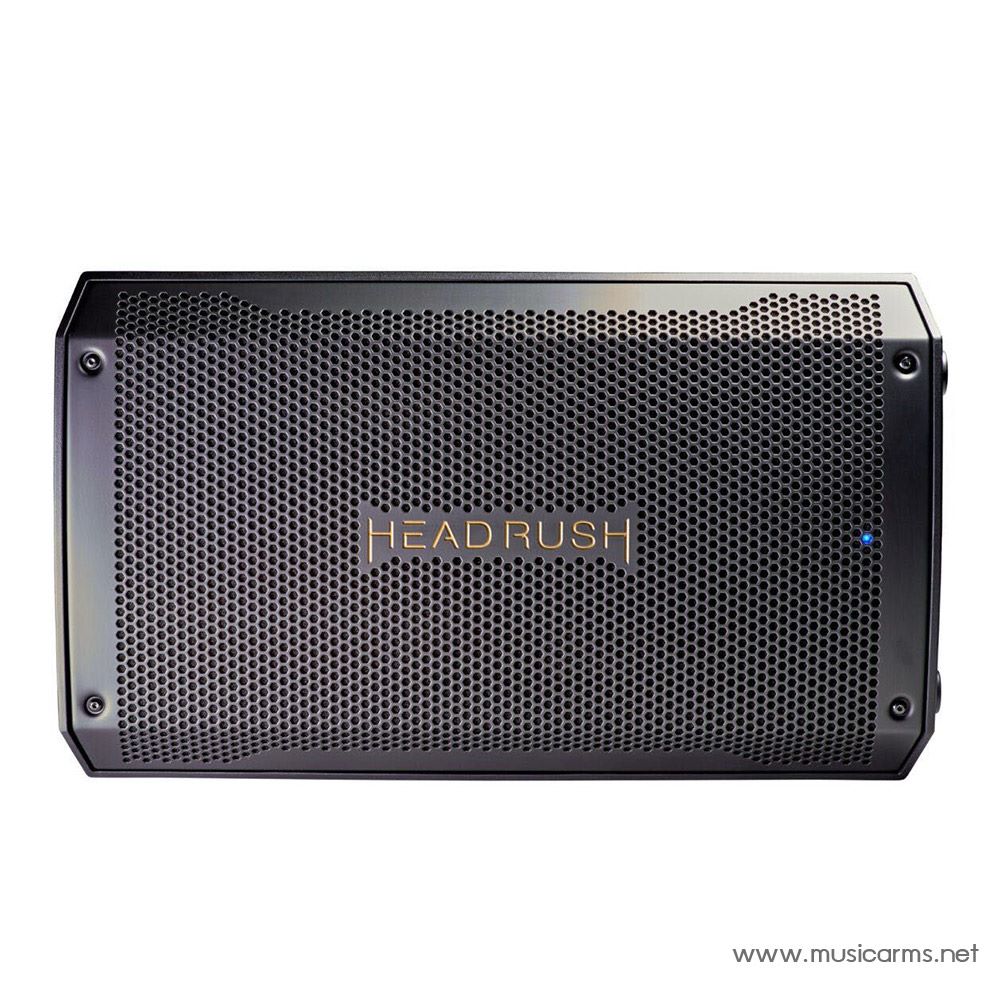

Headrush FRFR-108 MKII

HeadRush FRFR-108 MKII is a powerful 2000-watt full-range flat-response guitar cabinet with Bluetooth®, 8” speaker, HF compression driver, two combo XLR + 1/4” inputs and XLR output.

FRFR-108® MKII Features

• Powerful, Professional Sound – 2000 watts of peak power ensures you have enough headroom for almost any live performance or rehearsal
• Precision-Tuned for Amp Modelers – The cabinet design, 8” woofer, and HF compression driver are specially voiced for accurate, linear delivery of amplifier and cabinet emulations
• Bluetooth® Enabled – Stream music wirelessly from your mobile device into FRFR-108 MKII’s dedicated Bluetooth® channel

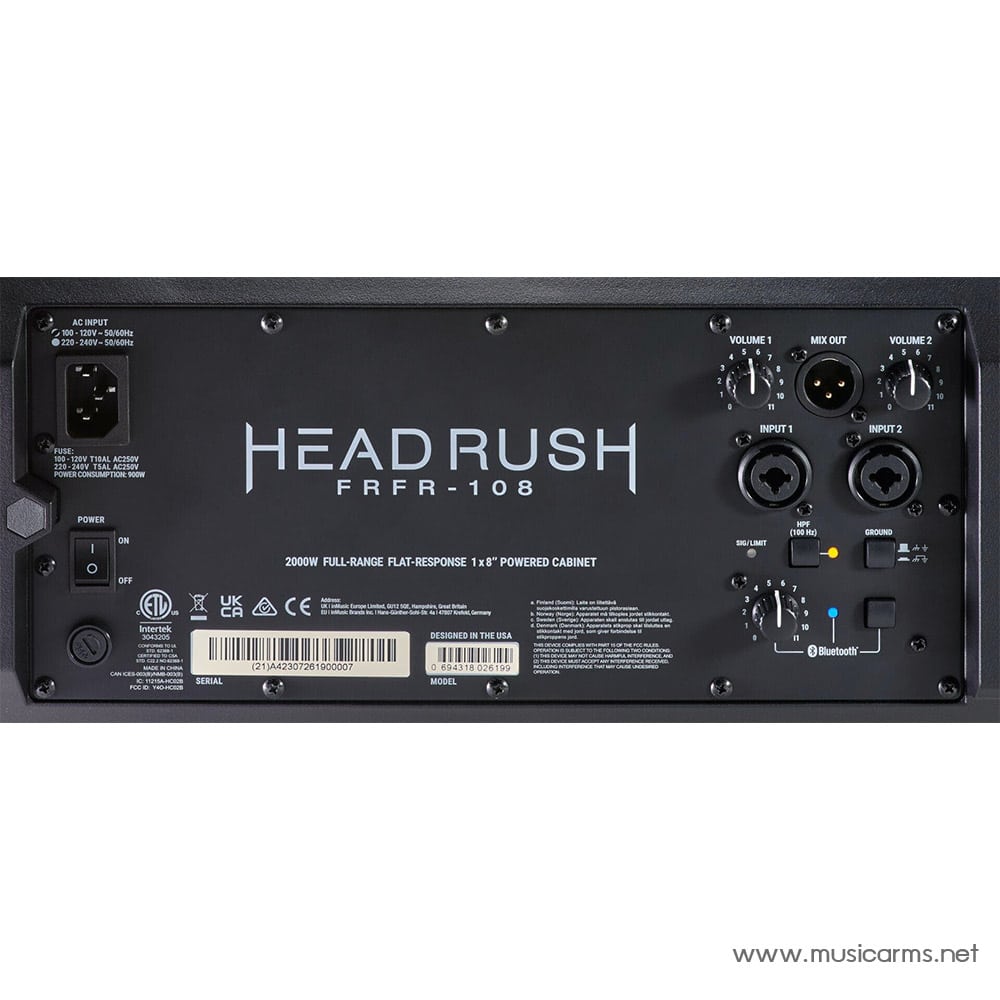

• All the Connectivity You Need – Two combo XLR + 1/4″ inputs with independent volume controls and an XLR direct output allow for chaining speakers or sending to a front-of-house mix
• Quickly Adapts to Venues and Rooms – FRFR-108 MKII has a ground lift switch for eliminating noise issues caused by ground loops and a HPF EQ switch to help cut through muddy stage mixes
• Lightweight, Flexible and Sturdy – Weighing just 21lbs / 9.53kg, FRFR-108 MKII is rugged yet easy to transport and can be used in a wedge, upright, or pole-mounted position

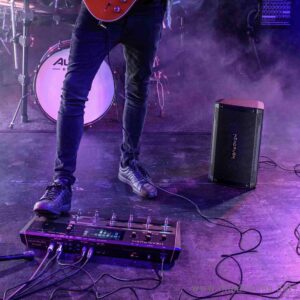

Perfect Partner for Amp Modelers

If you’re new to FRFR amplifiers FRFR stands for “full-range flat-response.” This special type of amplification is very important for amp modeling pedals and pedalboards, as your amplifier needs to sound pure and transparent, so it can deliver a true “amp in the room” sound without coloring it as a traditional guitar amp would. The FRFR-108 MKII is precision-designed to get the most out of your modeler and deliver all the intricacies of your amp and cab emulations, with enough volume to be ready for any stage, rehearsal or jam session.

Pure and Powerful Tone

FRFR-108 MKII outputs a massive 2000 watts, which means you have enough headroom for almost any performance or rehearsal. Featuring a specially voiced 8-inch woofer and high-frequency compression driver, the FRFR-108 delivers a precise, full response across the entire frequency range, without any artificial coloration—which is critical to getting the most out of your amp modeler. The FRFR-108 MKII’s performance is exceptional, with max 129dB SPL and 46-22kHz frequency range.

Adapts to Any Stage or Room

Stages and rehearsal rooms can easily become dense and muddy sounding as lower frequencies from different instruments battle each other; FRFR-108 MKII has a HPF cut switch to quickly pull those troublesome frequencies out and make sure your tone sits perfect in the mix. Unwanted electrical noise can also be a common problem; FRFR-108 MKII’s ground lift switch can eliminate hums and buzzes resulting from ground loops.

Road-Ready Lightweight Design

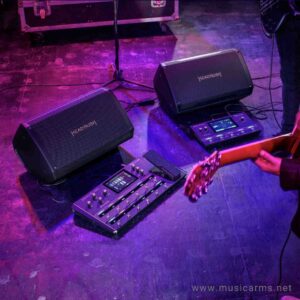

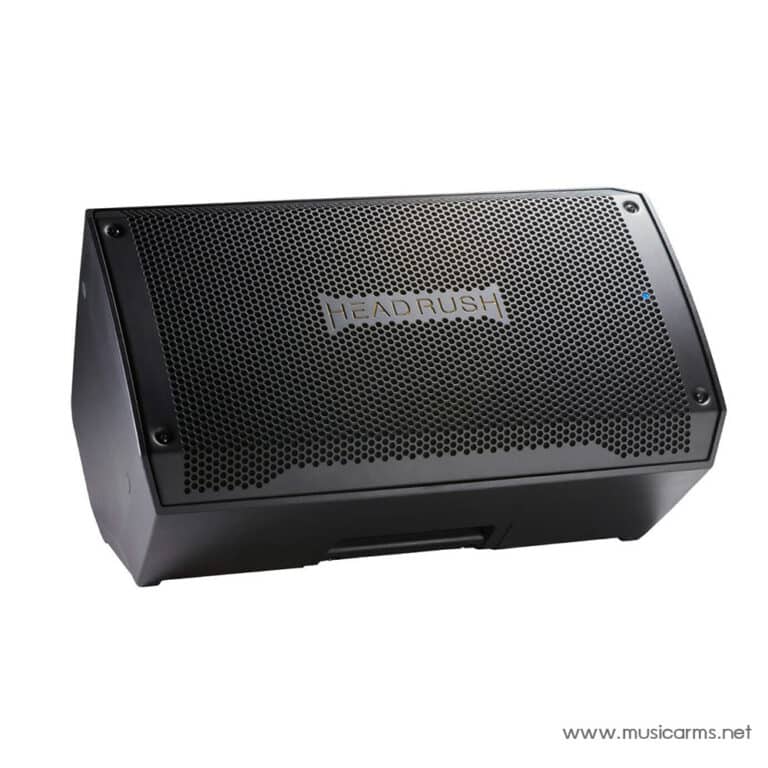

FRFR-108 MKII is rugged yet lightweight and easy to transport (at 21 lbs / 9.53 kg) making one trip load-ins at the gig or rehearsal space easier than ever. While you can use FRFR-108 MKII in its intended wedge position, its versatile design means that it can also be used in an upright or pole-mounted position, making it easier to direct your sound wherever you need it, which is especially helpful at outdoor gigs or other places where PA backline is limited.

OUTPUT POWER

• 2000 W

DRIVERS

• Low-Frequency: 8.0” (203 mm) driver, 2.0” (50 mm) high-temperature voice coil.
• High-Frequency: 1.0” (25 mm) exit ceramic driver with 1.4” (35 mm) coil.

CROSSOVER FREQUENCY

• 2 kHz

MAXIMUM SPL

• 130 dB (peak) dB-SPL @ 1 m

FREQUENCY RESPONSE

• 62 Hz – 20 kHz (+/-3 dB)

FREQUENCY RANGE

• 52 Hz – 20 kHz (-10 dB)

HORN COVERAGE

• 90° horizontal x 60° vertical (nominal)

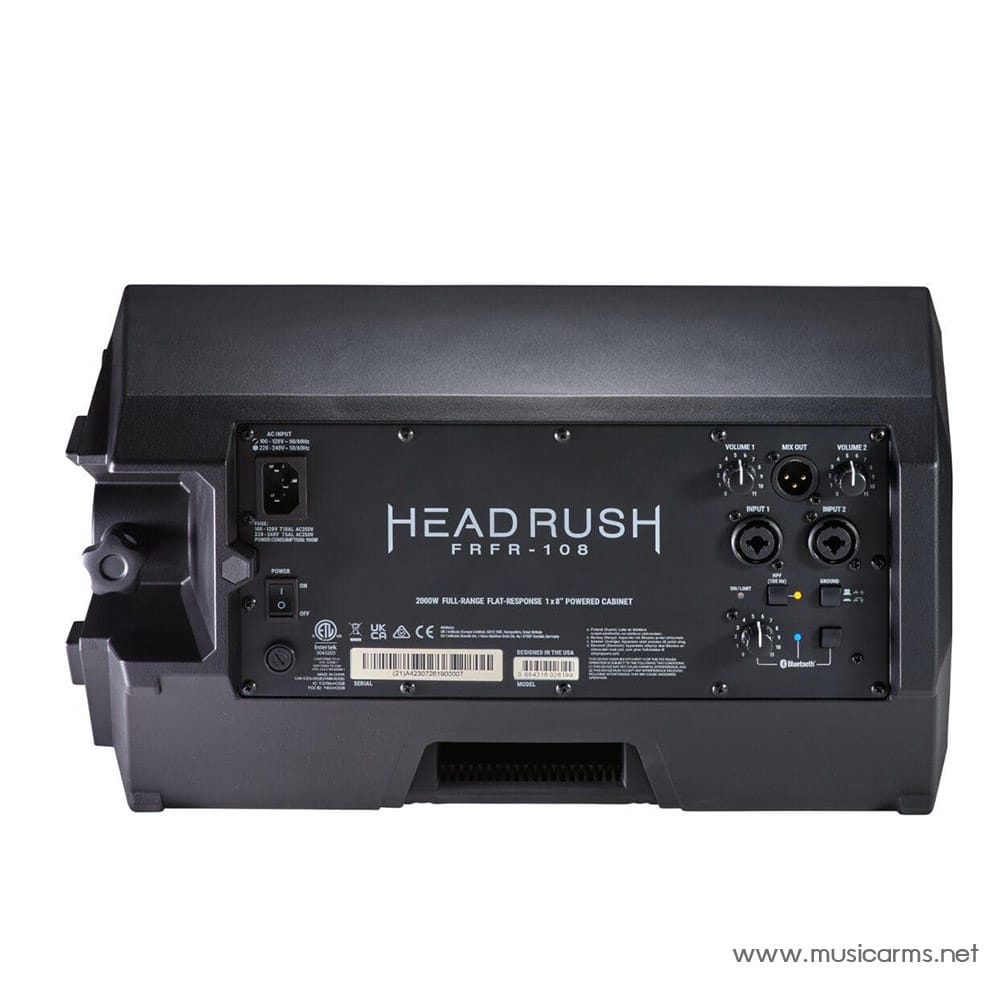

CONNECTORS

• (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced)
• (1) XLR output (Link)
• (1) IEC power cable input

INPUT IMPEDANCE

• Line: 10 KΩ balanced, 20 KΩ unbalanced

GAIN/VOLUME CONTROL RANGE

• -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output

HPF SWITCH

• 100 Hz

BLUETOOTH

• Version: 5.0
• Profile: A2DP, AVRCP
• Codec: SBC
• Range: up to 100 feet (30.5m)

POWER

• Connection: IEC
• Input Voltage: 100-120V, 50/60 Hz; 220-240V, 50/60 Hz
• Consumption: 1100W
• Fuse: T15AL AC250V; 220-240V T6.3AL AC250V

PROTECTION

• Electronic clip, thermal, and transducer overdrive protection

MOUNTING/INSTALLATION

• Standard 36 mm pole socket

OPERATING TEMPERATURE

• 14°F to 113°F / -10°C to 45°C

DIMENSIONS

• 10.1” x 9.6” x 17.2”
• 256 mm x 245 mm x 436 mm

WEIGHT

• 21.05 lbs.
• 9.5 kg

รายละเอียด

กำลังขับ

• 2000 W

Drivers

• ความถี่ต่ำ: ไดรเวอร์ 8.0” (203 มม.) คอยล์เสียงอุณหภูมิสูง 2.0” (50 มม.)
• ความถี่สูง: ไดรเวอร์เซรามิกทางออก 1.0” (25 มม.) พร้อมคอยล์ 1.4” (35 มม.)

ความถี่ครอสโอเวอร์

• 2 kHz

ความดังสูงสุด

• 130 dB (peak) dB-SPL @ 1 m

ช่วงความถี่

• 62 Hz – 20 kHz (+/-3 dB)

ช่วงความถี่

• 52 Hz – 20 kHz (-10 dB)

องศาการกระจายเสียง

• 90° แนวนอน x 60° แนวตั้ง

ขั้วต่อ

• (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced)
• (1) XLR output (Link)
• (1) IEC power cable input

ความต้านทานอินพุต

• Line: 10 KΩ balanced, 20 KΩ unbalanced

ช่วงการควบคุมเกน/ระดับเสียง

• -∞ ถึง 0 dB, +4 dBu ที่กำหนด, +10 dBu สำหรับเอาต์พุตสูงสุด

สวิตช์ HPF

• 100 Hz

Bluetooth

• เวอร์ชัน: 5.0
• โปรไฟล์: A2DP, AVRCP
• ตัวแปลงสัญญาณ: SBC
• ระยะ: สูงสุด 100 ฟุต (30.5 ม.)

Power

• การเชื่อมต่อ: IEC
• แรงดันไฟฟ้าขาเข้า: 100-120V, 50/60 เฮิรตซ์; 220-240V, 50/60 เฮิรตซ์
• การบริโภค: 1100W
• ฟิวส์: T15AL AC250V; 220-240V T6.3AL AC250V

การป้องกัน

• คลิปอิเล็กทรอนิกส์ ความร้อน และการป้องกันโอเวอร์ไดรฟ์ของทรานสดิวเซอร์

การติดตั้ง/การติดตั้ง

• ช่องเสียบเสาขนาดมาตรฐาน 36 มม

อุณหภูมิในการทำงาน

• 14°F to 113°F / -10°C to 45°C

ขนาด

• 10.1” x 9.6” x 17.2”
• 256 mm x 245 mm x 436 mm

น้ำหนัก

• 21.05 ปอนด์
• 9.5 กก.
