HH Scalar SR-1200 Stereo Power Amplifier

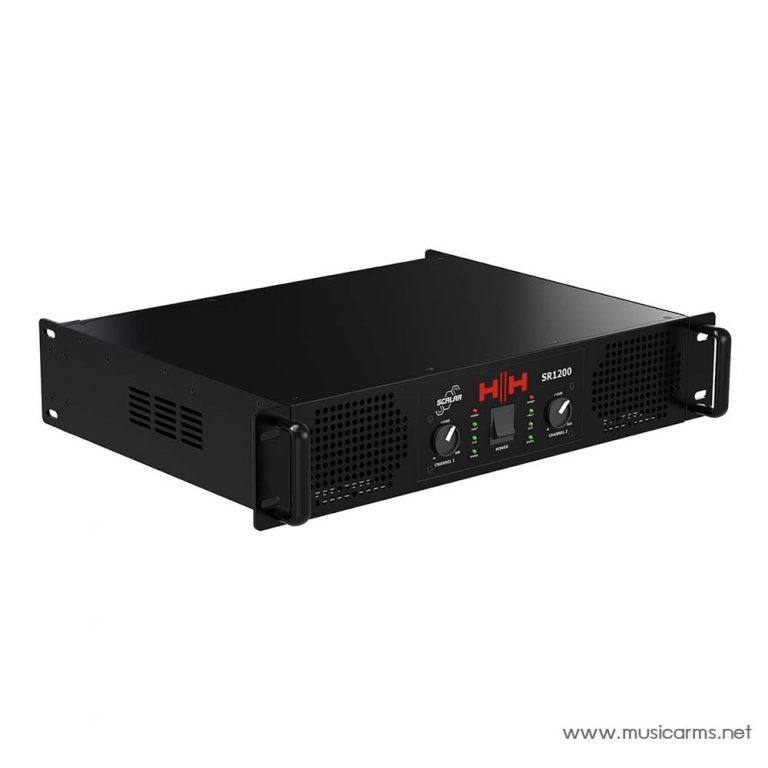

The HH Electronics SCALAR Power Amplifier features a 2-channel design with class A/B stereo amplification and is capable of delivering 2 x 400W at 8 ohms, 2 x 600W at 4 ohms or 1200W at 8 ohms (bridged). The SR1200 SCALAR amplifier offers XLR and 1/4” jack input connectors, along with 2-pole SpeakON-compatible output connectors and binding posts. The heavy gauge steel chassis can be easily rack-mounted via the built-in rack ears and occupies 2U of space. The HH Electronics SCALAR power amp offers intuitive and reliable performance with high headroom, ensuring sound remains uncoloured and true to the original source.

• Fan cooled class A/B amplifier
• Switchable 8 ohm bridge mode
• XLR and jack input connectors
• SpeakON-compatible locking connectors and binding posts
• Heavy gauge steel chassis
• Standard 2U 19” rack size
• Multi-way protection
• Soft start circuitry to eliminate switch on thumps

• System Type: Stereo Power Amplifier
• Power Output:
  • 2 x 400W @ 8 Ohms
  • 2 x 600W @ 4 Ohms
  • 1 x 1200W @ 8 Ohms, Bridged
• Amplifier Type: Class A/B

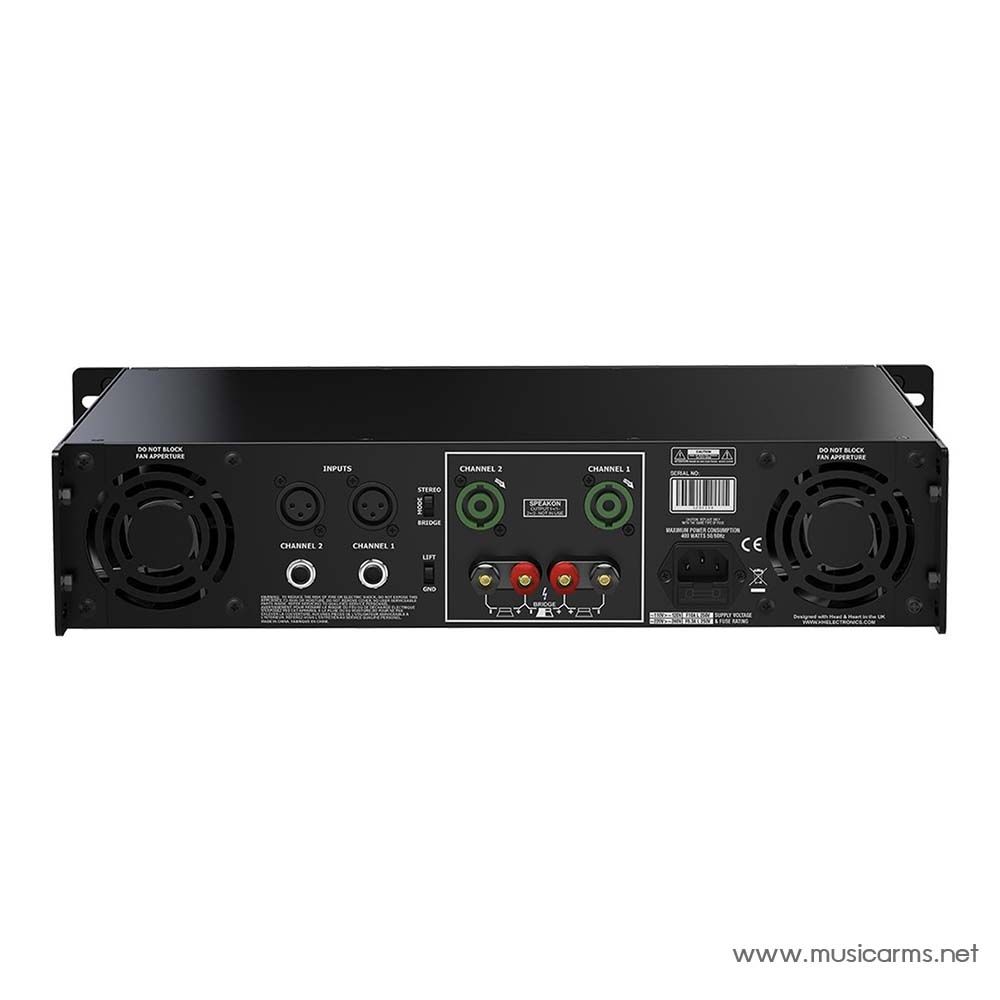

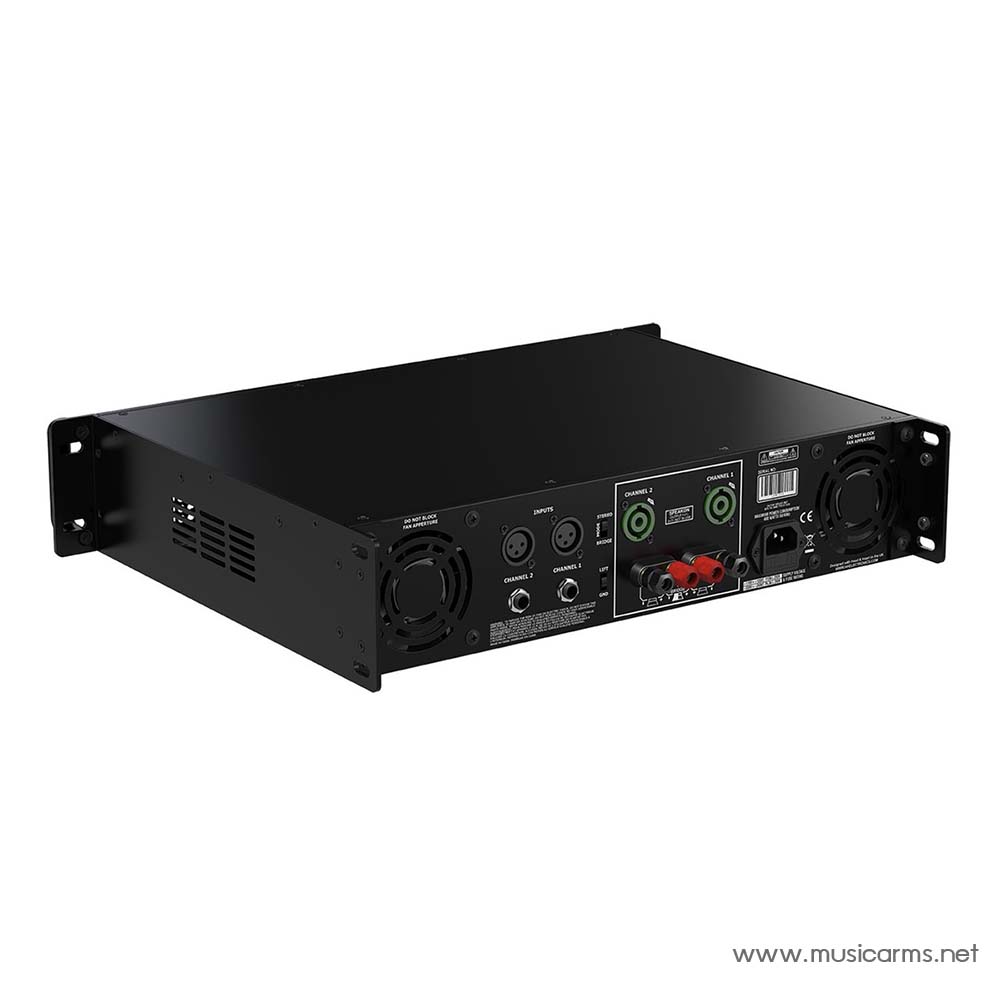

• Input Connectors:
  • 2 x XLR
  • 2 x 1/4” Jack
• Output Connectors:
  • 2 x 2 Pole Locking Speaker Connectors
  • 4 x Binding Posts

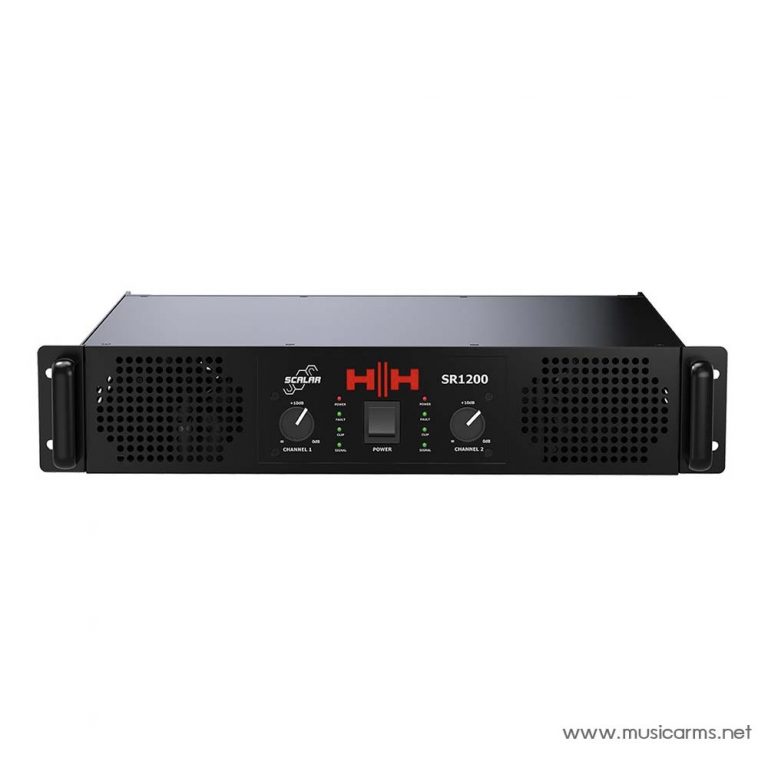

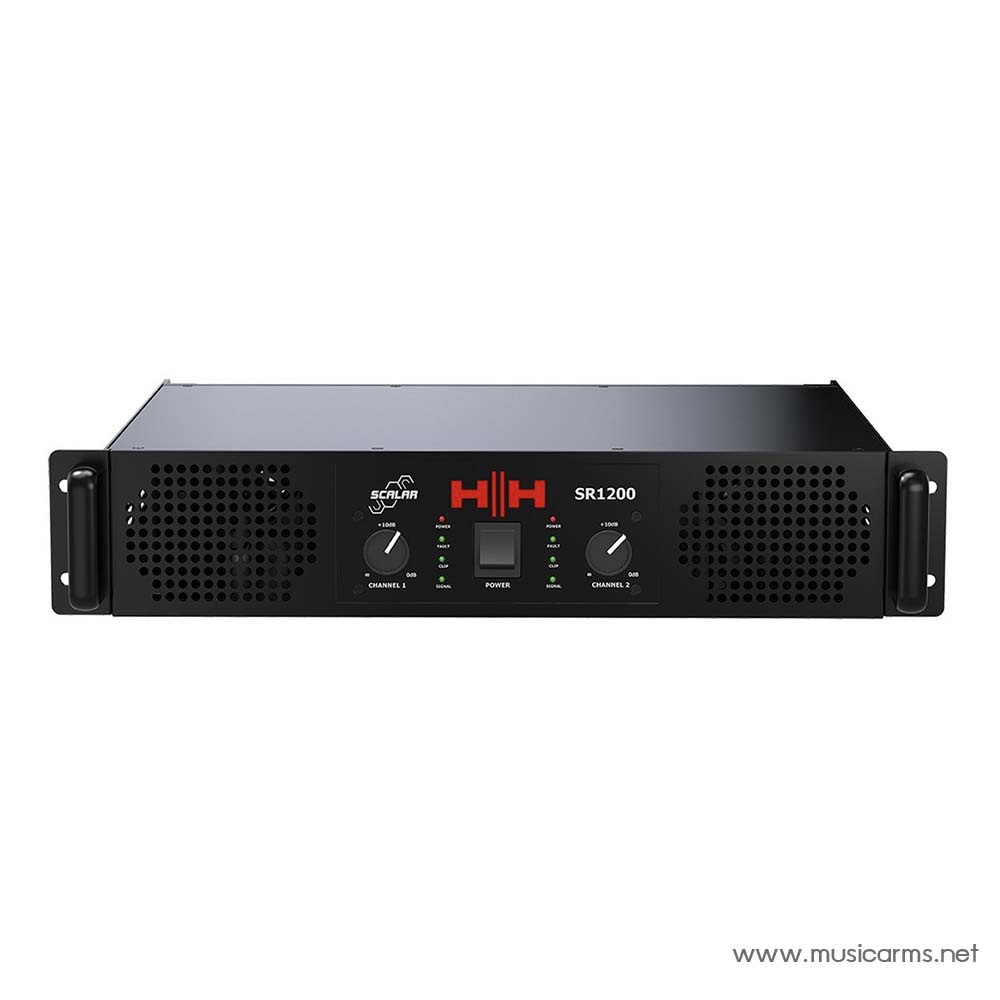

• Controls:
  • 2 x Level
  • Bridge Mode Switch
  • Ground Lift
• Power Supply: Linear
• Dimensions: 2U x 350mm
• Weight: 10.10
