iCon Cube2Nano VST

Cube2Nano

The ICON Cube2Nano (ProDrive III) USB recording interface provides an audio input and output module with USB connectivity. Main features include:

• 24-Bit 192KHz 1 mic-In/1 guitar-In, 2-Out USB Recording Interface
• High dynamic range:
  DAC: Dynamic Range: 114dB
  ADC: Dynamic Range: 114dB
• 2×2 analog I/O full duplex recording and playback
• Mic/Instrument preamps with individual gain control and phantom power switch

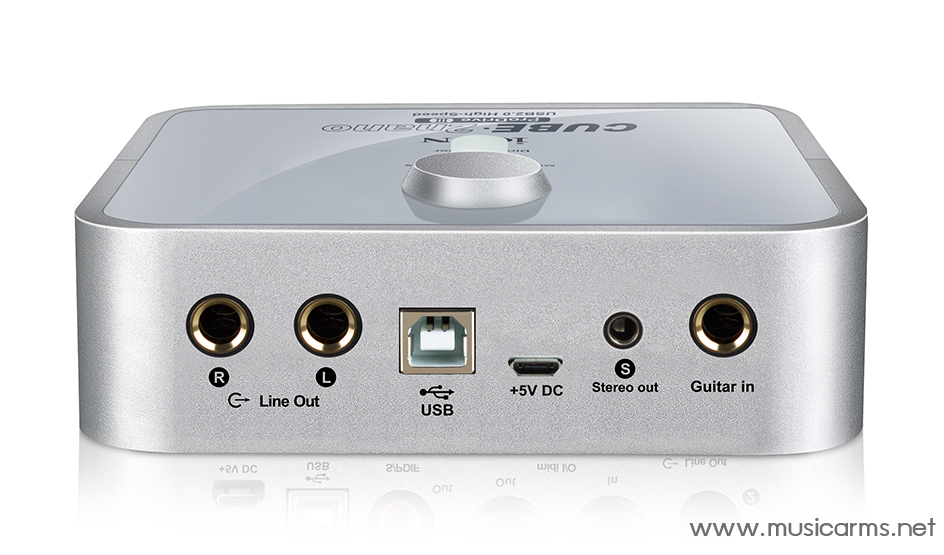

• 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector

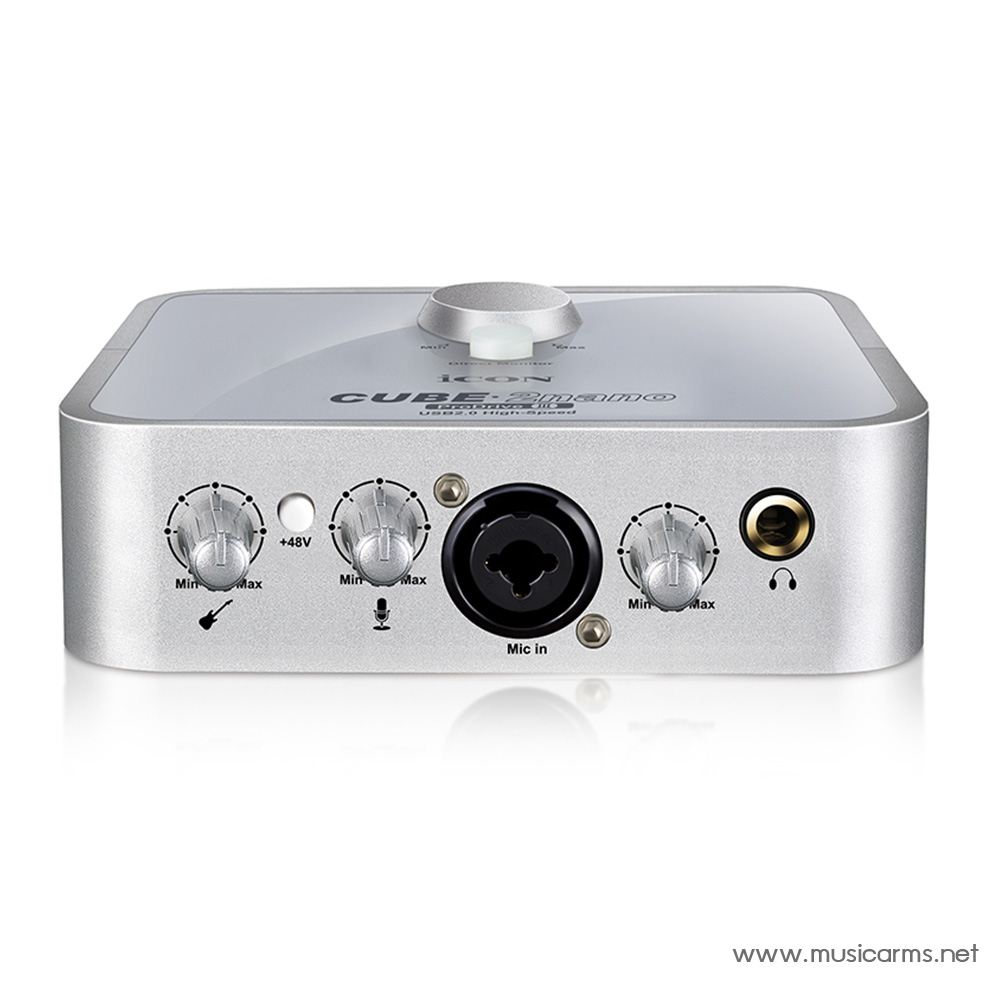

• Master volume control on the front panel
• Direct monitor knob control on the top panel
• 1 headphone output with assignable source and individual volume control
• Flexible channel routing via the software control panel
• ICON innovative ProDrive III plug-ins hosting rack is provided
• Different ProDrive III plug-ins are provided
• USB2.0 High Speed equipped and USB bus-powered
• Supports DirectSound, WDM and ASIO2.0
• Compatible with Mac OS (Intel-Mac), iOS 9 or above and Windows 7, 8 & 10 (32-bit/64-bit)
• Full duplex, simultaneous record/playback
• +5VDC power supply connector is equipped for external power supply when using with iOS
• Rugged aluminum construction
