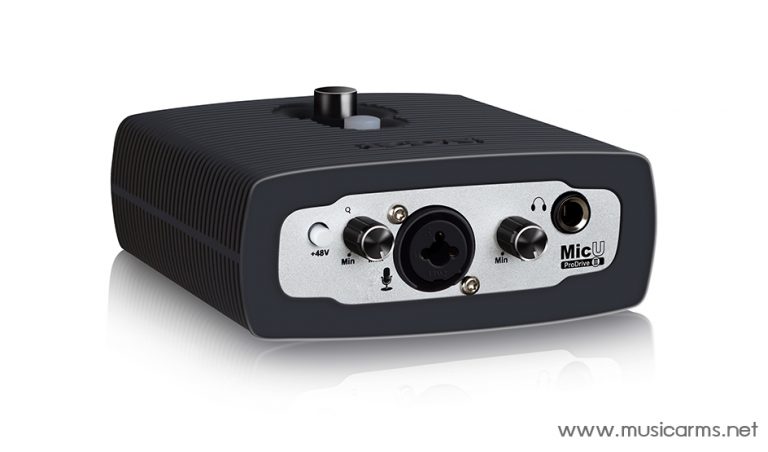

iCon MicU PRODRIVE III

MicU (Pro DriveIII)

The ICON MicU (ProDrive III) USB recording interface provides an audio input and output module with USB connectivity. Main features include:

• 24-Bit 96/192KHz 1 mic-In/2-Out USB Recording Interface
• S/N ratio:
  DAC: THD+N: -100dB; Dynamic Range, S/N: 114dB
  ADC: THD+N: -98dB;   Dynamic Range, S/N: 112dB
• 2×2 analog I/O full duplex recording and playback
• ICON “ProDrive III” provided with internal virtual rounting for inputs and outputs
• Powerful ProDrive III hosting rack built in
• Different ProDrive III plug-ins are provided
• ICON innovative unique mic preamp with individual gain control and phantom power switch
• 2 analog outputs on 1/4” TRS jacks
• Master volume control on the top panel
• 1 headphone output with assignable source and individual volume control
• Direct monitoring switch for “Stereo, Mono and PC” with individual volume control
• Flexible channel routing via the software control panel
• ICON’s innovative ProDrive III plug-ins hosting rack is provided
• Different ProDrive III plug-ins are provided
• USB2.0 High Speed equipped and USB bus-powered
• Supports DirectSound, WDM and ASIO2.0
• Compatible with Mac OS (Intel-Mac), iOS and Windows Vista, 7,8 & 10 (32-bit/64-bit)
• Full duplex, simultaneous record/playback
• +5V DC power supply connector is equipped for external power supply when using with iOS
• Rugged metal construction with rubber jacket
• Bitwig 8Track included
• Dotec audio plugins included
