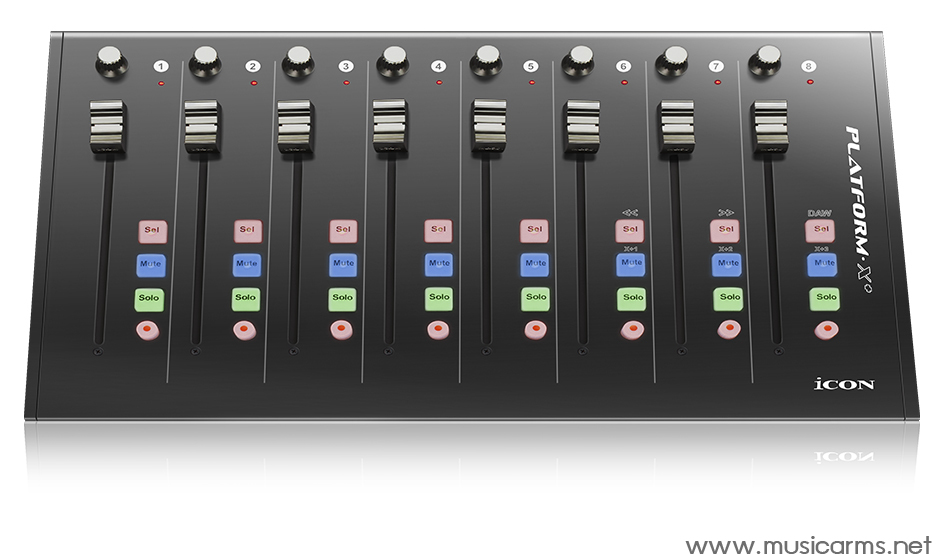

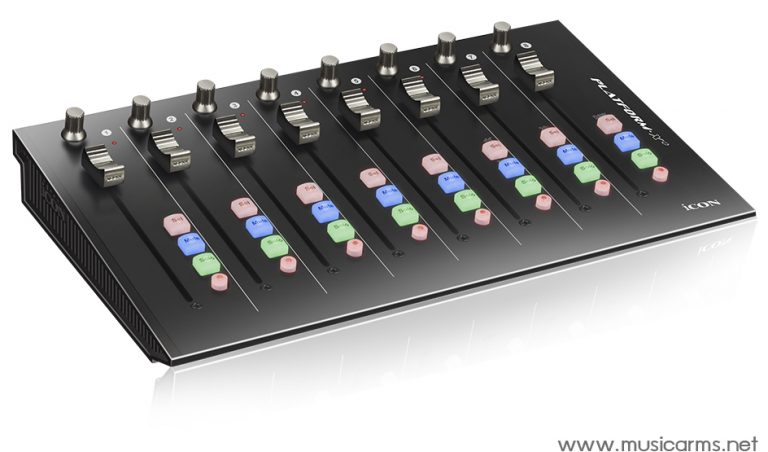

Platform X+

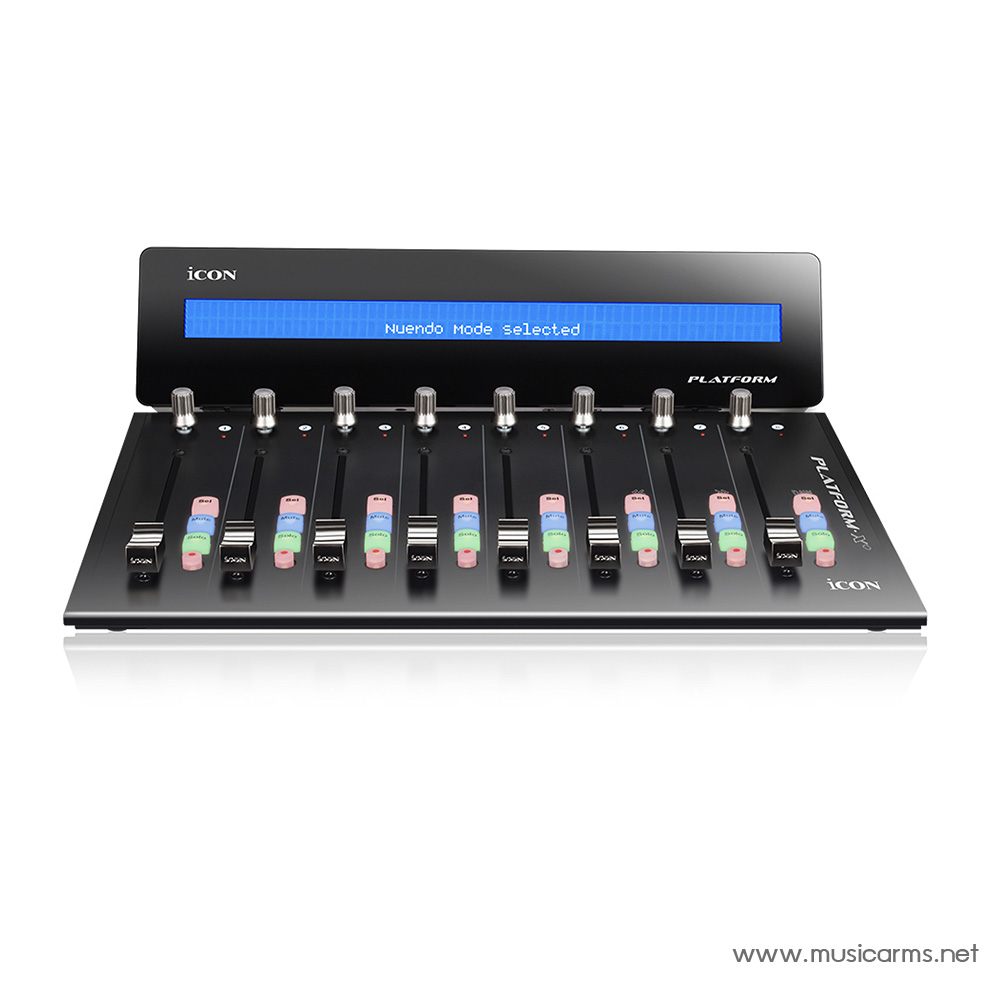

Expand your Platform M+ modular DAW control system by up to 32 channels using up to three Platform X+ units from iCON Pro Audio. Each Platform X+ houses eight touch-sensitive motorized channel faders with 10-bit resolution, eight dual function encoder knobs, and mute, solo, select, and record buttons. The iCON universal DAW mode on Platform X+ controls Cubase, Nuendo, Samplitude, Logic Pro, Studio One, Bitwig, Reason, Sonar, Digital Performer, Reaper, FL Studio, Adobe Audition, Ableton Live, and Pro Tools. Bitwig Studio 8-Track is included. Add the optional Platform D2 display to better view track names and parameters.

FEATURES

• 8-channel extender for Platform M+ (TM)

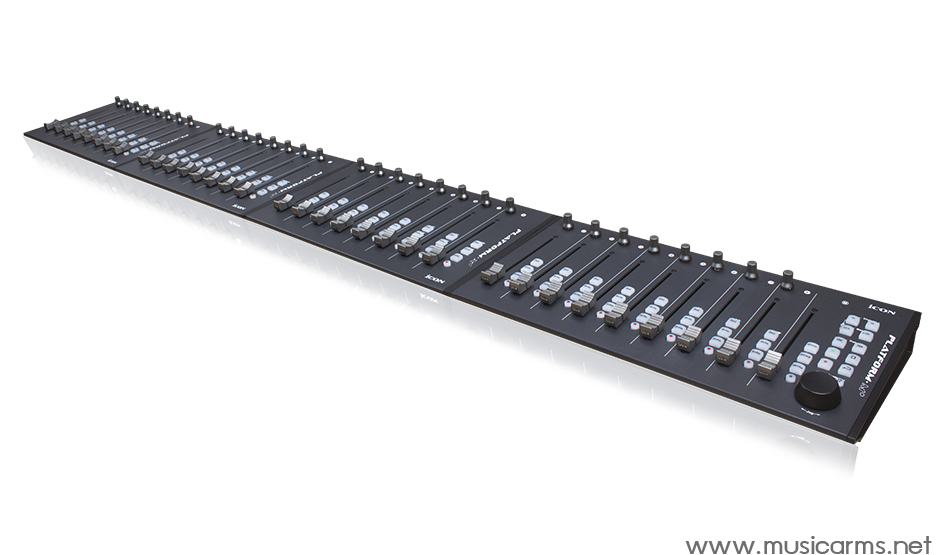

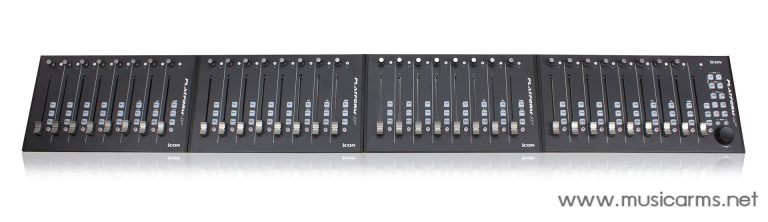

• Expandable to 32-channels control surface with 3 units of Platform X+ and a Platform M+
• Extremely compact, durable and versatile
• Customize the perfect setup with a variety of Platform extension modules
• 8 touch-sensitive motorized faders with 10-bit resolution
• 8 dual-functions encoder knobs (Rotate and enter)
• Illuminated buttons for each channel including Sel, Mute, Solo and Record
• Controls most popular DAWs including Cubase, Nuendo, Samplitude, Logic Pro, Bitwig, Studio One, Ableton Live, Pro Tools, Reason, Sonar, FL Studio, Digital Performer, Reaper and Adobe Audition
• iMap^TM software included for easy mapping of MIDI functions
• Firmware upgrade available simply via USB connection and iMap software
• Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit),Windows 8 (32-bit 7 64-bit), Windows 10 and Mac OS X (IntelMac)
• USB 2.0 high speed connectivity
• Superior build quality and robust metal casing with Kensington lock port
• 12V/2.5A power adapter included
• Bitwig 8Track included
• Dotec audio plugins included

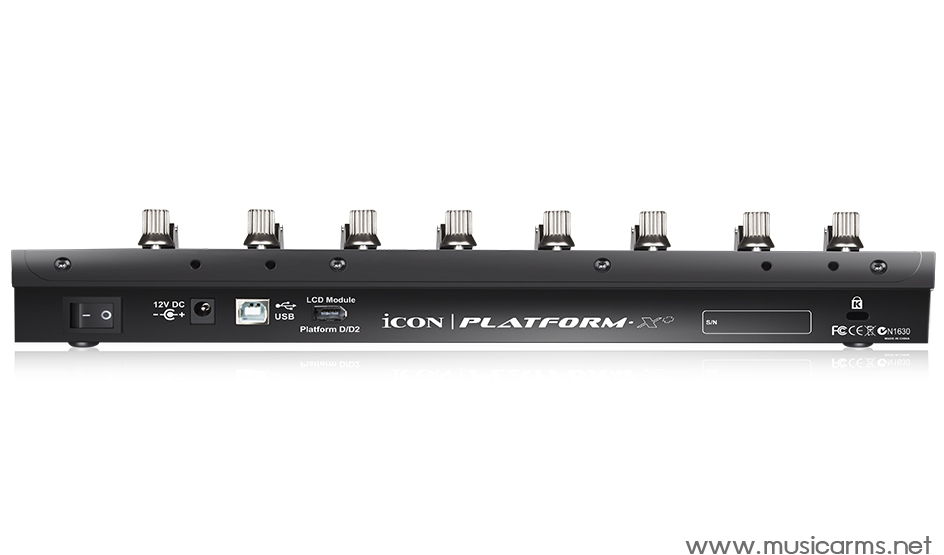

• Connector: To computer: USB connector
• Power supply: 12V2.5A DC
• Current consumption: 2.0A or less
• Weight: 1.53kg (3.37lb)
• Dimensions: 335(L) x 196(W) x 58(H)mm
• Dimensions: 13.2”(L) x 7.7”(W) x 2.3”(H)
