Description
Straightforward and Powerful Audio Interface for Guitarists
Designed to satisfy the needs of discerning guitarists and bass players, the IK Multimedia AXE I/O Solo is a pared-down 2-in/3-out interface with guitar-centric components and features. Continuously variable Z-Tone impedance along with switchable settings for active or passive instruments optimizes the input level to get the most out of your digital audio software such as the included AmpliTube 4 Deluxe suite. And you can choose on the front end to send your signal through AXE I/O Solo’s transparent PURE circuitry or to spice it up with the unit’s colorful JFET input stage. High-quality digital conversion and low-jitter clocking deliver pristine sound, and a single Class A mic preamp is ideal for recording vocals and other instruments to support your killer guitar lines. Equipped with a dedicated re-amp output and dedicated controller inputs, the AXE I/O Solo helps take advantage of the best your analog and digital gear have to offer. Add to that a massive collection of virtual amps, signal processors, and an Ableton Live Lite license, the AXE I/O solo arms you with the tools you need to make your best recordings ever.
A Powerful Guitar Front End
JFET mojo. PURE clarity.
Pedal builders and recording engineers have long known the punch and harmonic sweetness running a JFET preamp into an amp can impart. If you’re looking to add some analog mojo to your digital amps and stomps, the AXE I/O’s JFET input stage can help. On the other hand, if you’re looking for maximum clarity and headroom, AXE I/O’s switchable PURE circuitry nets you accuracy and clarity with 117dB of dynamic range.
For active and passive pickups
Whether you play vintage singles or modern active humbuckers, the AXE I/O yields the best results for every guitar in your collection.
Variable Z-Tone impedance
One of the AXE I/O’s defining features is its Z-Tone variable impedance. This control allows you to shape the tone of your guitar to best suit every amp and stomp model in your virtual amp collection.
A Comprehensive Recording Solution
Class A mic preamp
A single Class A mic preamp equips the AXE I/O for recording vocals and other instruments on top of your guitar tracks. Onboard +48-volt phantom power readies this preamp for today’s condenser mics.
Transparent digital conversion
The challenge in guitar modeling is accurately capturing the instrument’s nuance and dynamics on the way in. The AXE I/O’s onboard 24-bit/192kHz are more than capable of translating the attack, definition, and frequency response of your guitar or bass into the digital environment.
Low-jitter clocking
Likewise, the AXE I/O’s accurate clocking keeps your performances free from artifacts for cleaner tracking and tighter mixes.
High-current headphone amp
A reference-grade headphone output in the AXE I/O is your ticket to mix translation and more enjoyable practice sessions.
A Generous Software Suite

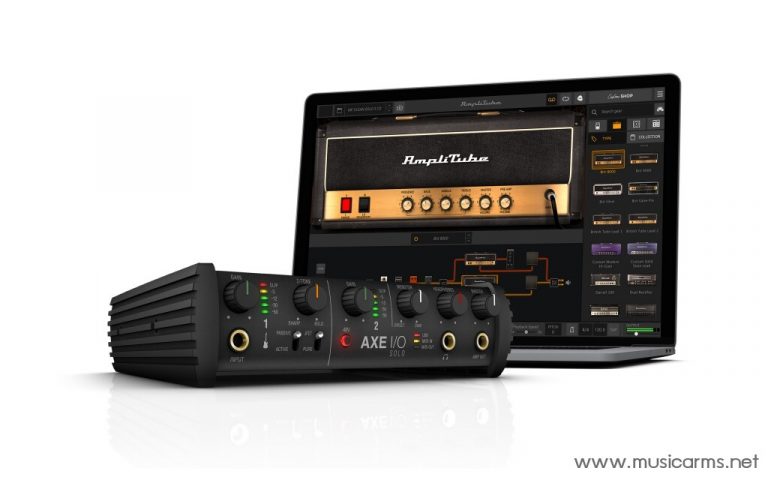

AmpliTube 4 Deluxe: 140 virtual amp chains at your disposal
In the AXE I/O’s included AmpliTube 4 Deluxe software suite, 140 class-leading amp models, virtual stomps, and cab IRs are at your disposal. British to American, squeaky clean to filthy rotten, decades of monster tone await you in AmpliTube 4. The robust Cab Room is the most realistic-sounding and -feeling miking application IK Multimedia has ever offered. You can even change the individual speakers in the different speaker cabinets. A Custom Shop program even lets you add the gear you want as you need. Whatever style you gravitate toward, IK Multimedia’s AmpliTube 4 Deluxe is your one-stop shop for top-quality guitar and bass tones. You can scroll through AmpliTube presets (and many other software titles) from the front panel for the ultimate in convenience.
Mix rack with 10 T-RackS Singles
An in-line mix rack preloaded with 10 of IK Multimedia’s T-RackS FX plug-ins put the AXE I/O guitar interface in a class all its own.
Ableton Live 10 Lite license
No DAW? No problem. AXE I/O’s included Ableton Live 10 Lite recording software will have you multitracking and layering like the pros.
Equipped with Guitar-centric Extras
Dedicated re-amp output
Want to send your direct tone out to a real amp or stomps down the production line? Want to monitor yourself through a live amp as you track for accurate response and feedback? The AXE I/O’s dedicated re-amp out makes it possible. No complex routing required.
Dedicated controller inputs
A pair of dedicated controller inputs allow you to connect up to two expression pedals or two single/double switches for controlling AmpliTube or other software in real-time.
IK Multimedia AXE I/O Solo USB Recording Interface Features:
- A robust 24-bit/192kHz guitar recording interface — the ideal front end for your virtual amps
- A comprehensive tracking solution — great for turning those riffs into songs
- Includes AmpliTube 4 Deluxe, 10 T-RackS Singles, and Ableton Live 10 Lite recording software
- JFET input stage adds analog mojo to your incoming guitar/bass signal
- PURE input stage offers 117dB of headroom and clarity
- Switch for passive and active pickups
- Z-Tone variable impedance optimizes your instrument for AmpliTube’s virtual amps and stomps
- Single Class A mic preamp with +48-volt phantom power
- Accurate clocking; transparent conversion
- Dedicated re-amp output lets you re-record or live monitor through a live amp
- Control your virtual rig with assignable preset knob
- 2 inputs for single or double footswitches and expression pedals
Specification
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
- Host Connection: USB Type-B receptacle. USB 2.0 (High Speed).
Line Outputs 1-2 (Monitor)
- Configuration: Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.
- Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
- Output Level: 0 dBFS corresponds to +13.5 dBu
- Frequency response: From 1 Hz to 46 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 113 dB(A)
- THD @ -1 dBFS: 0.001%
- THD+N: -103 dB(A) at -1 dBFS
- Channels 1-2 crosstalk: 112 dB(A)
Output 3 (Amp output)
- Configuration: Unbalanced, floating, with selectable ground lift
- Output impedance: 75 Ohms
- Output Level: 0 dBFS corresponds to -3 dBu
- Frequency response: From 20 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 106 dB(A)
- THD+N: -93 dB(A)
Headphones Out
- Output impedance: Virtually ideal source (zero Ohms) until clipping
- Maximum Output level: +9 dBu into 50 Ohms load (approx 95 mW)
- Frequency response: From 1 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 111 dB(A)
- THD+N: -102 dB(A)
Instrument Input
- Configuration: Multiple topology instrument preamp
- Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
- Input impedance, ACTIVE mode: 10 kOhms
- Input level, min gain: 0 dBFS is obtained with a +12.5dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -19 dBu signal at the TS input
- Frequency response: From 6 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD, PURE mode: 0.002 % (-1dBFS input)
- THD, JFET mode: 0.5 %
Mic Input
- Configuration: Class-A discrete differential microphone preamp, pin 2 hot
- Input impedance: 4 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +9 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -44 dBu signal at the XLR input
- Frequency response: From 7 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -104 dB(A) at -10 dBFS
Line Input
- Configuration: Class-A discrete differential line receiver, tip hot
- Input impedance: 20 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +26 dBu signal at the TRS input
- Input level, max gain: 0 dBFS is obtained with a -27 dBu signal at the TRS input
- Frequency response: From 7 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD+N: -104 dB(A) at -10 dBFS
Connections and Controls

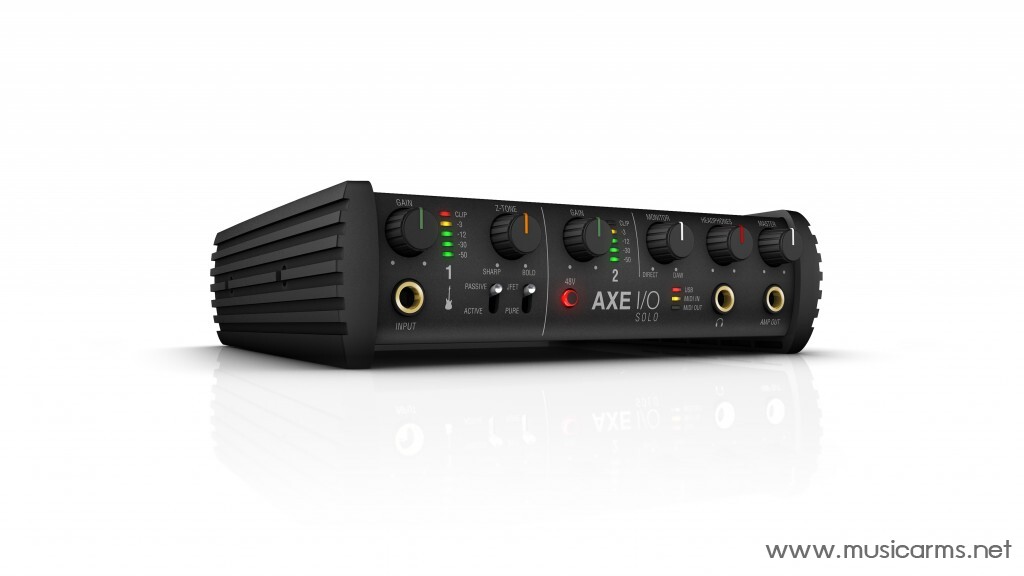

Front Panel
- One 1/4″ instrument input jacks
- Two analog potentiometers for Input GAIN
- Two 5 segments input level meter (peak)
- Analog potentiometers for Z-Tone control
- Pick-Up selector (PASSIVE/ACTIVE)
- Preamp topology selector (JFET/PURE)
- +48V phantom power switch
- USB LEDS
- MIDI IN/OUT LEDs
- Monitor knob
- 1/4″ headphones output jack
- Master potentiometer for main output control
- 1/4″ Amp output jack

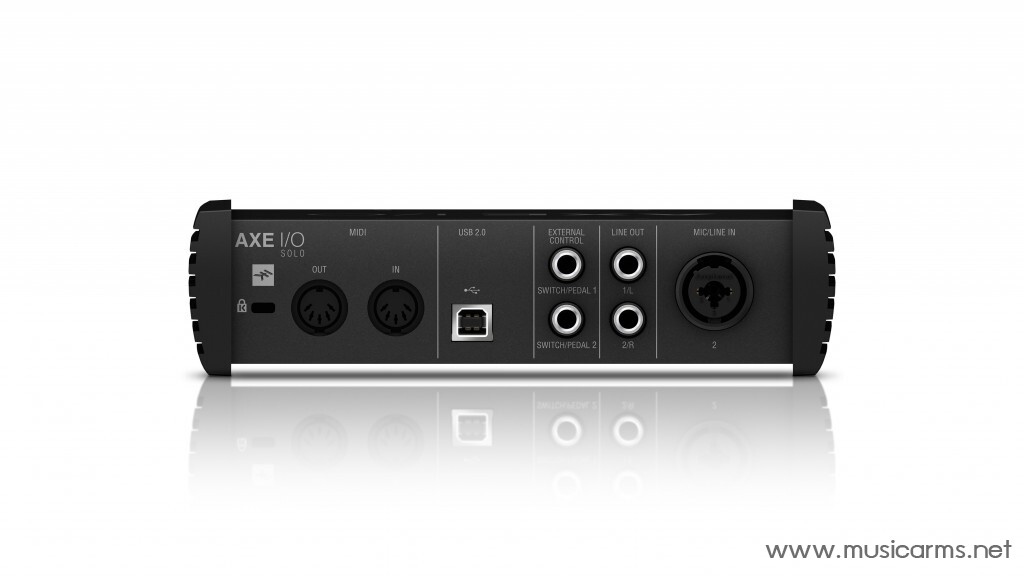

Rear Panel
- MIDI I/O 5-pin DIN connectors
- B-Type USB socket for connecting a computer (Mac/PC)
- 2 x 1/4″ TRS External controllers sockets
- 2 x 1/4″ TRS Balanced floating line outputs
- 1 Combo socket for MIC input and Line input (auto selecting)
Package includes
- AXE I/O SOLO
- USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
Dimensions
- Size: 19.5cm x 19.5cm x 5.3cm
- Weight: 1.0kg
