IK Z-TONE DI

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : IK

ราคา : 7,390 บาท

รุ่น :  IK Z-TONE DI ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ IK Z-TONE DIผ่านline สั่งซื้อ IK Z-TONE DIผ่าน messenger

วีดีโอ



Description

A Direct Box with Extra Sound-shaping Possibilities

The Z-Tone Active Direct Box from IK Multimedia is full of useful features that refine the sound of your axe. Like most DIs, the Z-Tone has enough headroom to keep the natural feel of your instrument and is equipped with a handy gain control knob. It sets itself apart from other direct boxes with its sound-shaping options. This direct box has two preamp channels to choose from, Pure and JFET, for a transparent or warm preamp character. Meanwhile, variable impedance control and a 20dB pad further refine your sound. Powered by a 9-volt battery or phantom power, the Z-Tone can be used anywhere from outdoor stages to the studio. Regardless of what genre you play, the Z-Tone active Direct Box from IK Multimedia has the tone-shaping capabilities to help you find and refine the perfect tone.



Extra switching options let you choose the perfect tone

Like most direct boxes, the Z-Tone comes with an adjustable input gain control that makes it easy to dial in the level of your axe. When you’re adjusting the level, choose your preferred preamp circuit. The Z-Tone borrows its preamp circuits from the award-winning AXE I/O and features Pure and JFET channels. The Pure channel is a transparent preamp that won’t color your sound. JFET takes advantage of a Class A JFET amplifier for warmth and midrange focus.

Patent-pending variable impedance control

The Z-Tone Direct Box has a patent-pending variable impedance control knob. Designed by IK Multimedia, this knob lets you dial in your impedance from 1 MOhm to 2.2k Ohms for unique shaping capabilities. Turn the knob counterclockwise and the sound will become tighter and more precise as the impedance increases. As you turn the knob clockwise, the sound becomes thick, saturated, and bold.

Useful output options

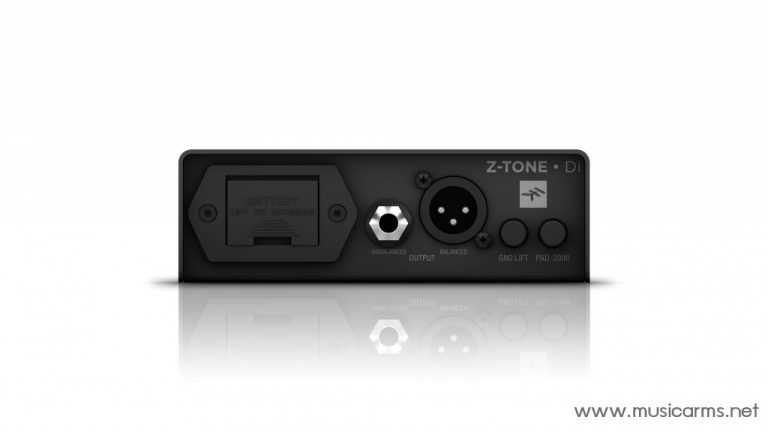

The Z-Tone has two useful output options. There’s a balanced XLR output with a ground lift switch to cut out noise from ground loops. There’s also a 1/4″ unbalanced output for extra flexibility. You can use the 1/4″ Link output on the front panel to connect to pedals and amps. Here at Sweetwater, our audio gurus have found that this allows you to record DI tracks at the same time you record your physical amp tone in the studio. For live sound applications, this lets you blend direct and amp sounds.

IK Multimedia Z-Tone Active Direct Box Features:

  • Compact direct box with flexible sound-shaping options
  • Variable impedance control unlocks more sonic textures
  • Pure preamp channel provides transparent, uncolored tone
  • JFET preamp channel delivers warmth and a slight midrange boost
  • Balanced and unbalanced outputs give you flexibility to record your way
  • Link output lets you record DI tracks alongside your real amp’s tone
  • 20dB pad lets you use other instruments like keyboards and synths
  • Ground lift switch eliminates annoying hum and ground loops

Specification

Audio specs

  • I/O Gain: Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position.
  • Gain Range: From -8dB to +8dB
  • Input impedance – Z-TONE set on PASSIVE mode: Variable from 1MΩ down to 2.2kΩ
  • Input impedance – Z-TONE set on ACTIVE mode: Approx 20kΩ
  • Output impedance, unbalanced out: 56Ω
  • Output impedance, balanced out: 600Ω
  • Max input level before clipping: +13dBm when powered by 48V phantom,+9dBm when powered by 9V battery
  • PAD: -20dB
  • Dynamic Range: better than 114dB(A) for both outputs, input gain at 0dB
  • Total Harmonic Distortion, balanced output, 1kHz, +4dBm input: 0.0033% (PURE), 0.2% (JFET)
  • Total Harmonic Distortion, unbalanced output, 1kHz, +4dBm input: 0.00055% (PURE), 0.2% (JFET)
  • Frequency response: from 5Hz to 30kHz -1dB
  • Phase deviation: 0° +/-10° from 20Hz to 20kHz

Power

  • Phantom power: +48V phantom on Balanced output
  • Battery power: 9V – not included
  • Current consumption from P48 phantom power source: 6.5mA

Dimensions

  • Size: 13.7cm/5.39″ x 15.8cm/6.22″ x 4.5cm/1.77″
  • Weight: 950g/33.56oz
