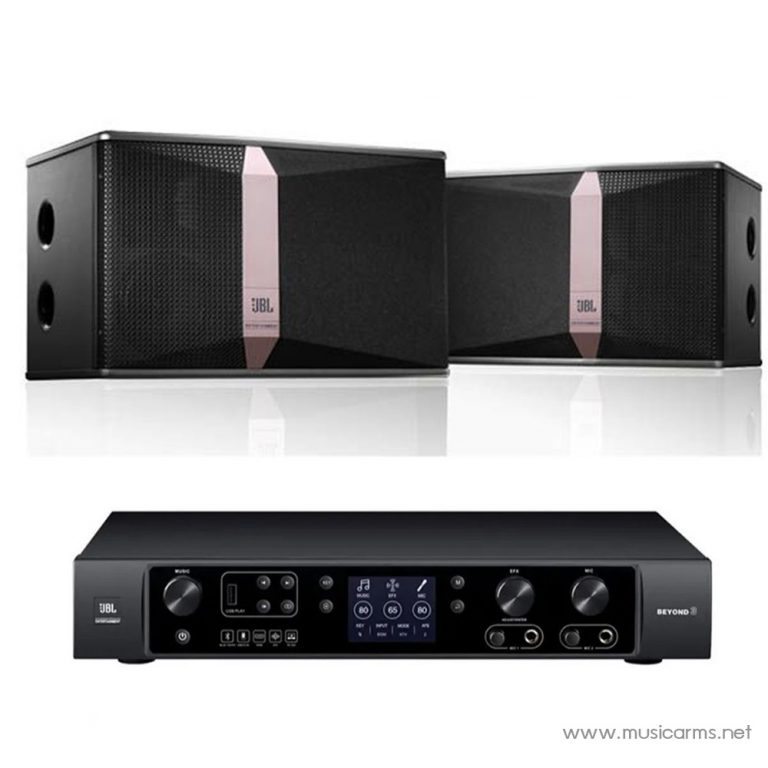

JBL BEYOND 3K12 Karaoke Set

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : JBL

ราคา : 66,800 บาท

104,100 บาท ประหยัด36%
รุ่น :  JBL BEYOND 3K12 Karaoke SET
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ JBL BEYOND 3K12 Karaoke Setผ่านline สั่งซื้อ JBL BEYOND 3K12 Karaoke Setผ่าน messenger

Description

JBL Karaoke Set  JBL BEYOND 3K10 (JBL BEYOND 3 1 เครื่อง +JBL Ki512 1 คู่)

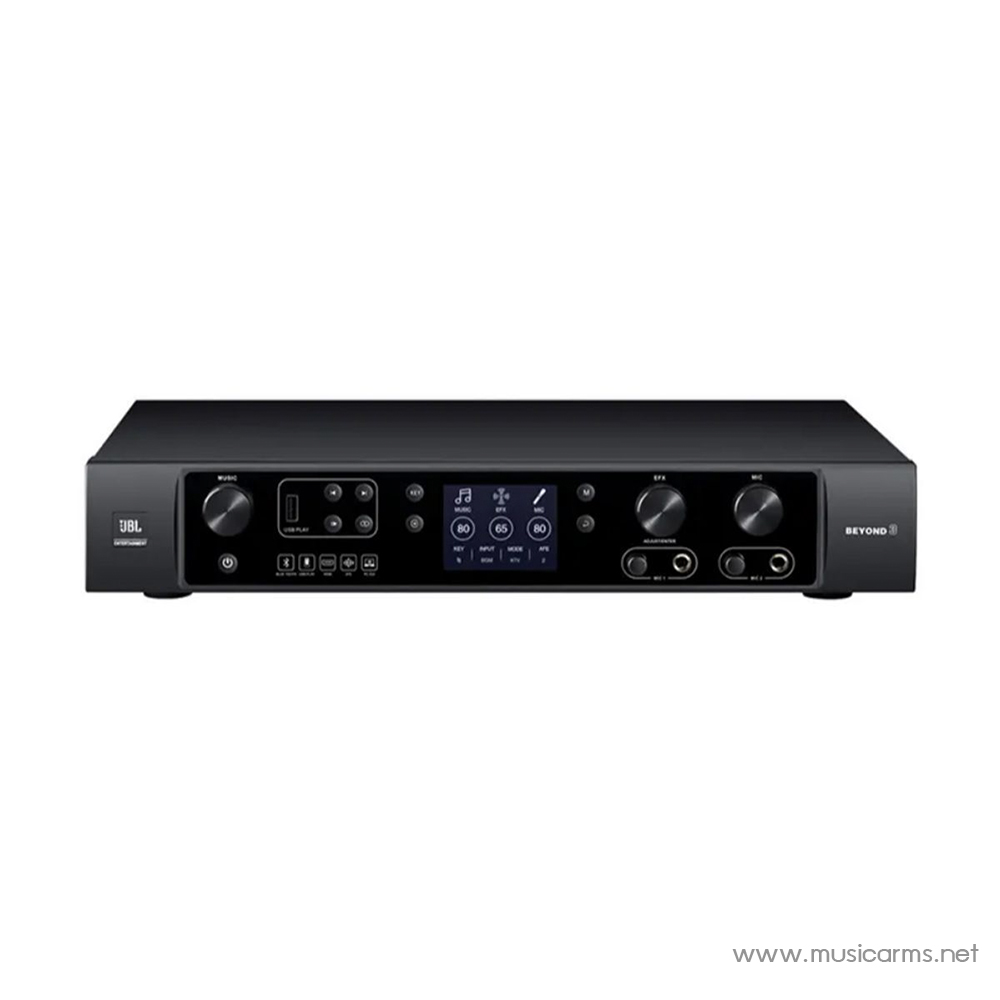

BEYOND3
The JBL BEYOND3 is designed for small-club and smart-home karaoke applications that demand signature JBL sound quality and comprehensive processing features in an affordable, easy-to-use package.
BEYOND series amplifiers deliver unforgettable karaoke experiences, thanks to signature JBL Entertainment effects including pitch shift, echo, reverb and EQ, with feedback protection and customizable presets. The series continues the tradition of excellence that’s made JBL the leading brand in karaoke systems, featuring top-grade components and materials and robust, efficient 360-watt, two-channel Class D amplification.
Systems look as great as they sound, with a sleek, stylish design and an illuminated JBL Entertainment logo that lets customers and venue owners showcase superior JBL sound quality.
The BEYOND3 provides exceptional karaoke sound at an affordable price point and is built to JBL’s uncompromising performance standards. It seamlessly matches a range of karaoke systems.

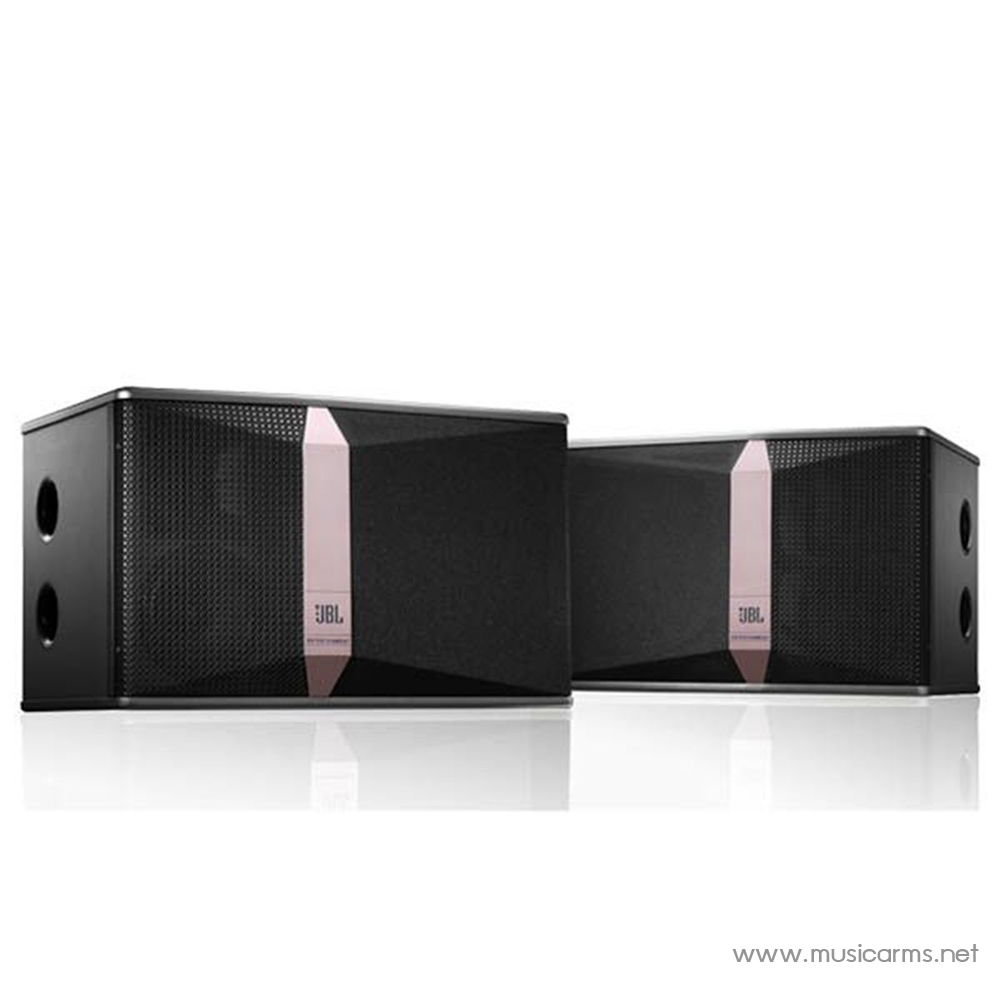

JBL Ki512
Ki512 is a full-range speaker designed specifically for KTV applications. The 3-way speaker combines a 12” woofer, a 5” squawker and a 1” aluminum dome tweeter and is able to handle continuous power of 400 Watts.
The high-power 12” woofer features a long fiber pulp cone and pure nitrile butadiene rubber surround and provides necessary stiffness and capacity to withstand the tremendous accelerating force from the motor. The 5” paper cone squawker and the 1” aluminum dome tweeter optimizes middle and high range reproduction and guarantees non-compromised sound quality for the whole speaker system.

Specification

BEYOND3

  • Rated Power: 2CH 360W at 8Ω
  • Amp Type: Class-D
  • Display: 2.8-inch LCD
  • Frequency Response:
  • 20Hz – 20kHz, +1/-1dB (RCA Input)
  • 50Hz – 14kHz, +1.5/-3dB (1/4″ TRS Input)
  • Total Harmonic Distortion (THD): ≤1%, 20Hz – 20kHz
  • Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted):
  • ≥85dB (RCA Input)
  • ≥75dB (1/4″ TRS Input)
  • Input Impedance: 3.2kΩ
  • Music Input
  • VOD (RCA pair) x1
  • BGM (RCA pair) x1
  • HDMI x2
  • Optical x1
  • Bluetooth x1
  • USB Playback x1
  • Microphone Input:
  • Front (TRS) x2
  • Rear (TRS) x1

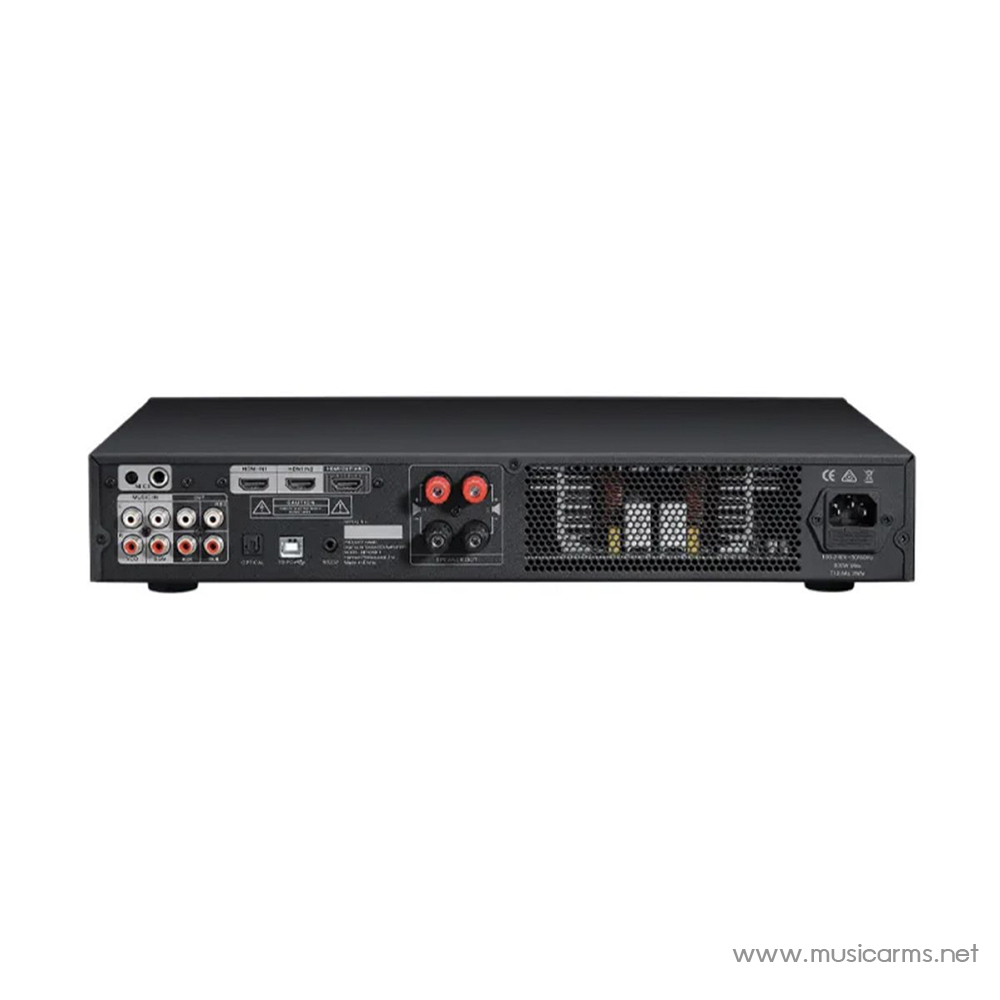

  • Output Connectors:
  • ARC (HDMI) x 1
  • AUX (RCA pair) x 1
  • Recording output (RCA) x1
  • Subwoofer output (RCA) x1
  • Speaker output (Binding Post) x2
  • Control Connectors PC (USB Type B) x1
  • RS232 (3.5mm socket) x1
  • Dimensions (W x H x D): 16.85″ x 2.99″ x 12.4″ (428mm x 76mm x 315mm)
  • Net Weight: 12.79lb (5.8kg)
  • Shipping Weight: 16.31lb (7.4kg)
  • Power Requirements: 100V – 240V ~50/60Hz

JBL Ki512

  • System Type 12′′, 3-way, bass-reflex
  • Frequency Range (-10 dB) *1 42 Hz – 20 kHz
  • Frequency Response (-3 dB) *1 58 Hz – 16 kHz
  • Sensitivity (1w/1m) *1 94 dB
  • Nominal Impedance 8 Ohms
  • Maximum SPL 120 dB (126 dB peak)
  • Power Rating *2
  • (Continuous/Program/Peak) 400 W/800 W/1600 W
  • Coverage Pattern 80° × 60° (H × V)
  • Dimensions (H × W × D) 360 mm × 570 mm × 392 mm
  • 14.2 inch × 22.4 inch × 15.4 inch
  • Net Weight 35.2 Kg (77.6 lbs)
  • LF Driver 1 × 12′′ woofer
  • MF Driver 1 × 5′′ squawker
  • HF Driver 2 × 1′′ aluminum dome tweeter
  • Input Connectors Binding post
  • Enclosure Construction Vinyl covered15 mm MDF

ข้อมูล

JBL BEYOND 3K12 ได้รับการออกแบบสำหรับแอพพลิเคชั่นคาราโอเกะขนาดเล็กและสมาร์ทโฮมที่ต้องการคุณภาพเสียง JBL อันเป็นเอกลักษณ์และคุณสมบัติการประมวลผลที่ครอบคลุมในแพ็คเกจราคาไม่แพงและใช้งานง่าย ประกอบด้วย JBL Beyeond 3 และ JBL Ki512 มอบประสบการณ์การร้องคาราโอเกะที่ยากจะลืมเลือน ด้วยเอฟเฟค JBL Entertainment อันเป็นเอกลักษณ์ รวมถึง pitch shift, echo, reverb และ EQ พร้อมการป้องกันเสียงสะท้อนและการตั้งค่าล่วงหน้าที่ปรับแต่งได้ ซีรีส์นี้ยังคงสานต่อความเป็นเลิศที่ทำให้ JBL เป็นแบรนด์ชั้นนำด้านระบบคาราโอเกะ โดยมีส่วนประกอบและวัสดุคุณภาพสูง และเครื่องขยายเสียง Class D แบบสองช่องสัญญาณ 360 วัตต์ที่ทนทานและมีประสิทธิภาพ

สเปค

รายละเอียด JBL BEYOND 3K12

JBL Beyeond 3

  • ​กำลังไฟ: 2CH 360W ที่8Ω
  • ประเภทแอมป์: Class-D
  • จอแสดงผล: LCD ขนาด 2.8 นิ้ว
  • การตอบสนองความถี่:
    20Hz – 20kHz, +1/-1dB (อินพุต RCA)
    50Hz – 14kHz, +1.5/-3dB (อินพุต TRS 1/4″)
  • ความเพี้ยนของฮาร์มอนิกทั้งหมด (THD): ≤1%, 20Hz – 20kHz
  • อัตราส่วนสัญญาณต่อสัญญาณรบกวน (กำลังไฟต่ำกว่า 20 Hz ถึง 20 kHz, A-Weighted):
    ≥85dB (อินพุต RCA)
    ≥75dB (อินพุต TRS 1/4″)
  • อิมพีแดนซ์อินพุต: 3.2kΩ
  • อินพุตเพลง
    VOD (คู่อาร์ซีเอ) x1
    BGM (คู่อาร์ซีเอ) x1
    HDMI x2
    ออปติคอล x1
    บลูทูธ x1
    เล่น USB x1
  • อินพุตไมโครโฟน:
    ด้านหน้า (TRS) x2
    ด้านหลัง (TRS) x1
  • ขั้วต่อเอาต์พุต:
    ARC (HDMI) x 1
    AUX (คู่ RCA) x 1
  • เอาต์พุตการบันทึก (RCA) x1
  • เอาต์พุตซับวูฟเฟอร์ (RCA) x1
  • เอาต์พุตลำโพง (Binding Post) x2
  • คอนเนคเตอร์ควบคุม PC (USB Type B) x1
  • RS232 (ซ็อกเก็ต 3.5 มม.) x1
  • ขนาด (กว้าง x สูง x ลึก): 16.85″ x 2.99″ x 12.4″ (428mm x 76mm x 315mm)
  • น้ำหนักสุทธิ: 12.79 ปอนด์ (5.8 กก.)
  • ความต้องการพลังงาน: 100V – 240V ~50/60Hz

JBL Ki512

  • ประเภทระบบ 12′′, 3-way, Bass-reflex
  • ช่วงความถี่ (-10 dB) *1 42 Hz – 20 kHz
  • การตอบสนองความถี่ (-3 dB) *1 58 Hz – 16 kHz
  • ความไว (1w/1m) *1 94 dB
  • ความต้านทานที่กำหนด 8 โอห์ม
  • SPL สูงสุด 120 dB (สูงสุด 126 dB)
  • อัตรากำลัง *2
  • (ต่อเนื่อง/โปรแกรม/สูงสุด) 400 W/800 W/1600 W
  • รูปแบบการครอบคลุม 80° × 60° (สูง × วี)
  • ขนาด (สูง × กว้าง × ลึก) 360 มม. × 570 มม. × 392 มม.
  • 14.2 นิ้ว × 22.4 นิ้ว × 15.4 นิ้ว
  • น้ำหนักสุทธิ 35.2 กก. (77.6 ปอนด์)
  • LF Driver 1 × 12′′ วูฟเฟอร์
  • MF Driver 1 × 5′′ squawker
  • HF Driver 2 × 1′′ ทวีตเตอร์โดมอะลูมิเนียม
  • ขั้วต่ออินพุท Binding post
  • โครงสร้างตู้ เคลือบไวนิล15 mm MDF

×
