Description
Product Features
PRO DI AV 2 DI 22P

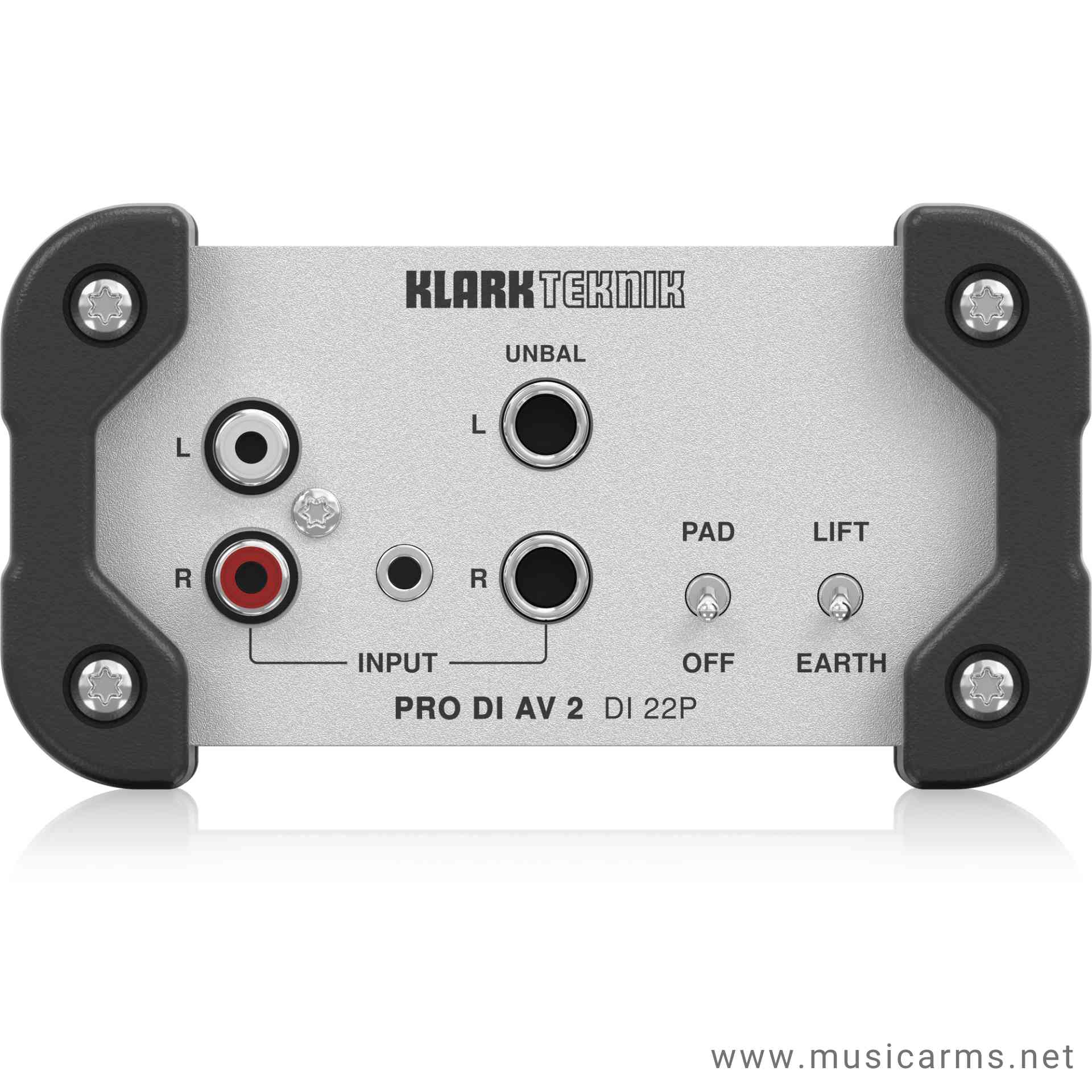

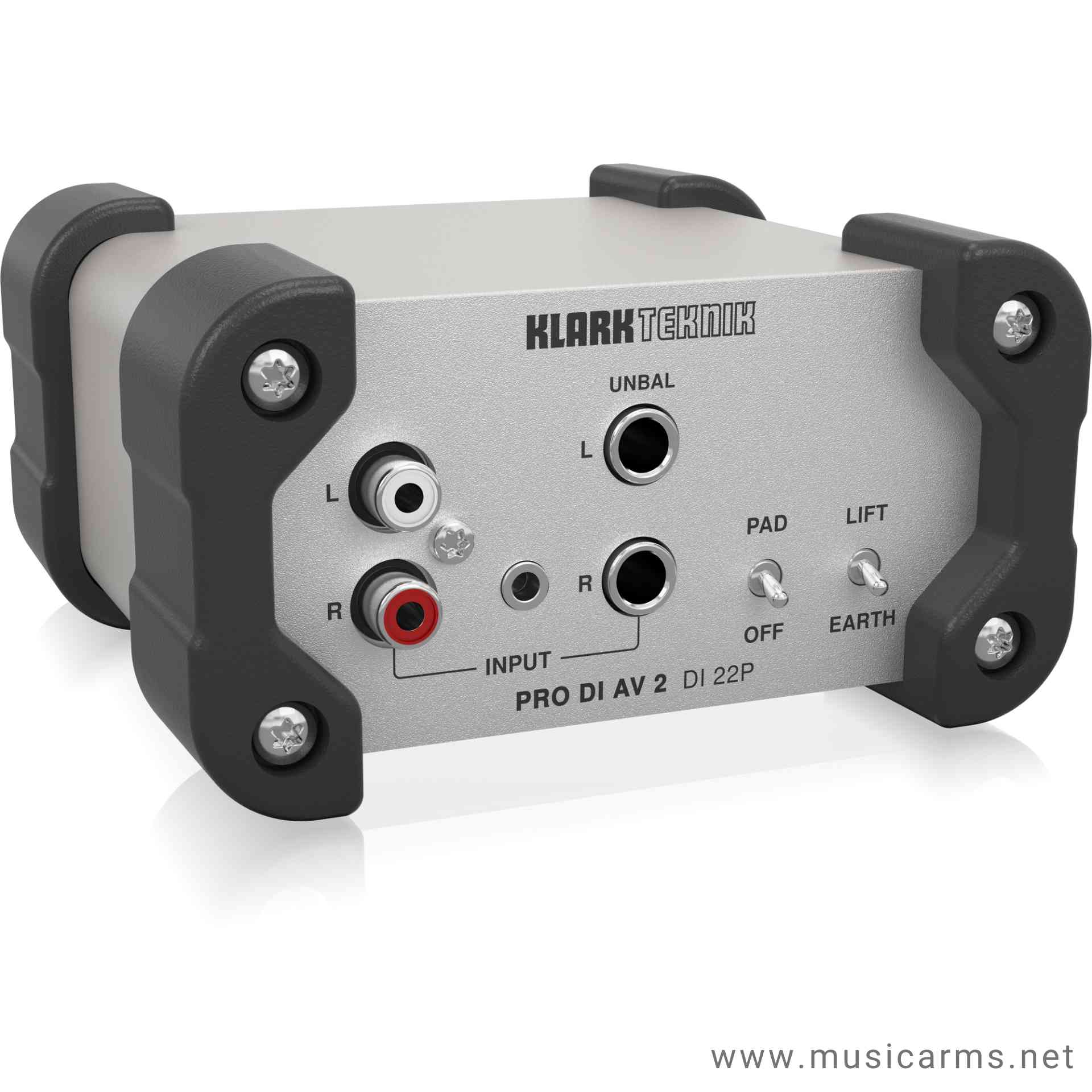

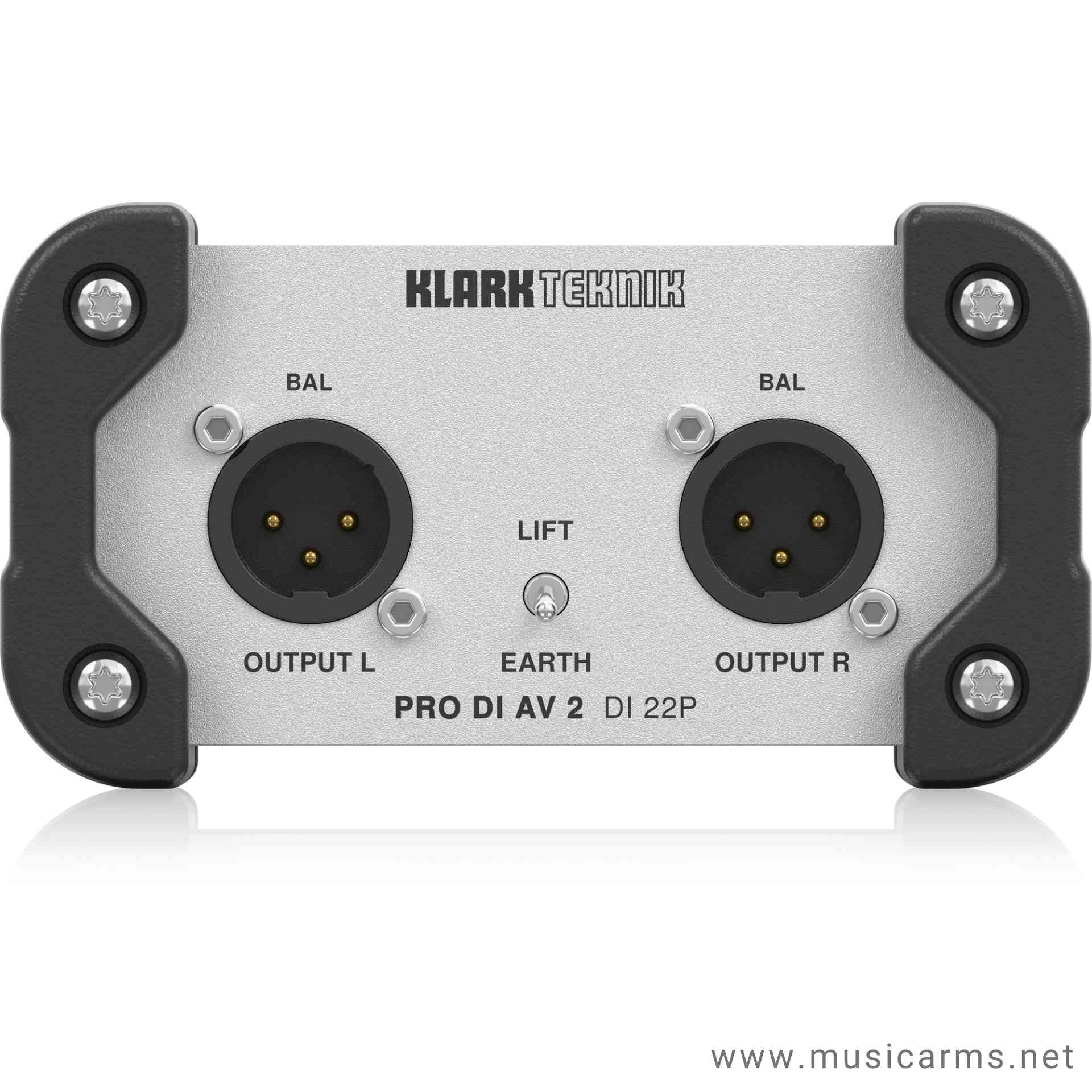

Building on KLARK TEKNIK’s storied legacy of highest-quality direct injection devices, the DI 22P PRO DI AV 2 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 22P combines many of the outstanding features of the DI 20P and DI 10P direct boxes into one powerful tool that should be in every audio engineers kit. The extremely versatile DI 22P accepts dual instrument, line and speaker levels, plus also accommodates MP3, CD players, keyboard or drum submixers, and a variety of other stereo sources, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. A passive device, the DI 22P does not require any form of external power to complete its mission. Equipped with custom-built MIDAS transformers and switchable input Pads, the DI 22P is the perfect choice for premium-grade professional audio and multimedia applications.
MIDAS – The Legend in Sound Quality
Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.
MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning products which are considered by industry experts as the industry’s best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.
KLARK TEKNIK is proud to incorporate MIDAS designed transformers for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about MIDAS’ amazing legacy by visiting their extensive website.
Compact & Rugged Construction
The ultra-compact DI 22P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure’s roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers.
Specification
Specification
Inputs
| Connectors | 2 x ¼” TS, 1/8″ TRS, RCA unbalanced |
| Impedance | 30 kΩ |
| Max. input level | 30 dBu @ 1 kHz |
Outputs
| Connectors | 2 x XLR, balanced |
| Impedance | 600 Ω |
| Max. output level | 8.5 dBu @ 1 kHz |
System
| Frequency response | 20 Hz to 30 kHz (± 1 dB) |
| THD + N (distortion) | 0.01% @ 1 kHz, 0 dBU |
| Signal-to-noise ratio | 105 dBu |
| Input pad | -15 dB |
| Power requirement | Passive |
Physical
| Dimensions (W x D x H) | 118 x 112 x 64 mm (4.6 x 4.4 x 2.5″) |
| Weight | 0.53 kg (1.2 lbs) |
