Description
Product Features

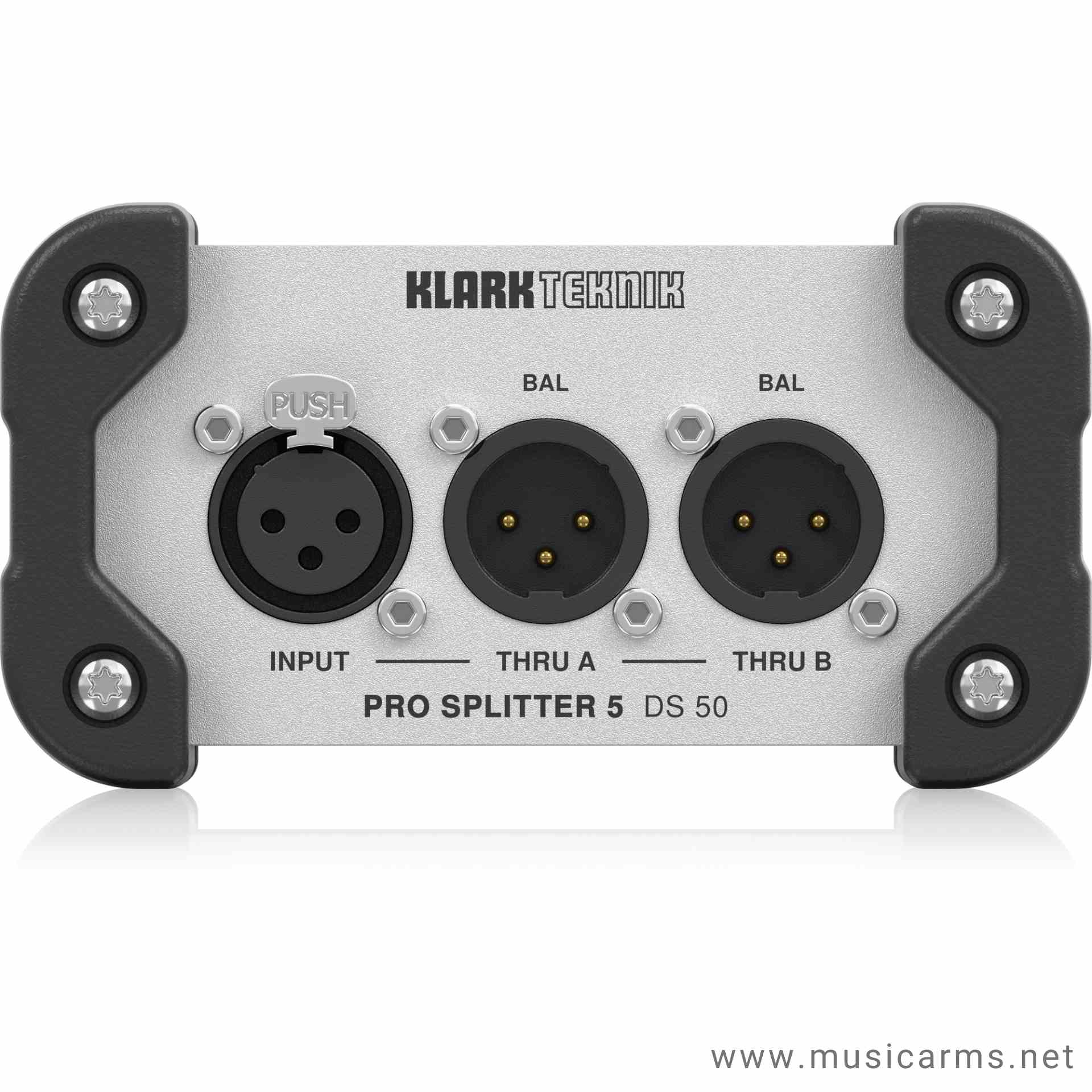

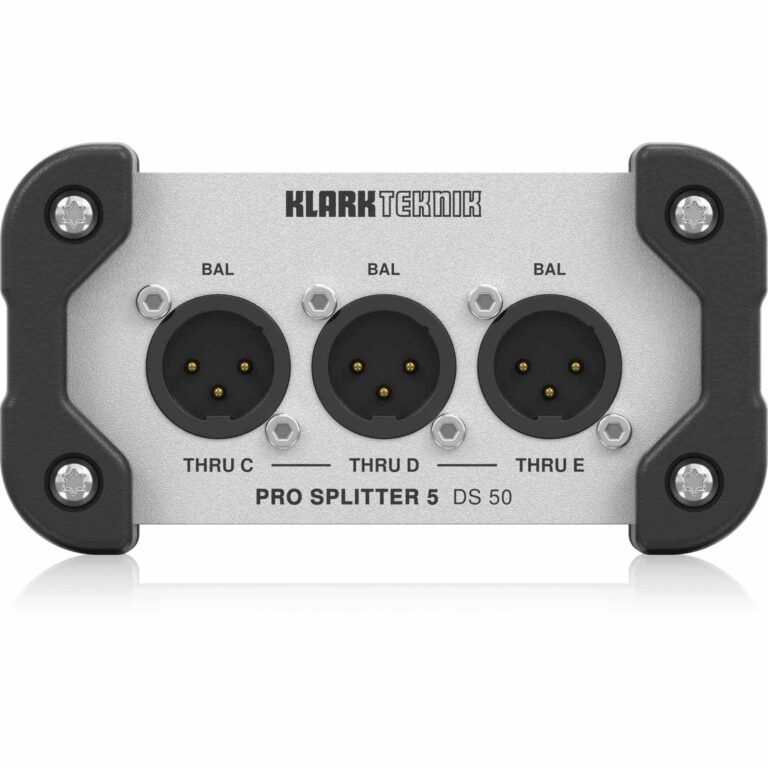

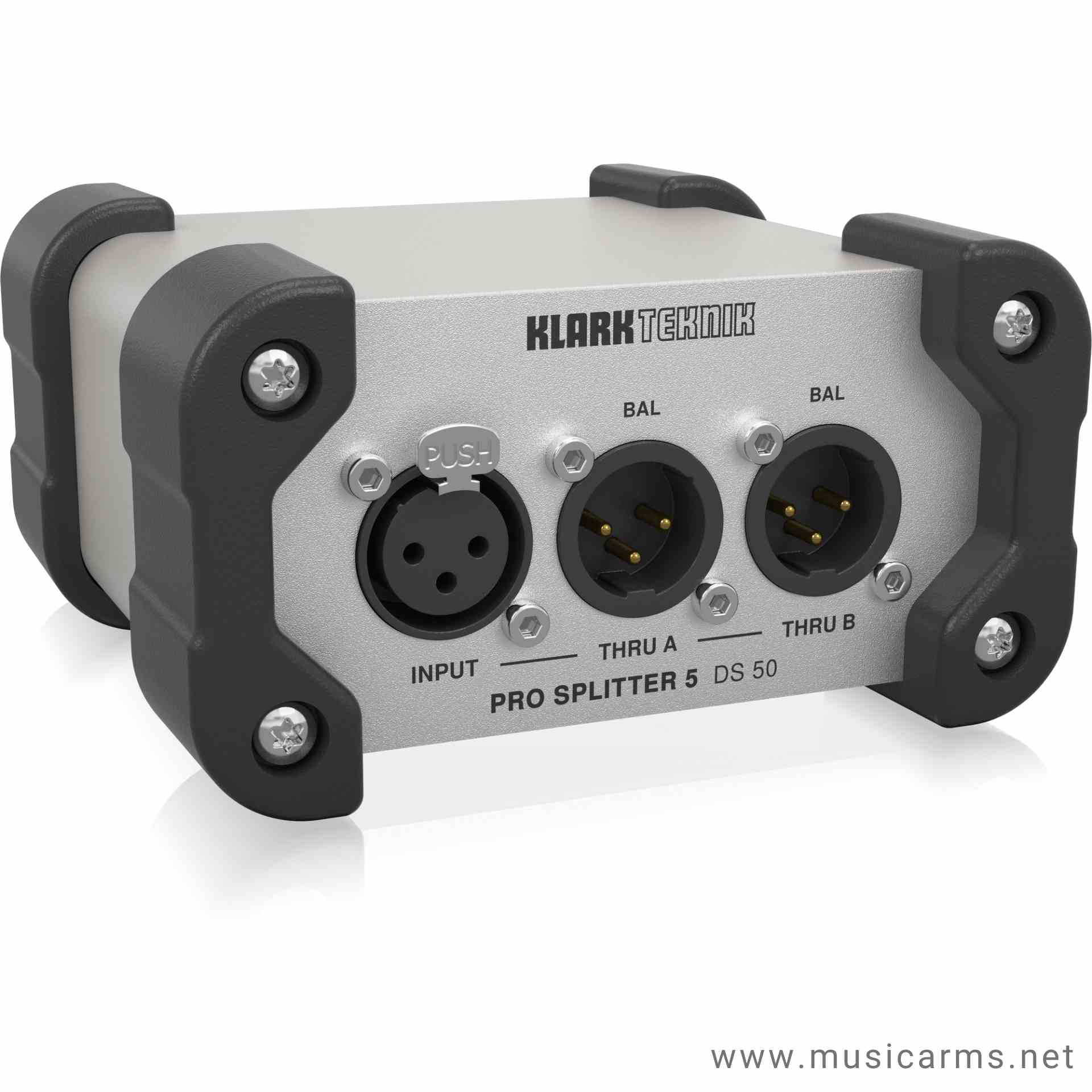

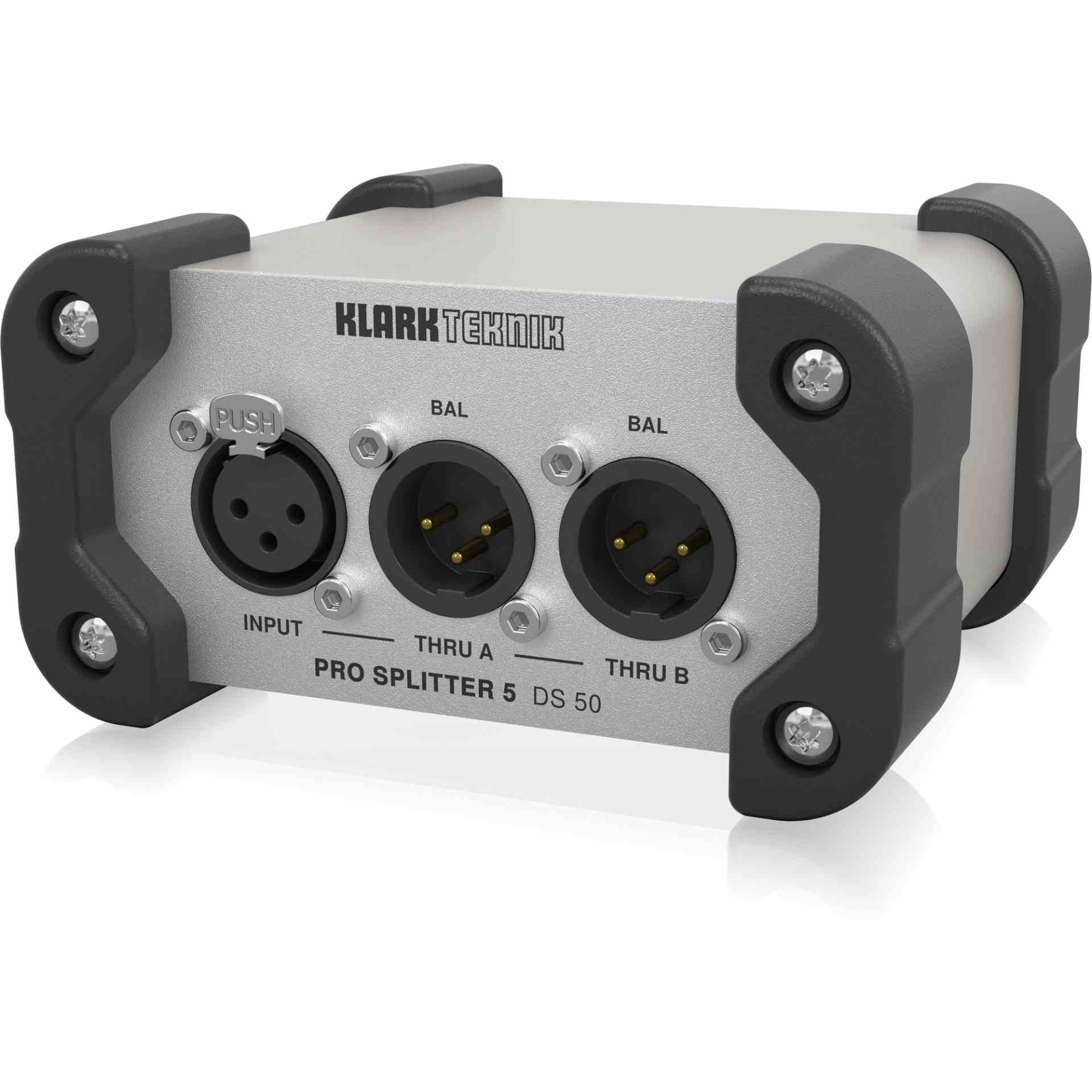

PRO SPLITTER 5 DS 50
Building on KLARK TEKNIKs storied legacy of highest-quality signal processing devices, the DS 50 PRO SPLITTER 5 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DS 50 is ideal for routing balanced XLR signals to as many as 5 discrete destinations, including FOH and monitor consoles, active monitor loudspeakers, broadcast mixers, and more. A passive device, the DS 50 does not require any form of external power, making it the perfect solution for a wide range of professional audio and multimedia applications.
High Headroom Design
A custom instrumentation-grade input circuit was designed for the DS 50 using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra low noise and ultra-linear system with a ruler-flat frequency response that ranges from 20 Hz to 22 kHz (� 0.05 dB).
Specification
Specification
Inputs
| Connector | XLR, balanced |
Outputs
| Connectors | 5 x XLR, balanced |
System
| Frequency response | 20 Hz to 22 kHz (± 0.05 dB) |
| THD + N (distortion) | < 0.01% @ 1 kHz,+4 dBu |
| Signal-to-noise ratio | 121 dB |
| CMRR | 98 dB typical |
| Insertion loss | 0.05 dB @ 100 kΩ, 0.7 dB @ 600 Ω |
| Power requirement | Passive |
System
| Dimensions (W x D x H) | 118 x 112 x 64 mm (4.6 x 4.4 x 2.5″) |
| Weight | 0.43 kg (0.9 lbs) |
