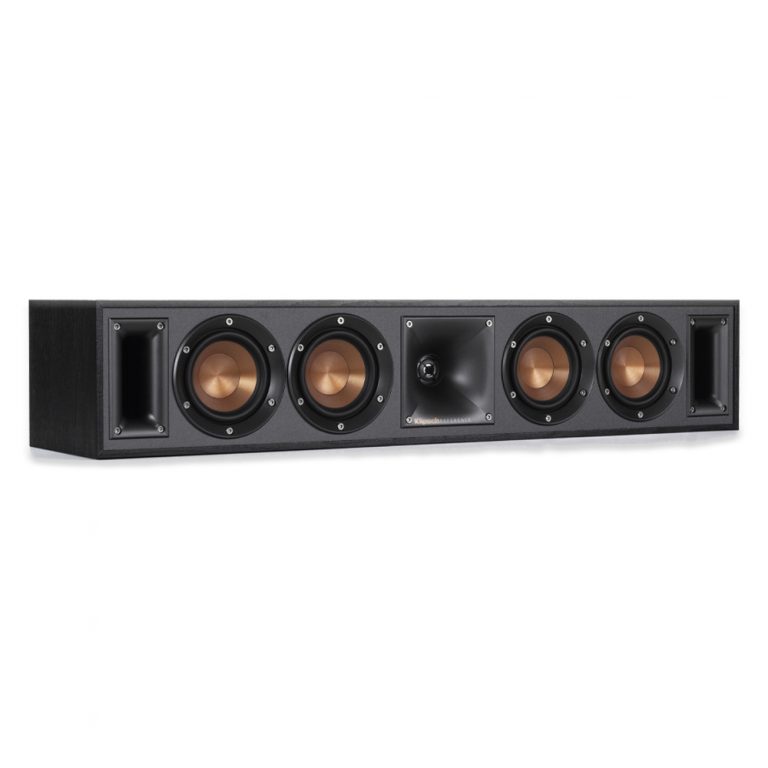

Klipsch R-34C ลำโพง Active

At only 5.2″ tall, the R-34C center channel speaker compliments today’s flat panel TVs with an unobtrusive, low-profiled design – all while delivering dynamic, crystal-clear acoustics for your movies and music. Dual front-firing Tractrix ports allow the R-34C to be placed right against your wall or entertainment system without effecting the bass response.

Klipsch exclusive 90×90º Tractrix® horn technology ensures that the R-34C high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.

Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.

Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.

The dual front Tractrix ports are perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

Front-firing ports allow the R-34C center speaker to be placed right against your wall or entertainment system without impacting the bass response.

Exposed fasteners, a low profile magnetic grille and a scratch-resistant, textured wood grain vinyl give the R-34C center channel speaker a polished, modern appearance.

Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy – giving you the ultimate listening experience that’s built to last.

• FREQUENCY RESPONSE : 82Hz – 21kHz +/- 3dB
• SENSITIVITY : 96 dB @ 2.83V/1M
• POWER HANDLING (CONT/PEAK) : 100W/400W
• NOMINAL IMPEDANCE : 8 ohms Compatible
• CROSSOVER FREQUENCY : 1,600 Hz
• HIGH FREQUENCY DRIVER : 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix? Horn
• LOW FREQUENCY DRIVER : Quad 3.5” spun-copper IMG woofers
• ENCLOSURE MATERIAL : MDF
• ENCLOSURE TYPE : Bass-Reflex via rear-firing Tractrix?ports
• INPUTS : Single Gold Plated Binding Posts
• HEIGHT INCHES (MM) : 5.2” (133 mm)
• WIDTH INCHES (MM) : 26” (660 mm)
• DEPTH INCHES (MM) : 6.2” (157 mm)
• FINISHES : Black Textured Wood Grain Vinyl
• INCLUDED ACCESSORIES : Rubber Feet (4)

รายละเอียด Klipsch R-34C

• การตอบสนองความถี่ : 82Hz – 21kHz +/- 3dB
• ความไว : 96 dB @ 2.83V/1M
• กำลังไฟ  : 100W/400W
• ความต้านทาน : 8 โอห์ม
• ความถี่ครอสโอเวอร์ : 1,600 Hz
• ตัวขับความถี่สูง: ทวีตเตอร์อลูมิเนียม LTS ขนาด 1 นิ้ว ผสมกับ Tractrix แบบสี่เหลี่ยมขนาด 90 x 90
• ตัวขับความถี่ต่ำ : วูฟเฟอร์ IMG สปันทองแดงขนาด 3.5 นิ้ว
• วัสดุ: MDF
• Bass-Reflex ผ่านพอร์ต Tractrix แบบยิงด้านหลัง
• อินพุต : Single Gold Plated
• ขนาด 133 x 660 x 157 มม.
• ไวนิลลายไม้พื้นผิวสีดำ
• อุปกรณ์เสริมพื้นยาง
