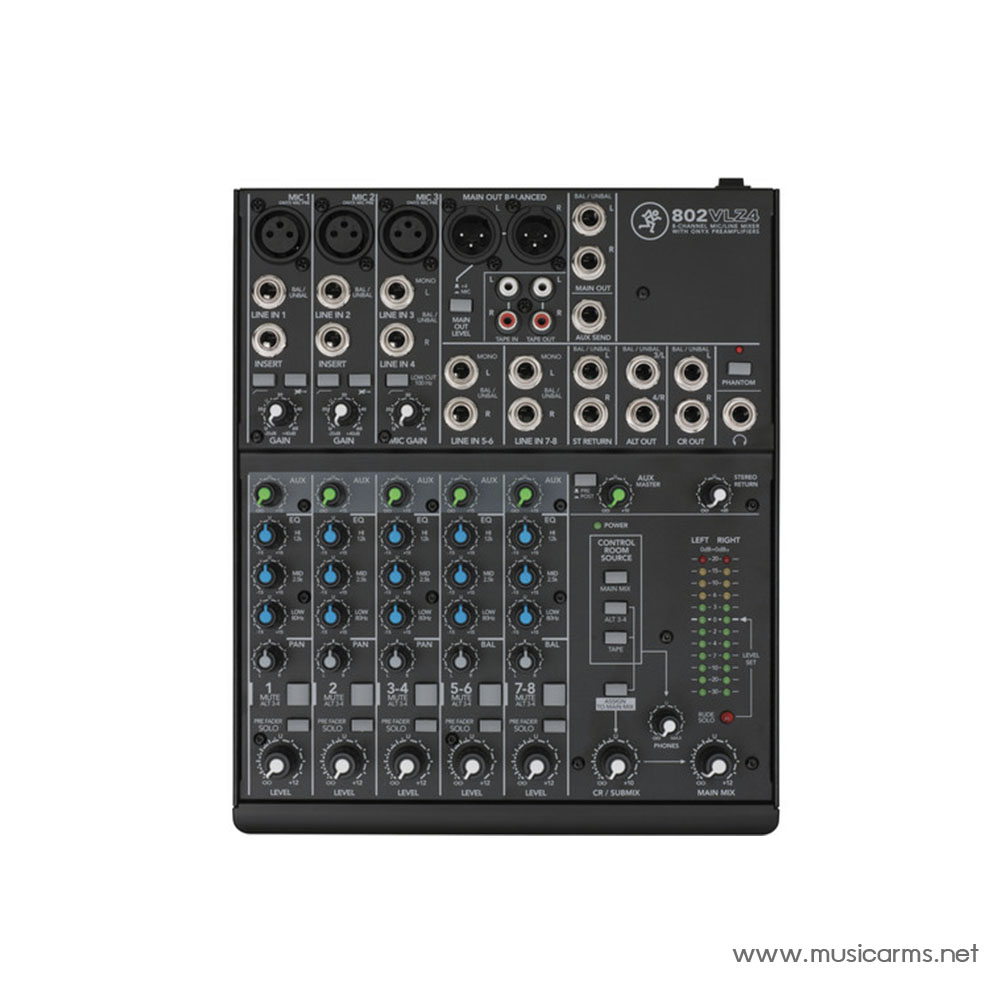

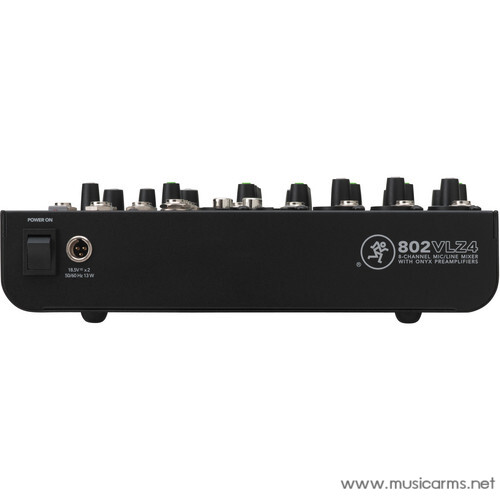

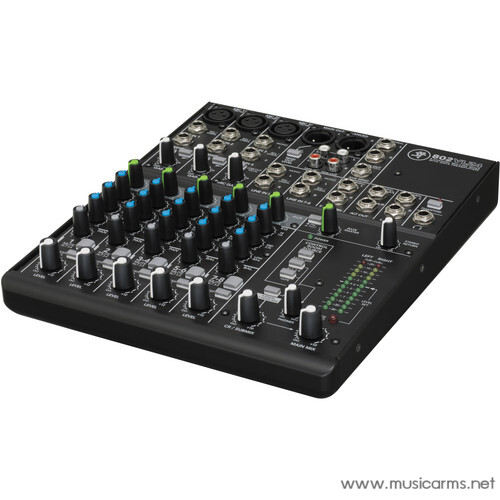

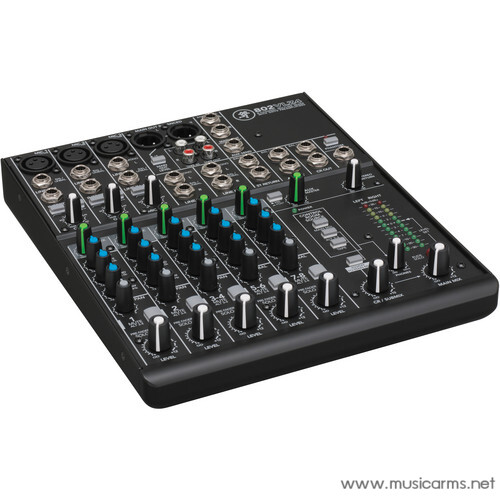

Mackie 802VLZ4 Analog Mixer

Mackie is a Proven Leader in Analog Mixers

Beyond sounding great, the Mackie 802VLZ4 mixer is one piece of gear you can truly rely on. It continues the VLZ Series’ trend for rock-solid construction, while taking your sound quality to a new level. You’ve got an amazingly wide dynamic range, incredible 60dB gain range on the Onyx microphone preamplifiers, and ultra-low-noise performance. The 802VLZ4 also boasts better-than-ever RF rejection for prime performance in broadcast situations. And with high-resolution meters, generous I/O, and sealed rotary controls that keep out dust and grime, the Mackie 802VLZ4 is one of Mackie’s best mixers ever.

Mackie 802VLZ4 8-channel Mixer at a Glance:

• Premium-quality mixer with proven components
• Sealed rotary controls ensure long-term reliability
• Incredible sound quality

Premium-quality mixer with proven components

The Mackie 802VLZ4 is, first and foremost, a Mackie mixer. It houses three of Mackie’s premium-quality Onyx mic preamps for natural, transparent sound, and three stereo channels. Its mic/line channels are equipped with a 3-band EQ. Signal routing is easy and flexible. On top of all that, the Mackie 802VLZ4 is built Mackie-tough – trust this mixer to perform even in the most harrowing situations.

Sealed rotary controls ensure long-term reliability

Sure, the Mackie 802VLZ4 mixer will shrug off bumps, drops, and outright abuse, but what about spills or rain? Thankfully, the 802VLZ4 boasts sealed rotary controls that resist grime, dust, and anything else that may spill onto your mixer. We’re not saying it’s fully waterproof, but it’s an extra level of protection you’ll eventually be very glad you have when you’re running live sound in a hectic environment.

Incredible sound quality

VLZ stands for “very low noise”, and that’s just part of the appeal of the Mackie 802VLZ4 mixer. In all you’ve got a 128.5dB dynamic range, making it easy to achieve full, punchy mixes. The Onyx mic preamps have a 60dB gain range, so you can get the best out of virtually any microphone. And because the 802VLZ4’s line inputs handle +22 dBu signal levels, you can connect high-output sound sources without worrying about distorting your inputs.

Mackie 802VLZ4 8-channel Mixer Features:

• Amazingly rugged analog mixer with three microphone preamplifiers and three stereo channels
• Onyx mic preamps offer up to 60dB of gain for great performance with any mic
• Ultra-low-noise performance gives you clean, clear sound
• High-resolution stereo meters give you fast, easy visual indication of your signal levels
• Sealed rotary controls resist dust and grime

• Type:Analog
• Channels:8
• Inputs – Mic Preamps:3 x XLR
• Phantom Power:3
• Inputs – Line:2 x 1/4″ (CH 1-2), 6 x 1/4″ (CH 3-8 Stereo), 2 x RCA (Tape)
• Inputs – Other:2 x Stereo (RCA)
• Outputs – Main:2 x XLR, 2 x 1/4″
• Outputs – Other:2 x RCA (Tape), 2 x 1/4″ (Alt), 2 x 1/4″ (Control Room)
• Aux Sends:1 x Pre/Post
• Send/Return I/O:1 x 1/4″ (Send), 2 x 1/4″ (Return)
• Busses/Groups:Alt 3-4
• Channel Inserts:Yes (CH 1-2)
• Headphones:1 x 1/4″
• EQ Bands:3-band
• Height:1.8″
• Width:8.9″
• Depth:10.7″
• Weight:5.5 lbs.

• ประเภท: อนาล็อก
• ช่องสัญญาณ: 8
• อินพุต – ปรีแอมป์ไมค์: 3 x XLR
• Phantom Power: 3 ช่อง
• อินพุต – ไลน์:
  • 2 x 1/4″ (ช่อง 1-2)
  • 6 x 1/4″ (ช่อง 3-8 สเตอริโอ)
  • 2 x RCA (เทป)
• อินพุต – อื่นๆ: 2 x สเตอริโอ (RCA)
• เอาต์พุต – หลัก: 2 x XLR, 2 x 1/4″
• เอาต์พุต – อื่นๆ:
  • 2 x RCA (เทป)
  • 2 x 1/4″ (Alt)
  • 2 x 1/4″ (ห้องควบคุม)
• Aux Sends: 1 x Pre/Post
• Send/Return I/O: 1 x 1/4″ (Send), 2 x 1/4″ (Return)
• Busses/Groups: Alt 3-4
• Channel Inserts: มี (ช่อง 1-2)
• หูฟัง: 1 x 1/4″
• EQ Bands: 3 แบนด์
• ความสูง: 1.8 นิ้ว
• ความกว้าง: 8.9 นิ้ว
• ความลึก: 10.7 นิ้ว
• น้ำหนัก: 5.5 ปอนด์
