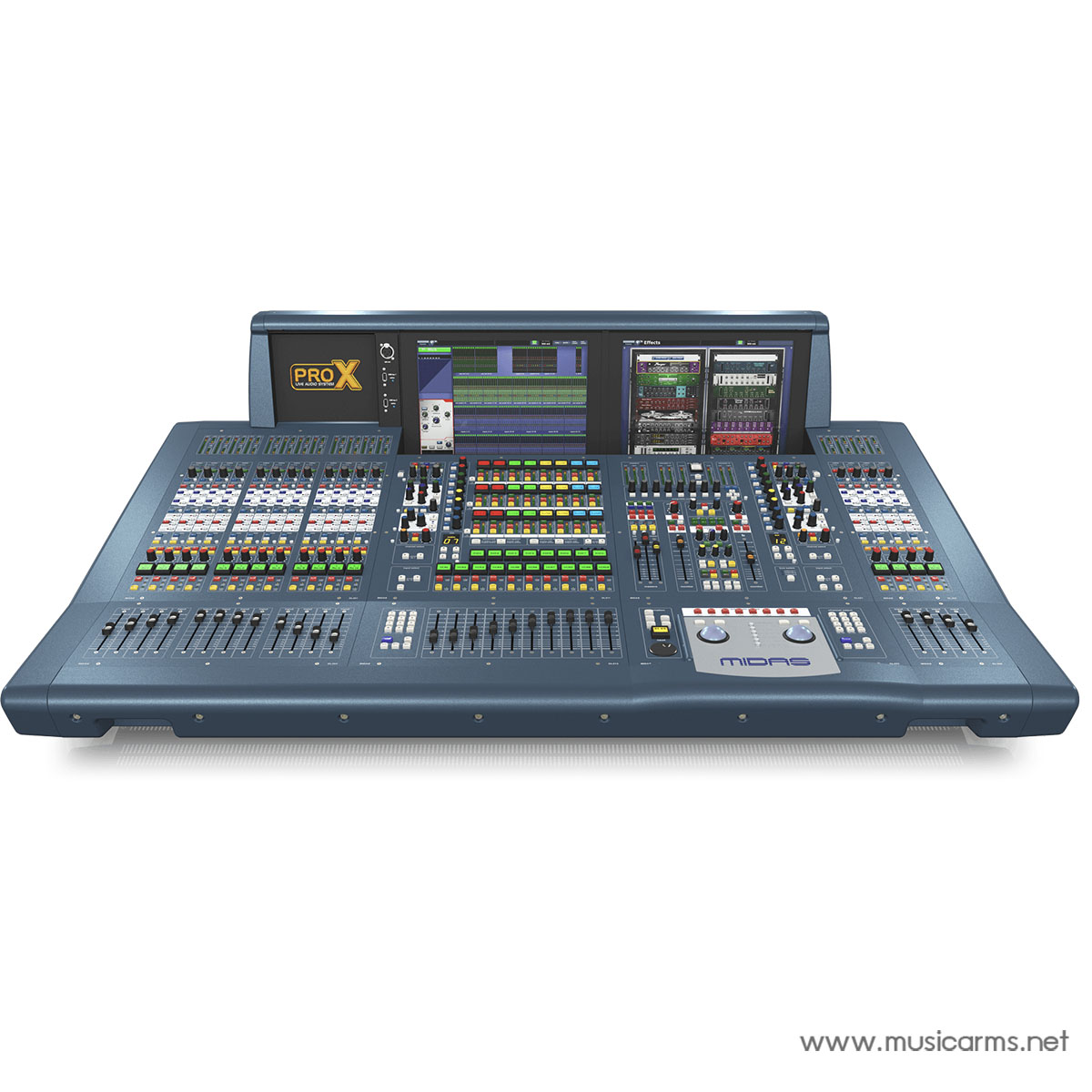

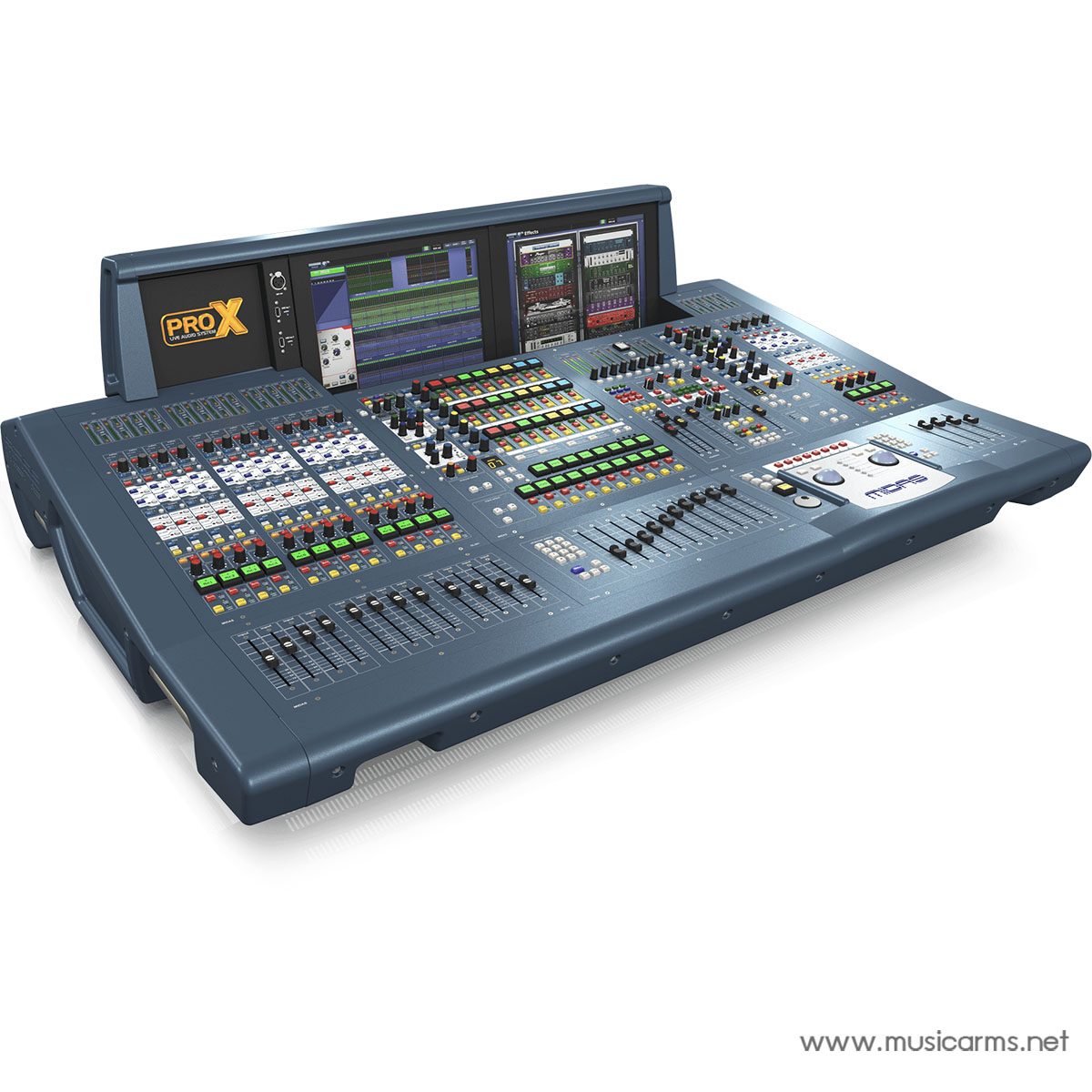

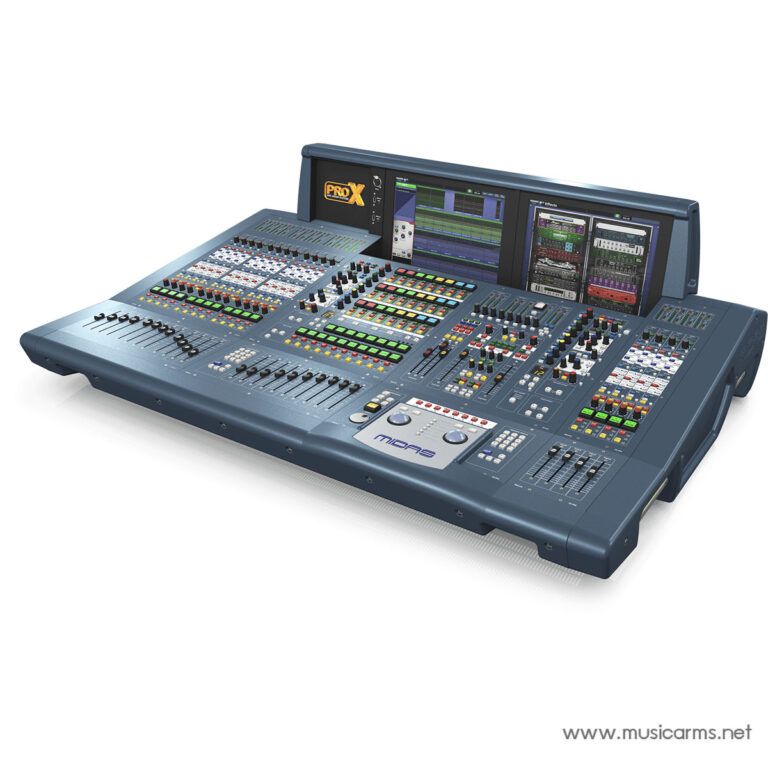

Midas PROX-CC-IP ดิจิตอลมิกเซอร์ รองรับ 168 อินพุต 99 Aux

PRO SERIES PRO X-CC-IP

The Midas PRO Series family moves up a gear with the PRO X control centre and the industry-changing NEUTRON Audio System Engine. Featuring 168 simultaneous input channels and 99 time-aligned and phase-coherent mix buses, the PRO X sets a new performance benchmark in high-profile live sound applications and is a truly impressive digital control surface for the engineer whose very livelihood depends on both unparalleled functionality and reliability. Like all PRO Series consoles, the PRO X features managed latency and 40 bit floating point processing precision.

HyperMAC and AES50 audio networking technologies allow the PRO X to dynamically assign up to 288 inputs and 294 outputs at 96 kHz sampling rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO X equally at home in theatres and symphony halls as it is in live concert touring, outside broadcast and music festivals.

Digital Audio Networking

SuperMAC (AES50-Compliant) and HyperMAC digital audio networking technologies from Klark Teknik simultaneously provide high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring.

The PRO X HyperMAC router provides a dual redundant snake connection to the NEUTRON Audio System Engine over optical fibre and copper with a bandwidth of 192 bidirectional channels of 96 kHz 24 bit digital audio, up to a distance of 500 m with optical fibre or 100 m with CAT5/5e cable.

PRO X is compatible with all Midas PRO Series digital I/O units, as well as with any other 96 kHz enabled AES50-equipped devices. Multiple PRO Series consoles can be connected together to create either larger mixing systems, or multiple discrete mixing consoles can share a common resource of networked and distributed I/O interfaces.

PRO X Advanced Navigation Flexibility

PRO X incorporates new and innovative methods of channel and mix bay navigation: FLIP Navigation, FX Navigation, GEQ Navigation, and MCA Navigation. These four options allow an engineer to easily and efficiently mix a large number of inputs on a compact control surface. PRO X also features the ability to display and control any output bus on the input control bay area. This navigation flexibility makes working with the console as simple as requirements dictate, or as deep and complex as a user desires. PRO X’s new centre section, which features 24 LCD switches that provide immediate access to up to 24 stereo pairs of output mix buses, also supports the new navigation modes.

• Live performance digital console control centre with up to 168 simultaneous inputs
• 99 time-aligned and phase-coherent mix buses
• HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate
• HyperMAC router with 192 bidirectional channels over copper and optical fibre
• Provides dual redundant snake connection to the NEUTRON Audio System Engine
• Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
• 10 VCA (variable control association) and 8 POPulation groups
• Up to 36 assignable 1/3 octave Klark Teknik DN370 graphic equalisers

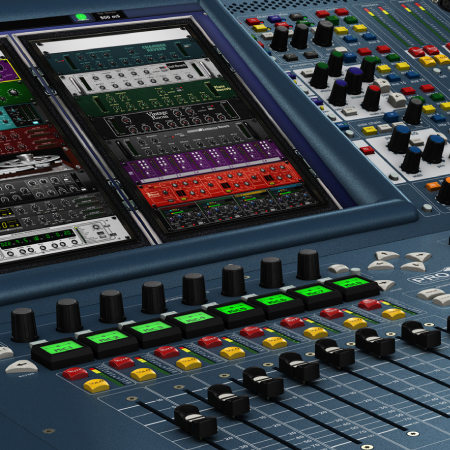

• Up to 24 simultaneous internal multi-channel effects
• 29 Midas PRO motorised 100 mm faders
• 2 daylight viewable 15″ full colour TFT display screens
• Fully interpolated touch sensitive controls
• Optional wireless remote control with Midas MIXTENDER App for iPad
• Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
