Mogami Gold Instrument Cable S/R สายแจ็ค

ราคา : 1,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
Description

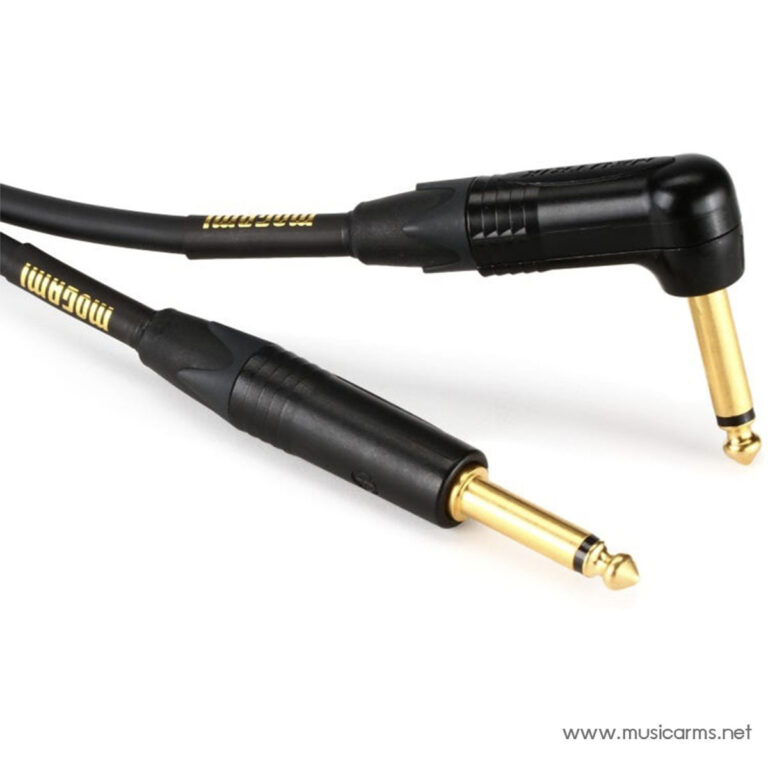

Mogami Gold Instrument Cable S/R: World-Class Microphonics-Free Guitar Cable
The **Mogami Gold Instrument Cable S/R** is a premium instrument cable specifically designed for high-impedance circuits, like those in electric guitars and basses. It focuses on delivering the purest signal with zero **Microphonics** (handling noise) through superior shielding technology and the highest quality materials. With a **Lifetime Warranty**, Mogami Gold is the trusted choice for professionals demanding absolute sonic integrity.
Key Features
- Pure OFC Conductor Core: Utilizes **Oxygen-Free Copper (OFC)** core material to ensure the highest level of signal transparency and minimal loss.
- Microphonics Elimination: Features a **Conductive Polymer Sub-Shield (Carbon impregnated PVC)** that drains away the minute voltage generated by cable flexing, effectively **eliminating handling noise**.
- Superior Shielding: Employing an **Ultra High Density spiral shield** for the main shielding layer to provide excellent rejection of external electromagnetic interference (EMI/RFI).
- Guaranteed Reliability: Backed by a comprehensive **Lifetime Warranty** for peace of mind and long-term use.
Summary: Unlock Your Instrument’s True Tone with Mogami
For discerning musicians, the **Mogami Gold Instrument Cable S/R** (based on the W2524 cable) is an essential investment. Its specialised design overcomes the common problem of microphonics in high-impedance circuits, ensuring your guitar’s tone is delivered with maximum clarity and purity. Experience the difference a truly professional cable makes and focus on your performance, not your noise! (**Important Note:** The conductive PVC layer must be stripped back during wiring to prevent a partial short circuit.)
Specification
Mogami W2524 Cable Specifications |
|
|---|---|
Cable Construction |
|
| Part No. | W2524 |
| Conductor Size | 0.565 mm² (#20AWG) |
| Insulation Material & Color | PE (Polyethylene), Clear |
| Sub-Shield Material | Conductive PVC (Carbon PVC), Black |
| Main-Shield Type | Served-Shield (Approx. 55/0.18A) |
| Jacket Material & Dia. | PVC, Black, 6.0 Ø mm (0.236″) |
| Weight per 100m Roll | 5.1 Kg |
Electrical & Mechanical Characteristics |
|
| DC Resistance (Inner Conductor) | $0.033\ \Omega/m$ ($0.010\ \Omega/Ft$) |
| Capacitance (at 1kHz) | $130\ pF/m$ ($39.7\ pF/Ft$) |
| Inductance | $0.2\ \mu H/m$ ($0.061\ \mu H/Ft$) |
| Microphonics Noise | 0.3 mV Max. |
| Voltage Breakdown | Must withstand DC 500V/15 sec. |
| Insulation Resistance | $100,000\ M\Omega \times m$ Min. |
| Flex Life | 15,000 cycles |
| Applicable Temperature | $-20^\circ C \sim +60^\circ C$ ($-4^\circ F \sim +140^\circ F$) |
ข้อมูลสินค้า
Mogami Gold Instrument Cable S/R: สายเคเบิลกีตาร์ระดับโลก ปราศจากเสียงรบกวน Microphonics
**Mogami Gold Instrument Cable S/R** คือสายเคเบิลเครื่องดนตรีระดับพรีเมียมที่ออกแบบมาเป็นพิเศษสำหรับวงจรอิมพีแดนซ์สูง เช่น ในกีตาร์ไฟฟ้าและเบส โดยเน้นการส่งผ่านสัญญาณที่บริสุทธิ์และปราศจากเสียงรบกวนจากการจับหรือขยับสาย (Microphonics) ด้วยเทคโนโลยีการป้องกันสัญญาณรบกวนที่เหนือกว่าและการใช้วัสดุคุณภาพสูงสุด ทำให้สาย Mogami Gold เป็นทางเลือกของมืออาชีพที่ต้องการความเที่ยงตรงของเสียงสูงสุดและรับประกันตลอดอายุการใช้งาน
คุณสมบัติเด่น
- แกนตัวนำทองแดงบริสุทธิ์: ใช้ **ทองแดงปลอดออกซิเจน (OFC)** เพื่อให้ได้ความใสของสัญญาณในระดับสูงสุด
- การกำจัดเสียงรบกวน (Microphonics): มีชั้น **Conductive Polymer Sub-Shield (PVC เคลือบด้วยคาร์บอน)** ทำหน้าที่ระบายแรงดันไฟฟ้าขนาดเล็กที่เกิดจากการขยับสาย เพื่อป้องกันเสียงรบกวนจากการจับสาย
- การป้องกันสัญญาณรบกวน: ใช้ **Ultra High Density Spiral Shield** ซึ่งเป็นชิลด์หลักที่มีความหนาแน่นสูง ช่วยปกป้องสัญญาณจากคลื่นรบกวนภายนอกได้อย่างดีเยี่ยม
- ความน่าเชื่อถือสูงสุด: มั่นใจด้วย **การรับประกันตลอดอายุการใช้งาน (Lifetime Warranty)**
สรุป: ยกระดับเสียงกีตาร์ของคุณด้วย Mogami Gold
สำหรับนักดนตรีที่จริงจังกับคุณภาพเสียง **Mogami Gold Instrument Cable S/R** ที่ใช้สายรุ่น W2524 คือการลงทุนที่ให้ผลตอบแทนสูงสุด ด้วยการออกแบบมาเพื่อแก้ปัญหา Microphonics โดยเฉพาะ คุณจะได้รับเสียงที่ชัดเจนและบริสุทธิ์ที่สุดจากเครื่องดนตรีของคุณ ทำให้คุณมุ่งเน้นไปที่การสร้างสรรค์ดนตรีได้อย่างเต็มที่โดยไม่ต้องกังวลเรื่องเสียงรบกวน! (**ข้อควรจำ:** ต้องปอกชั้น Conductive PVC ออกก่อนการบัดกรีเพื่อหลีกเลี่ยงการลัดวงจรบางส่วน)
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิค (Mogami W2524) |
|
|---|---|
โครงสร้างสายเคเบิล |
|
| หมายเลขชิ้นส่วน (Part No.) | W2524 |
| ขนาดตัวนำ (Conductor Size) | 0.565 mm² (#20AWG) |
| วัสดุฉนวน (Insulation) | PE (Polyethylene) สีใส |
| วัสดุ Sub-Shield | Conductive PVC (Carbon PVC) สีดำ |
| ชิลด์หลัก (Main-Shield) | Served-Shield (ประมาณ 55/0.18A) |
| วัสดุเปลือกนอก (Jacket) | PVC สีดำ, เส้นผ่านศูนย์กลาง 6.0 Ø mm (0.236″) |
| น้ำหนักต่อม้วน 100 เมตร | 5.1 Kg |
คุณสมบัติทางไฟฟ้าและกลไก |
|
| ความต้านทานตัวนำ DC (20°C) | 0.033 Ω/m (0.010 Ω/Ft) |
| ความจุไฟฟ้า (Capacitance) ที่ 1kHz | 130 pF/m (39.7 pF/Ft) |
| ความเหนี่ยวนำไฟฟ้า (Inductance) | 0.2 µH/m (0.061 µH/Ft) |
| เสียงรบกวน Microphonics | 0.3 mV Max. |
| ความทนแรงดันพังทลาย (Voltage Breakdown) | ต้องทน DC 500V/15 วินาที |
| ความต้านทานฉนวน (Insulation Resistance) | 100,000 MΩ × m Min. |
| อายุการดัดโค้ง (Flex Life) | 15,000 รอบ (cycles) |
| อุณหภูมิใช้งาน | −20°C ถึง +60°C (−4°F ถึง +140°F) |
