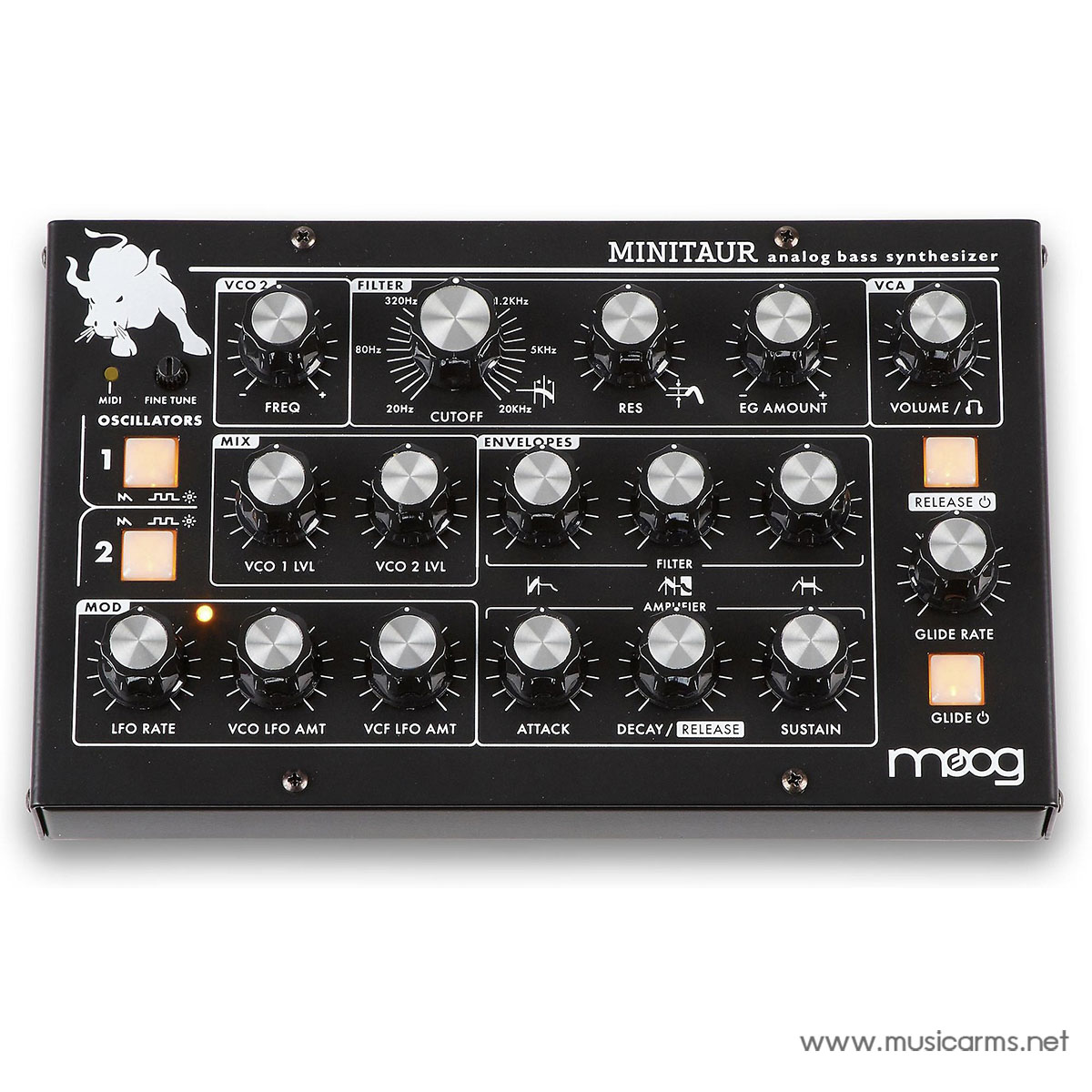

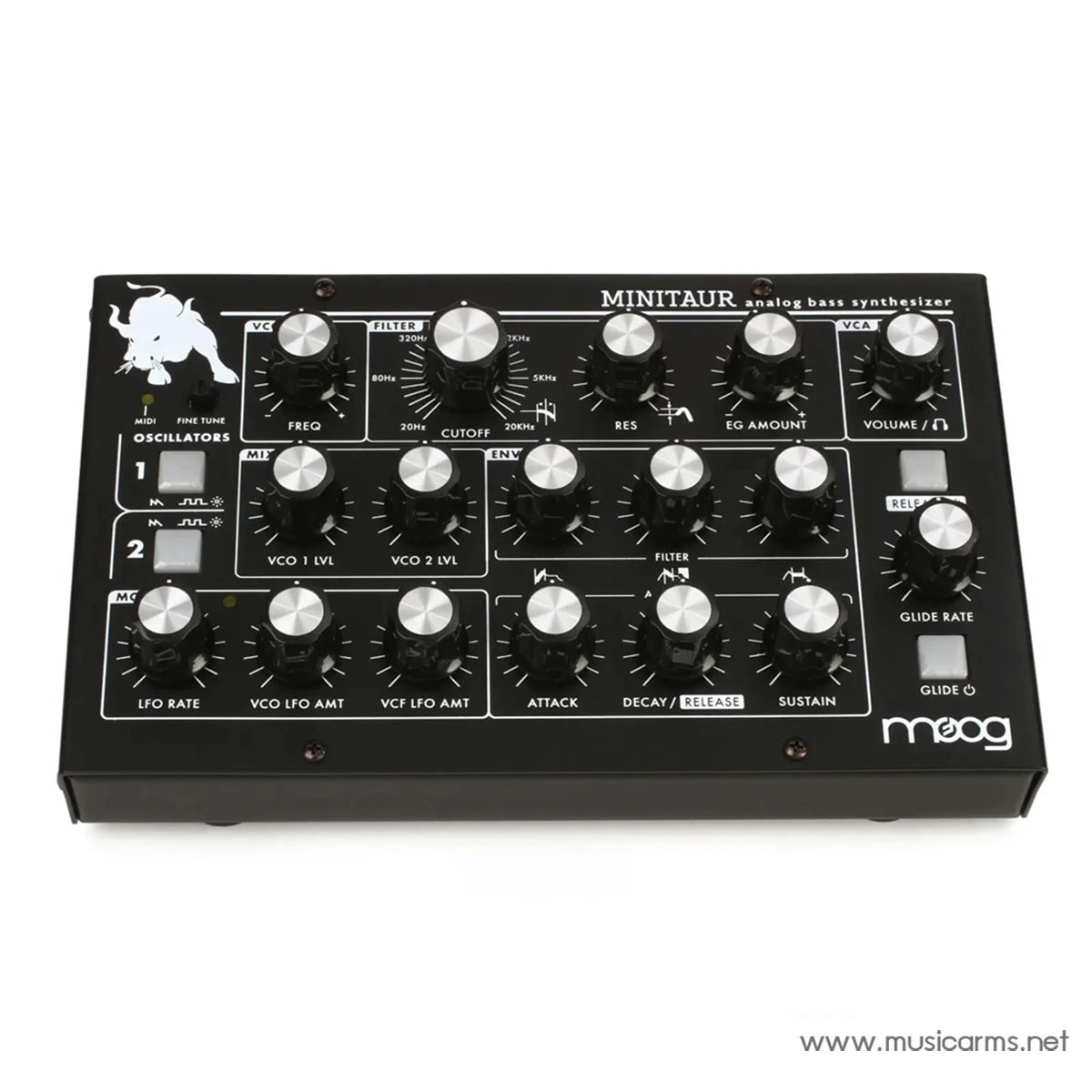

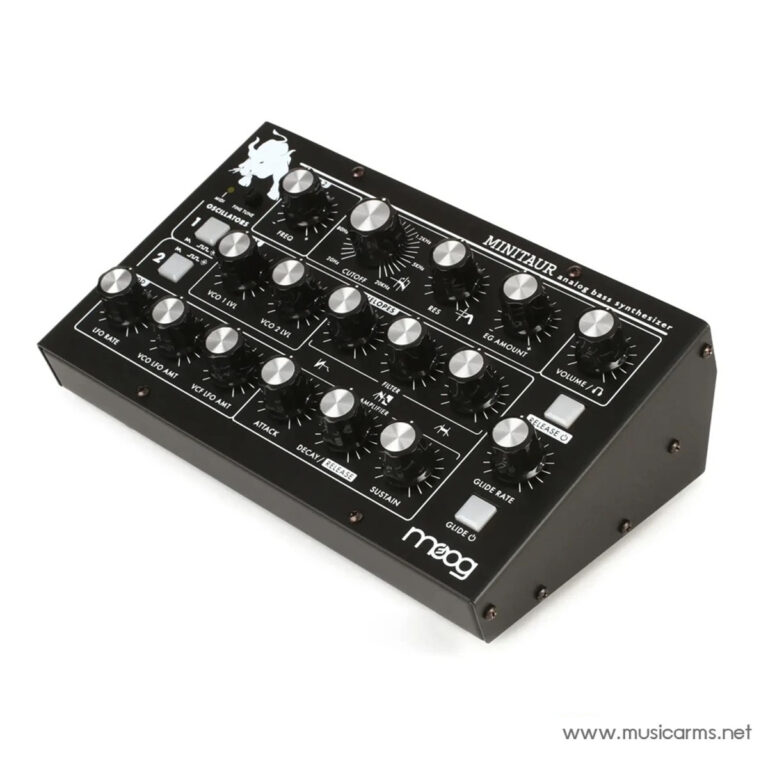

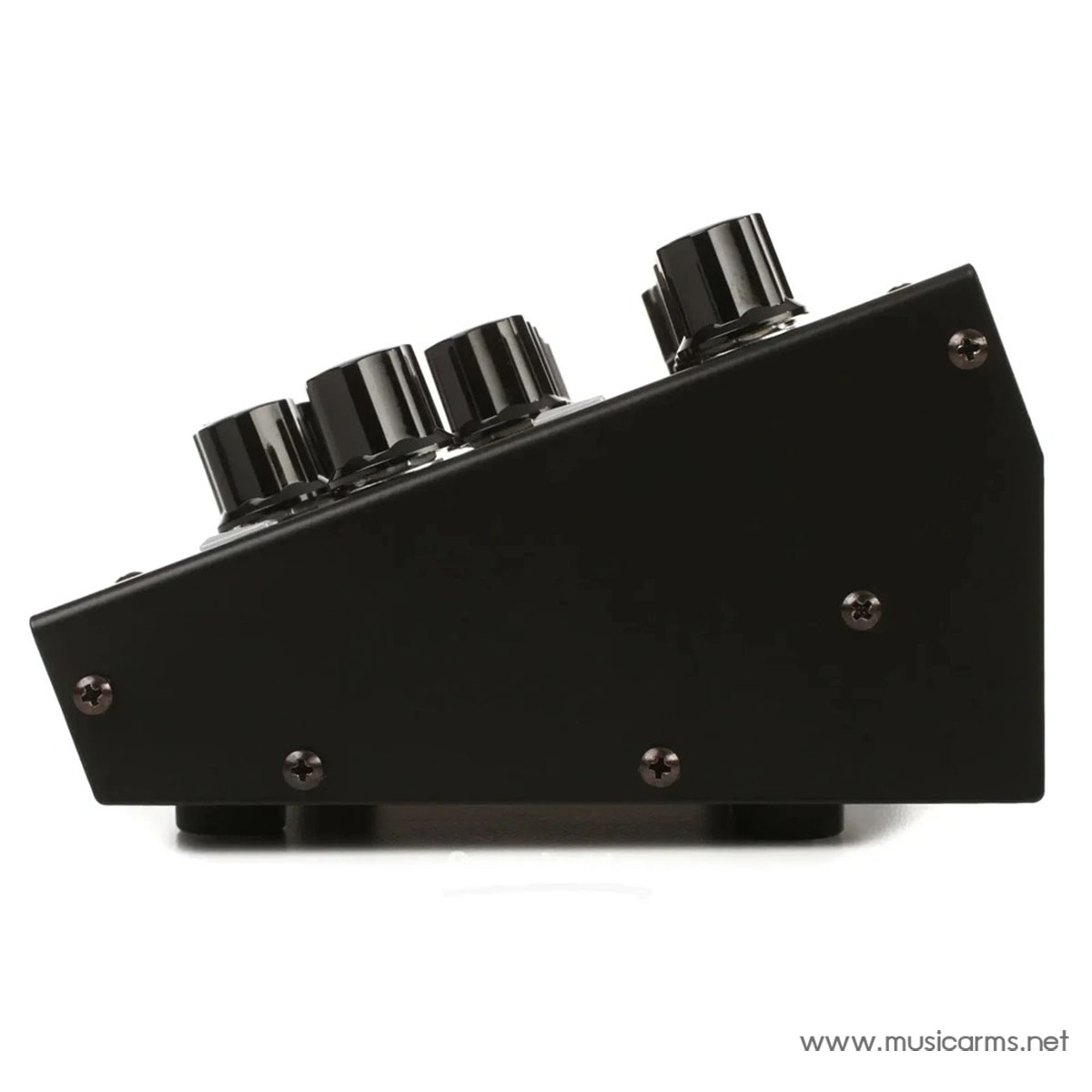

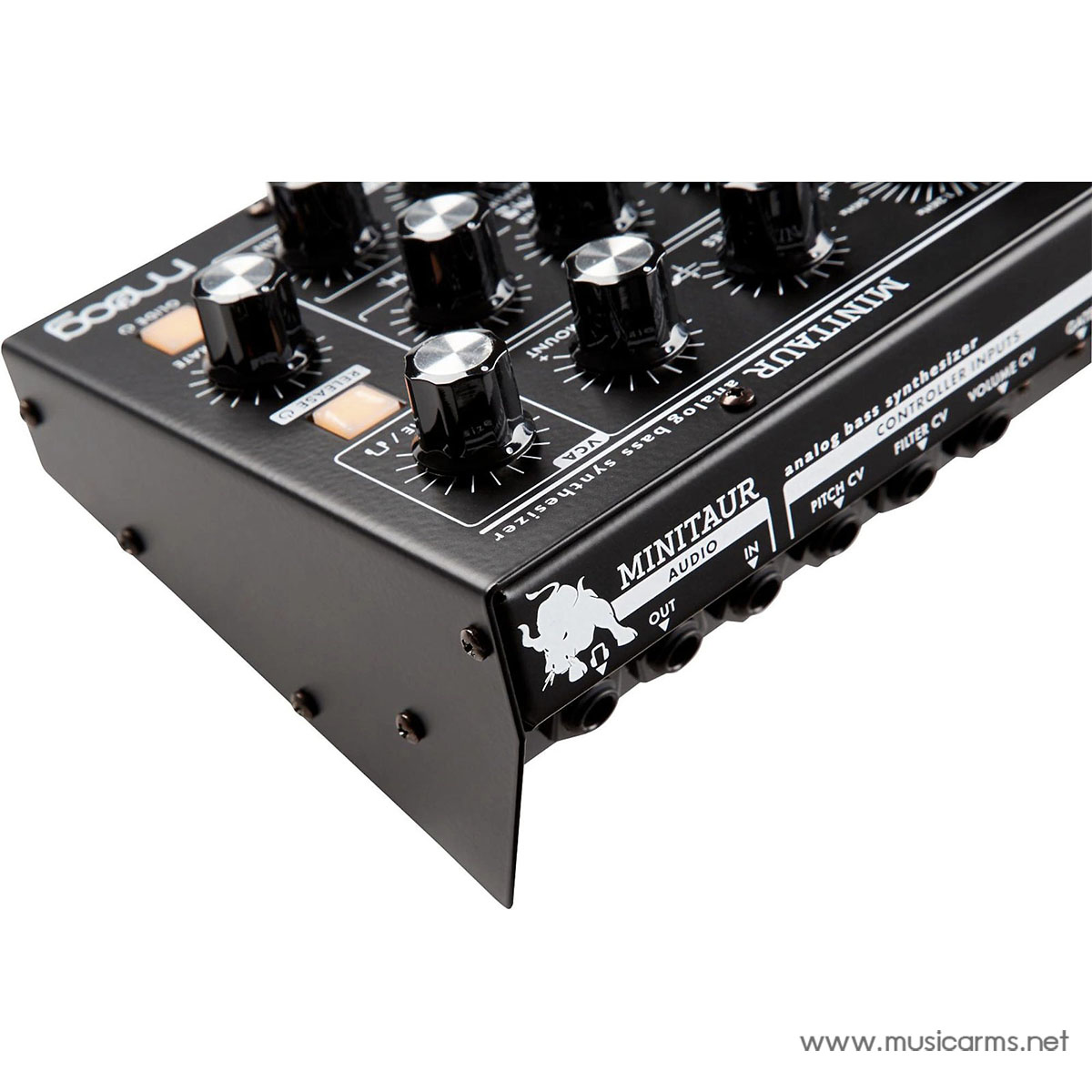

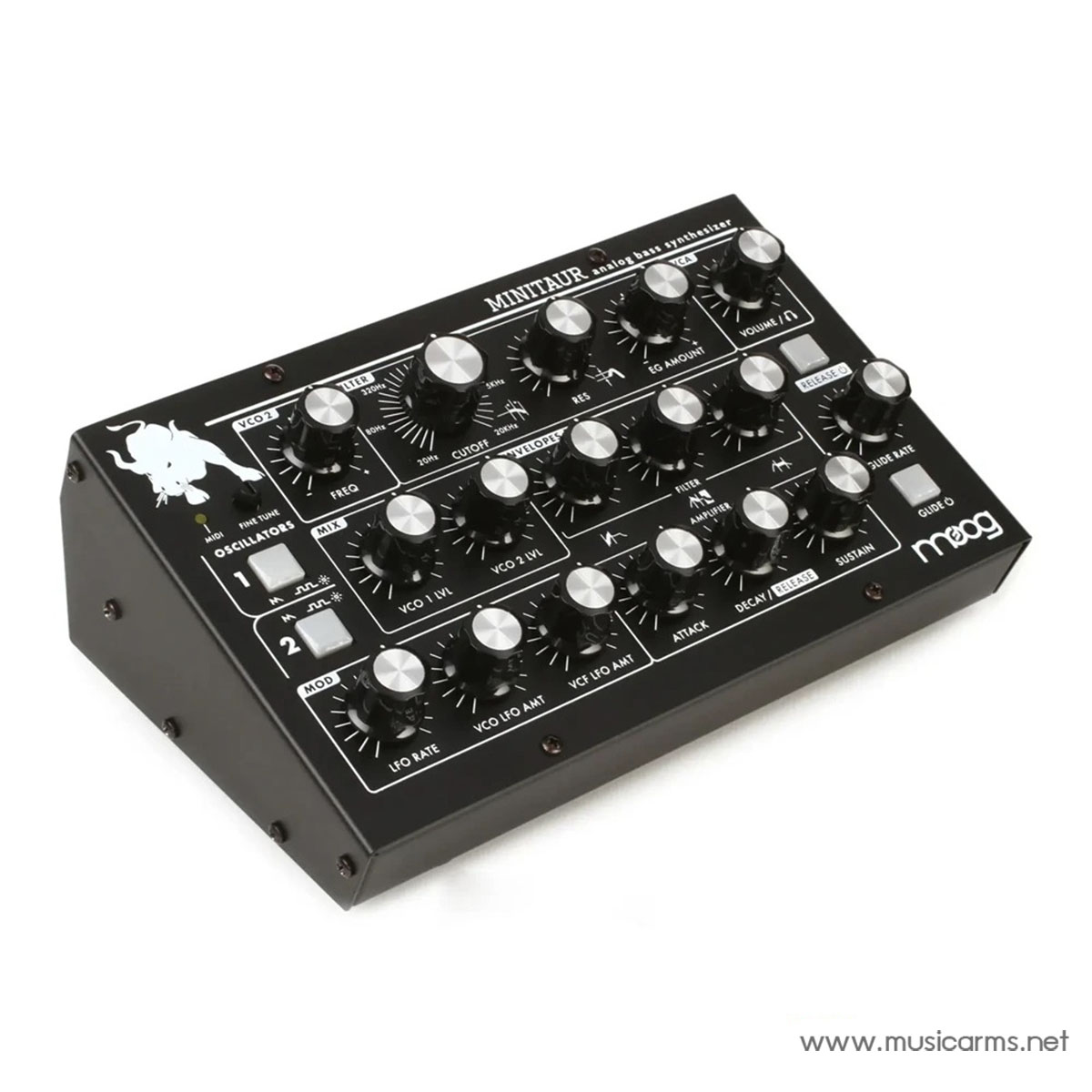

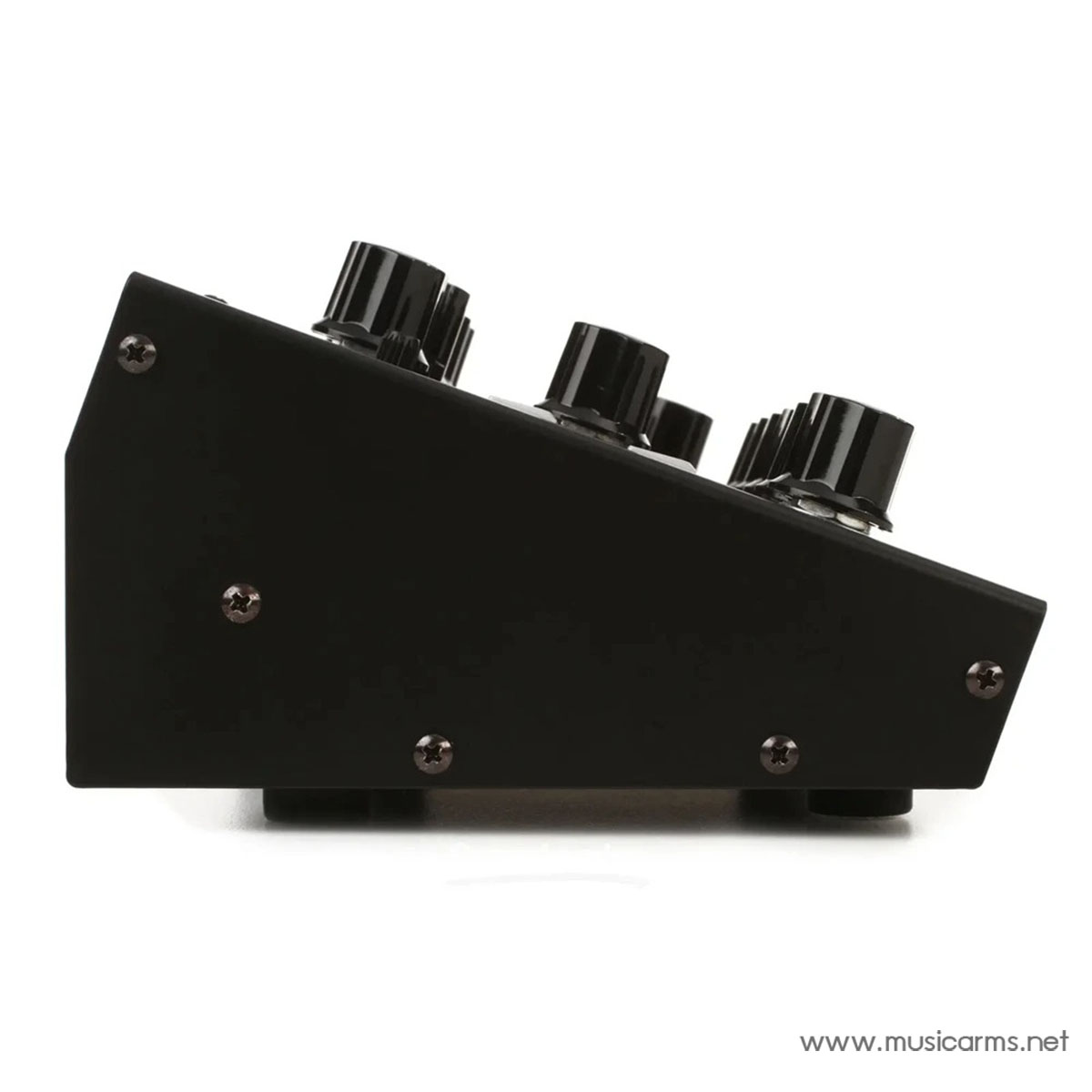

Moog Minitaur ซินธิไซเซอร์

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Moog

ราคา : 29,900 บาท

รุ่น :  Moog Minitaur ซินธิไซเซอร์ Synthesizers
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 11 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ Moog Minitaur ซินธิไซเซอร์ผ่านline สั่งซื้อ Moog Minitaur ซินธิไซเซอร์ผ่าน messenger

วีดีโอ


YouTube video

Description

Moog Minitaur Analog Bass Synthesizer: Mythical Bass Sounds, Compact Size

With Moog’s Minitaur, you don’t have to traverse a labyrinth to create analog bass sounds of mythical proportions. Part of the Taurus family of Moog instruments, this compact analog bass synthesizer provides you with all the growl, snarl and low end its siblings are known for in an uncomplicated one knob per function format. Whether you’re using it as part of your live rig or as extra weapon in your studio arsenal, the Minitaur, unlike it’s legendary namesake, has a small footprint, measuring a mere 8.5 x 5.25 in.

Key Features

  • One knob per function interface: For tweaking and creating new sounds.
  • Two oscillators: With Sawtooth (Original Taurus) and Square wave-shapes for each VCO.
  • 2 Mixer VCAs: For VCO levels control of Oscillators 1 and 2.
  • Two Minimoog style ADSR Envelope Generators: For modulating VCF and VCA.
  • MIDI-syncable LFO: With controls for Rate, VCO LFO Amount, and VCF LFO Amount.
  • DIN MIDI and MIDI over USB: Offer complete control of sound engine.
  • Analog Control Inputs: For Pitch, Filter, Volume and Gate.
  • External audio input: For processing external audio through the Mixer and Filter section.
  • Preset Select and Save: Directly from front panel, via MIDI controller or with the free Minitaur Editor / Librarian software.
  • Additional Features: Tri, Sqr, Saw, Ramp, S&H and Filter EG modulation sources, Hard Sync, Modulation of OSC 2 Only (with Hard Sync), Assignable CV Inputs, CV to MIDI Conversion.

Summary

The Moog Minitaur Analog Bass Synthesizer is a powerful and intuitive instrument for bass players and producers seeking classic Moog analog bass tones in a compact and affordable package. Its straightforward interface and versatile features make it a valuable addition to any setup.

Specification

Moog Minitaur Analog Bass Synthesizer Details

Sound Engine Analog
Presets 128 Presets
Polyphony Monophonic (can be poly-chained)
External Controller Response Keyboard, Pitch Bend, Mod Wheel, After Pressure and Velocity
Sound Sources 2 Waveshape Oscillators with Square and Saw Waveshapes
VCO 2 Freq +/-12 Semitones
Hard Sync On/Off
Oscillator Calibration Range 22Hz-6.8kHz (Note Range at 8’ = 18 – 116)
Glide Select LCR, LCT, EXP – Legato On/Off
Filter 20Hz-20kHz Moog Ladder Filter
Modulation Sources LFO (Triangle, Square, Saw, Ramp, Sample & Hold), Filter Envelope
Modulation Destinations Oscillator Pitch, Oscillator 2 Pitch Only, Filter Cutoff
LFO Panel Features Rate Control, VCO LFO Amount and VCF LFO Amount
Envelopes 2x ADSR Envelopes with Legato On, Legato Off and EG Reset

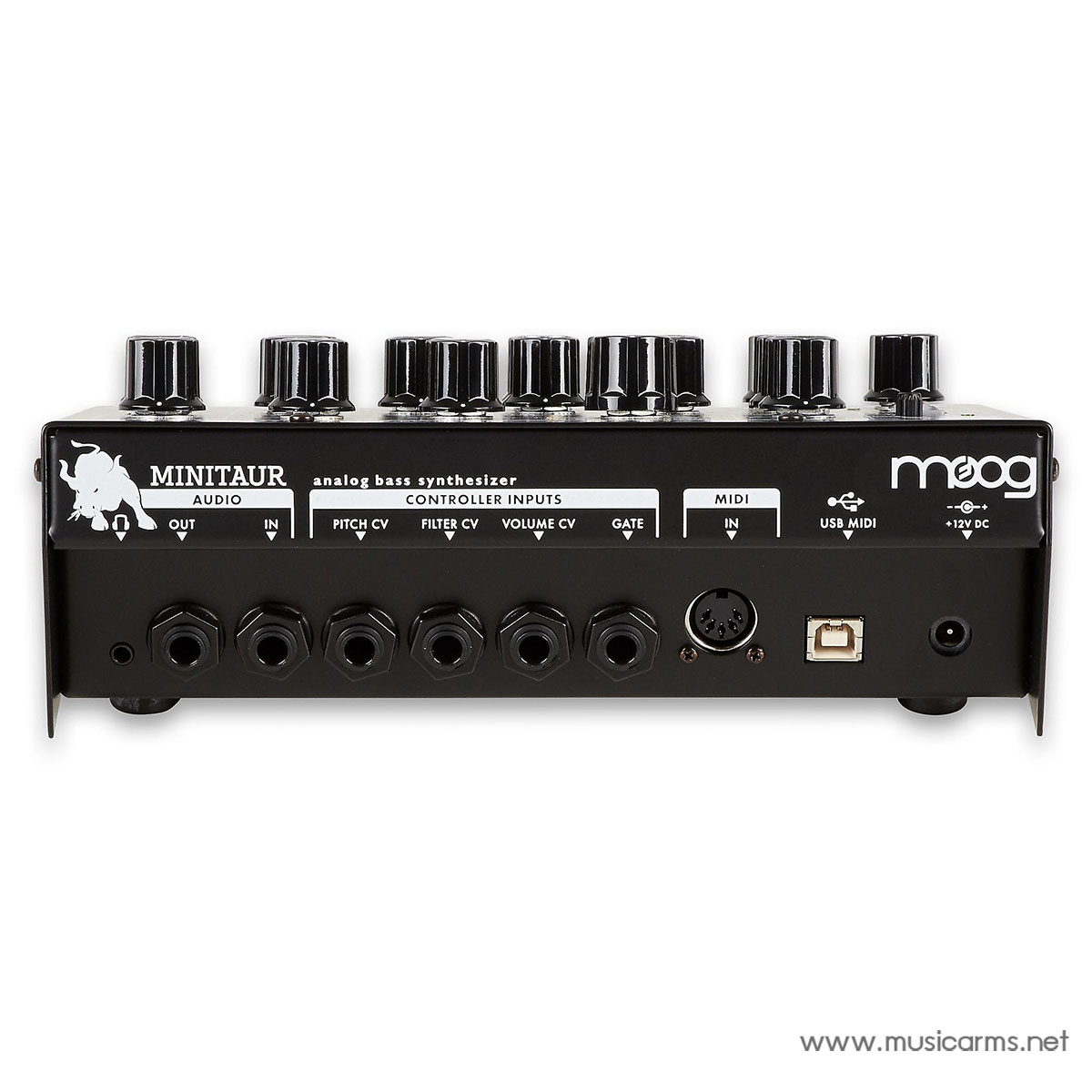

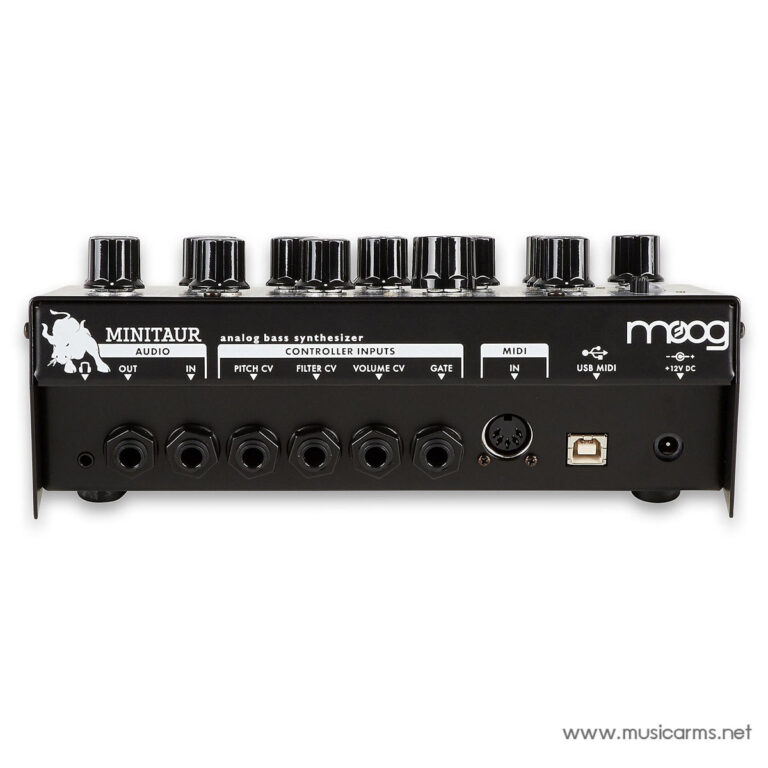

External Audio Input ¼ in. TS
Audio Output ¼ TS, ⅛ in. TRS Headphone with Volume Control
MIDI I/O DIN In, and MIDI I/O Over USB
Assignable CV/Gate Inputs Filter CV (Fixed Dest.), Pitch CV (Default), Volume CV (Default), KB Gate (Default)
CV to MIDI Conversion Yes
Included Power Supply 100-250VAC, 50-60Hz, +12VDC
Weight 2.5lbs (1.2kg)
Dimensions 3.1 x 8.75 x 5.1 in.

ข้อมูล

Moog Minitaur Analog Bass Synthesizer: สุดยอดเสียงเบสอนาล็อกขนาดกะทัดรัด

ด้วย Moog Minitaur คุณไม่จำเป็นต้องเดินทางผ่านเขาวงกตเพื่อสร้างสรรค์เสียงเบสอนาล็อกที่ยิ่งใหญ่ดั่งตำนาน ในฐานะส่วนหนึ่งของตระกูล Taurus ของเครื่องดนตรี Moog ซินธิไซเซอร์เบสอนาล็อกขนาดกะทัดรัดนี้มอบเสียงคำราม เสียงขู่ และเสียงต่ำที่พี่น้องของมันขึ้นชื่อในรูปแบบที่ไม่ซับซ้อน โดยมีหนึ่งปุ่มต่อหนึ่งฟังก์ชัน ไม่ว่าคุณจะใช้มันเป็นส่วนหนึ่งของอุปกรณ์แสดงสดหรือเป็นอาวุธพิเศษในคลังแสงสตูดิโอของคุณ Minitaur ซึ่งแตกต่างจากชื่อในตำนานของมัน มีขนาดเล็กเพียง 8.5 x 5.25 นิ้ว

คุณสมบัติเด่น

  • หนึ่งปุ่มต่อหนึ่งฟังก์ชัน: อินเทอร์เฟซที่ใช้งานง่ายสำหรับการปรับแต่งและสร้างเสียงใหม่
  • สองออสซิลเลเตอร์: พร้อมรูปคลื่น Sawtooth (Original Taurus) และ Square สำหรับแต่ละ VCO
  • 2 Mixer VCAs: สำหรับควบคุมระดับเสียง VCO ของออสซิลเลเตอร์ 1 และ 2
  • ADSR Envelopes สองตัวสไตล์ Minimoog: สำหรับปรับ VCF และ VCA
  • LFO ที่ซิงค์กับ MIDI: พร้อมปุ่มควบคุม Rate, VCO LFO Amount และ VCF LFO Amount
  • DIN MIDI และ MIDI over USB: ให้การควบคุม Sound Engine อย่างสมบูรณ์
  • Analog Control Inputs: สำหรับ Pitch, Filter, Volume และ Gate
  • External Audio Input: สำหรับประมวลผลเสียงภายนอกผ่าน Mixer และ Filter
  • บันทึกและเลือกพรีเซ็ต: ได้โดยตรงจากแผงด้านหน้า, ผ่าน MIDI Controller หรือด้วยซอฟต์แวร์ Minitaur Editor / Librarian ฟรี
  • คุณสมบัติพิเศษเพิ่มเติม: แหล่ง Modulation Tri, Sqr, Saw, Ramp, S&H และ Filter EG, Hard Sync, Modulation OSC 2 Only (สำหรับ Syncopated Metallic Sweeps), CV Inputs ที่กำหนดได้, CV to MIDI Conversion

สรุป

Moog Minitaur Analog Bass Synthesizer เป็นเครื่องมือที่ทรงพลังและใช้งานง่ายสำหรับนักดนตรีที่ต้องการเสียงเบสอนาล็อกที่หนักแน่นและมีเอกลักษณ์ ด้วยขนาดที่กะทัดรัดและอินเทอร์เฟซที่เข้าถึงง่าย ทำให้ Minitaur เหมาะสำหรับการใช้งานทั้งบนเวทีและในสตูดิโอ

สเปค

รายละเอียด Moog Minitaur Analog Bass Synthesizer

ซาวด์เอนจิน อนาล็อก
พรีเซ็ต 128 พรีเซ็ต
โพลีโฟนี โมโนโฟนิก (สามารถ Poly-Chain ได้)
การตอบสนองตัวควบคุมภายนอก คีย์บอร์ด, Pitch Bend, Mod Wheel, After Pressure และ Velocity
แหล่งกำเนิดเสียง 2 Waveshape Oscillators พร้อมรูปคลื่น Square และ Saw
VCO 2 Freq +/-12 Semitones
Hard Sync เปิด/ปิด
ช่วงการปรับเทียบออสซิลเลเตอร์ 22Hz-6.8kHz (ช่วงโน้ตที่ 8′ = 18 – 116)
Glide เลือก LCR, LCT, EXP – Legato เปิด/ปิด
Filter 20Hz-20kHz Moog Ladder Filter
แหล่ง Modulation LFO (Triangle, Square, Saw, Ramp, Sample & Hold), Filter Envelope
ปลายทาง Modulation Oscillator Pitch, Oscillator 2 Pitch Only, Filter Cutoff
แผงควบคุม LFO Rate Control, VCO LFO Amount และ VCF LFO Amount
Envelopes 2x ADSR Envelopes พร้อม Legato On, Legato Off และ EG Reset
External Audio Input ¼ นิ้ว TS
Audio Output ¼ TS, ⅛ นิ้ว TRS Headphone พร้อม Volume Control
MIDI I/O DIN In และ MIDI I/O Over USB
Assignable CV/Gate Inputs Filter CV (Fixed Dest.), Pitch CV (Default), Volume CV (Default), KB Gate (Default)
CV to MIDI Conversion Yes
แหล่งจ่ายไฟ 100-250VAC, 50-60Hz, +12VDC (รวม)
น้ำหนัก 2.5lbs (1.2kg)
ขนาด 3.1 x 8.75 x 5.1 นิ้ว
