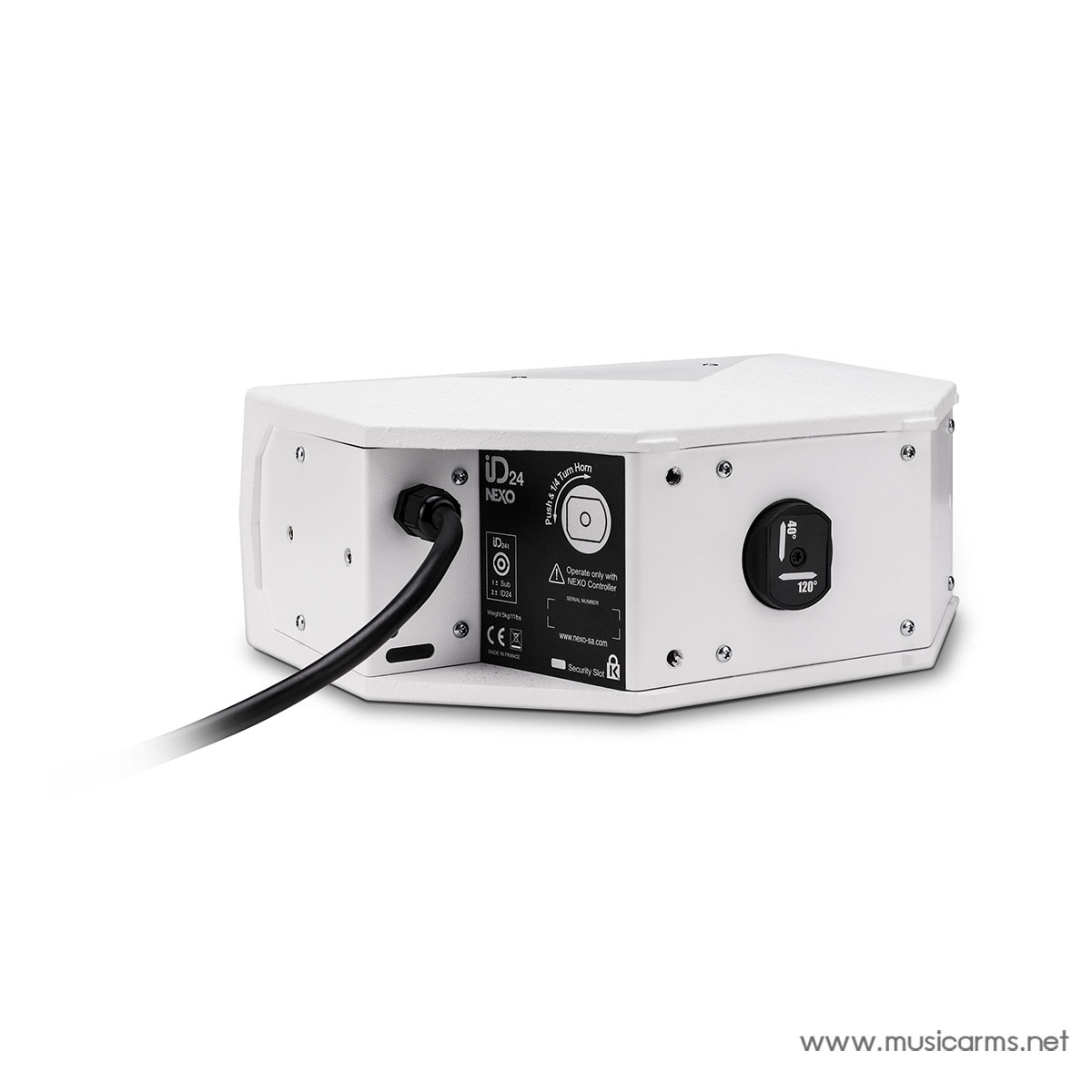

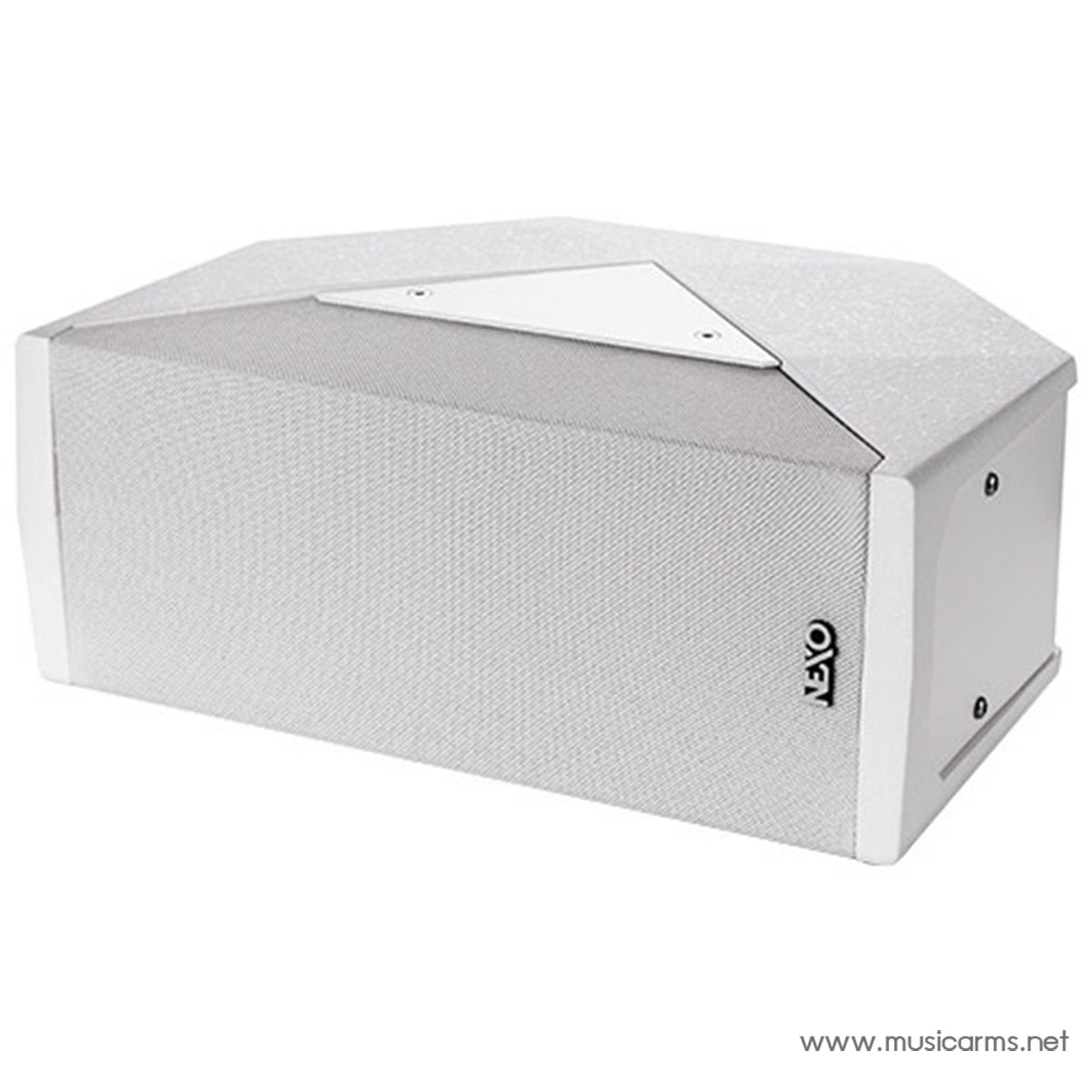

NEXO ID24i Loudspeaker 2×4″ (Touring Version) Loudspeaker System

ราคา : 47,640 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ

Description
NEXO ID24i: Compact Installation Speaker with Precise, Rotatable Directivity
The NEXO ID24i is the latest speaker in NEXO’s ID series, perfectly suited for **meeting rooms, installation projects, and AV applications** where design constraints are a factor. Despite its small footprint, this speaker delivers high SPL output and remarkably accurate sound projection. Its standout feature is a **rotatable Horn** that allows users to quickly switch the HF dispersion pattern, making the ID24 highly flexible for any compact space while maintaining NEXO’s signature audio quality and performance. It performs optimally whether mounted vertically or horizontally.

Key Features
- Rotatable HF Horn: Allows users to easily select the high-frequency dispersion pattern between **120° x 30° or 30° x 120°**, ensuring optimal coverage whether the speaker is installed horizontally or vertically.
- Ultra-Compact and High-Powered: Dimensions of **309 mm W x 132 mm H x 233 mm D** house twin **4-inch drivers in a V-formation**, enabling high SPL output from a small enclosure.
- Highly Versatile Application: Ideal for use as a full-range speaker, a **’sound beaming’ unit** for difficult-to-cover areas, **under-balcony fill** in theatres, or **front-fill** on a stage.
- ‘A la carte’ Customization: Offers a wide range of options for installation versions, including choice of **HF directivities, rigging hardware, connectivity, cabinet colour, and grille type**.
- Flexible System Integration: Compatible with NEXO’s compact and **low-profile subwoofers** for seamless extension of the low-frequency range.
Summary and Recommendation
The NEXO ID24i is an excellent choice for audio professionals needing a high-performance, compact loudspeaker solution without compromising on sound quality or directional control. Its flexible horn directivity and small form factor make it an invaluable tool for overcoming acoustic challenges in architecturally sensitive or space-constrained installations. For a powerful, versatile, and discretely sized speaker, the ID24i delivers NEXO’s reliable performance and design flexibility.
Specification
NEXO ID24i Specifications |
|
|---|---|
| Product Type | Compact Installation Speaker |
| Frequency Range | 95Hz – 20kHz (+/- 6dB) |
| Sensitivity (1W / 1m) | 100dB SPL Nominal |
| Peak SPL Level (1m) | 126dB Peak |
| HF Dispersion Selection | 60°x60°, 90°x40°, 120°x40°, 120°x60° (according to horns) |
| Nominal Impedance | 16Ω |
| Recommended Amplification per box | 200 to 500W |
ข้อมูลสินค้า
NEXO ID24i: ลำโพงติดตั้งขนาดกะทัดรัด พร้อมการกระจายเสียงที่ปรับได้แม่นยำ
NEXO ID24i คือลำโพงรุ่นล่าสุดในตระกูล ID Series ของ NEXO ที่ออกแบบมาเพื่อตอบโจทย์งานติดตั้งถาวร (Installation) ในพื้นที่ที่มีข้อจำกัดด้านขนาดและการออกแบบระบบเสียง เช่น ห้องประชุม, งาน AV, หรือโรงละคร แม้จะเป็นลำโพงขนาดเล็ก แต่ ID24i ยังคงมอบเสียง High SPL และทิศทางเสียงที่แม่นยำชัดเจน ตามมาตรฐานของ NEXO จุดเด่นคือการติดตั้งที่ยืดหยุ่นได้ทั้งแนวตั้งและแนวนอน พร้อม **Horn หมุนได้** ทำให้ผู้ใช้สามารถปรับรูปแบบการกระจายเสียงให้เหมาะสมกับตำแหน่งที่ต้องการได้อย่างรวดเร็ว

คุณสมบัติเด่น
- Horn หมุนได้สำหรับการกระจายเสียงที่ยืดหยุ่น: ผู้ใช้สามารถเลือกรูปแบบการกระจายเสียง HF ได้อย่างรวดเร็วระหว่าง 120° x 30° หรือ 30° x 120° เพื่อให้ได้ประสิทธิภาพสูงสุดไม่ว่าจะติดตั้งแนวนอนหรือแนวตั้ง
- ดีไซน์กะทัดรัดแต่ทรงพลัง: ด้วยขนาดเพียง 309 มม. กว้าง x 132 มม. สูง x 233 มม. ลึก และใช้ดอกลำโพงคู่ 4 นิ้วแบบ V-formation ทำให้เป็นลำโพงฟูลเรนจ์ขนาดเล็กที่ให้เสียง High SPL ได้อย่างน่าประทับใจ
- ความยืดหยุ่นในการใช้งาน: สามารถใช้เป็นลำโพงฟูลเรนจ์หลัก, ‘sound beaming’ unit สำหรับพื้นที่ที่เข้าถึงยาก, หรือเป็น front-fill/under-balcony ในโรงละคร
- ตัวเลือกตามความต้องการ (‘A la carte’): มีทางเลือกที่หลากหลายให้ปรับได้ตามความต้องการของงานติดตั้ง เช่น HF directivities, วิธีการติดตั้ง, การเชื่อมต่อ, สีตู้, และประเภทตะแกรง
- ความสามารถในการขยายระบบ: สามารถเลือกใช้ร่วมกับ ซับวูฟเฟอร์ขนาดกะทัดรัดและ low-profile ของ NEXO เพื่อเสริมย่านความถี่ต่ำให้เต็มประสิทธิภาพ
สรุปและข้อเสนอแนะ
NEXO ID24i เป็นตัวเลือกที่ยอดเยี่ยมสำหรับผู้ออกแบบระบบเสียงที่ต้องการโซลูชันที่มีคุณภาพเสียงสูงจาก NEXO แต่มีข้อจำกัดด้านพื้นที่ ด้วยความสามารถในการปรับเปลี่ยนทิศทางเสียงที่แม่นยำและการติดตั้งที่หลากหลาย ทำให้ ID24i สามารถแก้ปัญหาการกระจายเสียงในพื้นที่ที่ท้าทายได้อย่างมีประสิทธิภาพ หากคุณกำลังมองหาลำโพงติดตั้งที่รวมเอาขนาดที่เล็กเข้ากับคุณภาพเสียงที่ทรงพลังและความยืดหยุ่นในการออกแบบ ID24i คือคำตอบที่ตอบโจทย์ได้อย่างลงตัว
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะ NEXO ID24i |
|
|---|---|
| ประเภทสินค้า | ลำโพงติดตั้งขนาดกะทัดรัด |
| ช่วงความถี่ | 95Hz – 20kHz (+/- 6dB) |
| ความไว (1W / 1m) | 100dB SPL Nominal |
| ระดับ SPL สูงสุด (1m) | 126dB Peak |
| การเลือกมุมกระจายเสียง HF | 60°x60°, 90°x40°, 120°x40°, 120°x60° (เลือกตามฮอร์น) |
| อิมพีแดนซ์ที่ระบุ | 16Ω |
| กำลังขับแอมพลิฟายเออร์ที่แนะนำต่อตู้ | 200 ถึง 500W |
