Nux NAP-5 Stageman Floor เอฟเฟคกีตาร์โปร่ง

Stageman Floor (NAP-5)

Improved Clarity

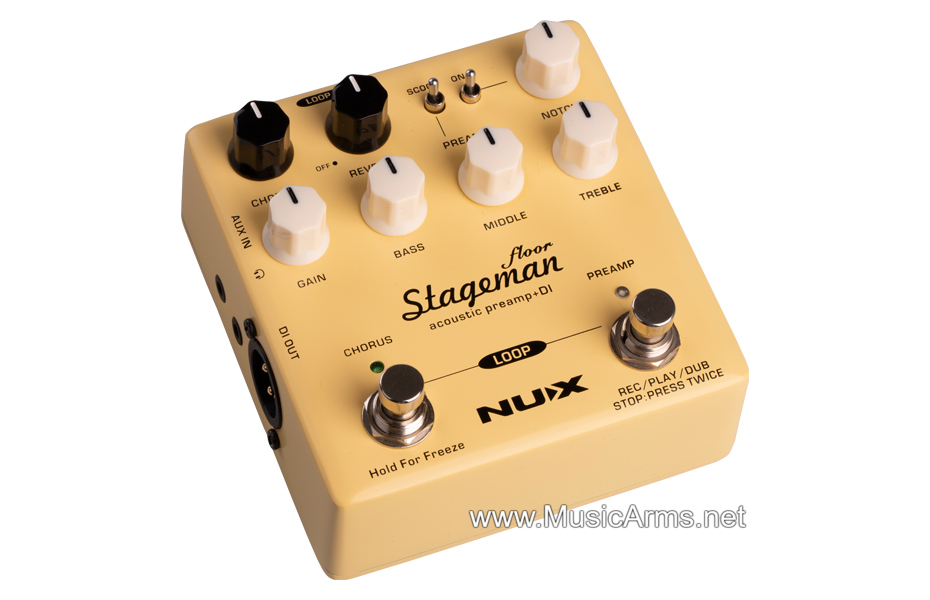

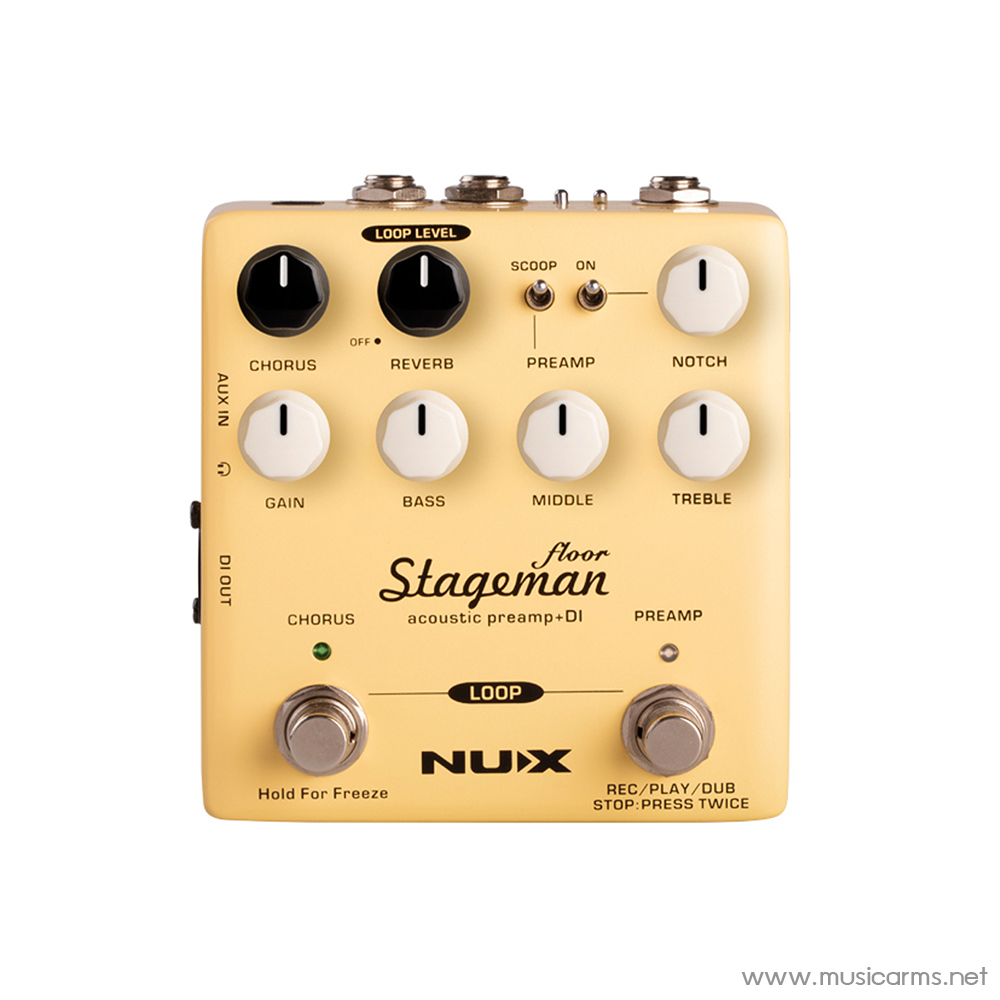

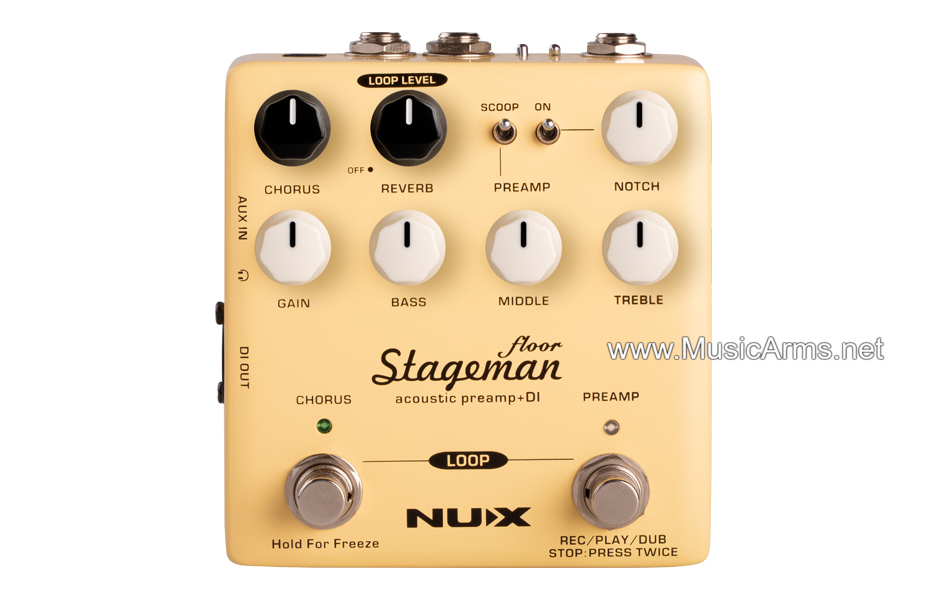

NUX Stageman Floor is an analog acoustic preamp with digital effects and looper function. Its preamp, featuring a highly sensitive 3-band EQ with MID scoop toggle switch, an adjustable notch filter, and input gain control, provides ginormous headroom and delivers the sound all natural.

High-Quality Effects, Easy Control

It is equipped with Chorus and Reverb effects, and each effect is designed to be controlled by only one knob. Tweaking the chorus or reverb knob from 0 to 10 will adjust multiple parameters coordinately. When you push and hold the Chorus switch, it will activate the freeze effect until you release it.

Notch Filter

Large stage volume can easily cause the acoustic guitar to feedback, which makes a lot of unwanted noise. Using the notch filter on the Stageman Floor can help you to cut the resonating frequency and make it more comfortable to play on stage.

But remember that some other stage conditions can also cause signal feedback – please also check the guitar and speaker (or monitor) position, and guitar mic(s). And make sure to set everything correctly to lower the chance of causing signal feedback.

And usually a guitar pick or your fingernail causes some high-frequency noise. You can use the Notch Filter to get a much better clean sound.

Versatile Preamp

There are Gain and 3-band EQ controls on the pedal. Depending on the amplifier/speaker characteristic, playing style and acoustic guitar’s body type, you can tune your sound the way you like by using the Gain knob, Bass, Middle and Treble control.

You can optimize the preamp input according to your guitar pickup type by selecting Piezo or Magnetic for better signal processing. It has a built-in FX Loop that allows you to insert external effect units to the Stageman Floor by using a TRS cable. It also works great for various acoustic instruments like the violin, mandolin, banjo and many more.

Record, Jam, Create!

Push both the Chorus and Preamp footswitches to turn the Stageman Floor into a looper pedal with 60 seconds recording capacity and unlimited overdubs. It’s ready to jam at anytime, anywhere!

In Looper mode:

Preamp Footswitch controls the looper functions; Record/Play/Stop and Overdub

Reverb Knob controls the Loop volume level.

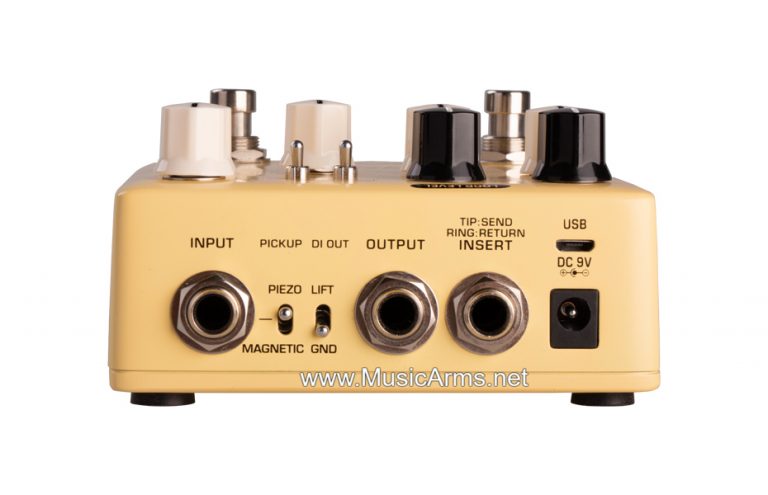

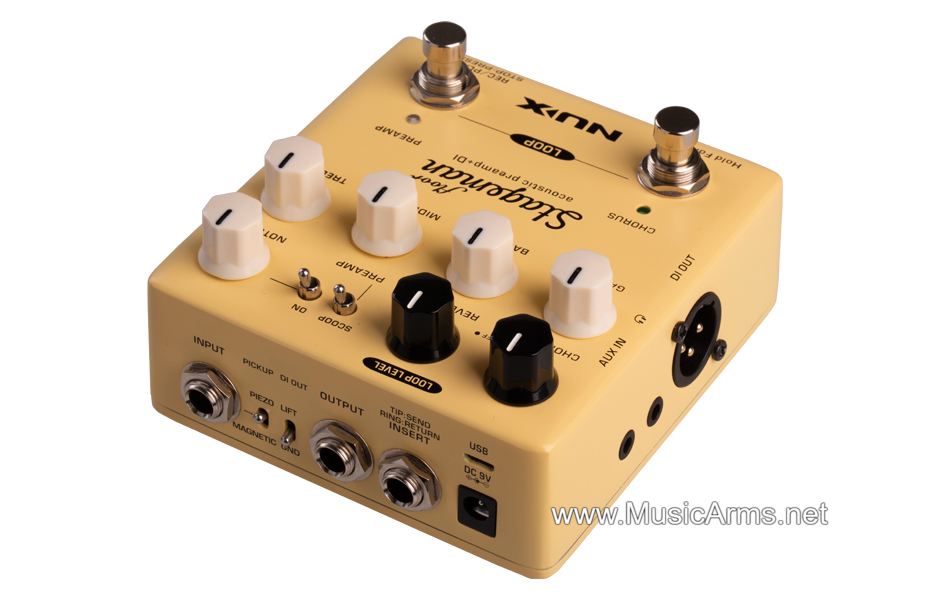

Connections

Stageman Floor has all useful input/output connections.

Specifications

• Input Gain Control
• 3-band EQ (Bass, Middle and Treble)
• Middle Frequency Scoop Toggle
• Notch Filter ON/OFF Toggle Switch with Precision Adjustment Control
• Effects: Chorus, Reverb and Freeze
• Input Optimization Toggle for Piezo or Magnetic Pickups
• 60 Seconds Looper
• XLR DI Output
• 1/4″ TRS Send / Return Inputs
• 1/8″ Aux-in
• 1/8″ Headphones Out
• USB Input for firmware updates (Micro B USB 2.0)

Manual

รายละเอียด Nux Stageman Floor (NAP-5)

• ปุ่มควบคุมอินพุต Gain
• EQ 3 แบนด์ (เสียงเบส, เสียงกลางและเสียงแหลม)
• สวิทช์ตัดความถี่กลาง
• สวิตช์เปิด / ปิด Notch Filter พร้อมการควบคุมการปรับความแม่นยำ
• เอฟเฟค Chorus, Reverb และ Freeze
• Input Optimization Toggle สำหรับปิ๊กอัพ Piezo หรือ Magnetic
• Loop 60 วินาที
• เอาต์พุต XLR DI
• อินพุต TRS Send / Return แบบ 1/4 นิ้ว
• Aux-in 1/8 นิ้ว
• ช่องต่อหูฟัง 1/8 นิ้ว
• อินพุต USB สำหรับอัพเดตเฟิร์มแวร์ (Micro B USB 2.0)
