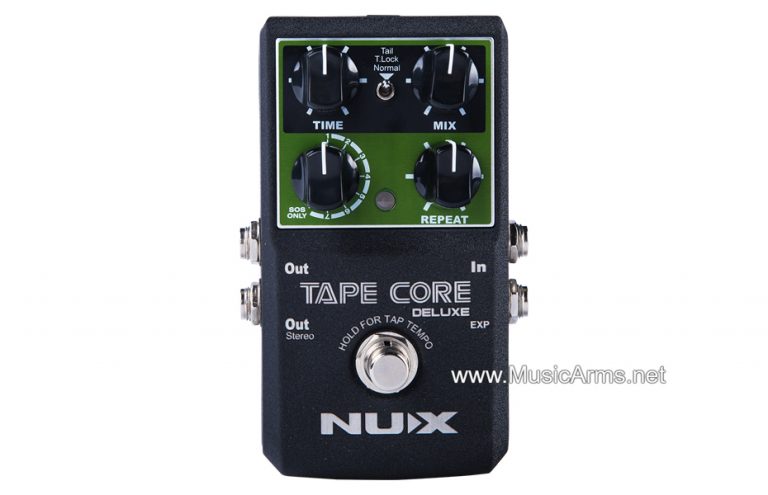

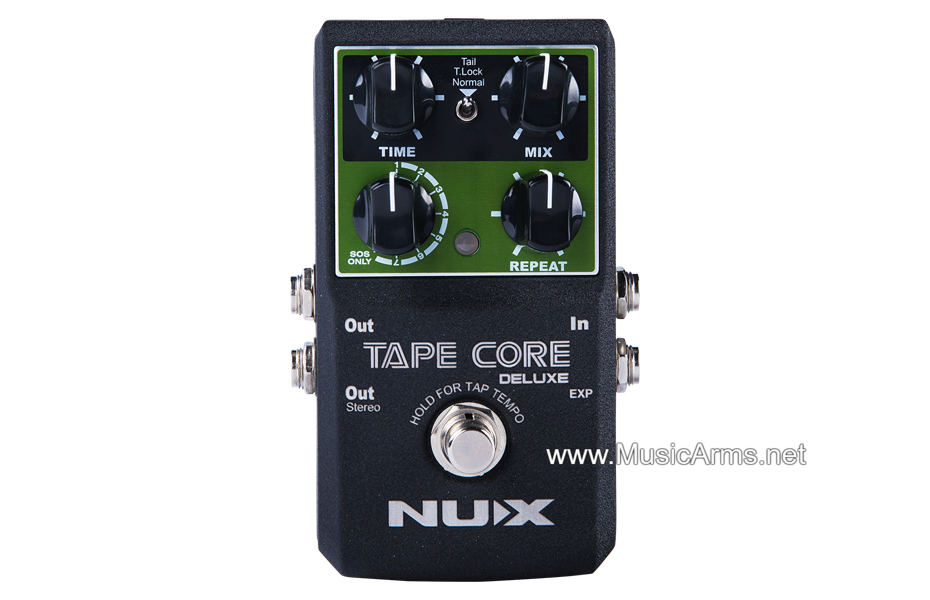

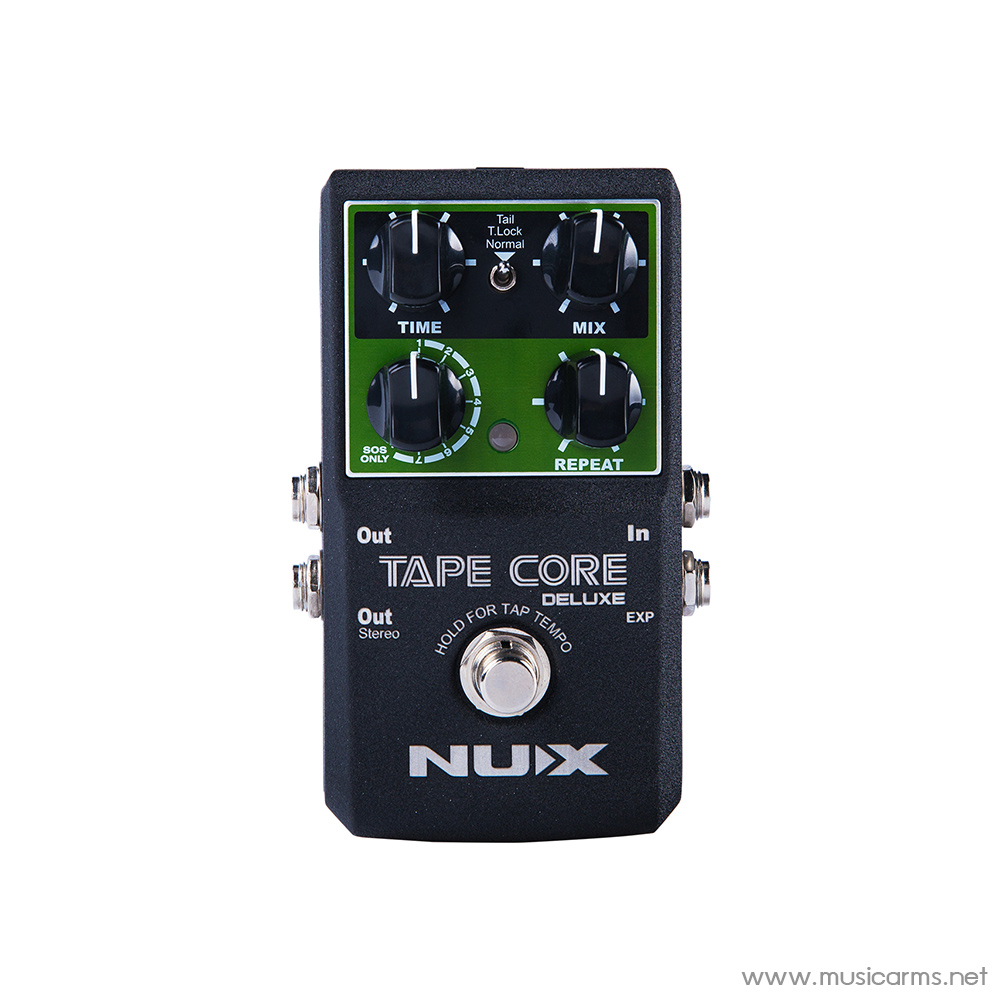

NUX TAPE CORE DELUXE

Features

Tape Core, a contemporary stomp box that offers classic Tape Echo tone

Just like the original Tape Echo, the NUX Tape Core Deluxe features 3 reproduction heads yielding 7 different combinations of delay sounds. All of the natural sound, decay, modulation was created with our cutting-edge NUX TS/AC Technology!

Tape Core Deluxe is professional, convenient, and designed to echo your vision!

The Original Tape Machine

Here’s how the original Tape-Echo Machine worked:  The Recording Head (which is not needed in our digital version) is on the far left. The ones to the right are what we use to digitally recreate the sound using TS/AC Technology.

The Digital Recreation

As in the original version, 3 Repro-Tape Heads allows for 7 different combinations. The distance between the Repro-Tape Heads determines the delay sound.

Infinite Feedback Feature

The maximum parameters of the REPEAT knob can be used to recreate the classic Infinite Feedback Oscillation effect that was, until now, only available on the physical machine. This trippy sci-fi effect, made popular by artists like Pink Floyd and The Steve Miller Band, allows for super-cool song intros, interludes, and endings.

True Bypass / Buffered Tail

Bypass / T-Lock

Tape Core Deluxe comes with a 3-way toggle-switch allowing you to change between 2 Bypass modes and NUX’s unique Tone Lock (T-Lock) function.

T-LOCK MODE: A physical dead-man switch designed to protect your parameter tweaks during your performance.

NORMAL MODE: True Bypass which bypasses the effects circuit.

TAIL MODE: Buffered Tail Bypass which maintains the effectl of the last note played.

Tape Core Editor

Want to customize your Tape Core Pedal? Experience Tape Core Editor by going to: www.nuxefx.com and download the software. And remember to use DFU to update the firmware (bin) so you can enjoy the ultimate Tape Core Editor experience!

REPRO-HEAD EDITOR

You can edit in Real-Time or Note Pattern mode by using the SYNC slider. This allows you to use actual musical notes to create an infinite combination of groove patterns.

7 COMBO SELECTOR

This is used to re-assign your 7 Combinations, turn On/Off the AUTO TAP, and/or KILL DRY functions.

AUTO TAP

You can use this function to turn On/Off NUX’s patented Smart-Tap Tempo. When not using Smart-Tap Tempo you need to HOLD your foot-switch 2 seconds and wait for LED indicator light to change color then TAP your speed.

With Smart Tap Temp, just start TAPPING, and it automatically knows that anything past 2 TAPS is your desired tempo.

KILL DRY

Dry meaning “NO EFFECT” and Wet meaning “WITH EFFECTS”, there are situations where you need to “Kill the Dry”, for example: if you connect Tape Core Deluxe to an amp that is already running both the Wet and Dry signal in Parallel ( side-by-side ). The KILL DRY switch allows you to turn On / Off your Dry signal so there are no signal conflicts.

EQ / PARAMETER ADJUST

The original Tape-Echo Machine had adjustment dials that allowed you to tweak some additional parameters: WOW, FLUTTER, BASS, REVERB, SATURATION and TREBLE. So, to get as close to the original as possible, we included them!

Specifications

• Effects 7 repro head combination types and Sound on Sound type
• Preset 1
• Nominal Input Level -20 dBu (GUITAR) +3 dBu (Max.)
• Input Impedance 1 MΩ
• Nominal Output Level -20 dBu (GUITAR) +3 dBu (Max.)
• Output Impedance 1 kΩ 0Ω (BYPASS)
• Residual Noise Level -93 dBu ( MIN.)
• Current Draw 103mA
• Power Supply 9V Battery, or AC adaptor to the DC 9V (optional NUX ACD-008A)
• Dimensions 122mm (L) x 72mm (W) x 47mm (H)
• Weight 270g

Manual

รายละเอียด NUX TAPE CORE DELUXE

• เอฟเฟคการรวมกันของหัว Repro 7 ประเภทและ Sound on Sound
• 1 พรีเซ็ต
• อินพุตที่กำหนดระดับ -20 dBu (กีตาร์) +3 dBu (สูงสุด)
• ความต้านทานอินพุต 1 MΩ
• ระดับเอาต์พุตที่กำหนด -20 dBu (กีตาร์) +3 dBu (สูงสุด)
• ความต้านทานขาออก 1 kΩ0Ω (BYPASS)
• ระดับเสียงที่เหลือ -93 dBu (ขั้นต่ำ)
• ค่า Current Draw 103mA
• แหล่งจ่ายไฟแบตเตอรี่ 9V หรืออะแดปเตอร์ AC เป็น DC 9V (อุปกรณ์เสริม NUX ACD-008A)
• ขนาด 122 มม.  x 72 มม.  x 47 มม.
• น้ำหนัก 270 กรัม
