Optimal Audio Zone 8
ราคา : 52,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
วีดีโอ
Description

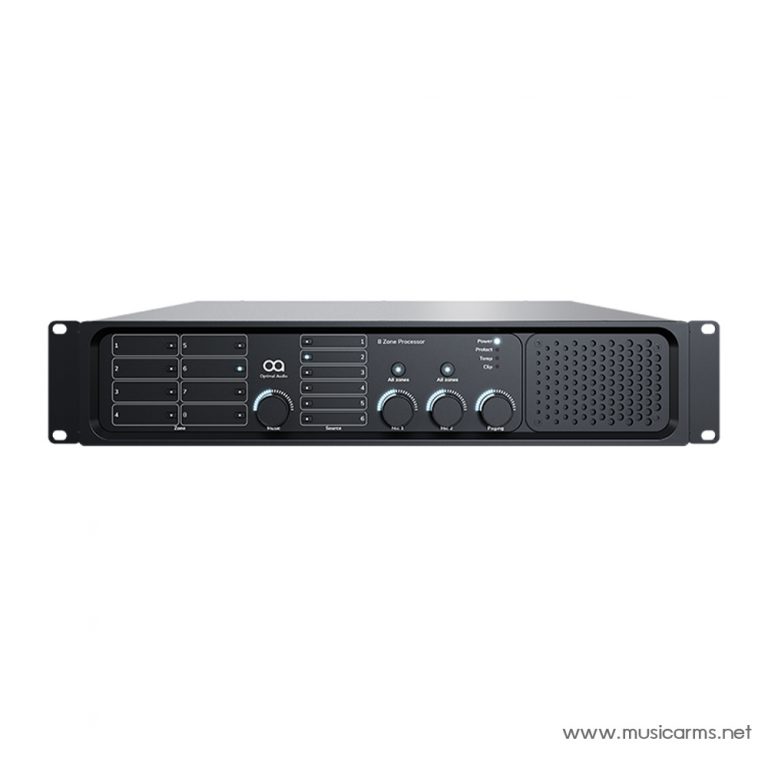

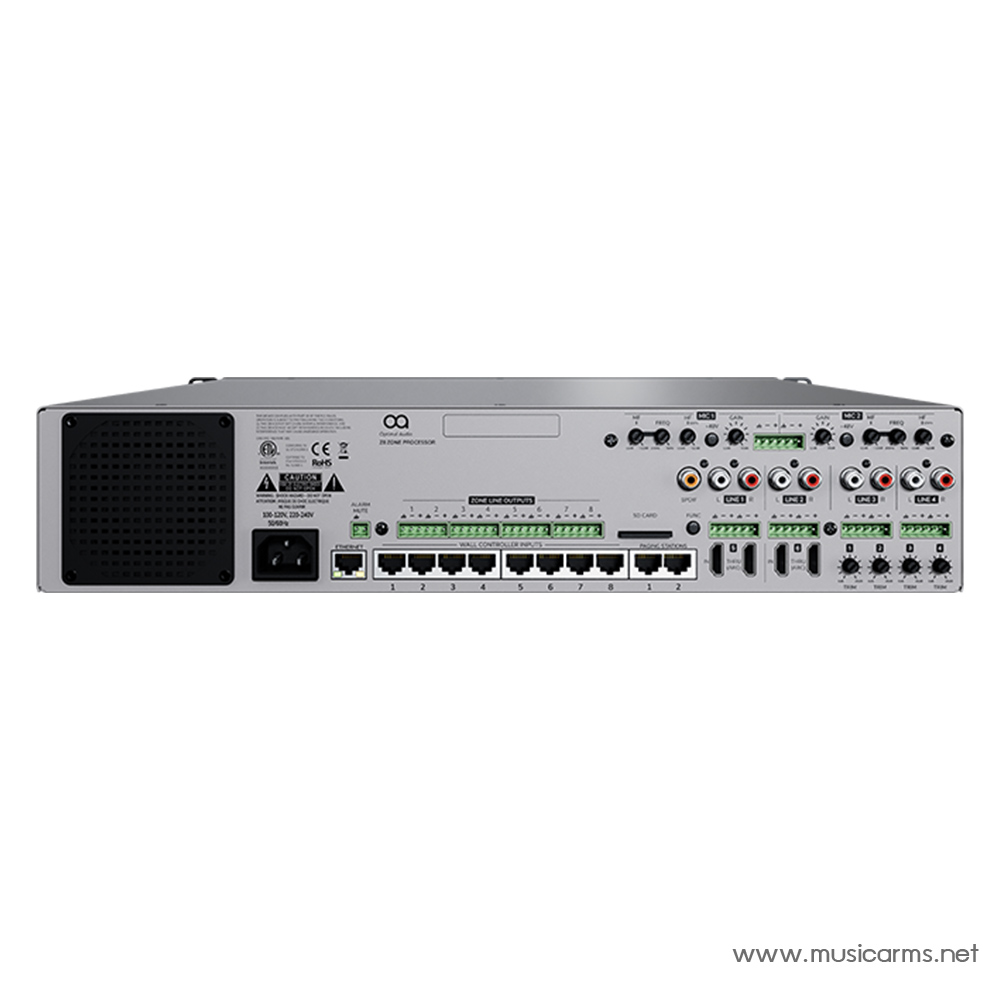

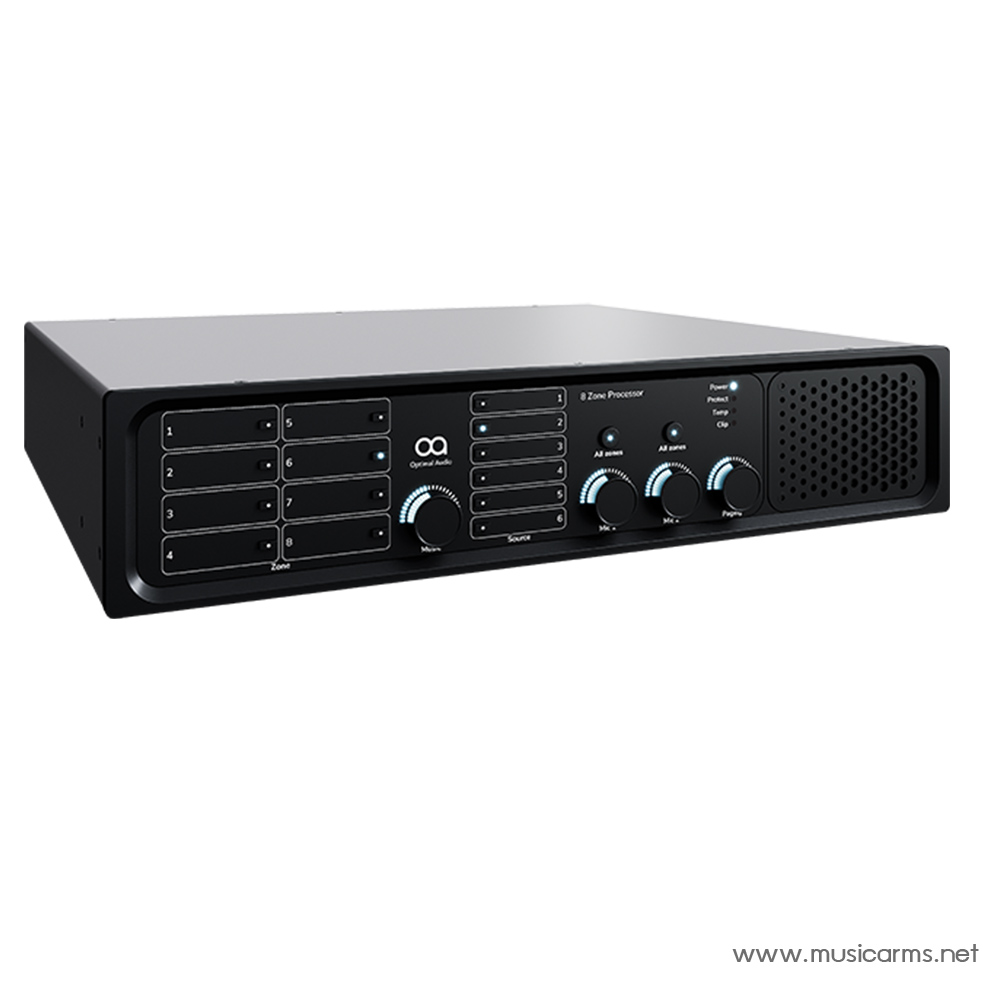

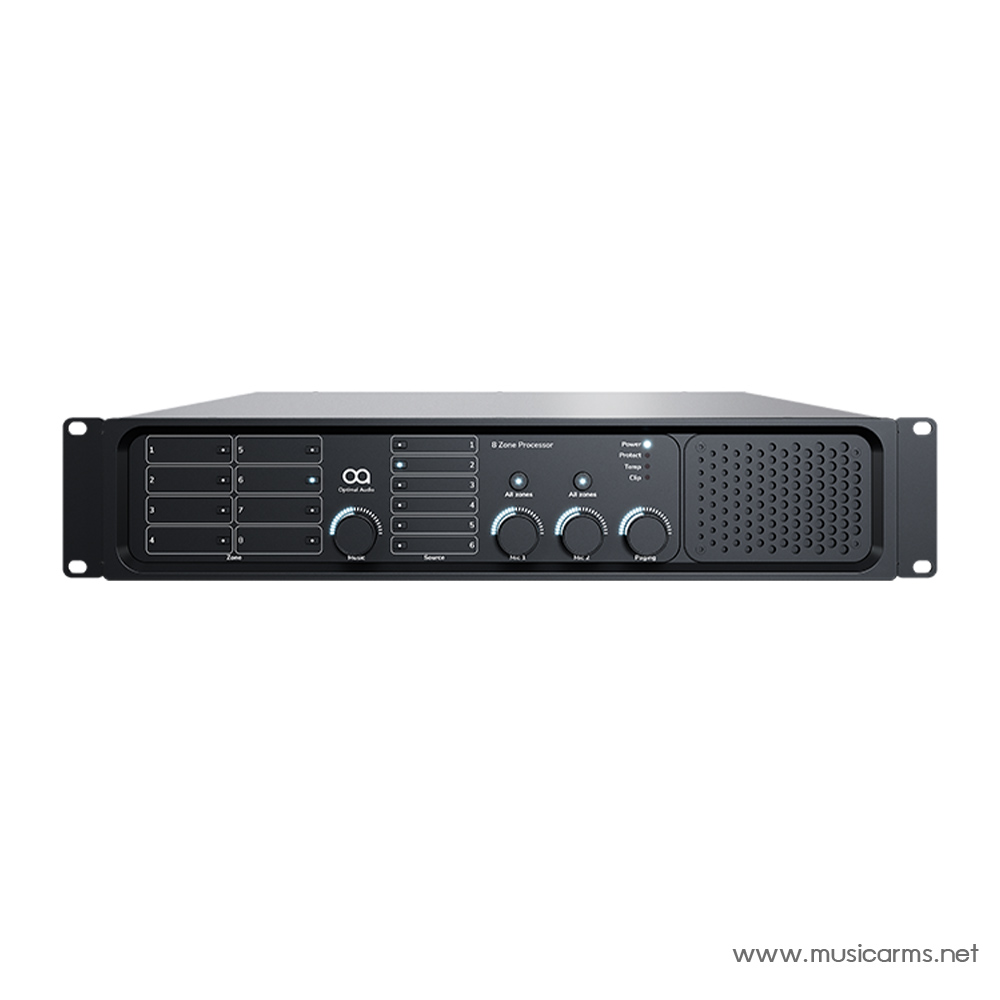

Optimal Audio Zone 8-8 zone audio controller with DSP and WebApp
Features
- Full suite of audio controls for up to 8 zones
- Fully flexible signal routing
- WebApp interface for easy system configuration and everyday control
- 2 mic, 4 stereo line and 2 HDMI inputs
- Easily expanded – grows with your business
- Fully programmable presets and timed events
- Very competitive pricing
Flexibility and ease of use are core values of Optimal Audio and the Zone series has been created to give you easy access to everyday controls.
Zone 8 allows the user to independently allocate sources across eight configurable zones, which could be anything from the bar, back of house or lobby to restaurant, kitchen or shop floor.
Zone 8 is the heart of any sound system, handling audio signal management for eight zones. Each Zone can be configured to do precisely what is required using the intuitive WebApp. It features 4 line and 2 mic inputs plus 2 HDMI inputs for TV and video sound.
Zone 8 has been designed to work seamlessly with other products in the Optimal Audio range and when coupled with our ZonePads and SmartAmp series provides a simple, intuitive and cost-effective audio system with superb sound quality.
Specification
Specification
- TYPE : 8 zone audio processor with DSP and loudspeaker presets
- MIC INPUTS : 2 with 48v phantom power, +12dB to +55dB gain
- MIC INPUT PROCESSING : Fixed hi-pass filter @160Hz; sweepable mid-band 200Hz-5kHz, +/-12dB; HF bell @12kHz
- LINE INPUTS : 4 stereo with +26dB gain trim. SPDIF option on input 1
- HDMI INPUTS : 2 ARC
- LINE OUTPUTS : 8
- ZONEPAD SOCKETS : 8
- PAGING INPUTS (CAT 5) : 2
- LAN ETHERNET100Mbps : Yes
- ALARM OVERRIDE : Yes
- DIMENSIONS : (W) 480mm x (H) 88mm x (D) 400mm
(W) 18.90” x (H) 3.46” x (D) 15.75” - WEIGHT : 9.2kg (20.2lbs)
