PMC 8-2-SUB(Each)

คลิ๊กที่ภาพเพื่อขยาย
รุ่น :  8-2-SUB Speaker
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 157,500 บาท

175,000 บาท ประหยัด10%
การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ PMC 8-2-SUB(Each)ผ่านline สั่งซื้อ PMC 8-2-SUB(Each)ผ่าน messenger

วีดีโอ


YouTube video

Description

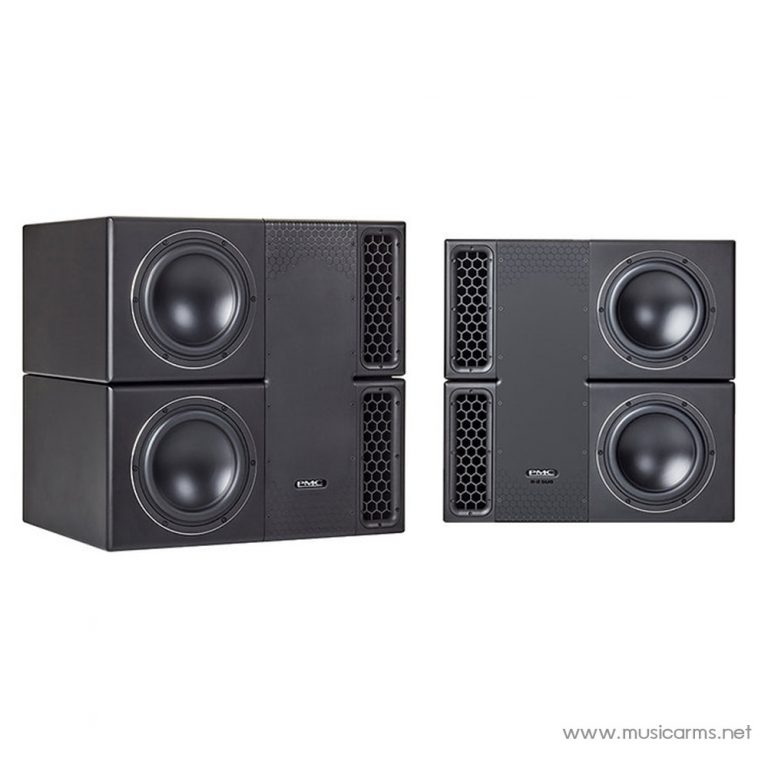

PMC 8-2-SUB(Each)

As with any PMC loudspeaker, thanks to its super-consistent dispersion and tonal balance, the PMC8-2 may be simply and seamlessly combined with smaller PMC speakers to create larger multi-channel or immersive systems.

The twin bass drivers are partnered with the same PMC55 mid-range tweeter, DSP system and four channels of 400W Class-D amplification used in the PMC6-2. Again, the speaker is configurable directly via the rear panel or using the browser-based SoundAlign™ software from a computer or tablet.

Together with the precisely tuned ATL™ cabinet and hexagonal Laminair™ vents, the PMC8-2 delivers phenomenal performance that approaches that of our Main reference monitors, with smooth and consistent bass response down to 25Hz, a revealing mid-range and wide, stable sound-staging. As with the rest of the range, the PMC8-2’s superb definition, fidelity, dynamics and bass accuracy allow mix decisions to be made quickly with complete confidence, and with no listening fatigue even after long sessions.

PMC8-2s can be upgraded through the addition of a PMC8-2 SUB to create an XBD system, enhancing the system’s bass headroom by 6dB. Dedicated short and taller floor-stands are available for the PMC8-2 and PMC8-2 XBD systems which position them on the ideal listening axis.

  • Active 3-way nearfield reference monitor with ATL™ bass loading
  • Frequency response: 25Hz – 25kHz (- 3dB @1m full space, on-axis)
  • Max. cont. SPL: 113dB @1m (half space value calculated as +3dB from full space measurement.
    Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
  • Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
  • Digital ‘through’ output (AES3 24-bit 96kHz
  • SoundAlign™ network control interface for single or group EQ & settings
  • Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
  • PMC8-2 + PMC8-2 SUB creates PMC8-2 XBD, with up to 6dB of additional headroom
  • Optional dedicated floor stands for PMC8-2 (40”) and PMC8-2 XBD (19”)

Specification

Specification

  • TypeActive 3-way nearfield reference monitor with ATL™ bass loading
  • Drive Unit ComplementLF 2 x PMC 200mm (8”) studio 8 driversMF PMC 55mm (2”) soft dome mid-rangeHF PMC 27mm (1”) soft dome tweeter
  • Effective ATL™ Length3m (9.8ft)
  • Frequency Response25Hz – 25kHz (- 3dB) (@1m full space, on-axis)
  • Sensitivity+4dBu input signal = 98dB SPL @ 1m
  • Max continuous SPL113dB @1m(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • Max Peak SPL125dB @1m(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • DirectivityH+/-45 degreesV+/-50 degrees (-6dB off axis @10kHz)
  • InputXLR switchable between analogue & digital AES3Analogue input– +20/+24dBu max. input level (selectable)– 22K ohm input impedanceDigital input– 16/24-bit AES3 signal, left, right or left + right– 18 – 192kHz Sample Rate– 110 ohm input impedanceExpansion card slot– For future connectivity upgrades
  • OutputXLR digital AES3 (fixed 24-bit @ 96kHz)
  • NetworkRJ45 for use with PMC SoundAlign web interface
  • FeaturesLevel Trim (+/-10dB)High-pass filter (20 – 200Hz, 12dB/Oct)Delay (0 – 30mS)Phase (normal or inverted)LF & HF shelving filters (20Hz – 20kHz, +/- 10dB, Q 0.707)Parametric EQ (5 bands, 20Hz – 20kHz, +/- 10dB)User presets (3 + factory defaults)
  • Latency2.4mS
  • Amplifier power per channelLF 2 x 400WrmsMF 1 x 400WrmsHF 1 x 400Wrms
  • Mains100 – 240VAC auto-switching, 50-60Hz (IEC C14)
  • Power consumption (idle)50W
  • Power consumption (max)1500W
  • Cabinet dimensionsH 534mm (21”)W 551mm (21.7”)D 440mm (17.3”)
  • Weight39kg (86lbs) each
  • Available Finishes:Studio black

×
