PMC BB6 XBD ลำโพงมอนิเตอร์

World-class PMC Main Monitors for Larger Control Rooms

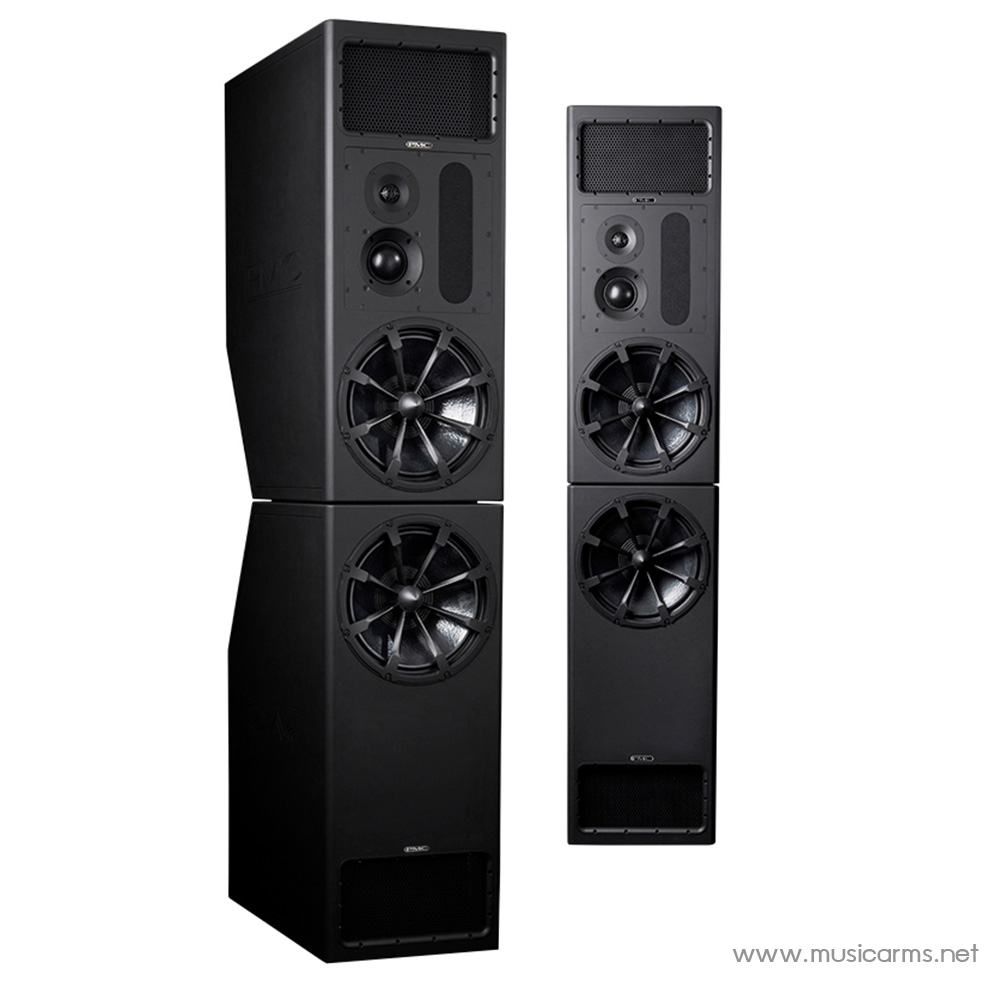

Arranged in a sleek column with a second cabinet dedicated to subwoofer duties, the PMC BB6 XBD-A system delivers world-class main monitor performance in large control rooms. Featuring an additional 15-inch Radial bass driver, the dual-cabinet BB6 XBD-A improves on the dynamic performance of the BB6-A with more headroom below the bass crossover frequency, producing a maximum SPL of 131dB and allowing larger rooms to be driven with an even smoother frequency response. The dual XBD cabinets may be either soffit-mounted or freestanding, and can be positioned vertically or side-by-side for greater placement flexibility.

PMC BB6 XBD-A Dual 15″ 3-way Active Reference Monitor (Pair) Features:

• 3-way ATL active reference monitor with separate subwoofer cabinet
• Frequency response: 17Hz-25kHz

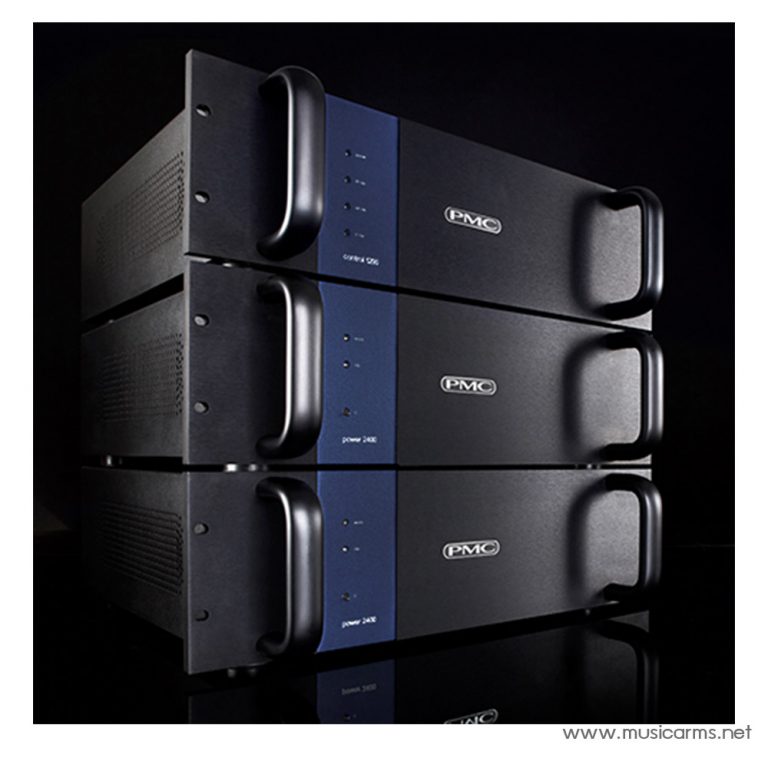

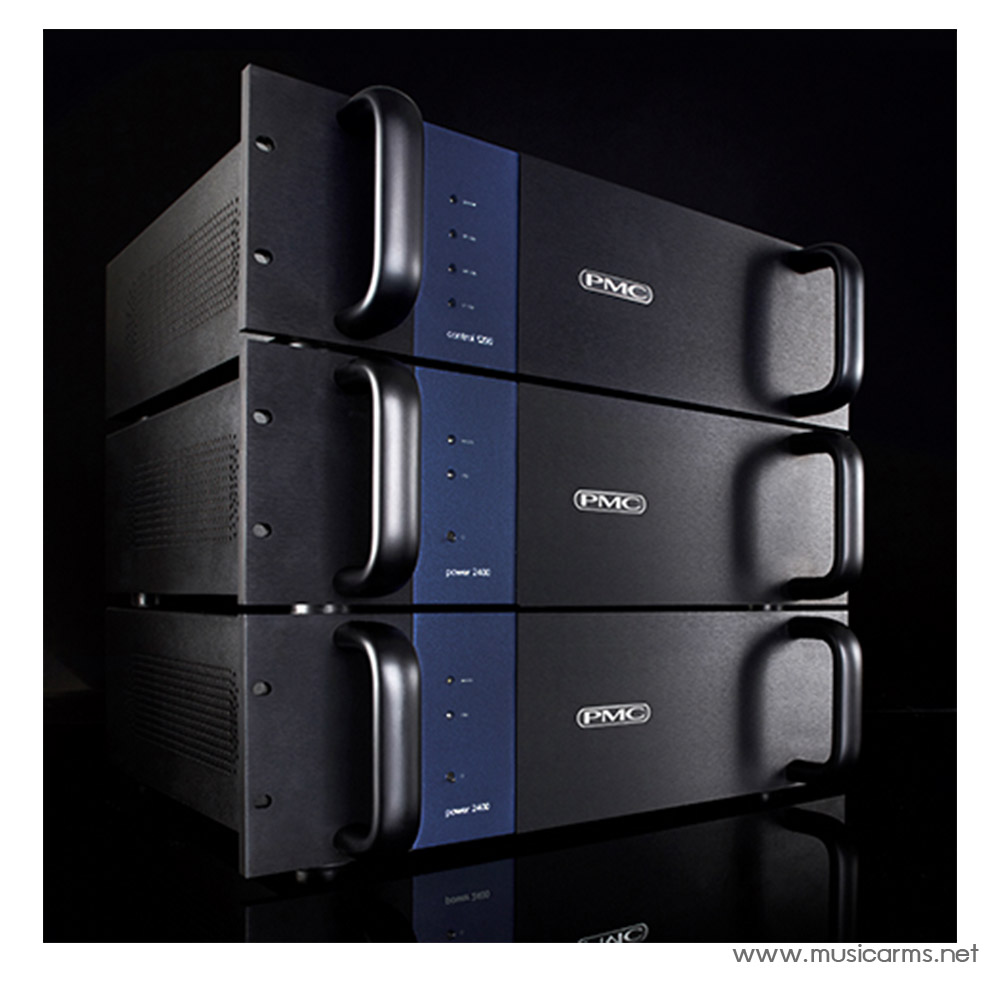

• Custom triamplifaction: 5625W (HF 275W, MF 550W, LF/LFX 2 x 2400W)
• Effective ATL length: 2 x 4 meters
• Maximum SPL: 131dB
• Crossover Frequency: 380Hz, 3.8kHz
• Bespoke PMC drivers
• Woofer: 2 x 15″ Radial
• Midrange: 75mm soft-dome
• Tweeter: 34mm soft-dome with acoustic radiator
• I/O: balanced analog input, digital AES3 input (24-bit/96kHz)
• Remote control: wired via RJ45, rotary volume -48.5dB to +15dB
• Dimensions: 81.8″ H x 17″ W x 31.1″ D
• Weight: 300 pounds
