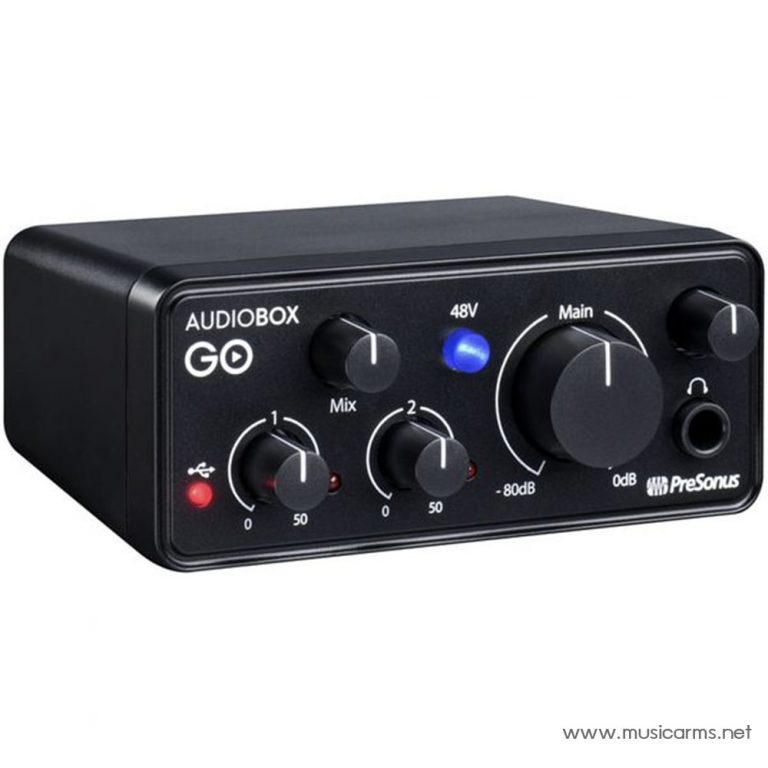

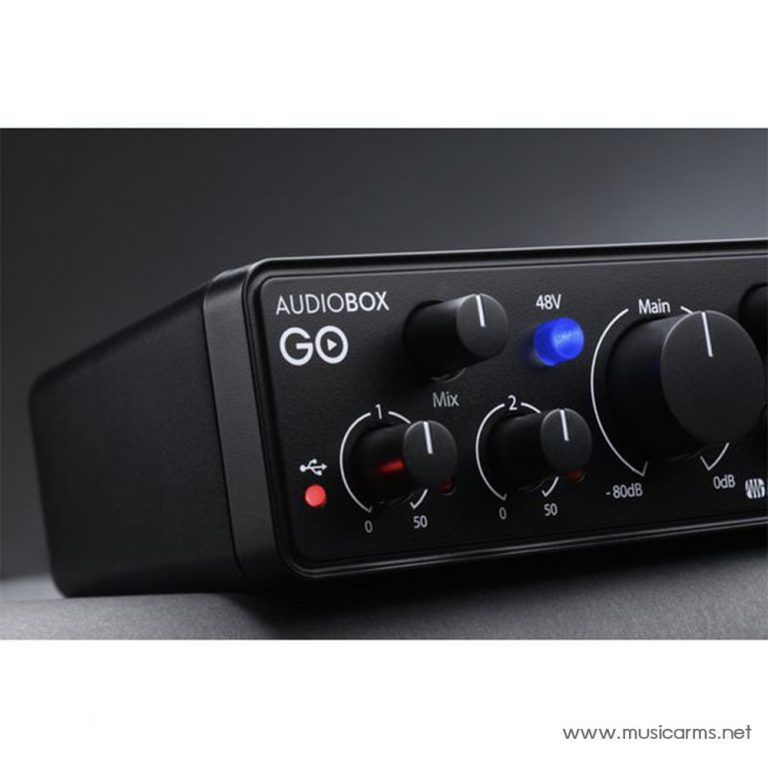

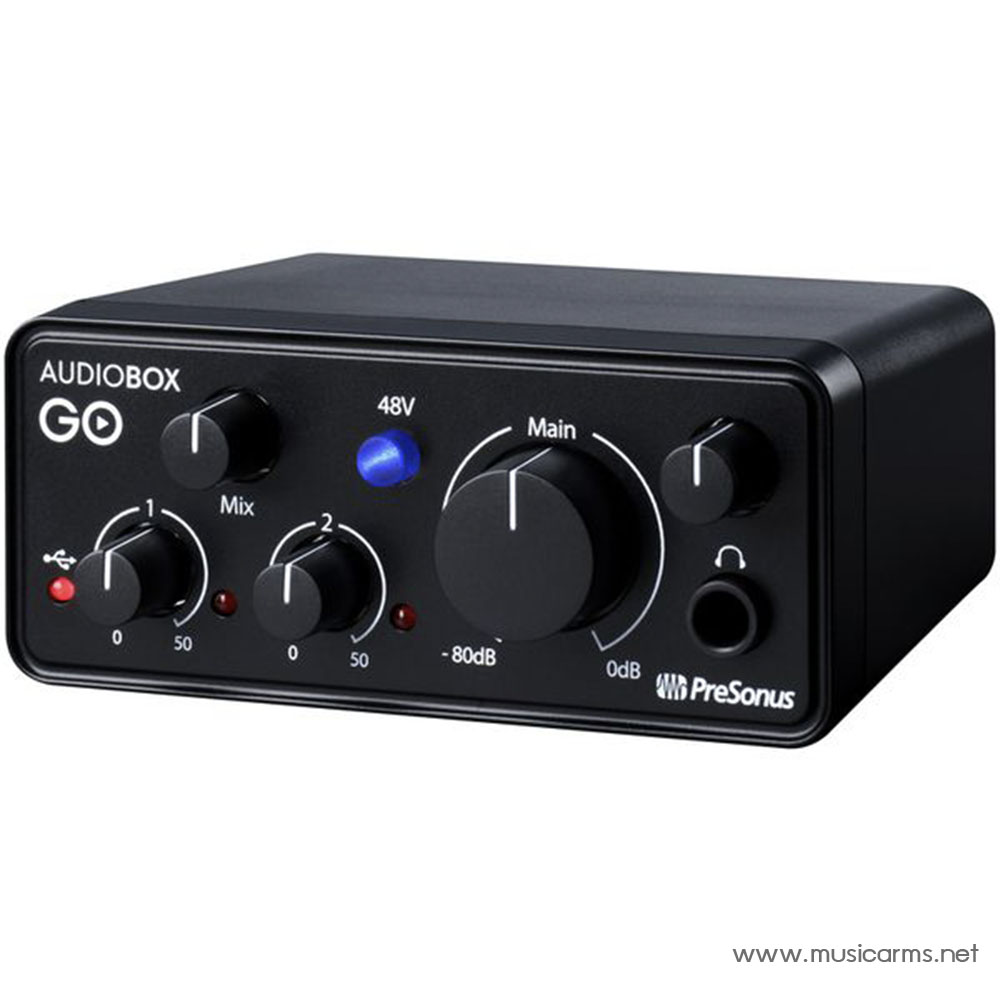

PreSonus AudioBox GO อินเตอร์เฟส

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : PreSonus

ราคา : 3,990 บาท

รุ่น :  PreSonus AudioBox GO ออดิโอ อินเตอร์เฟส Audio Interface
สถานะสินค้า : มีสินค้าพร้อมส่ง
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ PreSonus AudioBox GO อินเตอร์เฟสผ่านline สั่งซื้อ PreSonus AudioBox GO อินเตอร์เฟสผ่าน messenger

วีดีโอ


Description

Connect anything and sound great.

The AudioBox GO™ features a PreSonus® XMAX-L preamp, designed with over 25 years of recording-studio knowhow. Not only does it ensure that your recordings will sound clean and articulate with low noise, it also provides 50 dB of gain and +48v phantom power for professional XLR condenser microphones. The combo jack doubles as a line-level input that you can use to record keyboards, drum machines, and more! A dedicated Instrument input lets you connect an electric guitar or bass, so you can record guitar and vocals at the same time.

Small is beautiful.

True to its name, the AudioBox GO™ is so powerful and loaded with features, you’ll want to take it with you everywhere — so we made it small enough to toss into your guitar case or your laptop bag. AudioBox GO works great with Android and Apple mobile devices — but also with both laptop and desktop computers, making it an ideal interface for small home studios. It’s USB class-compliant, so there are no special drivers or applications for you to download and install. And because it’s bus-powered, there’s no power supply to fuss around with.

Loud and clear.

The AudioBox GO™ lets you connect professional studio monitors like the PreSonus Eris-series to its balanced Main outputs, while also providing a surprisingly powerful Headphone output that lets you listen in loud and clear. You also get an easy-to-use Mix control to create a monitor mix by blending the audio from your hardware inputs and your software so you can record vocals while listening to the tracks you’ve already recorded and stay inspired.

World-class recording software included.

While the AudioBox GO™ audio interface works with virtually all macOS® and Windows® audio-recording software, it comes with a free license for Studio One® Prime, giving you a complete recording solution. Built by creative people for creative music production, Studio One is easy to learn and enables you to compose, record, and produce your masterpiece without getting distracted by the tools. And when you’re ready to hit the road, download Capture Duo for free and enjoy two-track recording on the go.

Specification

Specifications

Microphone Preamp

Type XLR female, balanced (via Combo connector Input 1)
Frequency Response (±3.0 dB) 20 Hz to 20 kHz
Input Impedance (Balanced) 1.4kΩ
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.004%
Gain Control Range (± 1 dB) 50 dB (0 dB to +50 dB)
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) +10 dBu (± 0.5 dBu, min gain)
Phantom Power (±2 VDC) +48 VDC (±2 VDC)

Line Input

Type ¼” TRS female, balanced (via Combo connector Input 1)
Input Impedance 750 kΩ
Max Input Level +19 dB
Gain Control Range 50 dB (-20 dB to +30 dB)

Instrument Input

Type ¼” TS female, unbalanced (Input 2)
Input Impedance 750 kΩ
Max Input Level +13 dB
Gain Control Range 50 dB (0 dB to +50 dB)

Line Outputs

Type ¼” TRS female, impedance balanced
Frequency Response 20 Hz to 20 kHz, +/-0.2 dB
Output Impedance 51Ω
THD+N (1 kHz, 20 kHz BW, A-wtd) <0.007%

Headphone Output

Type ¼” TRS active stereo
Maximum Output 30 mW/ch. @ 60Ω Load
Frequency Response (±1.0 dB) 20 Hz – 20 kHz, +- 0.5 dB
THD+N (1 kHz, max gain, 20 kHz BW, A-wtd) <0.08%
S/N Ratio (1 kHz, max gain, 20 kHz BW, A-wtd) 90 dB

Power

Type Bus Powered

Digital Audio

Connection Type USB 2.0 over USB-C® compatible connection
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) 90 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 102 dB
Bit Depth 24
Reference Level for 0 dBFS +10 dBu
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96

Physical

Height 1.73” (44 mm)
Depth 3.3″ (84 mm)
Width 4.25″ (108 mm)
Weight 0.51 lb (0.24 kg)

ข้อมูล

PreSonus AudioBox GO นำเสนอพรีแอมป์ PreSonus XMAX-L ที่ออกแบบด้วยความรู้ความชำนาญด้านสตูดิโอบันทึกเสียงมากว่า 25 ปี ไม่เพียงแต่ทำให้มั่นใจได้ว่าการบันทึกของคุณจะฟังดูสะอาดและมีสัญญาณรบกวนต่ำเท่านั้น แต่ยังให้เกน 50 dB และพลังแฝง +48v สำหรับไมโครโฟนคอนเดนเซอร์ XLR ระดับมืออาชีพ สามารถใช้บันทึกคีย์บอร์ด ดรัมแมชชีน และอีกมากมาย! อินพุตเครื่องดนตรีเฉพาะช่วยให้คุณเชื่อมต่อกีตาร์ไฟฟ้าหรือเบสได้ คุณจึงสามารถบันทึกกีตาร์และเสียงร้องได้พร้อมกัน

AudioBox GO ให้คุณเชื่อมต่อจอภาพในสตูดิโอระดับมืออาชีพ เช่น PreSonus Eris-series กับเอาต์พุตหลักที่สมดุล ในขณะที่เอาต์พุตหูฟังให้คุณฟังในเสียงที่ดังและชัดเจน คุณยังได้รับการควบคุมมิกซ์ที่ใช้งานง่ายเพื่อสร้างมิกซ์มอนิเตอร์โดยผสมผสานเสียงจากอินพุตของฮาร์ดแวร์และซอฟต์แวร์ของคุณ เพื่อให้คุณสามารถบันทึกเสียงร้องในขณะที่ฟังเพลงที่คุณได้บันทึก ทำงานร่วมกับซอฟต์แวร์บันทึกเสียง macOS และ Windows แทบทั้งหมด พร้อมกับสิทธิ์ใช้งานฟรีสำหรับ Studio One Prime ซึ่งเป็นโซลูชันการบันทึกเสียงที่สมบูรณ์ เชื่อมต่อทุกอย่างและให้เสียงที่ยอดเยี่ยมในเครื่องเดียว

สเปค

รายละเอียด PreSonus AudioBox GO

ปรีแอมป์ไมโครโฟน

ประเภท XLR ตัวเมีย แบบบาลานซ์ (ผ่านขั้วต่ออินพุต 1)

  • การตอบสนองความถี่ (±3.0 dB) 20 Hz ถึง 20 kHz
  • อิมพีแดนซ์อินพุตแบบบาลานซ์ 1.4kΩ
  • THD+N (unwtd, 1 kHz @ +4 dBu เอาต์พุต, Unity Gain) < 0.004%
  • ช่วงการควบคุมเกน (± 1 dB) 50 dB (0 dB ถึง +50 dB)
  • ระดับอินพุตสูงสุด (Unity Gain, 1 kHz @ 0.5% THD+N) +10 dBu (± 0.5 dBu, อัตราขยายขั้นต่ำ)
  • พลังงาน Phantom Power (±2 VDC) +48 VDC (±2 VDC)
  • อินพุต Line

ประเภท ¼” TRS ตัวเมีย แบบบาลานซ์ (ผ่านขั้วต่ออินพุต 1)

  • อิมพีแดนซ์อินพุต 750 kΩ
  • ระดับอินพุตสูงสุด +19 dB
  • ช่วงการควบคุมเกน 50 dB (-20 dB ถึง +30 dB)
  • อินพุตเครื่องดนตรี

ประเภท ¼” TS ตัวเมีย แบบอันบาลานซ์ (ผ่านขั้วต่ออินพุต 2)

  • อิมพีแดนซ์อินพุต 750 kΩ
  • ระดับอินพุตสูงสุด +13 dB
  • ช่วงการควบคุมเกน 50 dB (0 dB ถึง +50 dB)
  • เอาต์พุต Line

ประเภท ¼” TRS ตัวเมีย อิมพีแดนซ์บาลานซ์

  • การตอบสนองความถี่ 20 Hz ถึง 20 kHz, +/-0.2 dB
  • อิมพีแดนซ์เอาต์พุต 51Ω
  • THD+N (1 kHz, 20 kHz BW, A-wtd) <0.007%
  • เอาต์พุตหูฟัง

ประเภท ¼” TRS แอคทีฟสเตอริโอ

  • เอาต์พุตสูงสุด 30 mW/ch. @ 60Ω โหลด
  • การตอบสนองความถี่ (±1.0 dB) 20 Hz – 20 kHz, +- 0.5 dB
  • THD+N (1 kHz, อัตราขยายสูงสุด, 20 kHz BW, A-wtd) <0.08%
  • อัตราส่วน S/N (1 kHz, อัตราขยายสูงสุด, 20 kHz BW, A-wtd) 90 dB

ประเภท Bus Powered เสียงดิจิตอล

ประเภทการเชื่อมต่อ USB 2.0 ผ่านการเชื่อมต่อที่รองรับ USB-C®

  • ADC Dynamic Range (A-wtd, อัตราการสุ่มตัวอย่าง 48 kHz) 90 dB
  • DAC Dynamic Range (A-wtd, อัตราการสุ่มตัวอย่าง 48 kHz) 102 dB
  • ความลึกบิต 24
  • ระดับอ้างอิงสำหรับ 0 dBFS +10 dBu
  • อัตราตัวอย่างที่รองรับ (kHz) 44.1, 48, 88.2, 96
  • ขนาด 44 x 84 x 108 มม.
  • น้ำหนัก 0.24 กก.
