PreSonus Quantum

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : PreSonus

ราคา : 37,900 บาท

รุ่น :  PreSonus Quantum ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ PreSonus Quantumผ่านline สั่งซื้อ PreSonus Quantumผ่าน messenger

Description

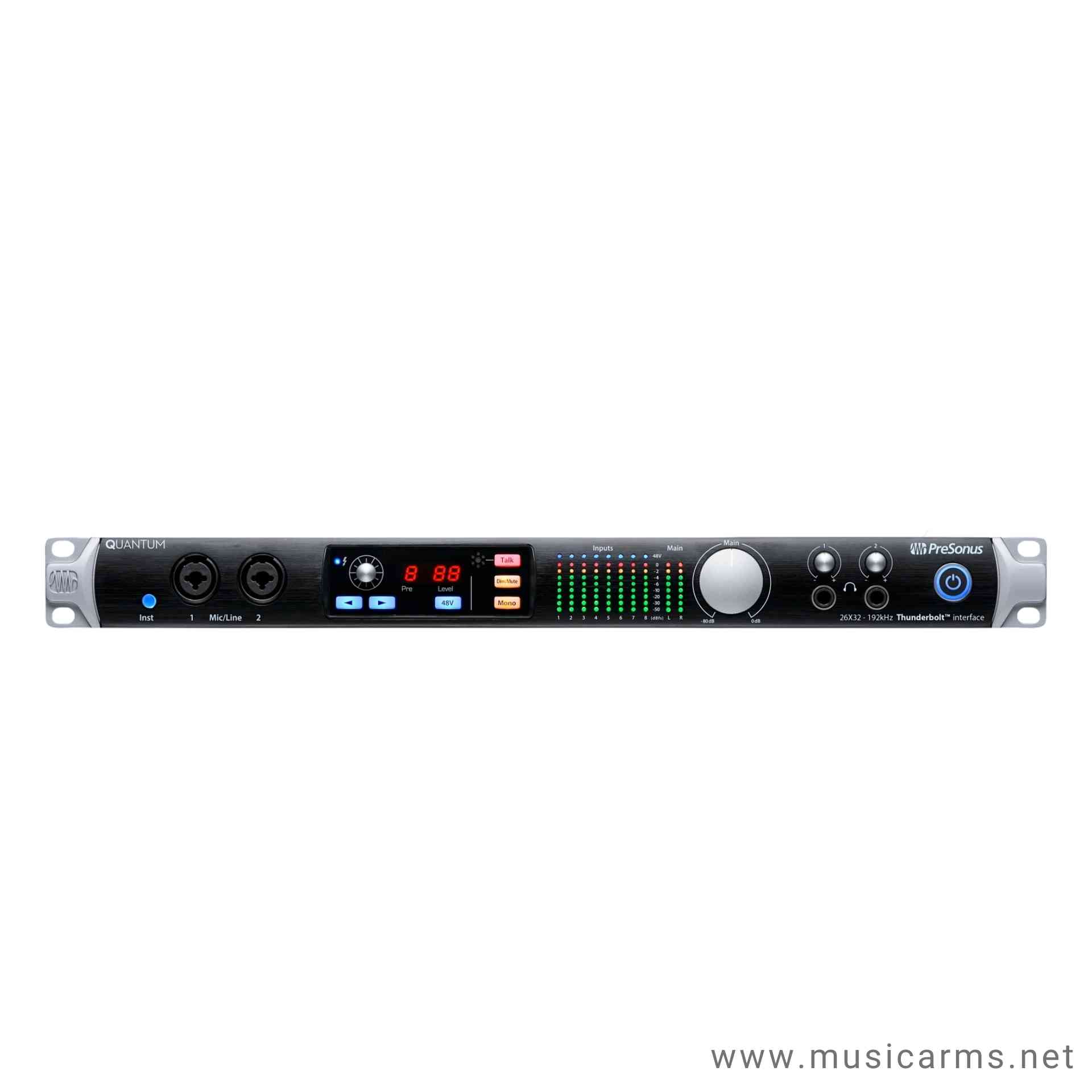

PreSonus Quantum

A great choice for a wide variety of recording environments, the 26×32-channel Quantum is PreSonus®’ fastest and best-sounding audio interface, taking advantage of the high-speed Thunderbolt™ bus and a no-frills, direct-to-DAW (no DSP added) signal path to achieve extremely low latency. Two combo mic/instrument/line inputs and 6 mic/line inputs with recallable XMAX preamps combine with cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range to deliver superb audio quality. For more I/O channels, simply stack up to 4 Quantum interfaces via Thunderbolt to create a monster 96×96 system. You also get MIDI and word clock I/O. Using the included Studio One Artist DAW or UC Surface control software, you can remote-control the preamps and many other features. To top it off, Quantum owners get the Studio Magic Plug-in Suite free and can upgrade to Studio One Professional for 50% off.

Features

  • PreSonus®’ fastest and best-sounding audio interface
  • Uses high-speed Thunderbolt™ bus
  • 24-bit resolution and up to 192 kHz sampling rate (120 dB dynamic range)
  • 26×32; expandable to 96×96 by stacking up to four Quantums via Thunderbolt
  • 2 combo mic/instrument/line inputs and 6 mic/line inputs, with recallable XMAX preamps

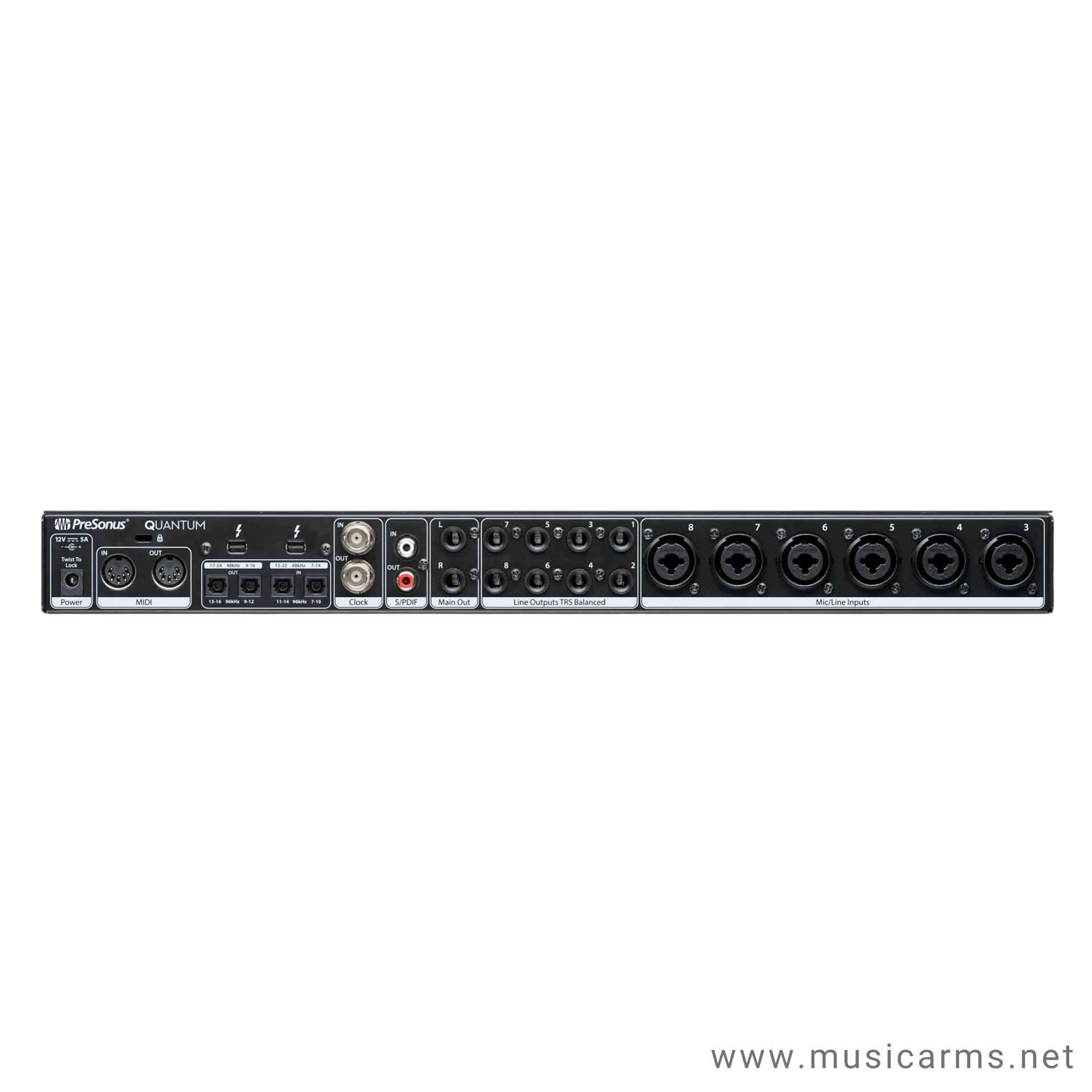

  • Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
  • Studio One® Artist and Studio Magic Plug-in Suite included; upgrade to Studio One Professional for 50% off

Specification

Specification

Electronics

  • Voltage
    100-120V
  • Headphone Jack
    1/4” TRS Female, Stereo, Unbalanced
Microphone Preamp
  • Total Harmonic Distortion
    < 0.005% (1 kHz, Minimum Gain)
  • Gain Control Range
    60 dB
  • Microphone Preamp Maximum Input Level
    +10 dBu (Balanced, Minimum Gain)
  • Phantom Power
    +48V (>8 mA per Input)
  • Frequency Response
    20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.22 dB, Unity Gain, 96 kHz)
  • Microphone Preamp Input Impedance
    1.6 kΩ
  • Dynamic Range
    > 110 dB (A-Weighted, Minimum Gain)
  • Equivalent Input Noise
    < -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
Line Inputs
  • Line Inputs Maximum Level
    + 18 dBu (Balanced, Minimum Gain)
  • Line Inputs Frequency Response
    20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.10 dB, Unity Gain, 96 kHz)
  • Line Inputs Dynamic Range
    > 118 dB (A-Weighted, Minimum Gain)
  • Line Inputs Total Harmonic Distortion
    < 0.005% (1 kHz, Minimum Gain)
  • Line Inputs Impedance
    10 kΩ
Main And Line Outputs
  • Main And Line Outputs Maximum Level
    +18 dBu (Balanced)
  • Main And Line Outputs Frequency Response
    20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.15 dB, Unity Gain, 96 kHz)
  • Main And Line Outputs Total Harmonic Distortion
    < 0.0035% (1 kHz, +4 dBu)
  • Main And Line Outputs Dynamic Range
    > 118 dB (A-Weighted)
Headphone Outputs
  • Frequency Response
    20 Hz to 20 kHz, +/-0.5 dB
  • Dynamic Range
    > 110 dB (A-Weighted)
  • Total Harmonic Distortion
    < 0.03% (1 kHz)
Digital Audio
  • Digital Audio Dynamic Range
    ADC Dynamic Range: 120 dB (A-Weighted), DAC Dynamic Range: 120 dB (A-Weighted)
  • Digital Audio Bit Depth
    24 bits
  • Supported Sample Rates
    44.1, 48, 88.2, 96, 176.4, 192 (kHz)

×
