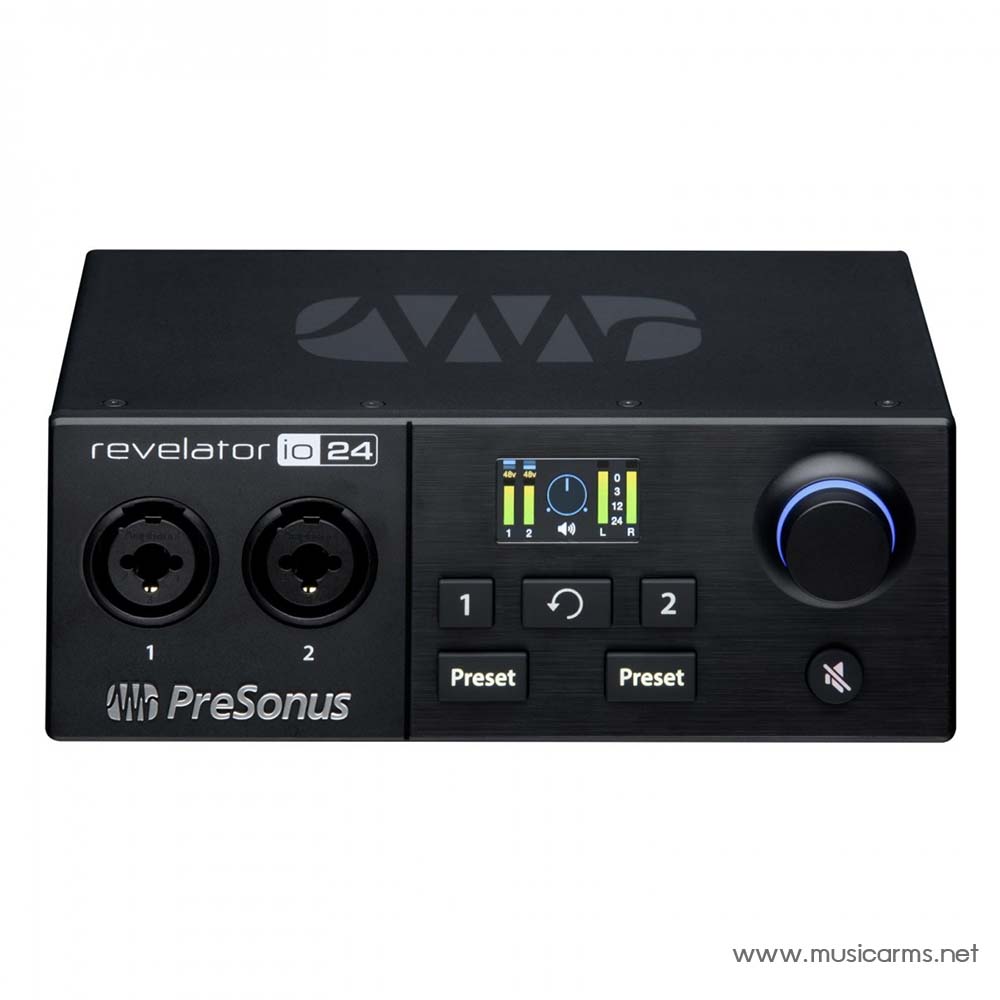

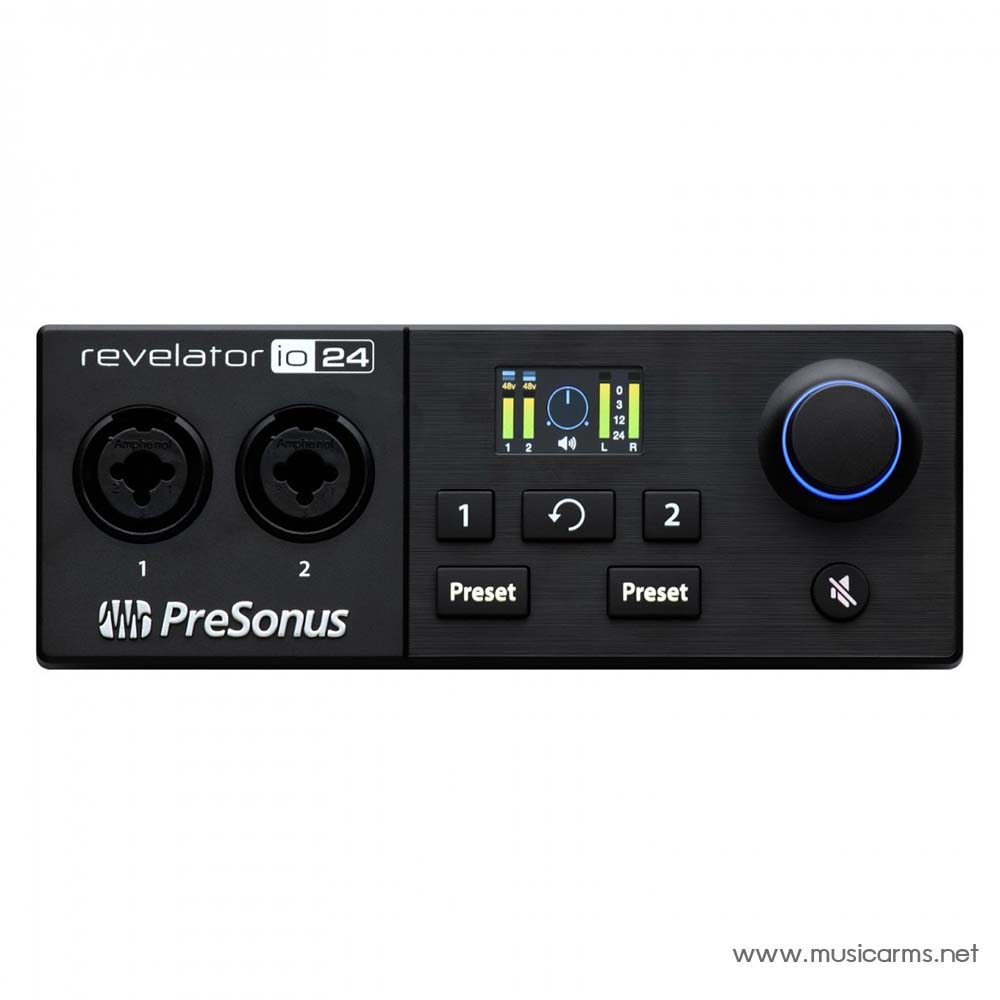

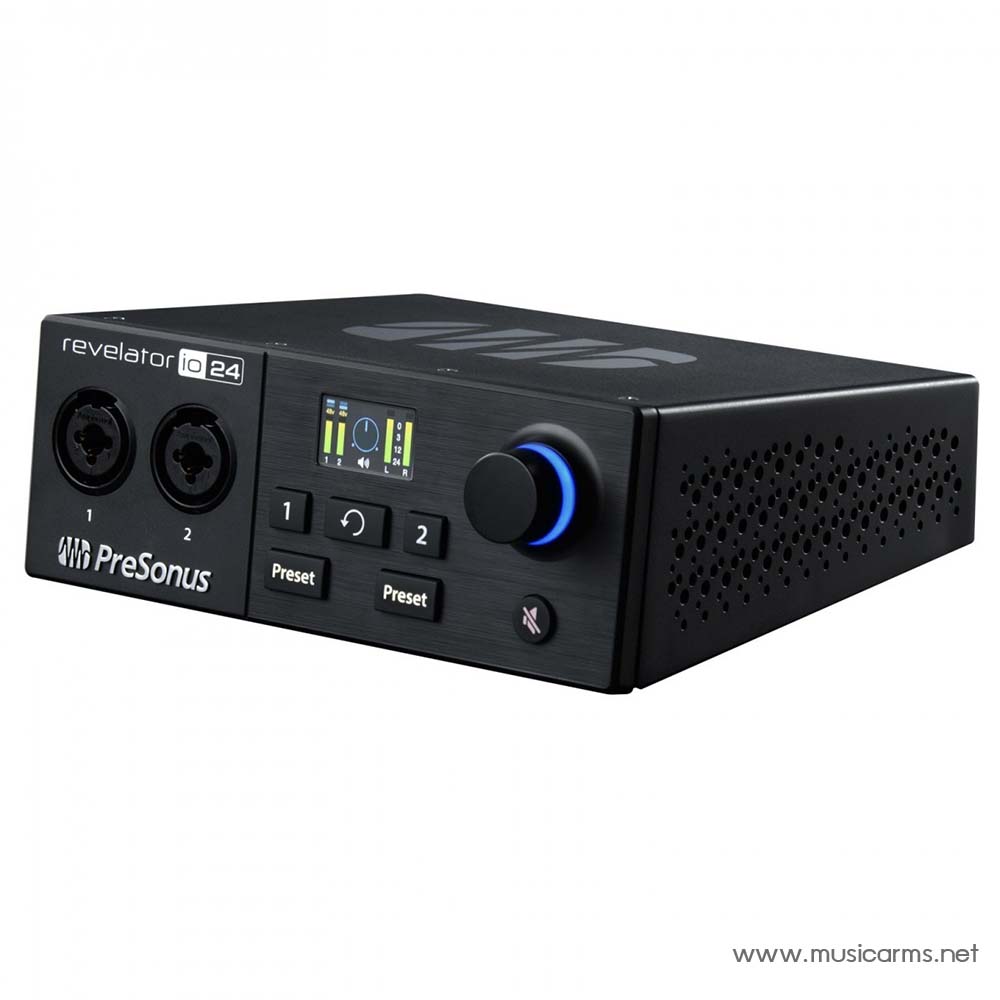

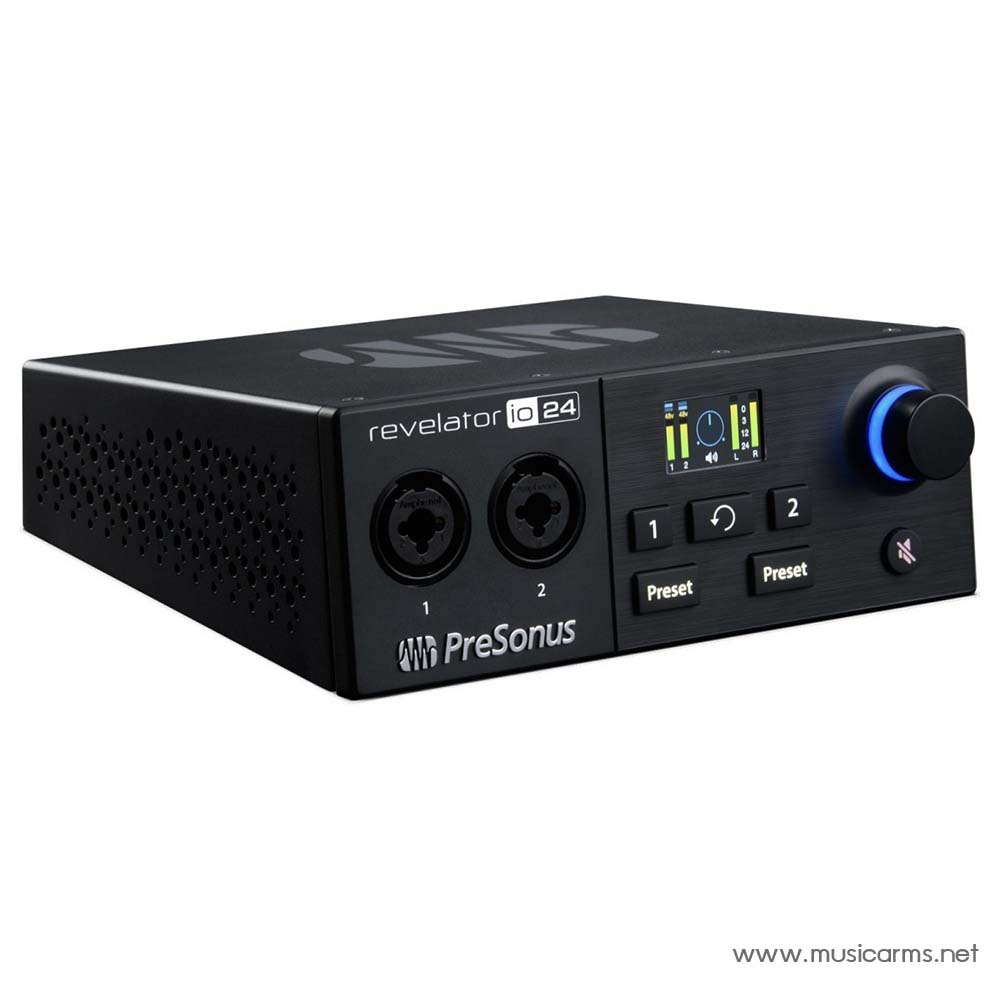

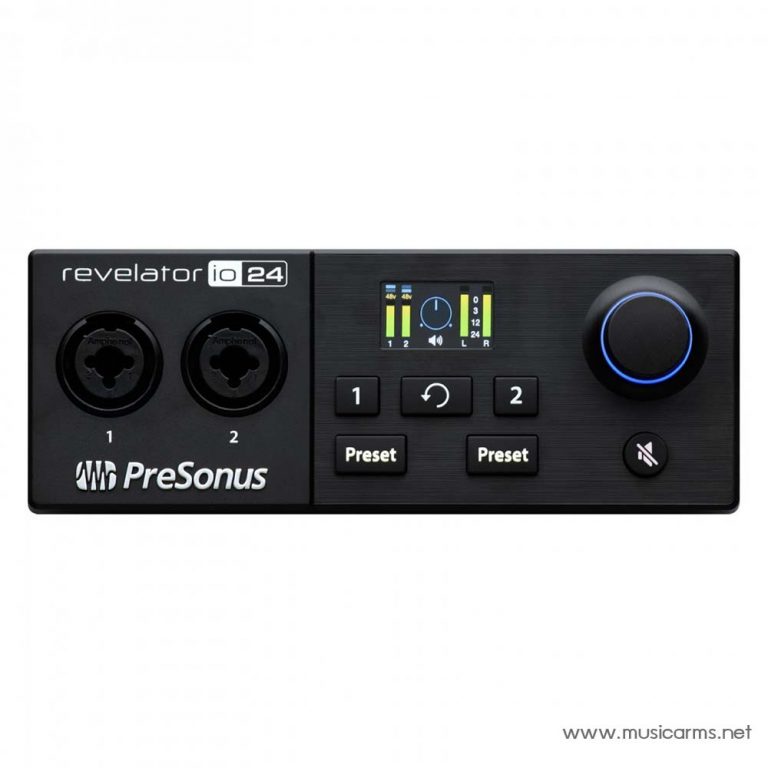

PreSonus Revelator io24 USB Audio Interface

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : PreSonus

ราคา : 8,600 บาท

รุ่น :  PreSonus Revelator io24 ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ PreSonus Revelator io24 USB Audio Interfaceผ่านline สั่งซื้อ PreSonus Revelator io24 USB Audio Interfaceผ่าน messenger

วีดีโอ


Description

The PreSonus Revelator io24 USB Audio Interface is a USB-C compatible audio interface designed for the modern streamer, podcasters and more looking to upgrade their online presence. Delivering polished, professional-sounding results with ease, the PreSonus Revelator io24 is ideal for streamers, podcasters, broadcasters and musicians who want simplicity, versatility and world-class sounds right out of the box. Two XMAX-L high-headroom mic preamps deliver crystal-clear sound to make you stand out from the crowd with connections to Instrument Level, High Impedance Level and +48v Phantom power input options, while the incredibly detailed and precise presets have been expertly engineered to give you a one-stop solution to creating studio-level audio.

The Revelator io24 was designed with streaming and podcasting in mind. Its integrated digital mixer features two dedicated loopback channels, allowing you to integrate audio from multiple applications into your productions. Introduce online callers to your podcast and broadcast or play backing tracks through your online stream simultaneously to your software of choice. Featuring a unique ‘Stream Mix’ mode, with one click of a button you can route your customised mix of analog inputs, loopback channels and effects processing directly to your streaming software, with no additional hardware or routing required!

Providing you all the tools you need to produce industry-standard streams and music, the Revelator io24 goes one step further by giving you over 1000 dollars of free software to record, produce and add those finishing touches to your productions. Studio One Artist, Ableton Live Lite and the PreSonus Studio Magic Suite are all included to take your productions to the next level.

Specification

USB 2.0 Audio Interface

  • Wth integrated loopback mixer, effects and stream mix mode for streaming, podcasting, recording etc.
  • Bus-powered USB-C audio interface
  • Resolution: 24-bit/44.1 – 96kHz
  • Two stereo loopback channels for mixing audio from multiple applications as backing tracks, as well as recording Skype or Zoom calls, gaming audio and more
  • Two XMAX-L microphone preamps
  • Max. input level: +10dBu (±0.5dBu, min gain)
  • Max. gain: 60dB
  • Frequency range: 20 – 20000 Hz
  • THD + N: 0.009% (1kHz, -1dBFS, min gain)
  • ON: -126dBu (A-weighted, 150O, max gain)
  • With stereo link option
  • Switchable phantom power (+48 V)
  • Integrated DSP for signal processing
  • StudioLive Fat Channel with high-pass filter, gate, 3 compressors, 3 EQs and limiter
  • StudioLive speech effects with doubler, vocoder, ring modulator, comb filter, detuner, delay and reverb
  • With factory presets
  • Stream mix mode for mixing input signals, effects, loopback channels, etc.
  • LED level display

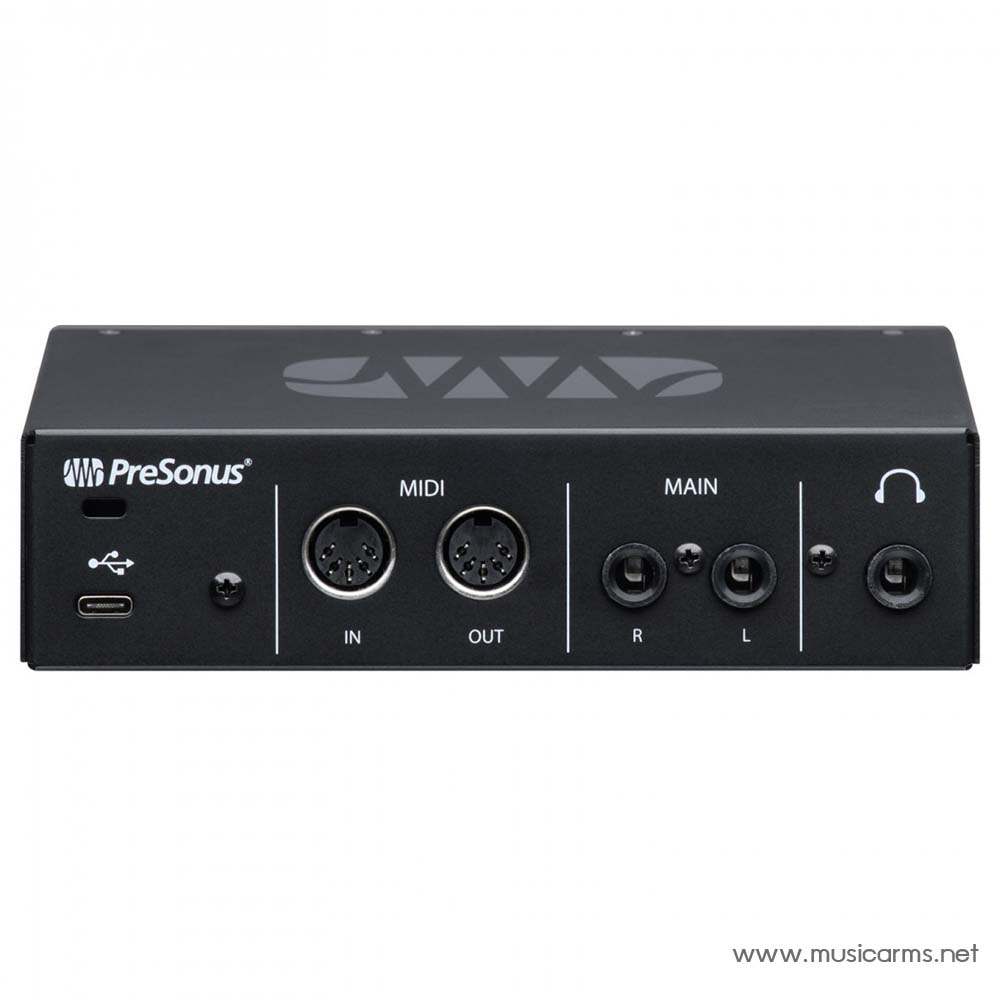

  • 2 Combo inputs Mic/Line/Inst: XLR/jack
  • 2 Line outputs: 6.3 mm jack
  • Stereo headphone output: 6.3 mm jack
  • MIDI in/out
  • USB-C port
  • Latency-free monitoring
  • USB 2.0 compatible
  • Remote control via UC Surface software mixer for iPadOS, Windows and Android
  • Dimensions (H x W x D): 6.35 x 15.88 x 15.88 cm
  • Weight: approx. 0.9 kg
  • Includes Presonus Studio One Artist, Ableton Live Lite and Studio Magic Suite software (download)

ข้อมูล

PreSonus Revelator io24 อินเทอร์เฟซเสียงที่เข้ากันได้กับ USB-C ซึ่งออกแบบมาสำหรับสตรีมเมอร์ยุคใหม่ พอดคาสต์และอีกมากมาย ให้เสียงระดับโลกทันทีที่แกะออกจากกล่อง พรีแอมพ์ไมโครโฟนแบบเฮดรูมสูง XMAX-L สองตัวให้เสียงที่ชัดใสเพื่อให้คุณโดดเด่นจากฝูงชนด้วยการเชื่อมต่อกับตัวเลือกระดับเสียงเครื่องดนตรี ระดับอิมพีแดนซ์สูง และกำลังไฟ Phantom +48v ในขณะที่ค่าที่ตั้งล่วงหน้าที่มีรายละเอียดและแม่นยำอย่างเหลือเชื่อได้รับการออกแบบโดยผู้เชี่ยวชาญ เพื่อมอบโซลูชันครบวงจรในการสร้างเสียงระดับสตูดิโอ

Revelator io24 ได้รับการออกแบบโดยคำนึงถึงการสตรีมและพอดแคสต์ มิกเซอร์ดิจิตอลในตัวมีช่องสัญญาณย้อนกลับเฉพาะสองช่อง ช่วยให้คุณสามารถรวมเสียงจากหลายแอพพลิเคชั่นเข้ากับการผลิตของคุณ ออกอากาศหรือเล่นเพลงสำรองผ่านสตรีมออนไลน์ของคุณพร้อมกันไปยังซอฟต์แวร์ที่คุณเลือก นำเสนอโหมด ‘Stream Mix’ ที่ไม่ซ้ำใคร ด้วยการคลิกเพียงปุ่มเดียว คุณสามารถกำหนดเส้นทางการผสมผสานอินพุตแบบอะนาล็อกของคุณเอง ช่องย้อนกลับ และการประมวลผลเอฟเฟกต์โดยตรงไปยังซอฟต์แวร์การสตรีมของคุณ โดยไม่ต้องมีฮาร์ดแวร์หรือการกำหนดเส้นทางเพิ่มเติม!

สเปค

  • อินเตอร์เฟส USB 2.0
  • มิกเซอร์ Loopback, เอฟเฟคและโหมดสตรีมมิกซ์สำหรับการสตรีม พอดแคสต์ การบันทึก ฯลฯ
  • ใช้พลังงานจาก USB-C
  • ความละเอียด: 24 บิต/44.1 – 96kHz
  • ช่องสเตอริโอ loopback 2 ช่องสำหรับการผสมเสียงจากหลายแอพพลิเคชั่นเป็นแบ็คกิ้งแทร็ค เช่นเดียวกับการบันทึกการโทรผ่าน Skype หรือ Zoom เสียงจากเกม และอื่นๆ
  • พรีแอมป์ไมโครโฟน XMAX-L สองตัว
  • ระดับอินพุตสูงสุด : +10dBu (±0.5dBu, อัตราขยายขั้นต่ำ)
  • Gain สูงสุด: 60dB
  • ช่วงความถี่: 20 – 20,000 Hz
  • THD + N: 0.009% (1kHz, -1dBFS, อัตราขยายขั้นต่ำ)
  • ON: -126dBu (A-weighted, 150O, อัตราขยายสูงสุด)
  • ตัวเลือกสเตอริโอลิงค์
  • กำลังไฟ Phantom ที่สลับได้ (+48 V)
  • DSP ในตัวสำหรับการประมวลผลสัญญาณ
  • StudioLive Fat Channel พร้อมตัวกรองความถี่สูง, ประตู, คอมเพรสเซอร์ 3 ตัว, EQ 3 ตัว และลิมิตเตอร์
  • เอฟเฟ็กต์เสียงพูดของ StudioLive พร้อมดับเบิ้ล, โวโคเดอร์, โมดูเลเตอร์วงแหวน, หวีฟิลเตอร์, ดีจูนเนอร์, ดีเลย์และรีเวิร์บ
  • การตั้งค่าล่วงหน้าจากโรงงาน
  • โหมดผสมสตรีมสำหรับการผสมสัญญาณอินพุต เอฟเฟ็กต์ ช่อง Loopback ฯลฯ
  • จอแสดงผลระดับ LED
  • 2 อินพุตคอมโบ Mic/Line/Inst: XLR/แจ็ค
  • เอาต์พุต 2 สาย: แจ็ค 6.3 มม
  • เอาต์พุตหูฟังสเตอริโอ: แจ็ค 6.3 มม
  • MIDI เข้า/ออก
  • พอร์ต USB-C
  • การตรวจสอบที่ปราศจากความหน่วงแฝง
  • รองรับ USB 2.0
  • การควบคุมระยะไกลผ่านโปรแกรมผสมซอฟต์แวร์ UC Surface สำหรับ iPadOS, Windows และ Android
  • ขนาด (สูง x กว้าง x ลึก): 6.35 x 15.88 x 15.88 ซม.
  • น้ำหนัก: ประมาณ. 0.9 กก.
  • รวมซอฟต์แวร์ Presonus Studio One Artist, Ableton Live Lite และ Studio Magic Suite (ดาวน์โหลด)

×
