Prism Sound Atlas

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Prism Sound

ราคา : 153,000 บาท

170,000 บาท ประหยัด10%
รุ่น :  Prism Sound Atlas ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 8 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ Prism Sound Atlasผ่านline สั่งซื้อ Prism Sound Atlasผ่าน messenger

วีดีโอ


Description

Prism Sound Atlas 8-channel AD Converter

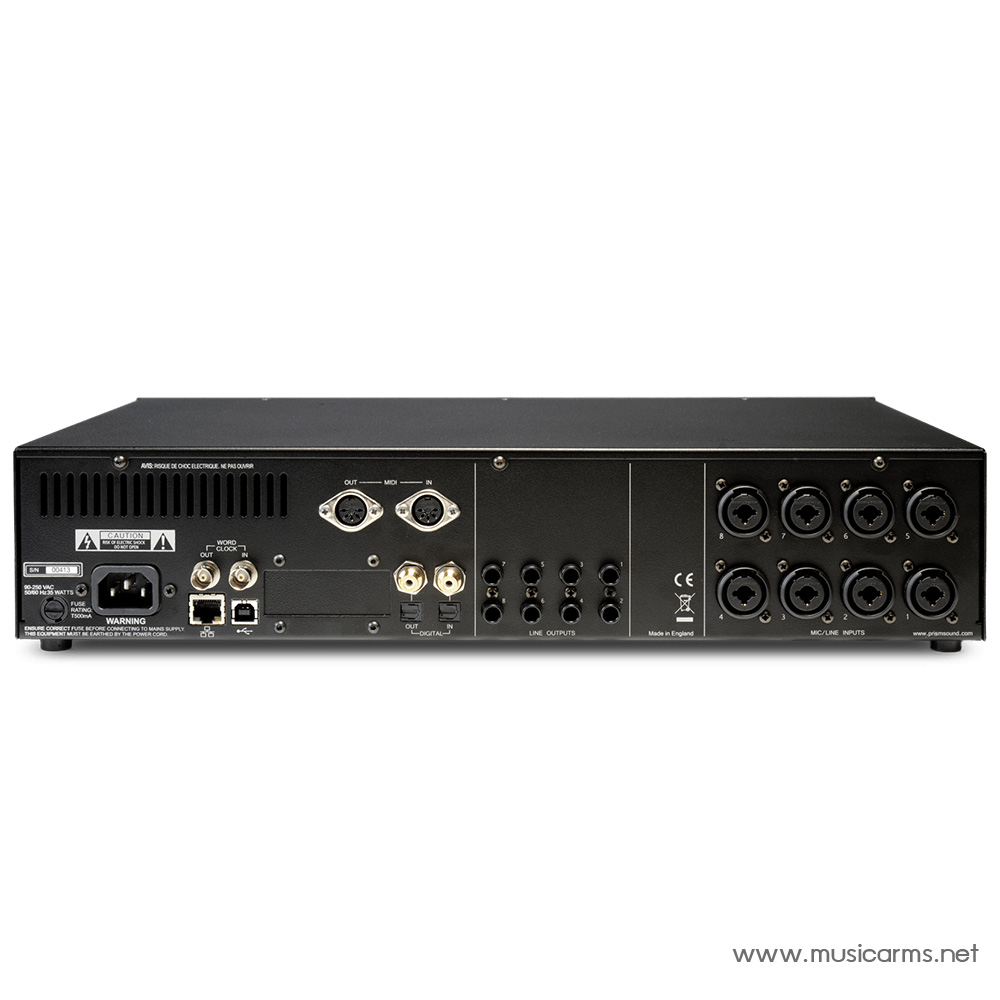

USB Audio Interface and AD/DA Converter, with 8 Mic/Line Combo Inputs, 8 Analog Inputs/Outputs, ADAT I/O, S/PDIF I/O, and 2 Headphone Outputs

Prism Sound Atlas USB Audio Interface Features:

  • USB interface and AD/DA converter with industry-leading clocking and conversion
  • Comprehensive I/O configuration with comprehensive routing and mixing control via Atlas Controller applet
  • Reference-grade clocking for ultra-low jitter and maximum digital accuracy
  • Eight microphone/line–level combo inputs with built-in mid-side matrixing available when configured as stereo pairs
  • Built-in USB 2.0 connectivity, expandable with option cards for Pro Tools and Dante (sold separately)
  • Atlas Controller applet for Mac and PC provides comprehensive input/output control, signal routing, foldback mixing, and more
  • Overkiller soft limiter available on all analog inputs to protect against digital clipping
  • Verifile technology allows you to monitor signals or analyze audio files for data corruption
  • S/PDIF input and output can be used for AES3 signals with included adapter cables
  • Includes rack ears for rackmounting, feet for desktop use, IEC power cable, USB cable, USB-B to USB-C converter, and XLR-F/XLR-M to RCA-M adapter cables

Specification

Specification

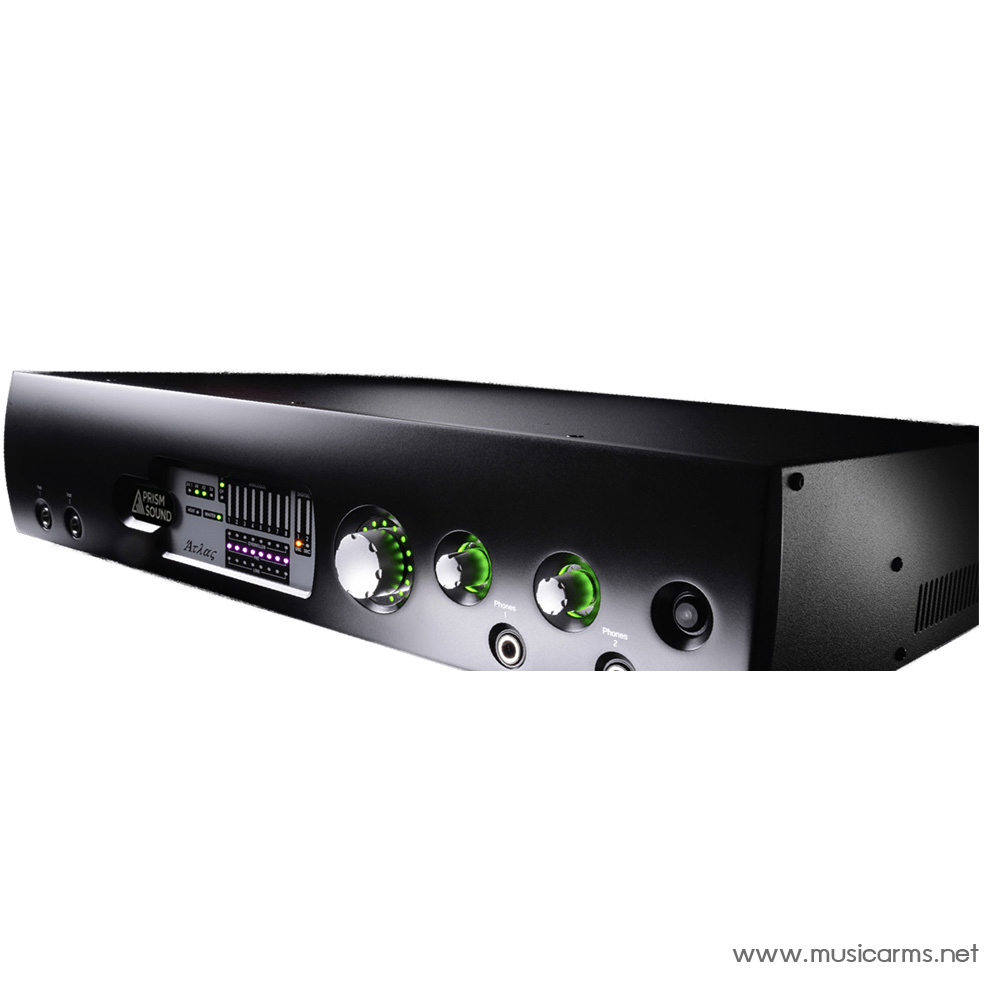

  • Instrument Inputs 2 x 6.3mm mono jack sockets, auto-select to analogue inputs 1 & 2 when plugged
  • Headphone Outputs 2 x 6.3mm stereo TRS Jacks, each with illuminated volume control
  • Master volume Assignable encoder / push switch with halo indication
  • Standby button with standby indicator (also flashes when unit is in ‘identify’ mode)
  • Level Meters 10 x multi-segment bargraphs with overload indication, 8 for analogue, 2 for digital, assignable to inputs or outputs
  • Input selection Indicate mode of analogue inputs 1-8 as Mic / line / inst with phantom power indication for mic mode
  • Overkiller For every analogue input, lit when Overkiller limiters are acting
  • Digital Input indicators for digital input unlocked and SRC (sample-rate converter) selected
  • Digital Output indicator for SRC (sample-rate converter) selected
  • Sync Master indicator, lit when interface is providing system sync

×
