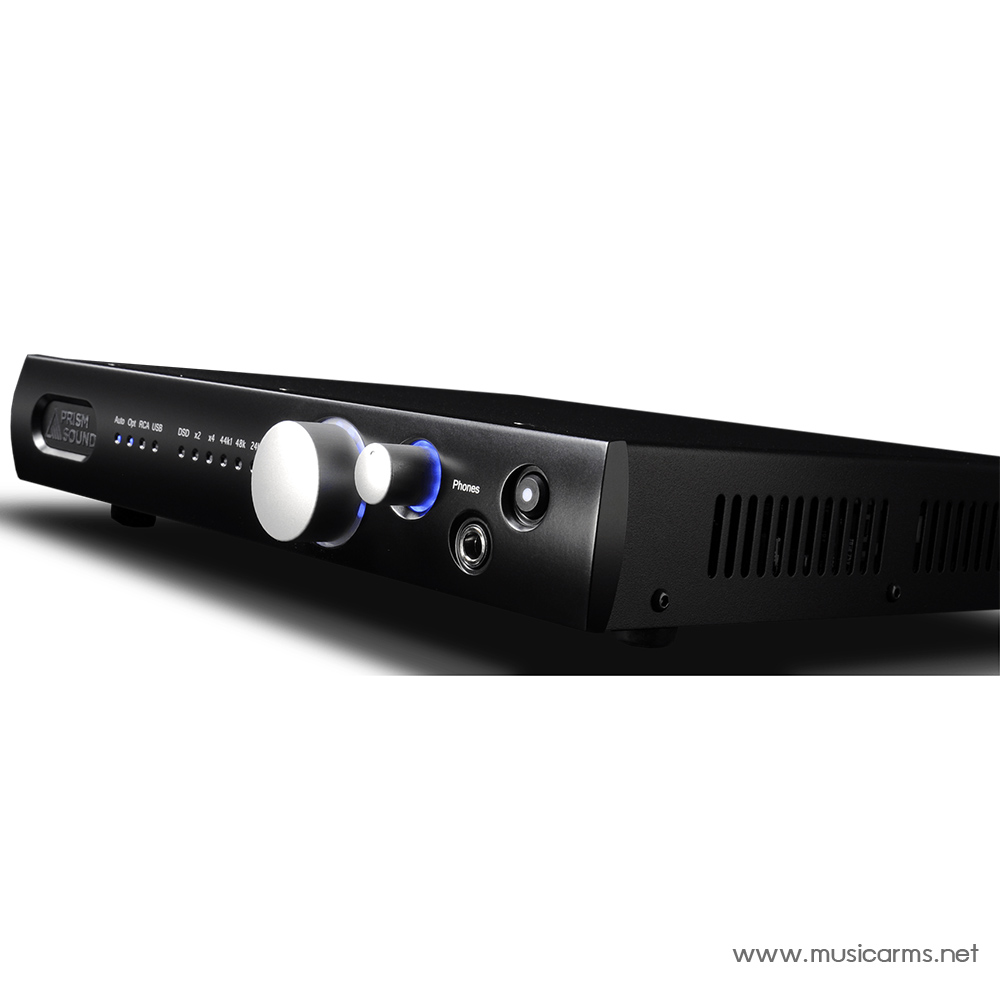

Prism Sound Callia

CALLIA REFERENCE DAC, PRE AND HEADPHONE AMPLIFIER

The Prism Sound CALLIA is a high-resolution stereo USB DAC offering versatile sample rate and headphone compatibility for audiophiles and music enthusiasts in home stereos, listening rooms, and entertainment systems. It supports PCM resolutions up to 32-bit / 384 kHz and DSD sample rates up to 12.288 MHz via the stable, low-jitter CleverClox clock circuitry. Automatic source selection with manual override allows for easy signal flow for the inputs, which include USB 2.0 Type-B, TOSLINK optical S/PDIF, and coaxial S/PDIF.

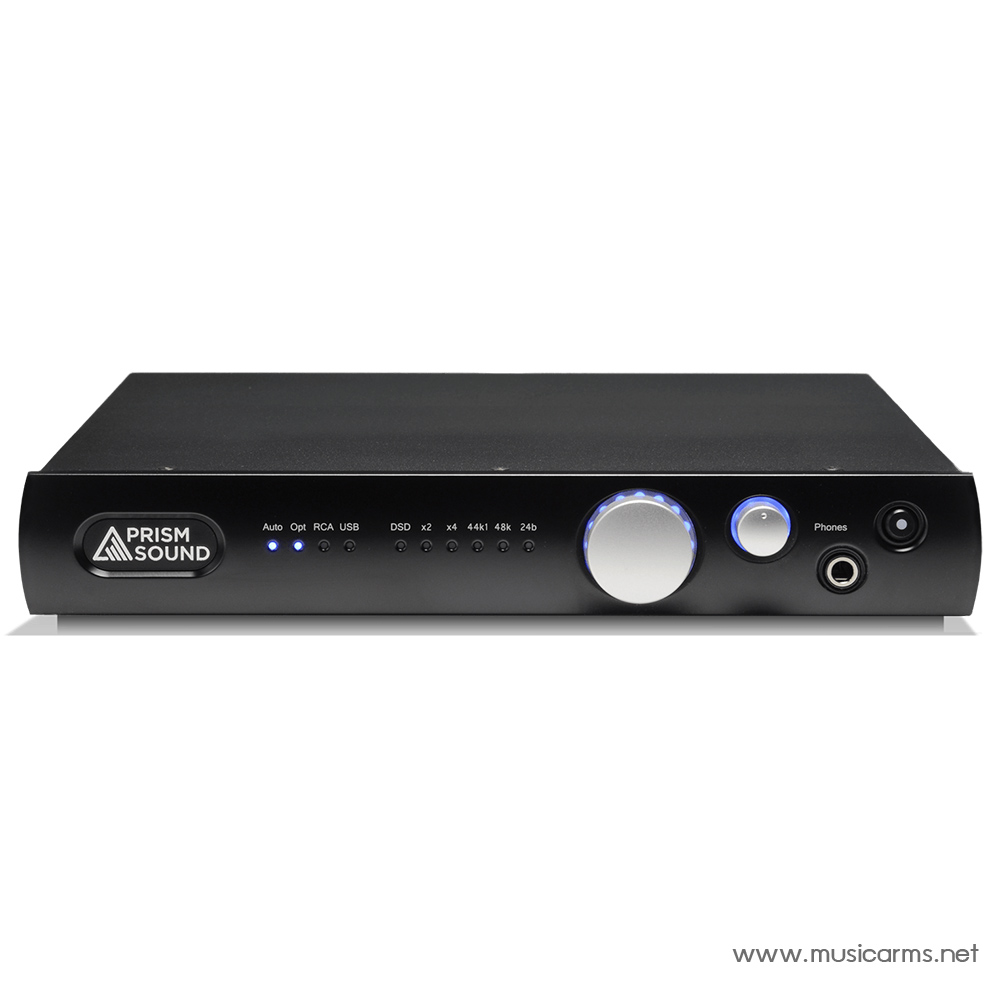

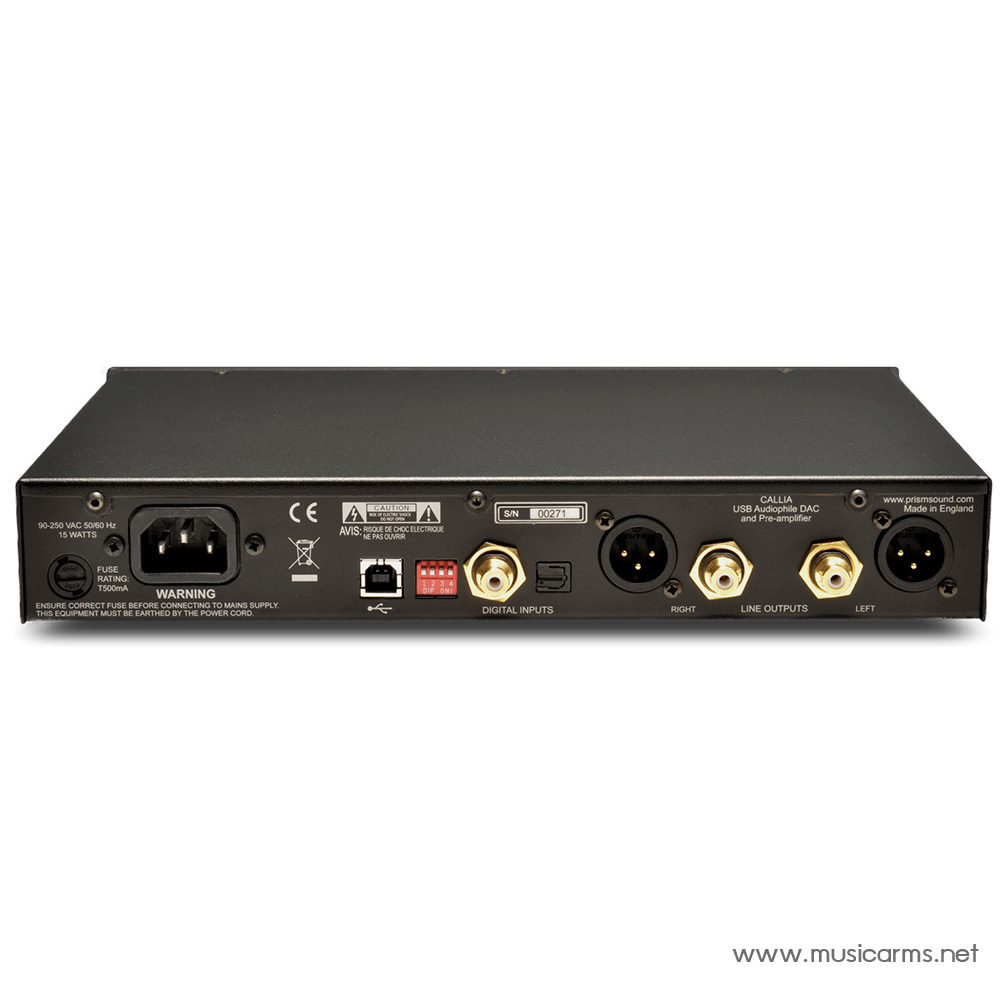

The stereo XLR and RCA outputs accommodate proper connectivity with balanced and unbalanced equipment such as speakers, power amps, stereo receivers, or monitor controllers. Additionally, a front-panel 1/4″ TRS jack provides a high-current, low-impedance, headphone output that has three selectable operating ranges. Separate illuminated volume controls for the headphone and line outputs enable independent levels for monitors and headphones.

The CALLIA is compatible with Mac OS X, Windows, Linux, iOS, and Android, and ships with one USB cable, an IEC power cable, and a preloaded USB flash drive.

Features

• PCM Resolutions up to 32-Bit / 384 kHz
• DSD Resolutions up to 12.288 MHz
• USB 2.0 Type-B Input
• TOSLINK Optical & Coaxial S/PDIF Inputs

• Type:DA Converter & Headphone Amp
• Input Channels:2 x Stereo (digital)
• Output Channels:2 x Stereo (analog)
• Analog Outputs:2 x XLR (L/R), 2 x RCA
• Headphones:1 x 1/4″
• Digital Inputs:1 x Coax (AES3-ID, S/PDIF), 1 x Optical Toslink (S/PDIF)
• USB:1 x Type B 2.0 (PCM, DSD)
• Form Factor:Desktop
• Power Supply:Standard IEC AC cable (included)
• Height:1.96″
• Width:11.22″
• Depth:9.52″
• Weight:4.62 lbs.
