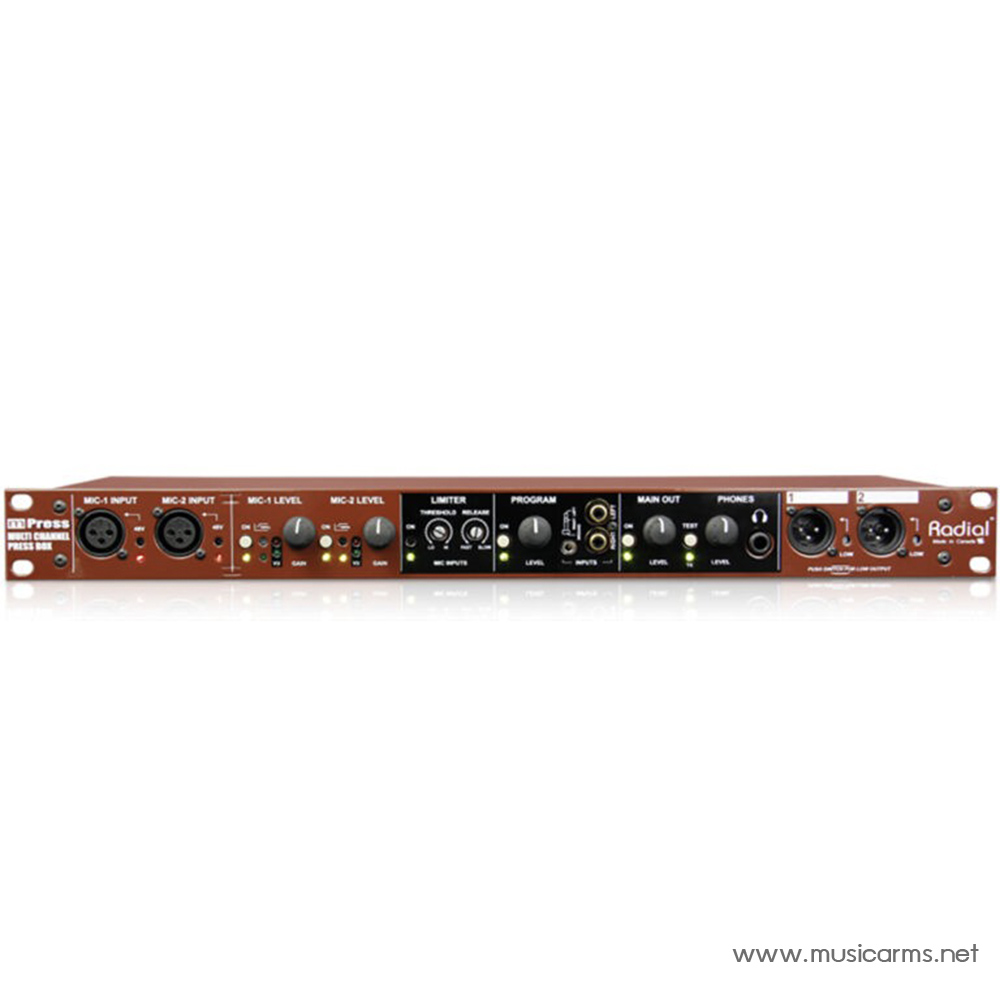

Radial mPress Broadcast Press Box

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Radial
รุ่น :  Radial mPress Broadcast Press Box ออดิโอ อินเตอร์เฟส Audio Interface
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 25,900 บาท

การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ Radial mPress Broadcast Press Boxผ่านline สั่งซื้อ Radial mPress Broadcast Press Boxผ่าน messenger

วีดีโอ


YouTube video

Description

Audio distribution & control for small or large events

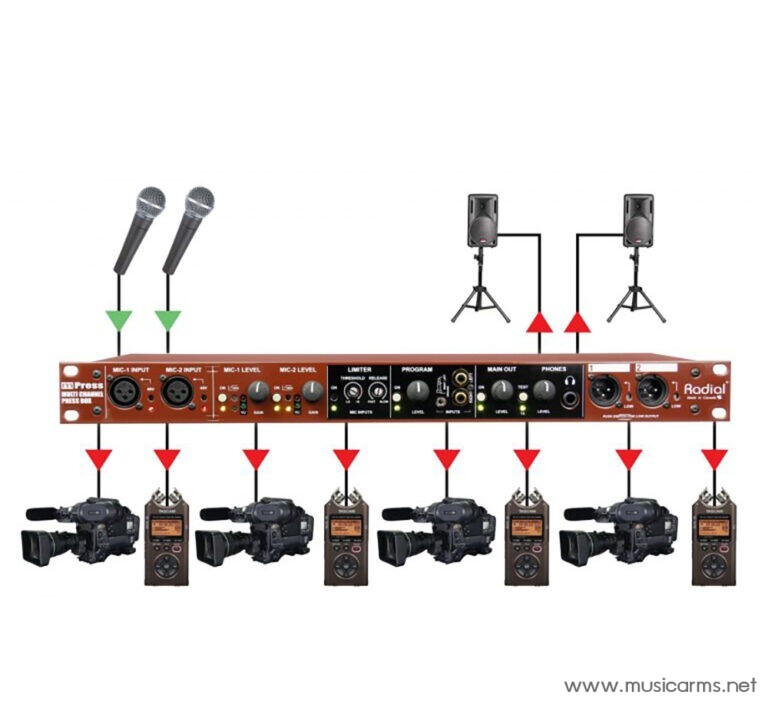

The mPress provides full control over any size of press gathering, from community gatherings to international events, and its modular design means it can grow to suit your needs. It features two balanced mic or line inputs with low-noise preamps and high-pass filters, along with a shared limiter to avoid clipping the inputs of any connected recording devices. Separate outputs are provided for a set of powered speakers, with dedicated program inputs that allow you to play background music through the PA when on standby, and a headphone output to silently monitor and cue up playback tracks. The main outputs are controlled separately from the press gallery signals, so you can make adjustments on the fly without affecting previously calibrated recording devices.

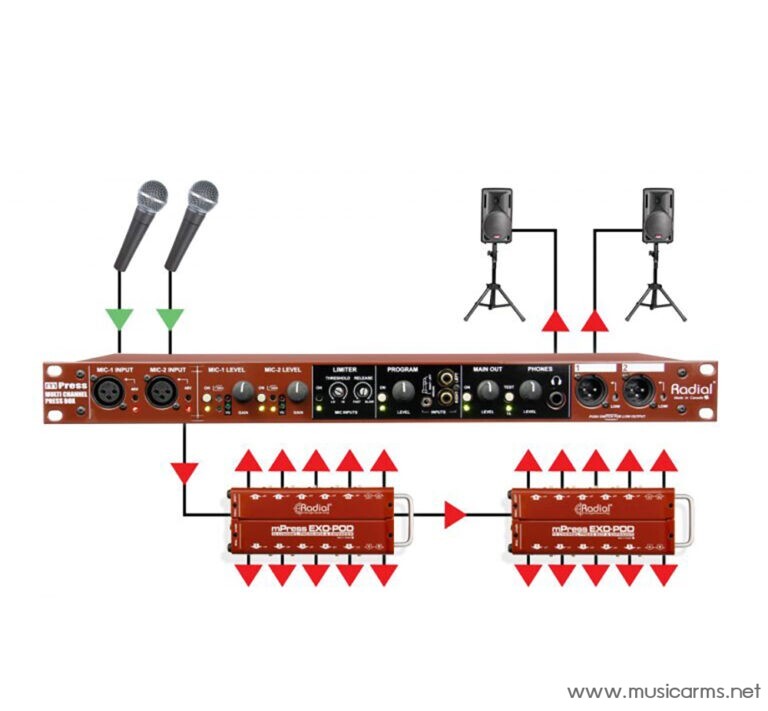

Expand output channels with the Exo-Pod

For events where more than eight press outputs are required, the mPress can be used in conjunction with a number of Exo-Pod portable splitters to quickly increase the available channel count. The mPress modular approach replaces the mess of cables that hampers typical press box setups, and instead creates an orderly system that enables you to create zones for various groups within the venue. From each of the mPress XLR outputs as many as four Exo-Pods may be chained together, for a total of 320 microphone or line level outputs and 128 recorder outputs. A built-in 1kHz test tone provides everyone with a reference level and a headphone amplifier on the front of the mPress helps when troubleshooting.

Specification

Specifications
  • Audio circuit type: Low Noise Active Buffer
  • Frequency response: 20Hz to >20KHz +0/-1.5dB
  • Total harmonic distortion: <0.001% @ +4dB
  • Dynamic range: >112dB



Microphone

  • Input impedance: 7k Ω
  • Maximum gain: +51dB
  • Noise floor: -94dBu
  • Low-cut filter: 100Hz (12dB/Octave)
  • Limiter threshold: -10dBu to +5dBu Output
  • Limiter ratio: >20:1



Program

  • Input impedance: 22K Ω
  • Maximum gain: +19dB



Main output

  • Equivalent input noise: -111dBu
  • Clip level: +24dBu/+17dBu
  • Output impedance: 880 Ω
  • Intermodulation distortion: 0.002%;



Exo-Pod output

  • Output impedance: 115 Ohms;
  • Noise floor: (Program in to main out) -80/-92dBu
  • Phase deviation: ±15°
  • Microphone signal present LED threshold: -70dBu/-54dBu/-42dBu
  • Phase deviation: ±15°



General

  • Power: ±15V/+5V Custom Power Supply
  • Construction: 14 gauge steel chassis & outer shell
  • Finish: Durable powder coat
  • Size: L:19″ x W:7.25″ H:1.75 (482.6mm x 184.15mm x 44.5mm)
  • Weight: 6.25lb
  • Shipping size: L:22.5″ x W:10.25″ H:4.5″ (571.5mm x 260.35mm x 114.3mm)
  • Shipping weight: 7.2lb
  • Warranty: Radial 3-year, transferable
  • Specifications are subject to change without notice.

×
