Radial PZ-Pro เอฟเฟคกีตาร์โปร่ง

ราคา : 23,500 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ
Description

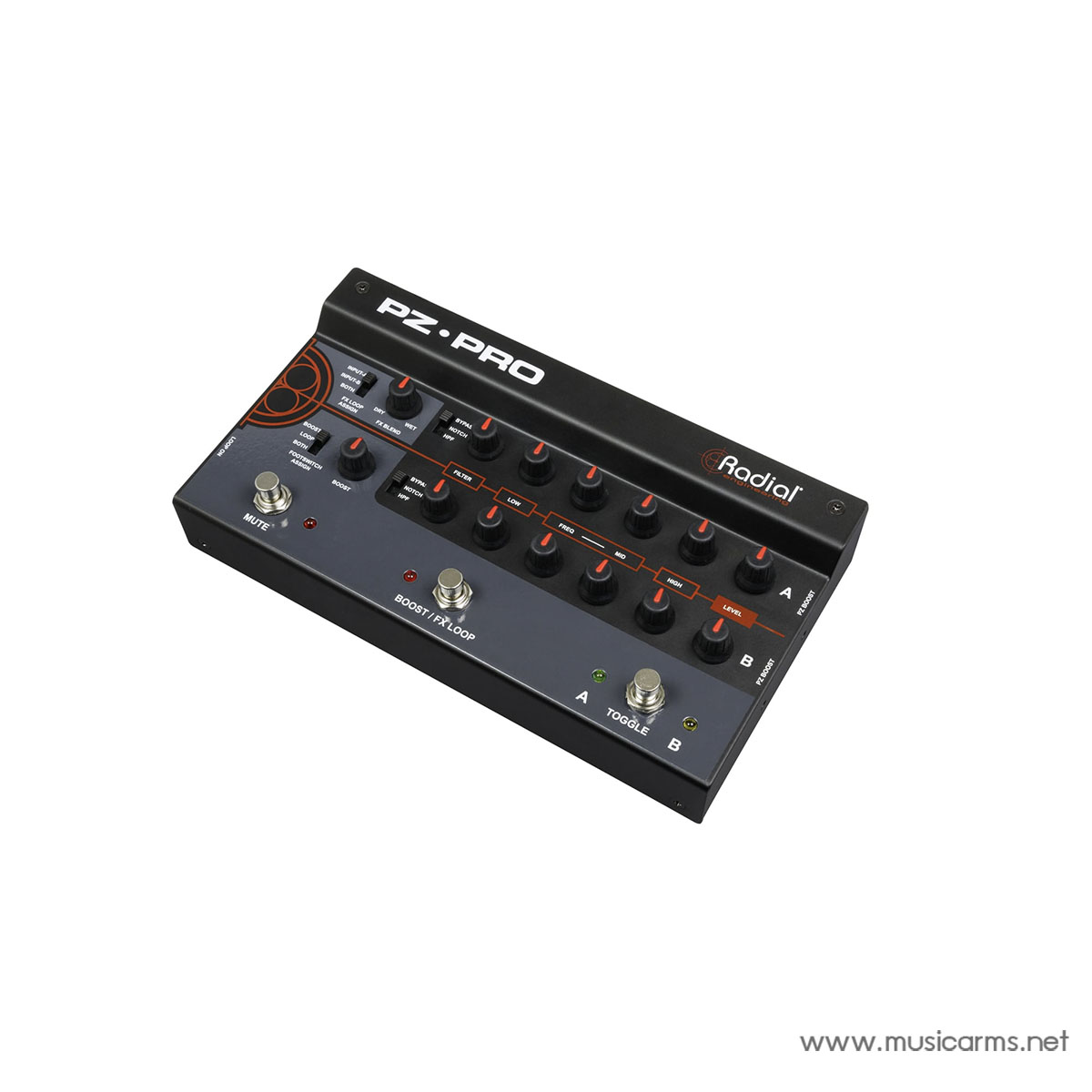

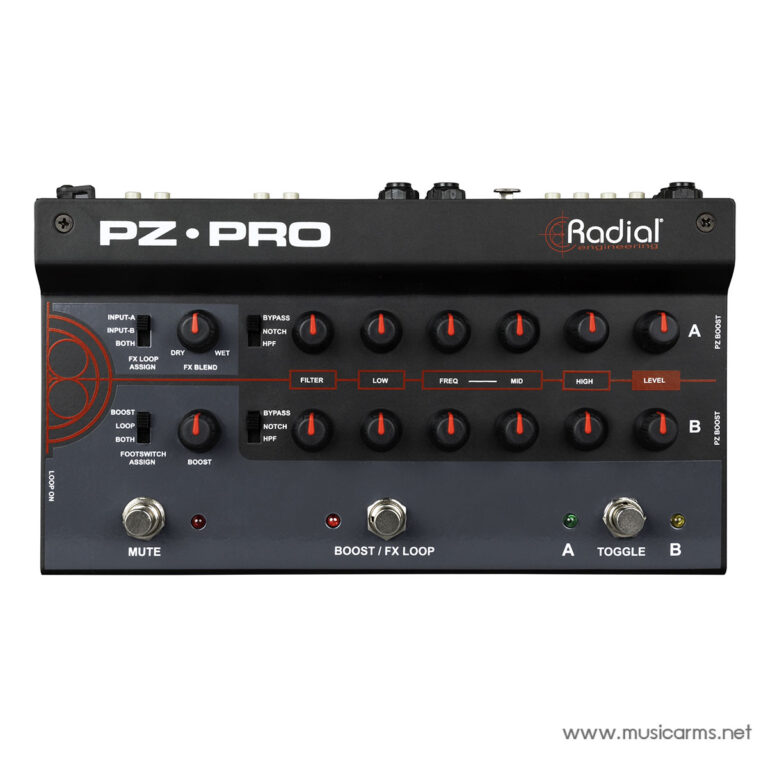

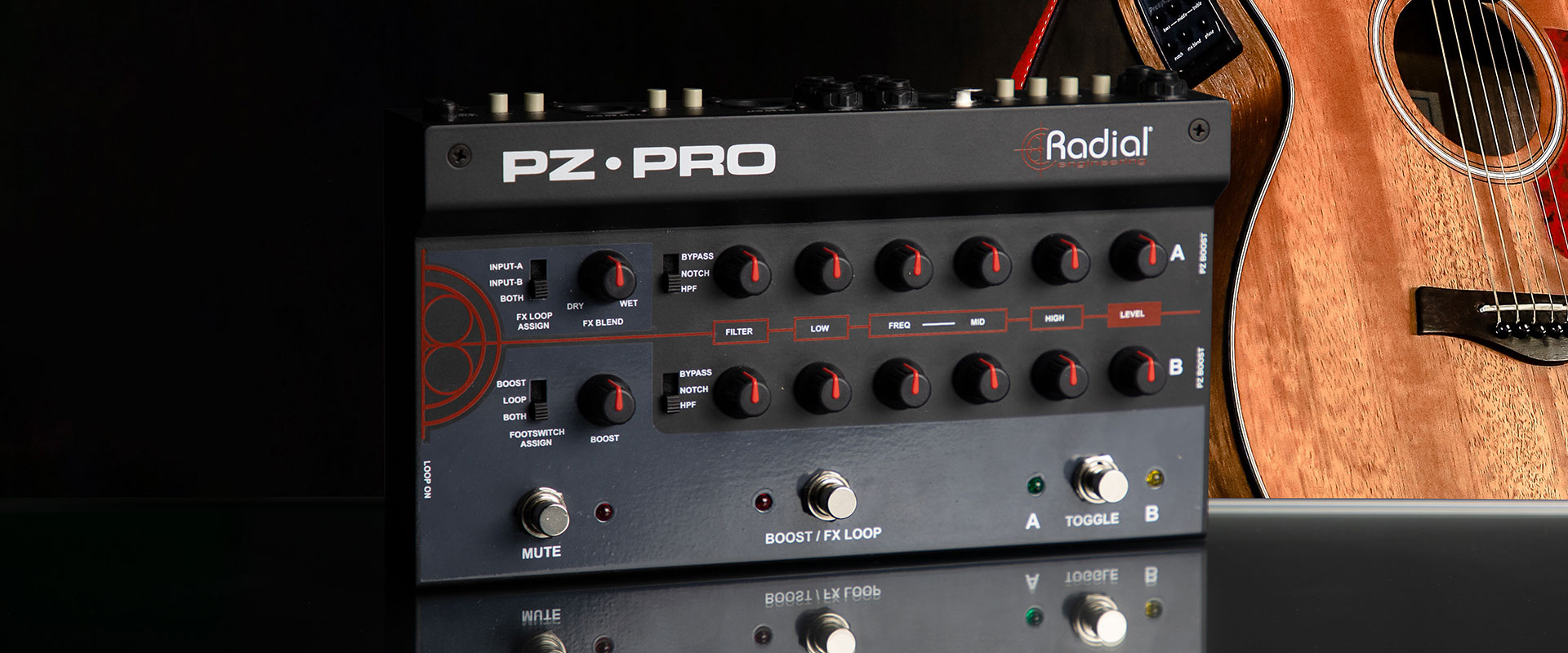

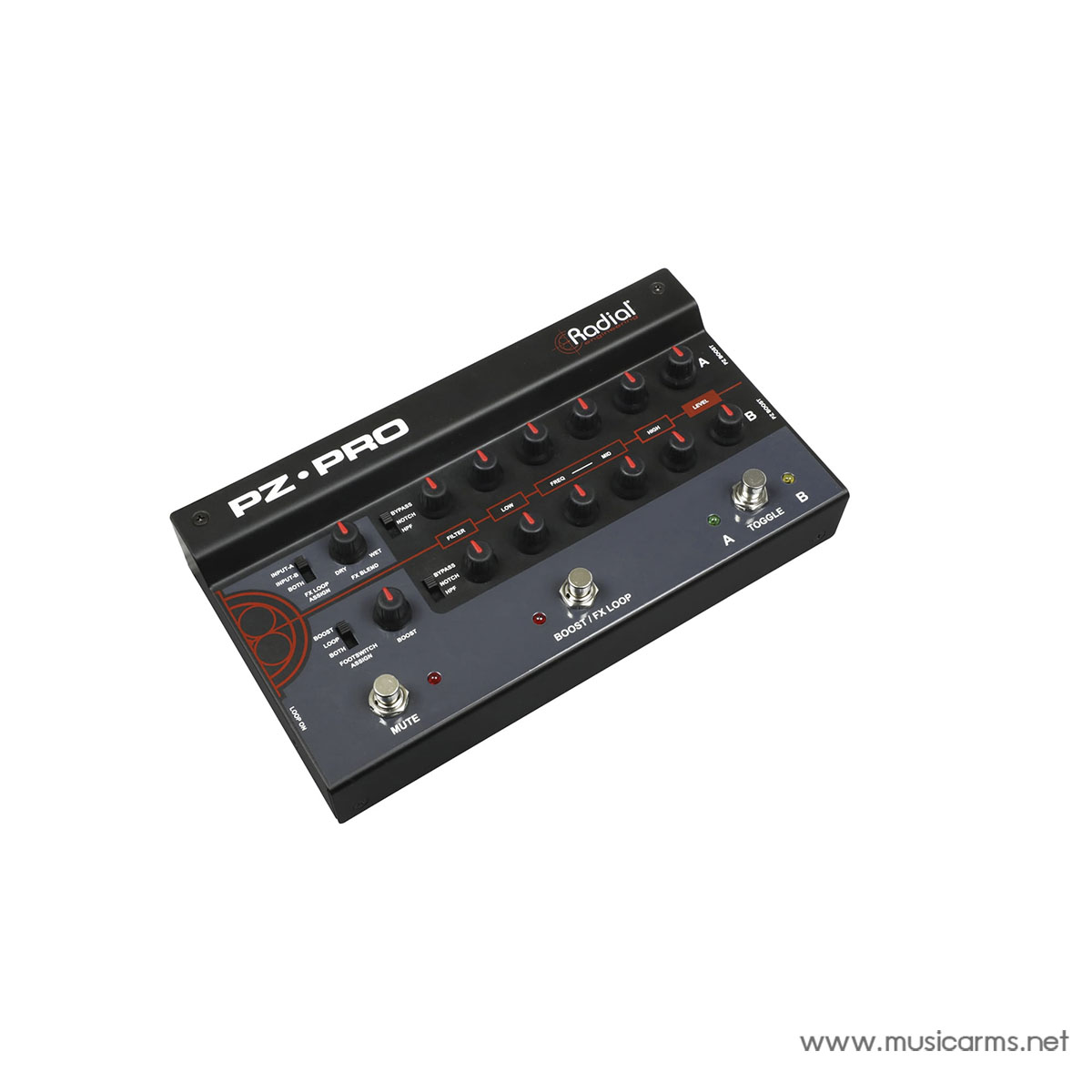

Radial PZ-Pro: The 2-Channel Acoustic Preamp
The Radial PZ-Pro is a complete control center for acoustic musicians. This two-channel instrument preamp, DI, and switcher gives you full command over your tone, EQ settings, and effects.
Each channel features a separate equalizer strip with a filter section to reduce feedback on stage. The second channel also includes a microphone input with available phantom power, allowing you to use any dynamic or condenser microphone, including clip-on instrument mics or even vocal microphones.

Key Features
- Dual Inputs with Separate EQs: Allows you to switch between or blend two sources, each with its own semi-parametric equalizer and filter controls for precise tone-shaping.
- Microphone Input: Channel 2 features an XLR input with 48V phantom power, enabling you to blend an instrument mic with your pickups for a more natural sound or even use a vocal microphone.
- Assignable Effects Loop with Wet/Dry Control: The FX loop can be assigned to channel A, B, or both, with a wet/dry knob to blend in as much or as little of your pedal effects as desired.
- Flexible DI Outputs: The balanced XLR direct outs offer both Pre-EQ and Post-EQ options, providing versatile signal routing to a PA system or recording interface.
Conclusion
The Radial PZ-Pro is a dream come true for multi-instrumentalists and performers who demand maximum control and flexibility. With its robust design and professional features that cover every need—from signal management and feedback reduction to effects integration—the PZ-Pro is an indispensable tool for delivering an unforgettable and high-quality performance.
Specification
Radial PZ-Pro Specifications |
|
|---|---|
| Audio Circuit Type | Proprietary active circuit |
| Number of Channels | 2x Inputs, Mono Pre and Post EQ XLR balanced Out |
| Frequency Response | 20Hz-20kHz (+/-0.5dB) |
| Gain | +20dB (Instrument Input), +55dB (Mic Input) |
| Clip Level | +10dBu @ XLR output |
| Total Harmonic Distortion | <0.005% @ 1kHz |
| Input Impedance | 220k Ohm at input jack | 10M Ohm (when PZ Boost active) |
| Output Impedance | 1k Ohm |
| Noise | -91dB |
| Features | 180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost |

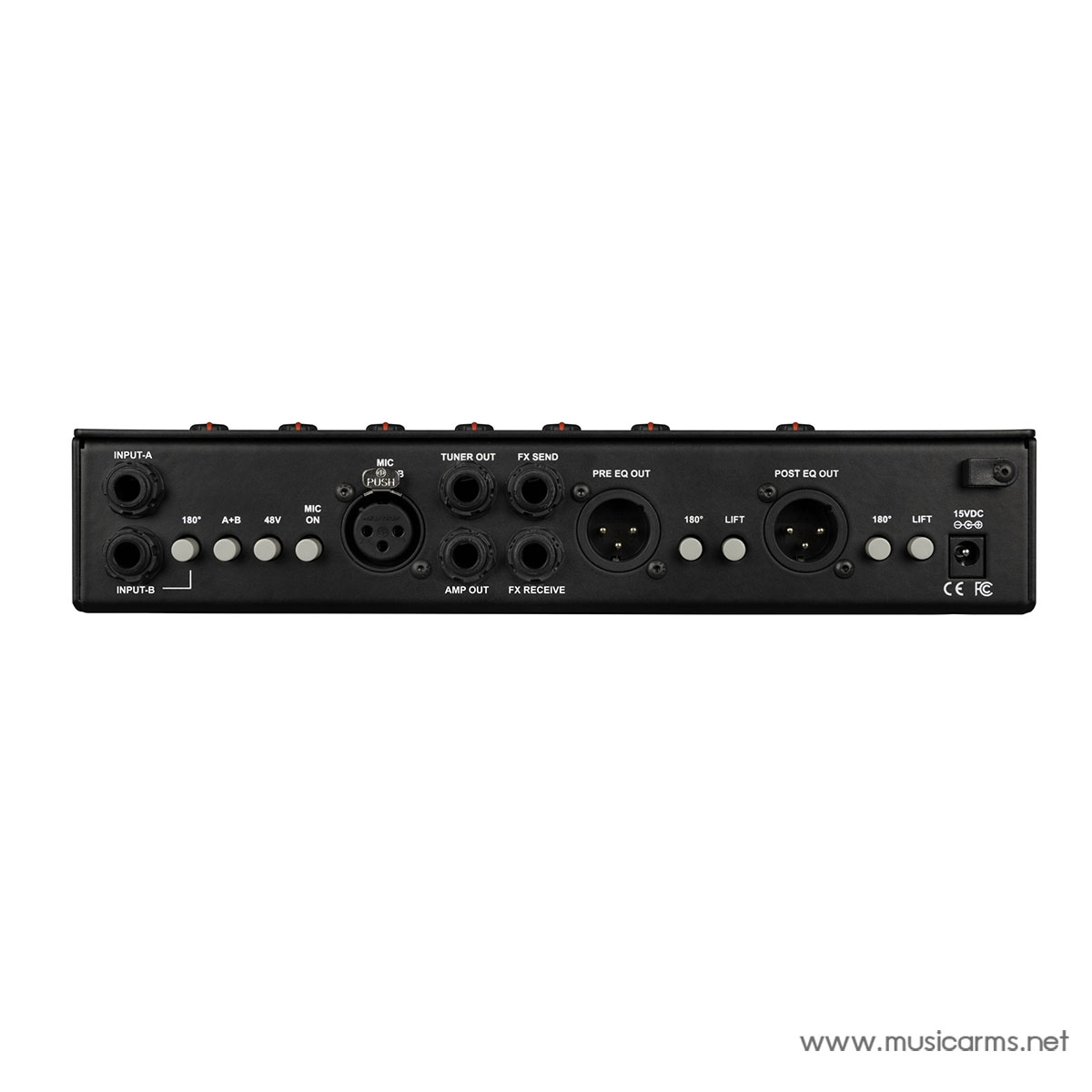

| Input Connectors | 1/4″ instrument, XLR microphone |
| Output Connectors | Pre and Post EQ XLR, 1/4″ Amp out |
| Extras | 1/4″ Effects Loop, Boost, Tuner |
| Construction | 14-gauge steel |
| Weight | 5.0 lbs (2.27 kg) |
| Shipping Size (L x W x D) | 9.10″ x 5.32″ x 1.82″ (231 x 135 x 46mm) |
| Power | 15VDC 400mA, center-pin positive |
| Conditions | For use in dry locations only between 5°C and 40°C |
| Warranty | Radial 3-year, transferable |
ข้อมูลสินค้า
Radial PZ-Pro: ปรีแอมป์ 2 แชนเนลสำหรับเครื่องดนตรีอะคูสติก
Radial PZ-Pro คืออุปกรณ์ควบคุมแบบครบวงจรสำหรับนักดนตรีอะคูสติก ด้วยคุณสมบัติที่หลากหลายทั้งปรีแอมป์ 2 แชนเนล, กล่อง DI และสวิตช์สำหรับเครื่องดนตรี ที่ให้คุณควบคุมโทนเสียง, การตั้งค่า EQ และเอฟเฟกต์ได้อย่างสมบูรณ์แบบ
แต่ละแชนเนลมาพร้อมแถบ EQ แยกกันและส่วนฟิลเตอร์เพื่อลดฟีดแบ็กบนเวที แชนเนลที่สองของ PZ-Pro ยังมีอินพุตสำหรับไมโครโฟน ซึ่งรองรับไมโครโฟนทั้งแบบไดนามิกและคอนเดนเซอร์ รวมถึงไมโครโฟนแบบคลิปออนสำหรับเครื่องดนตรี หรือแม้แต่ไมโครโฟนสำหรับร้องเพลง

คุณสมบัติเด่น
- อินพุตคู่พร้อม EQ แยก: สามารถสลับหรือผสมสัญญาณจากแหล่งกำเนิดเสียงสองแหล่งเข้าด้วยกัน โดยมี EQ กึ่งพาราเมตริกและฟิลเตอร์เฉพาะสำหรับแต่ละแชนเนลเพื่อการปรับแต่งเสียงที่แม่นยำ
- อินพุตไมโครโฟน: แชนเนล 2 มีอินพุต XLR พร้อม Phantom Power 48V ทำให้สามารถใช้ไมโครโฟนคอนเดนเซอร์เพื่อผสมเสียงจากไมค์กับปิ๊กอัพได้ เพื่อเสียงที่เป็นธรรมชาติยิ่งขึ้น
- Effects Loop พร้อม Wet/Dry Control: มี Effects Loop ที่กำหนดให้ใช้กับแชนเนล A, B หรือทั้งสองแชนเนลได้พร้อมกัน พร้อมปุ่มควบคุม Wet/Dry เพื่อผสมปริมาณเอฟเฟกต์ที่ต้องการ
- เอาต์พุต DI ที่ยืดหยุ่น: มีเอาต์พุต DI แบบ XLR ทั้ง Pre-EQ และ Post-EQ สำหรับส่งสัญญาณไปยังระบบ PA หรืออุปกรณ์บันทึกเสียง ทำให้คุณมีตัวเลือกในการจัดการสัญญาณที่หลากหลาย
สรุป
Radial PZ-Pro เป็นอุปกรณ์ในฝันสำหรับนักดนตรีที่เล่นเครื่องดนตรีหลายชนิดหรือต้องการความยืดหยุ่นสูงสุดในการควบคุมเสียง ด้วยการออกแบบที่แข็งแรงทนทานและฟีเจอร์ระดับมืออาชีพที่ครอบคลุมทุกความต้องการ ตั้งแต่การจัดการสัญญาณ, การลดฟีดแบ็ก, และการใช้เอฟเฟกต์ ทำให้ PZ-Pro เป็นเครื่องมือที่ขาดไม่ได้สำหรับการแสดงที่น่าประทับใจและคุณภาพเสียงที่ยอดเยี่ยม
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะ Radial PZ-Pro |
|
|---|---|
| ประเภทวงจรเสียง | วงจร Active เฉพาะของ Radial |
| จำนวนแชนเนล | 2x อินพุต, เอาต์พุตบาลานซ์ XLR แบบ Mono (Pre และ Post EQ) |
| การตอบสนองความถี่ | 20Hz-20kHz (+/-0.5dB) |
| Gain | +20dB (อินพุตเครื่องดนตรี), +55dB (อินพุตไมโครโฟน) |
| Clip Level | +10dBu @ XLR output |
| Total Harmonic Distortion | <0.005% @ 1kHz |
| Input Impedance | 220k โอห์ม (ที่ช่องอินพุต) | 10M โอห์ม (เมื่อเปิด PZ Boost) |
| Output Impedance | 1k โอห์ม |
| Noise | -91dB |
| คุณสมบัติ | 180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost |
| ขั้วต่ออินพุต | เครื่องดนตรี 1/4″, ไมโครโฟน XLR |
| ขั้วต่อเอาต์พุต | XLR แบบ Pre และ Post EQ, Amp out 1/4″ |
| คุณสมบัติเพิ่มเติม | Effects Loop 1/4″, Boost, Tuner |
| โครงสร้าง | เหล็กหนา 14-gauge |
| น้ำหนัก | 5.0 ปอนด์ (2.27 กก.) |
| ขนาดจัดส่ง (ย x ก x ส) | 9.10″ x 5.32″ x 1.82″ (231 x 135 x 46 มม.) |
| การใช้พลังงาน | 15VDC 400mA, Center Pin Positive |
| เงื่อนไขการใช้งาน | สำหรับใช้ในที่แห้งเท่านั้น ระหว่างอุณหภูมิ 5°C ถึง 40°C |
| การรับประกัน | รับประกันแบบโอนสิทธิ์ได้ 3 ปีของ Radial |
