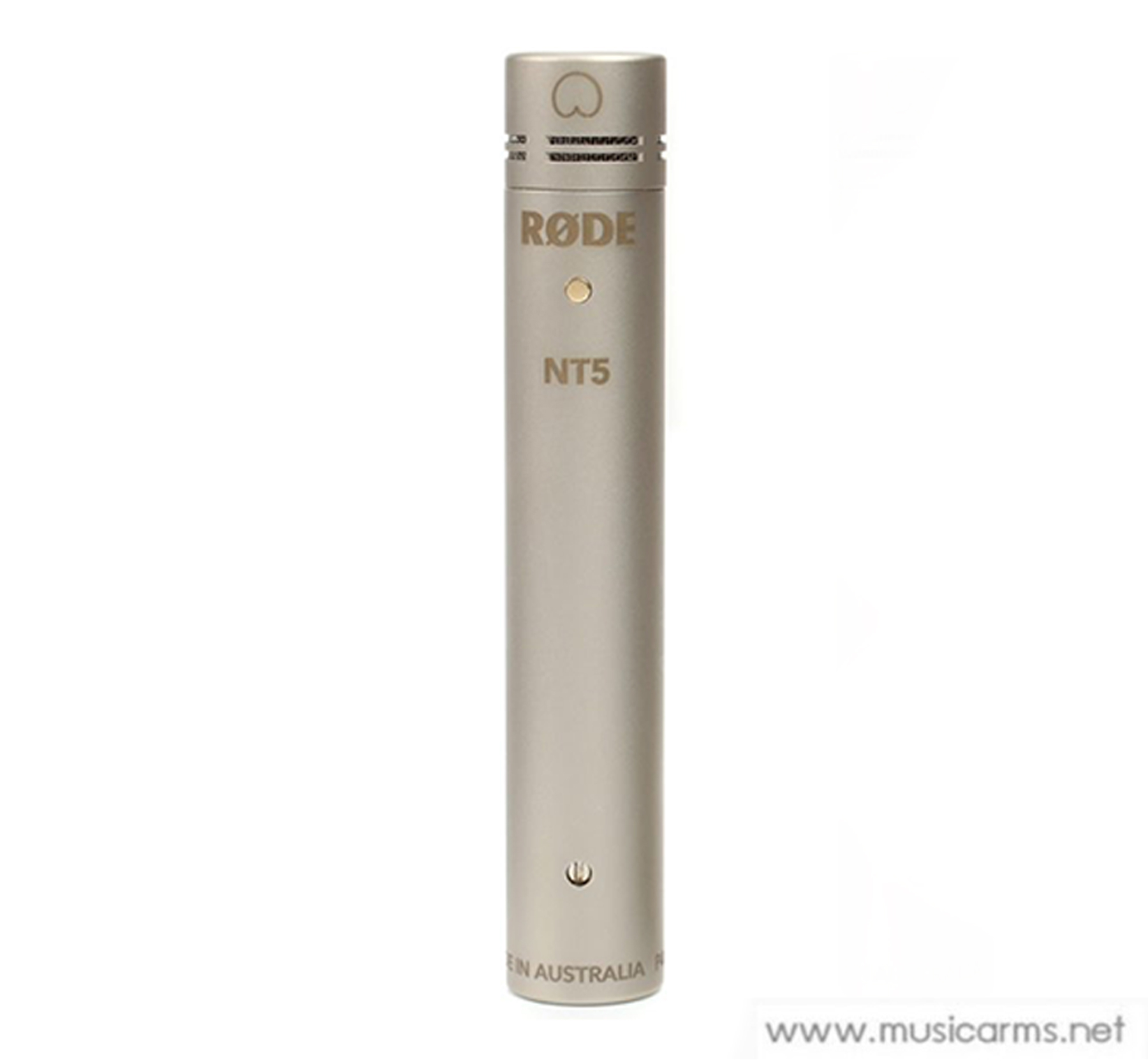

Rode NT5 Condenser Microphone

• Externally biased condenser
• Gold sputtered 1/2” capsule
• Heavy-duty satin-nickel plated body
• Dual power operation
• Surface mount circuitry
• Low noise
• Full frequency response
• Available as Certified Match Pair
• 10 year extended warranty when you register your microphone

The NT5 is RØDE’s premier small-diaphragm cardioid condenser microphone, sometimes referred to as a ‘pencil mic’.

Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2″ capsule, an active J-FET impedance converter with bipolar output buffer.

Its tight cardioid pickup pattern also makes it ideal for use as an indoor dialogue microphone for filmmaking on a mic stand or boom.

Expanding the NT5’s versatility, an interchangeable omnidirectional capsule (NT45-O) is available.

Finished in durable satin nickel, the NT5 available as a single microphone or as an acoustically matched pair.

The NT5 is designed and made in Australia, and covered by RØDE’s industry leading 10 year warranty.

NT5 SPECIFICATIONS

• Active Electronics JFET impedance converter with bipolar output buffer
• Capsule 0.50″
• Polar Pattern Cardioid
• Address Type End
• Frequency Range 20Hz – 20kHz
• Output Impedance 100Ω
• Maximum SPL 143dBSPL
• Maximum Output Level 13.9mV (@ 1kHz, 1% THD into 1KΩ load)
• Sensitivity -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise Level (A-weighted) 16dBA
• Power Options +24V phantom power+48V phantom power
• Weight 101.00g
• Dimensions 118.00mmH x 20.00mmW x 20.00mmD
