Shure DH5T/O-MTQG ไมโครโฟนเฮดเซ็ท

ราคา : 15,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com


Description
Shure DH5T/O-MTQG
The black Shure DH5 DuraPlex is an omnidirectional miniature headset microphone equipped with a TA4F connector for compatible Shure wireless bodypack transmitters. Built for the rigors of professional use, this durable mic offers a neutral, full-range sound ideal for capturing speech, dialog, and singing in broadcast, presentation, and theater applications.
The DH5 DuraPlex features a 5mm miniature capsule on a silicone boom pivot system that can be discreetly placed on either the left or right ear. The mic offers high gain before feedback, making it well suited for speech and dialog at events with loud sound reinforcement. To compensate for any potential loss of high end when positioning the mic, a presence cap is included that boosts the 10 kHz range about 3 to 4 dB for added clarity and intelligibility.
Designed to stand up to adverse conditions, the mic is equipped with a long-lasting, fully paintable, 1.6mm Shure Plex cable. The dual-redundant ground in the cable serves as secondary shield, giving it unprecedented durability and immunity to memory effect and kinks.
Features:
- Neutral, full-range sound quality for broadcast, speech, theater, and performance applications
- Silicone boom pivot system can be discreetly placed on either the left or right ear
- 20 Hz to 20 kHz frequency response
- 132 dB maximum SPL
- 5mm omnidirectional miniature design
- Advanced 1.6 mm Shure Plex cable with secondary shield for longevity
- Cable is immune to memory effect and kinks
- Cable is fully paintable with typical theater paints, pens, and polishes
- Presence cap included for additional vocal clarity and presence (3 to 4 dB boost near 10 kHz)

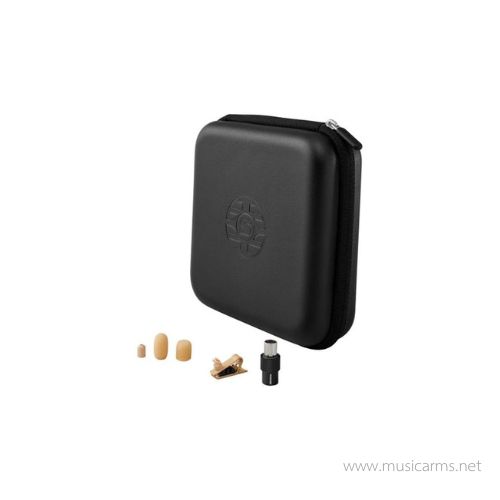

- Includes a regular foam windscreen and a snap-fit windscreen that holds tightly in place
- Includes carrying case
- Black, with TA4F connector
Specification
Specs DH5T/O-MTQG
Form Factor | Headworn |
Sound Field | Mono |
Capsule | MEMS |
Polar Pattern | Omnidirectional |
Windscreen | Foam (Included) |
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 132 dB SPL (1 kHz, 1% THD) |
Sensitivity | -42.5 dBV at 1 kHz |
Dynamic Range | 101 dB |
Signal-to-Noise Ratio | 63 dB |
Equivalent Noise Level | 31 dB SPL A-Weighted |
Output Connectors | 1 x TA4/Mini XLR 4-Pin Female (Lockable/Waterproof) |
Cable Length | 66″ / 1.7 m |
Cable Diameter | 0.1″ / 1.6 mm |
Operating Voltage | 5 V |
Operating Current Consumption | 220 µA |
Color | Black |
IP Rating | IP57 |
Construction Material | ABS |
Dimensions | W: 0.2 x L: 0.6″ / W: 5.2 x L: 14.5 mm (Capsule) L: 5.4″ / L: 13.6 cm (Boom) |
Weight | 0.7 oz / 20 g |
ข้อมูล
Shure DH5T/O-MTQG
Shure DH5T/O-MTQG ไมโครโฟนเฮดเซ็ท คล้องหู ขนาดเล็ก เหมาะสำหรับ งานพูด บรรยาย ออกอากาศ แสดงละคร ใช้งานร่วมกับ เครื่องส่งสัญญาณบอดี้แพ็คแบบไร้สายของ Shure
คุณสมบัติ DH5T/O-MTQG
- แคปซูลหัวไมค์ขนาดเล็กเพียง 5 มม.
- การรับเสียงแบบรอบทิศทาง Omnidirectional
- รองรับความดังเสียงสูงสุด 132 dB
- ตอบสนองความถี่ 20 Hz – 20 kHz
สเปค
Microphone: Type | ไมค์คาดหัว |
---|---|
Polar Pattern | Omni-Directional |
การตอบสนองความถี่ | 20 Hz – 20 kHz |
Sensitivity | -42.5 dBV |
Max SPL | 132 dB |
ขนาด | 52 x 14.5 มม. |
