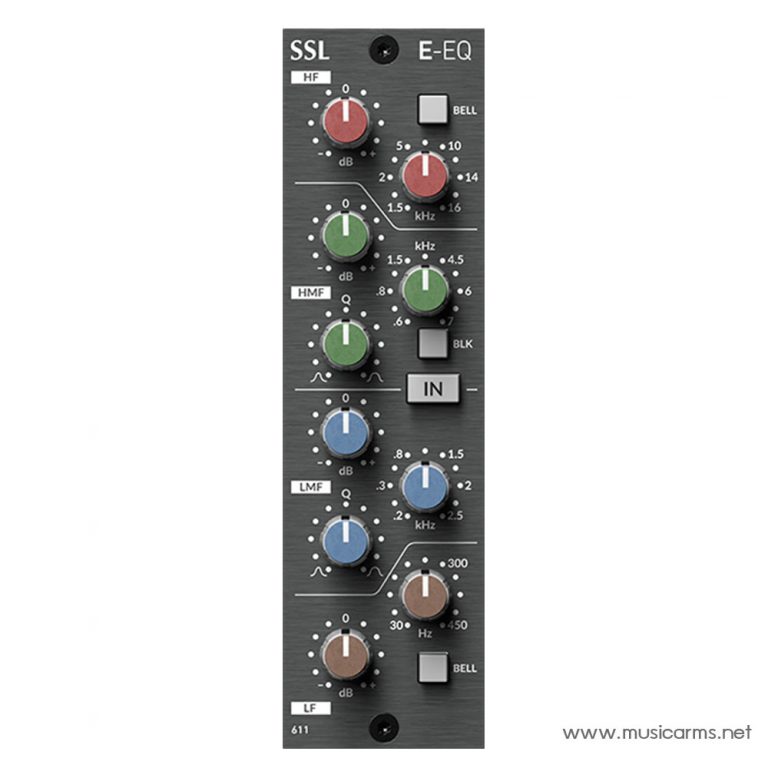

Solid State Logic SSL E EQ Module

ยี่ห้อ : Solid State Logic
รุ่น :  Solid State Logic SSL E EQ Module อุปกรณ์บันทึกเสียง Recording
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 34,200 บาท

38,000 บาท ประหยัด10%
การชำระเงิน : จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ Solid State Logic SSL E EQ Moduleผ่านline สั่งซื้อ Solid State Logic SSL E EQ Moduleผ่าน messenger


YouTube video


500 Series Mono Parametric Equalizer Module, with Twin EQ Design

Two Flavors of Classic SSL EQ in One 500 Series Module

Put legendary console EQ in your rack with the SSL 611EQ 500 Series EQ module. In fact, you actually get two legendary EQs in the 611EQ. Early ’80s SSL E Series consoles had the “Brown Knob” EQ, and later consoles used the “Black Knob” EQ. You can switch the midrange bands between these two flavors of EQ, so you’ll be equipped to sonically shape any material to your liking. Add a preamp module and a dynamics processor, and you’ve got a superb custom channel strip. For an EQ you can rely on for virtually any task, look to the SSL 611EQ 500 Series EQ module.

Legendary SSL sound quality and vibe

Since the early ’80s, producers have loved the SSL E Series consoles for their huge sound and distinctive character. A big part of the sound came from the E Series channel strip, and you get the same circuits in the 611DYN EQ module.

Brown Knob” EQ – the original SSL EQ, sweet and musical

Early SSL E Series consoles sported the “Brown Knob” EQ design (named for the color used on the LF section’s knobs). You get 15dB of cut/boost, and a special design that ensures the 3dB up/down points for each band fall at the same musical interval from the center frequency. Said another way, no matter where you cut or boost the 611EQ, the results sound musical and natural.

Black Knob” EQ – a more aggressive EQ for modern styles

In the mid-’80s, SSL worked with the legendary George Martin to develop the 242 EQ circuit, or the “Black Knob” EQ to be found on later E Series consoles. It’s more aggressive than the Brown Knob EQ, with up to 18dB of cut or boost, and a different control law that gives you much tighter control over low frequencies.



  • Mono parametric equalizer module with two distinct flavors of legendary SSL EQ
  • Brown Knob mode is the sound of early-’80s E Series consoles, with 15dB cut/boost and musical response
  • Black Knob mode is the sound of later E Series consoles, with 18dB of cut/boost and a tighter sound
  • LF and HF shelving bands can be switched to a bell-curve response for maximum versatility
  • The perfect way for project studios to get the sound of a world-famous console, affordably
  • Number of Channels:1
  • Number of Bands:4-Band
  • Q Type:Selectable
  • Freq Range High:1.5kHz-16kHz
  • Freq Range Hi-Mid:600Hz-7kHz
  • Freq Range Lo-Mid:200Hz-2.5kHz
  • Freq Range Low:30Hz-450Hz
  • Bypass:Yes
