Solid State Logic SSL X-Rack VHD Module

Solid State Logic SSL X-Rack VHD Module

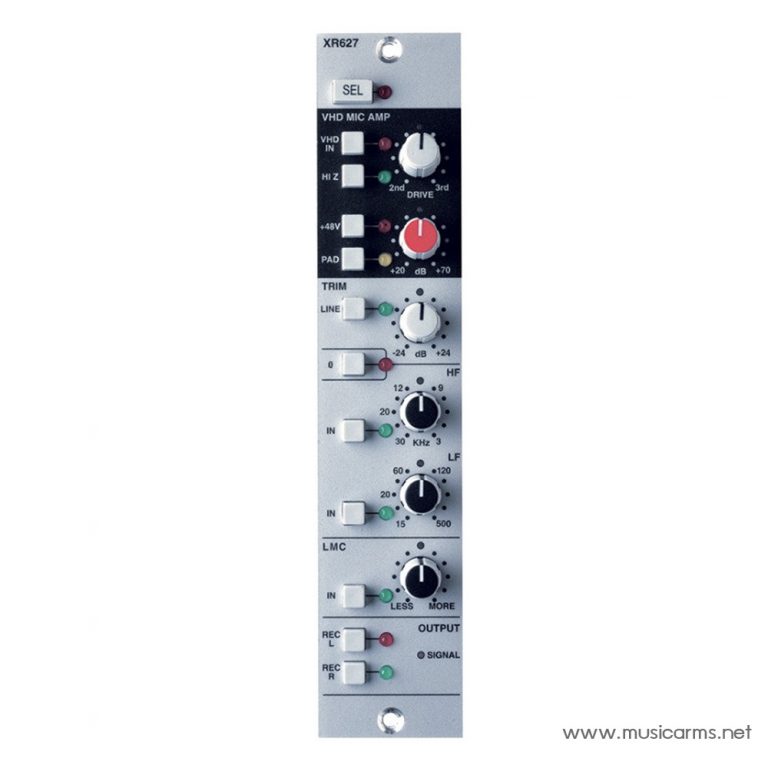

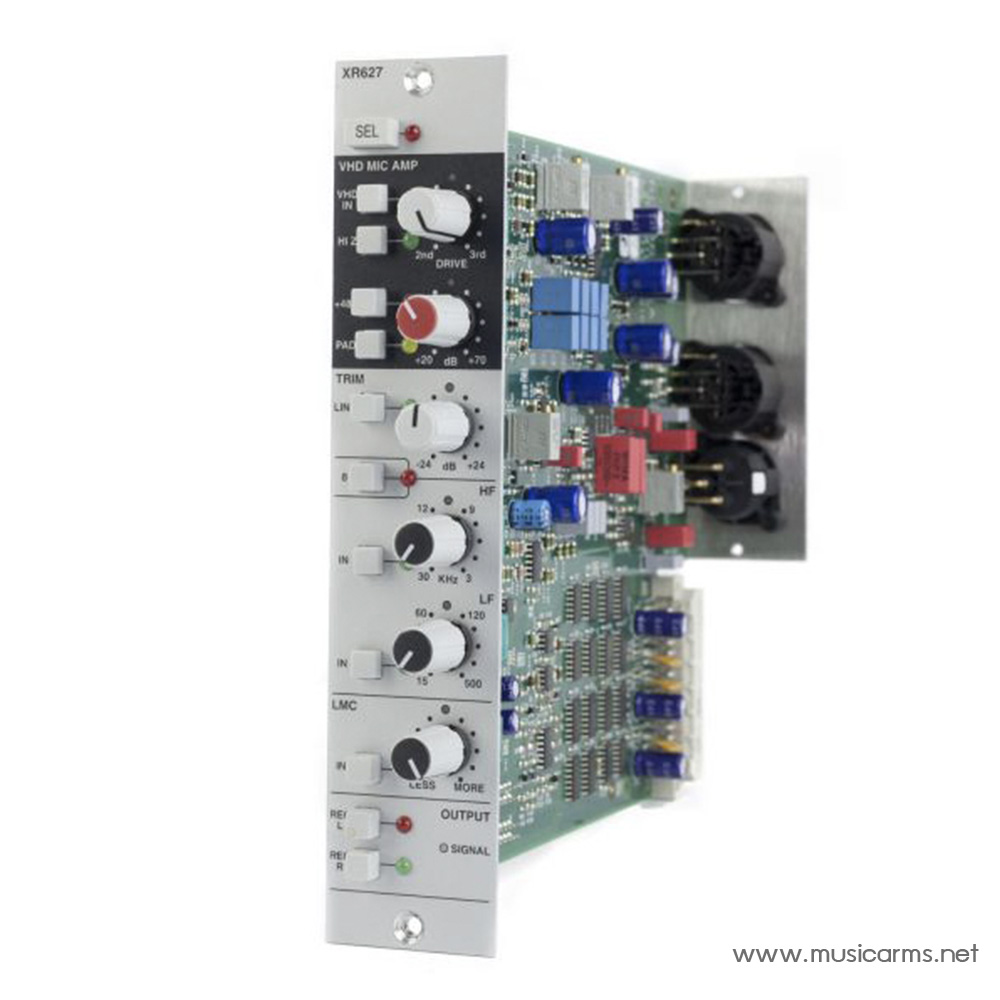

The SSL VHD Input Module combines some classic SSL heritage with a generous helping of cutting edge circuit design to deliver a devilishly warm and dirty alternative to the pure X-Rack Mic Amp Module. The VHD Input Module is based on the input section of the popular SSL E-Signature Channel 1U rack processor. The VHD Input module combines five key elements; a high bandwidth mic amp stage that can handle mic, instrument or line inputs, SSL’s innovative Variable Harmonic Drive circuit, an additional line input/ trim control section, a set of High and Low Pass Filters and the classic Listen Mic Compressor.​​​​​​​

Specification

• Electronically balanced ultra-high-bandwidth mic input with +20dB to +70dB gain control and phantom power
• hi-Z and pad switches on mic amp input
• Dedicated additional XLR line input
• Variable Harmonic Drive circuit; adds controllable blend of 2nd or 3rd Harmonic distortion
• Dedicated trim control after the VHD stage
• Classic listen mic compressor with fixed attack and release curves, ideal for drums
• High- and lowpass filters
