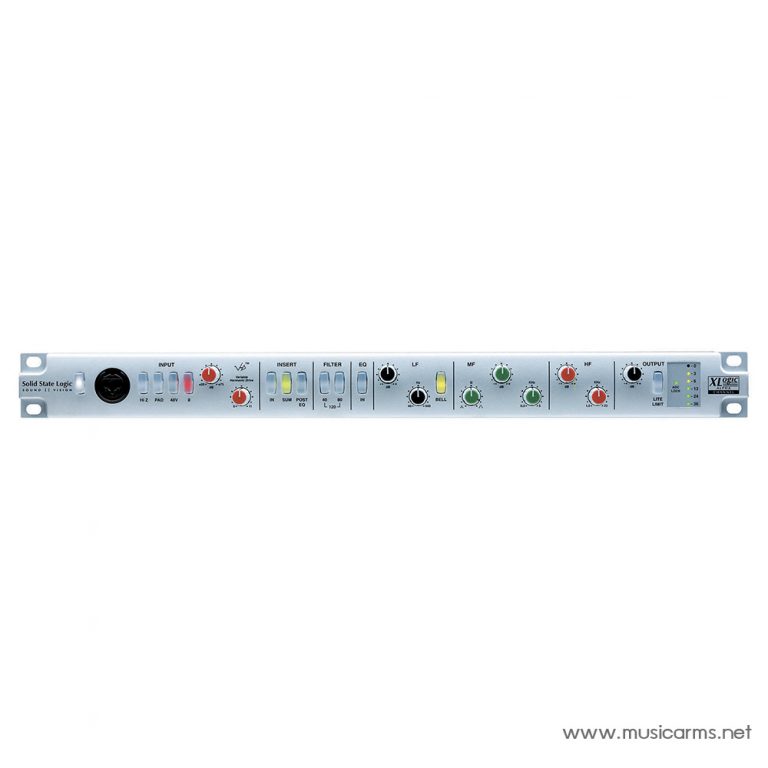

Solid State Logic SSL Xlogic Alpha Channel

Solid State Logic SSL Xlogic Alpha Channel

With the classic combination of mic preamp, filter, EQ, dynamics, and A/D conversion, the Alpha Channel draws upon SSL’s sonic legacy to provide an affordable analogue channel strip designed to provide the perfect front end to your DAW.

The Alpha Channel packs in a sophisticated and versatile collection of features for its size and price; a high-quality mic pre with switched impedance for instrument or line sources, phantom power and phase invert. A VHD circuit for added analogue tone, an Insert for streamlined additional processing, a three band EQ design utilising the classic SSL channel strip EQ sound and with selectable Bell curve for the LF, a High Pass Filter with 40/80/120Hz cutoff frequency selection, a switched lite limiter to prevent digital clipping, a high quality Analogue to Digital audio converter, and an S/PDIF digital output.

Specification

• Preamp Type:Solid State
• Number of Channels:1
• Phantom Power:Yes
• EQ:Yes
• Compressor:Yes
• Other Processing:Variable Harmonic Drive
• Frequency Response:32Hz-108kHz
• Analog Inputs:1 x Combo (XLR/TRS)
• Analog Outputs:1 x 1/4″
• Digital Inputs:1 x S/PDIF (Coax)
• Digital Outputs:1 x S/PDIF (Coax)
• Other I/O:2 x RCA (Link), 2 x 1/4″ (Send, Return)
• Rack Spaces:1U
• Height:1.75″
• Depth:9″
• Width:19″
• Weight:7 lbs.
