Takstar EKX-808 Digital Matrix Processor

The Takstar EKX-808 Digital Matrix Processor is a digital audio processor designed to manage high-resolution audio systems in spaces requiring precision, such as conference rooms, banquet halls, or entertainment venues. It acts as a central hub, receiving audio signals from various sources, processing them, and then sending them to the speakers.

Key Features

• High-performance processing: Utilizes a 32-bit DSP chip with a sampling rate of 96kHz and a 24-bit AD/DA converter for detailed and accurate audio quality.

• Integrated management functions:

  • Input: Supports High-cut, Low-cut, PEQ, Feedback Inhibition, Noise Gate, Gain, Mute, Phase, and Delay.

  • Output: Supports EQ, Compressor, Limiter, and Channel Linking.

• Noise cancellation system: Features AEC (Automatic Echo Cancellation) to reduce echoes and a Noise Cancellation system to minimize environmental noise such as air conditioners or fans.

• Karaoke Mode: Features an AUX input for mixing microphone signals, along with built-in Echo and Reverb effects, ideal for recreational purposes.

• Connection and control:

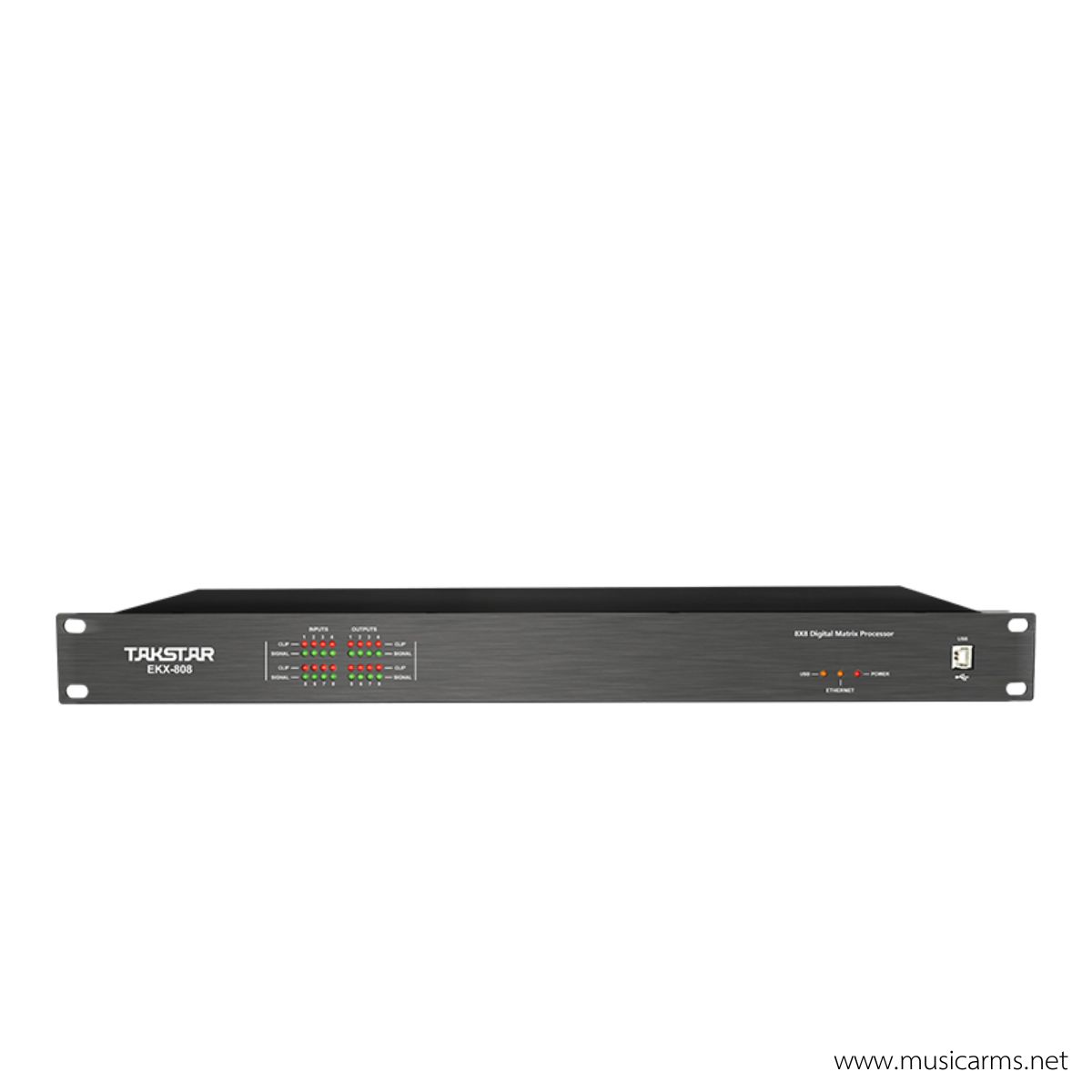

  • There is an LED display on the front panel showing the signal level.

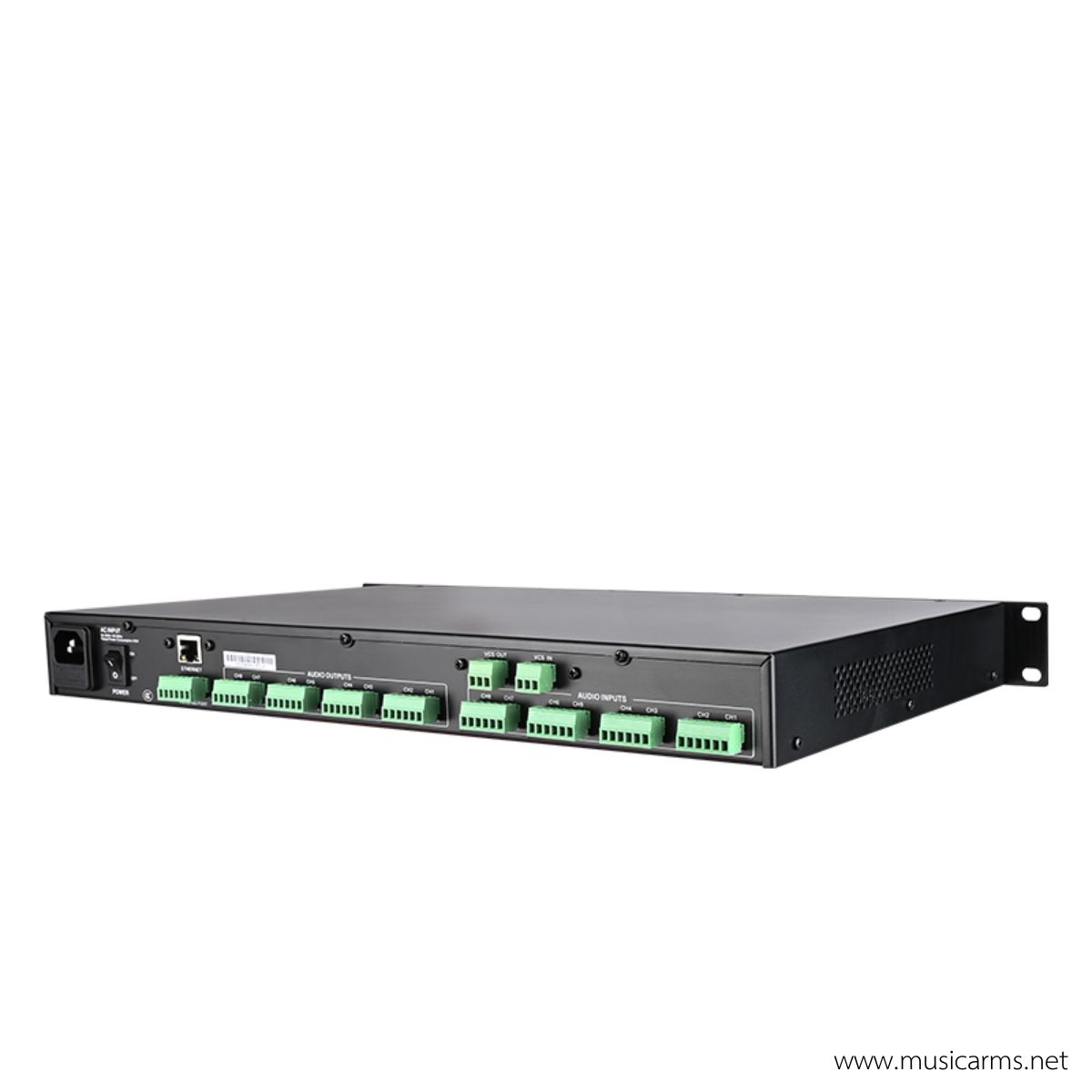

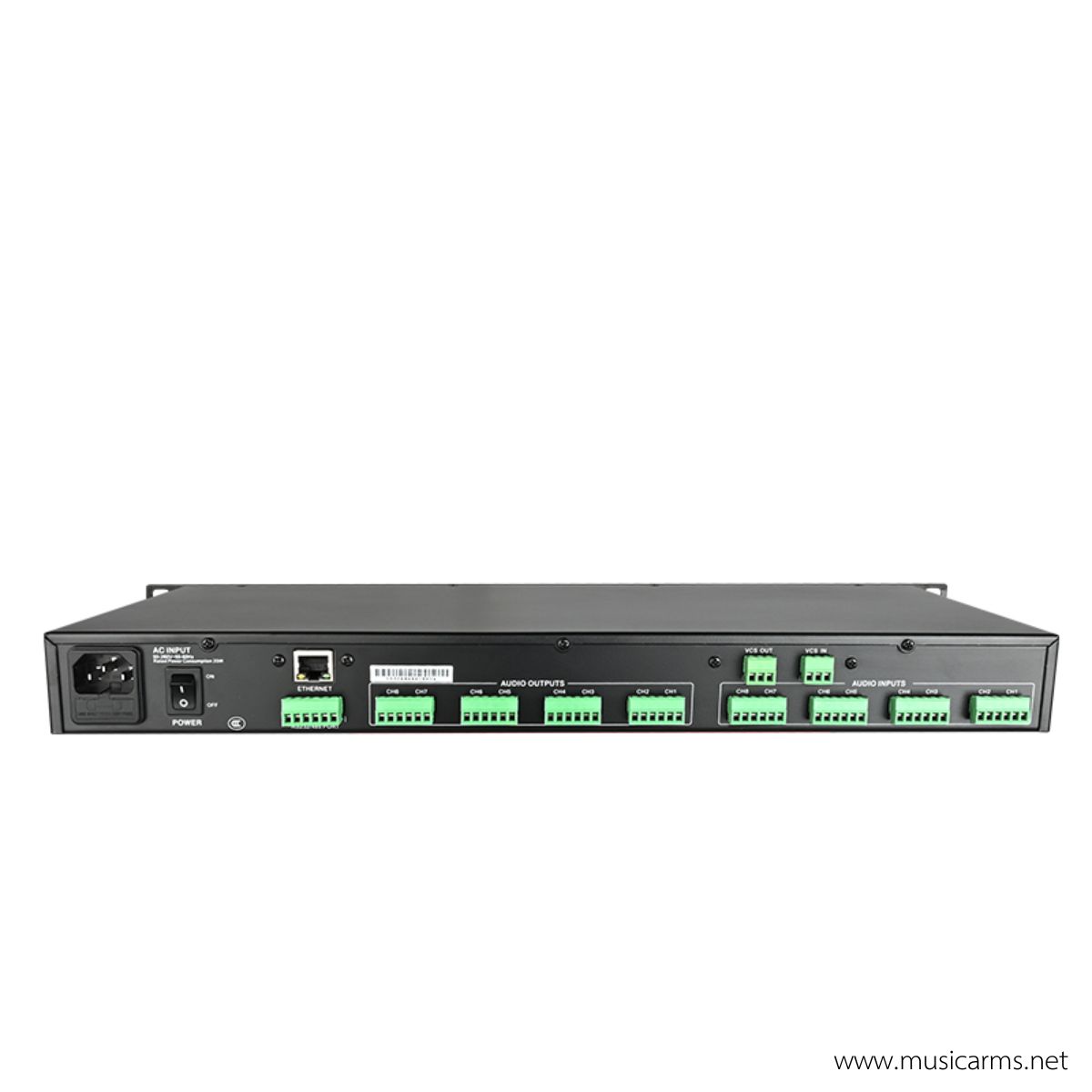

  • The rear control ports include USB, RS232, RS485, and a LAN (TCP/IP) port for control via computer.

  • Up to 21 presets can be saved, and a password can be set to prevent modification of the settings.

Applications

• Corporate meeting rooms: Used for managing multiple microphones with feedback and echo cancellation systems.

• Auditoriums and banquet halls: Used as a matrix mixer to distribute sound to different speaker zones.

• Public Address (PA) System: Adjust the EQ and Limiter to protect speakers from damage and enhance sound clarity.

Technical Specifications

รายละเอียดสเปก (Technical Specifications)
