Takstar ELA-082 Line Array Series

The Takstar ELA-082 is a high-performance active line array speaker system designed for professional audio systems requiring wide, accurate, and powerful sound coverage. A key feature of this series is its compact design while delivering high sound pressure level (SPL).

1. Subwoofer speaker

It is typically used in conjunction with a large low-frequency driver (such as the ELA-082SUB model ), which acts as the base and houses a Class D power amplifier to power itself and the column speaker above.

2. Mid-range/Tweeter Speakers (Full-range Satellite)

The ELA-082 speaker cabinet typically consists of:

• Woofer speakers: Two 8-inch speakers to drive mid-low frequencies.

• Tweeter: A high-performance tweeter driver for clear and far-reaching sound.

Outstanding features

• Line Array Technology: Designed to distribute sound widely horizontally and limit vertical dispersion, reducing reflections from ceilings and floors, resulting in clear sound even in large spaces.

• Active System: Equipped with built-in DSP (Digital Signal Processing) for quick and easy EQ, crossover, and speaker protection (limiter) adjustments.

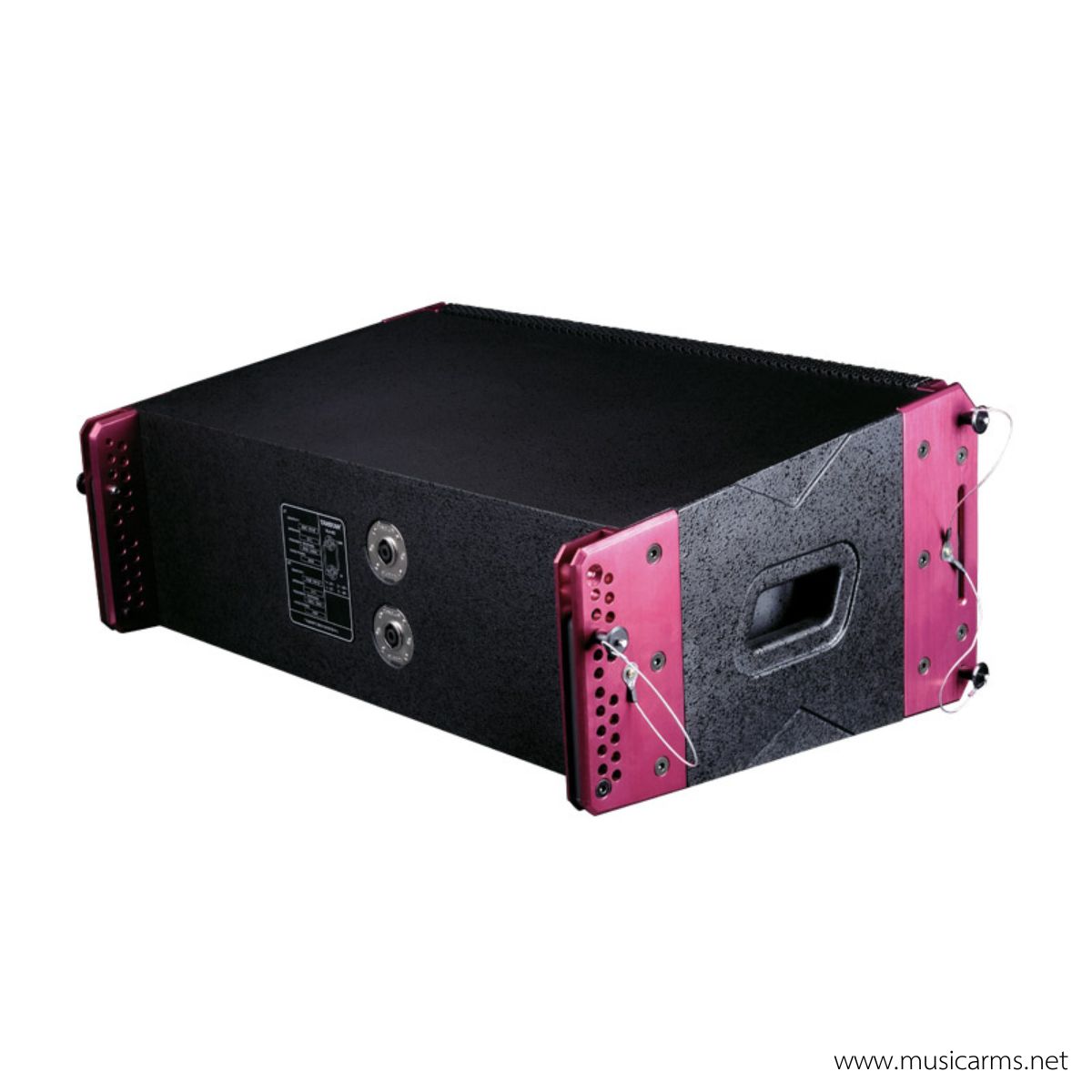

• Ease of installation: Features a rigging system or mounting points designed for easy flying or stacking, suitable for both permanent installations and mobile events.

Applications

With its manageable size yet powerful sound, the Takstar ELA-082 is ideal for:

• Medium to large auditorium

• Medium-sized concerts or live performances in a hall.

• Religious institutions (churches/temples) that require clear speech and music audio.

• Entertainment venues or banquet halls in hotels.

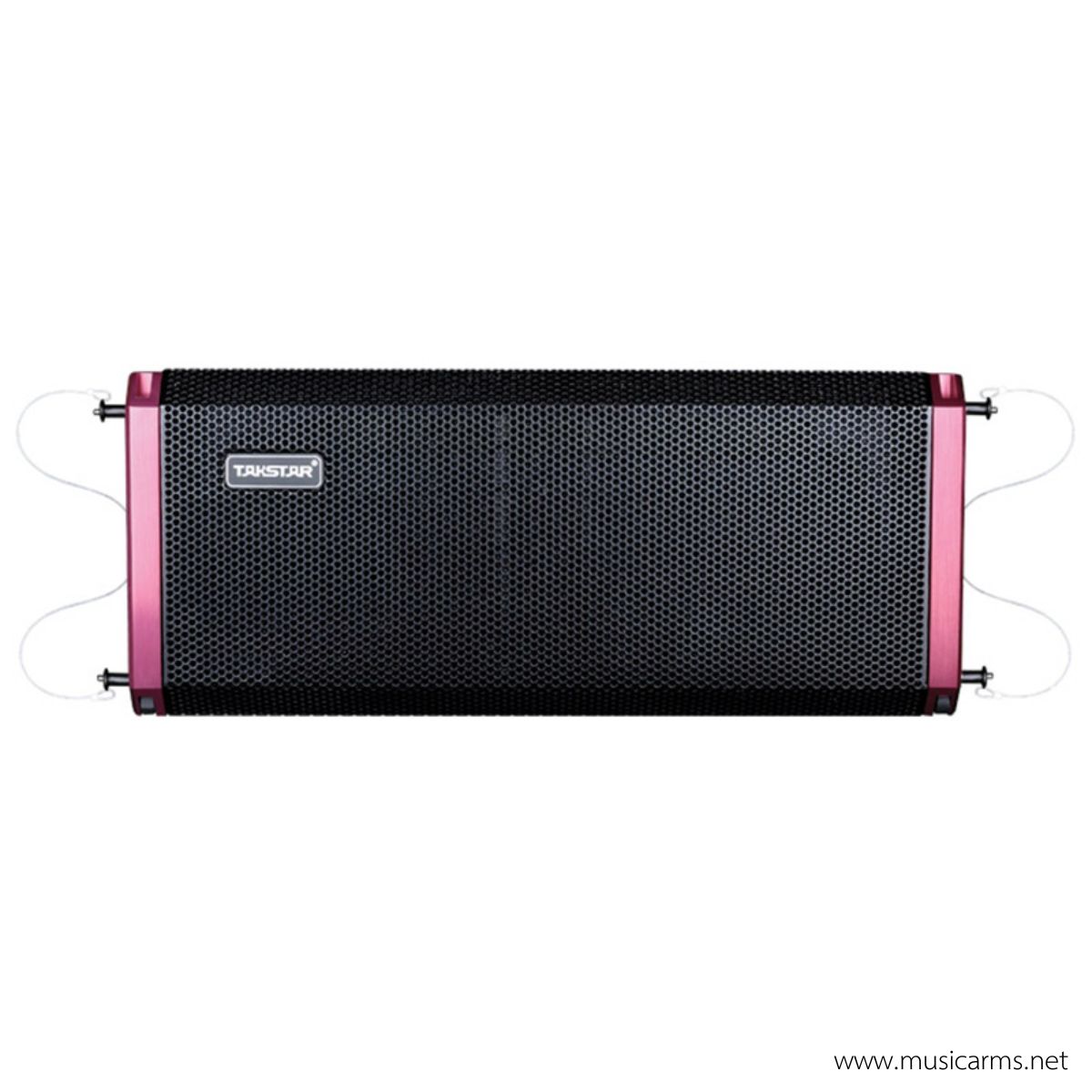

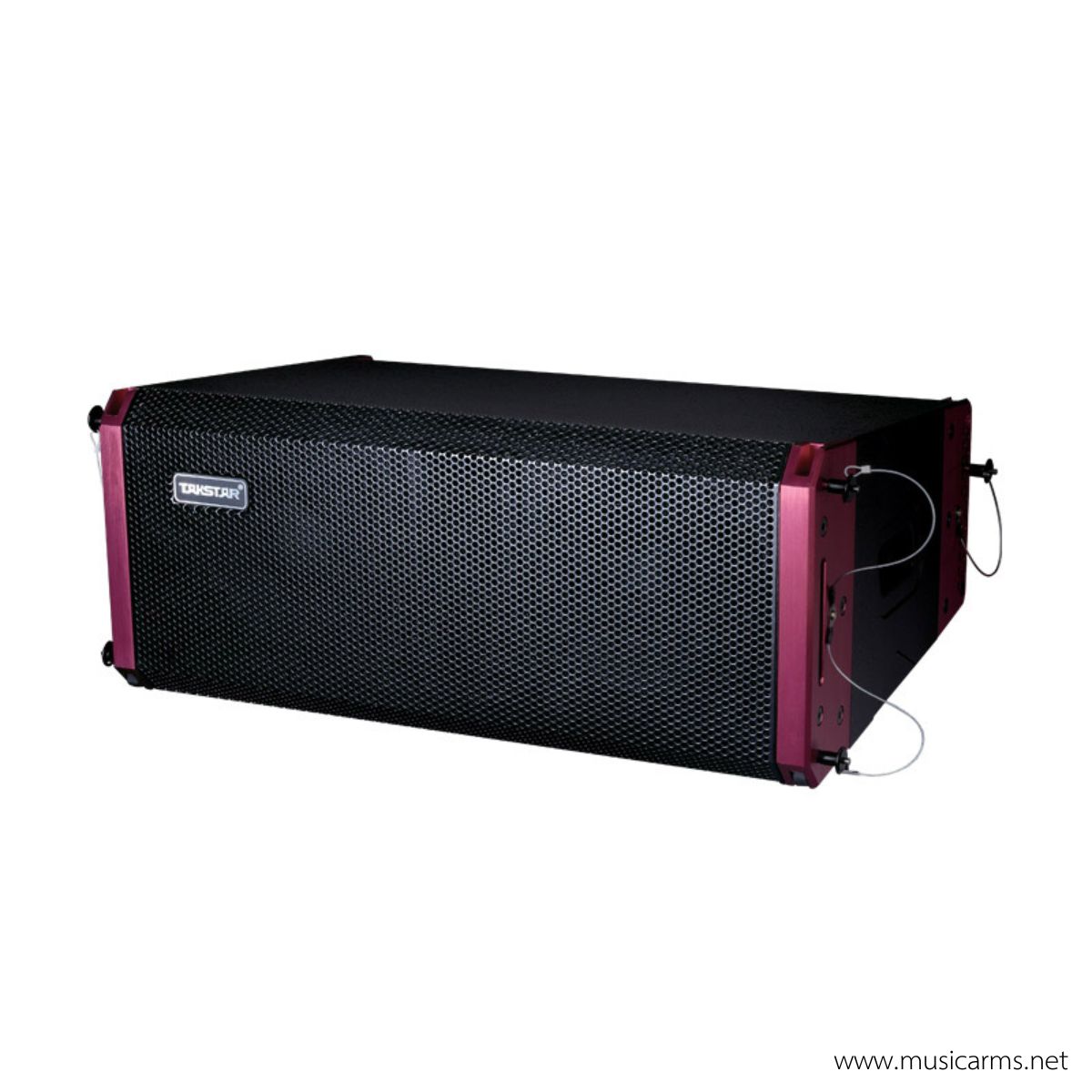

1. Takstar ELA-082 (Full Range Speaker)

Two-way column speakers for hanging in an array.

• Driver: LF 8″ (2″ voice coil) × 2 / HF 1.4″ (1.7″ voice coil) × 1

• Frequency Response: 60Hz – 20kHz

• Power Handling: 400W (RMS) / 1600W (Peak)

• Sensitivity: 101dB (1W/1M)

• Max SPL: 127dB (Continuous) / 133dB (Peak)

• Nominal Impedance: 8 Ω

• Coverage Angle (H x V): 100° x 10°

• Connectors: Neutrik NL4 × 2

• Weight: Approximately 18 kg.

2. Takstar ELA-181 (Subwoofer)

A subwoofer speaker designed to be part of the set.

• Driver: 18″ (4″ voice coil) × 1

• Frequency Response: 35Hz – 150Hz

• Power Handling: 800W (RMS) / 3200W (Peak)

• Sensitivity: 98dB (1W/1M)

• Max SPL: 127dB (Continuous) / 133dB (Peak)

• Nominal Impedance: 8 Ω

• Connectors: Neutrik NL4 × 2

• Weight: Approximately 45 kg.

1. Takstar ELA-082 (Full Range Speaker)

ลำโพงคอลัมน์แบบ Two-way สำหรับแขวนทำ Array

• Driver: LF 8″ (วอยซ์คอยล์ 2″) × 2 / HF 1.4″ (วอยซ์คอยล์ 1.7″) × 1

• Frequency Response: 60Hz – 20kHz

• Power Handling: 400W (RMS) / 1600W (Peak)

• Sensitivity: 101dB (1W/1M)

• Max SPL: 127dB (Continuous) / 133dB (Peak)

• Nominal Impedance: 8 Ω

• Coverage Angle (H x V): 100° x 10°

• Connectors: Neutrik NL4 × 2

• Weight: ประมาณ 18 กก.

2. Takstar ELA-181 (Subwoofer)

ลำโพงซับวูฟเฟอร์ที่ออกแบบมาให้เข้าชุดกัน

• Driver: 18″ (วอยซ์คอยล์ 4″) × 1

• Frequency Response: 35Hz – 150Hz

• Power Handling: 800W (RMS) / 3200W (Peak)

• Sensitivity: 98dB (1W/1M)

• Max SPL: 127dB (Continuous) / 133dB (Peak)

• Nominal Impedance: 8 Ω

• Connectors: Neutrik NL4 × 2

• Weight: ประมาณ 45 กก.
