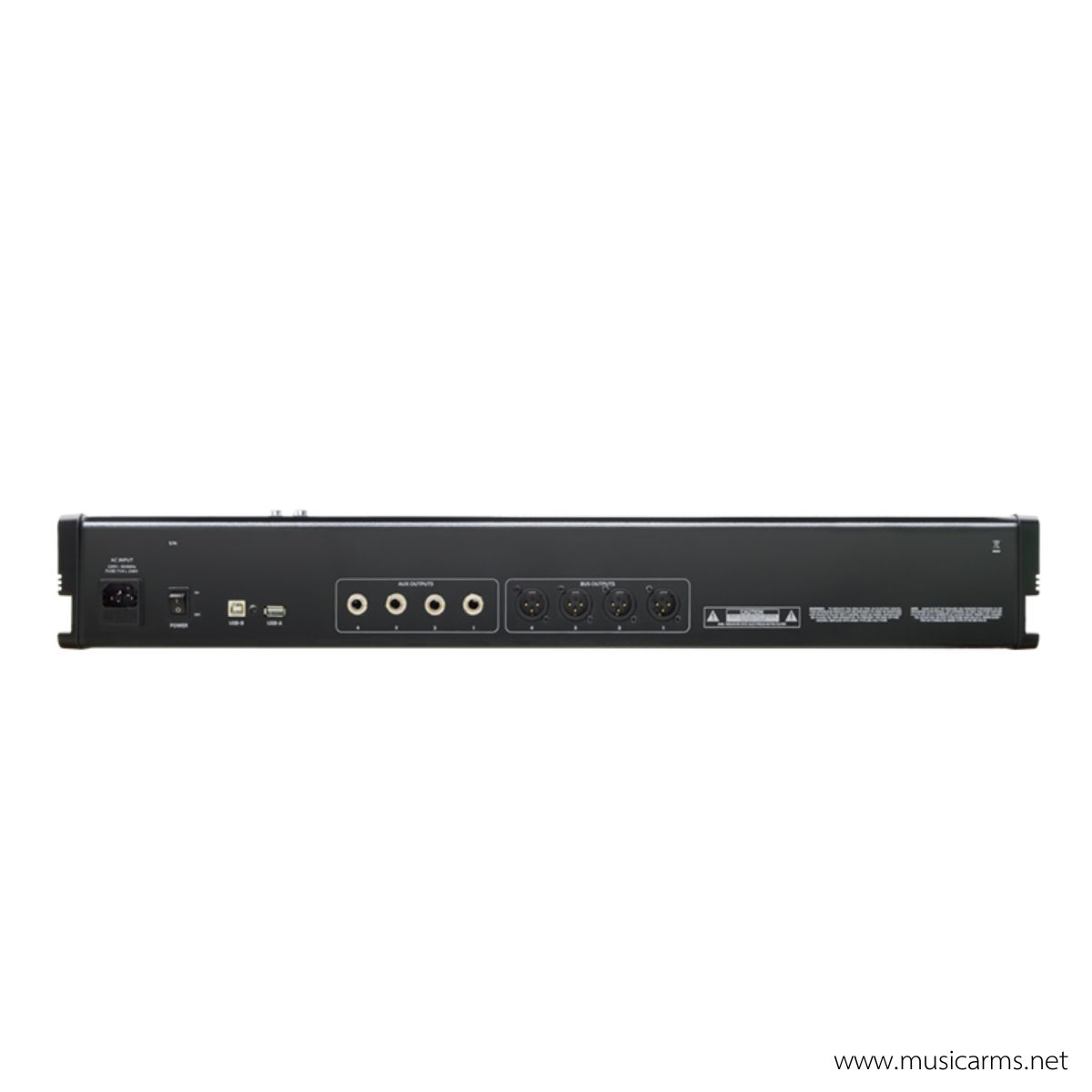

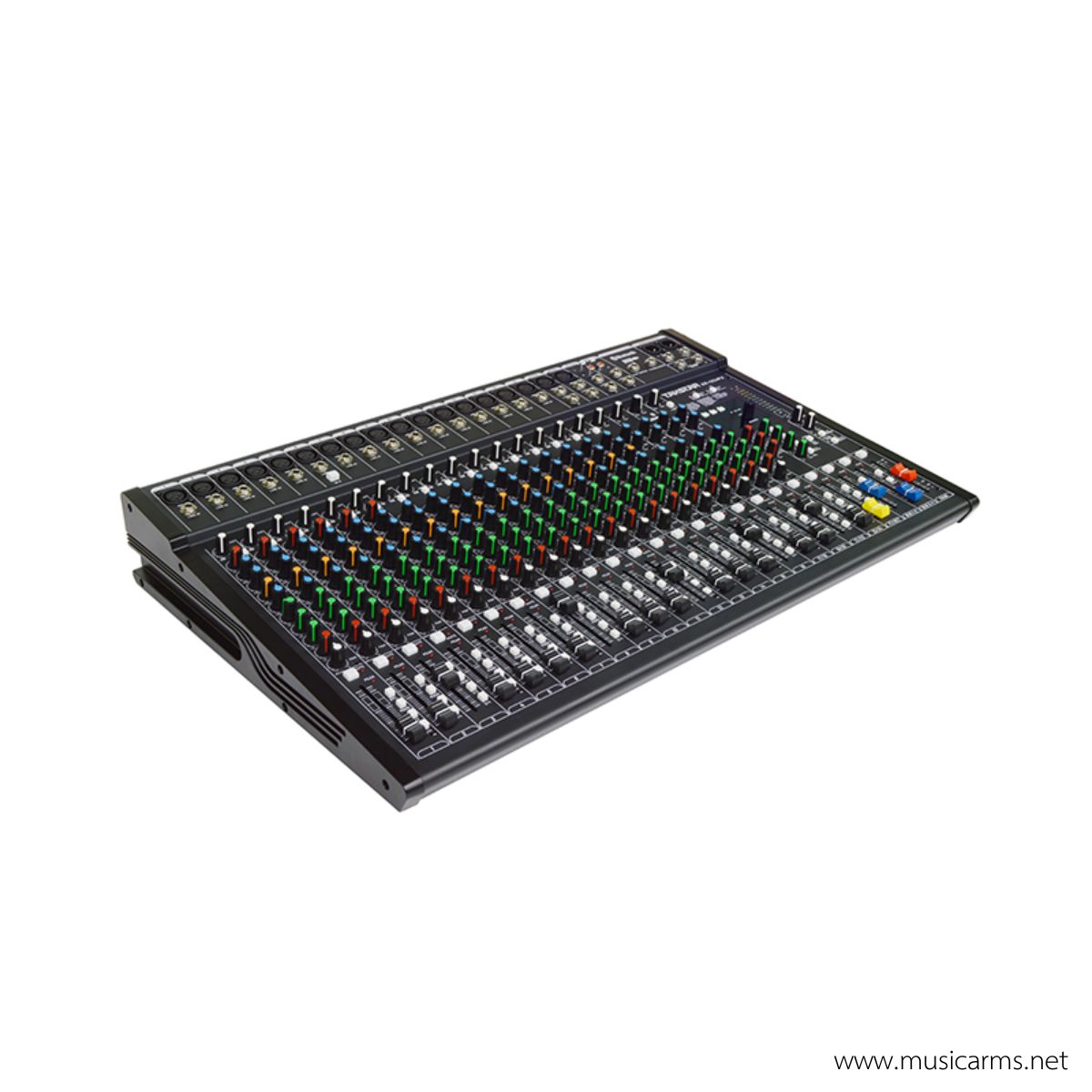

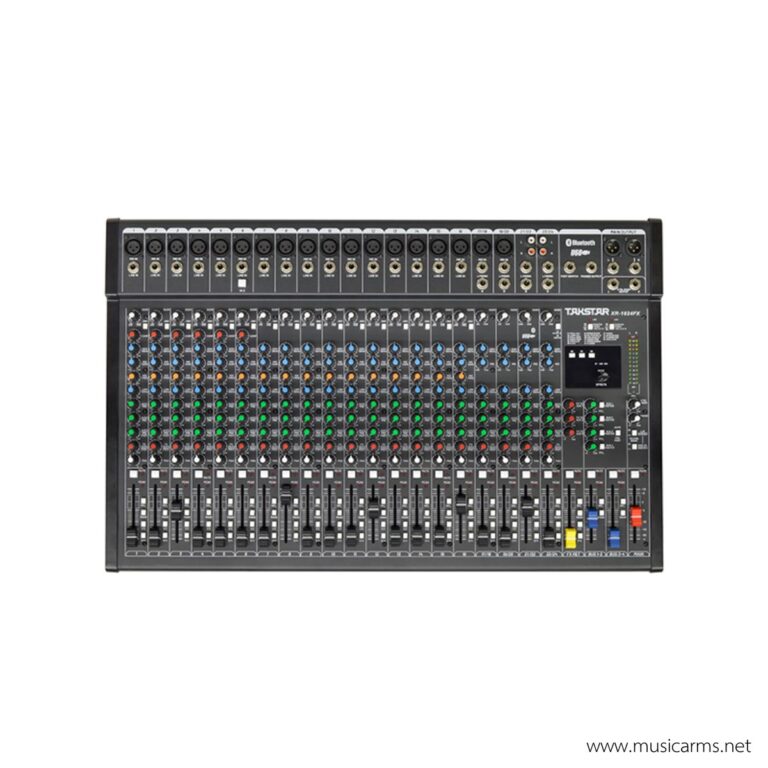

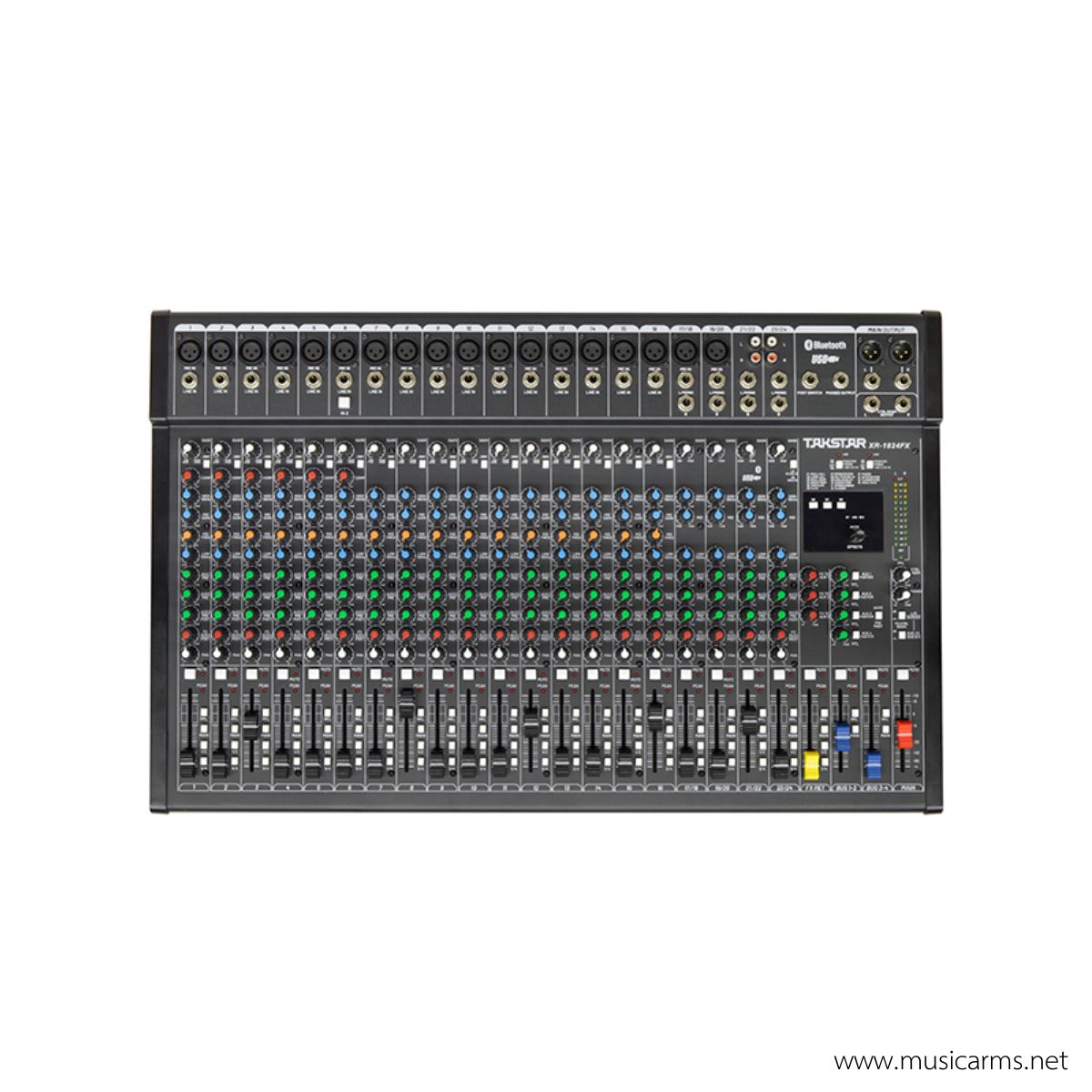

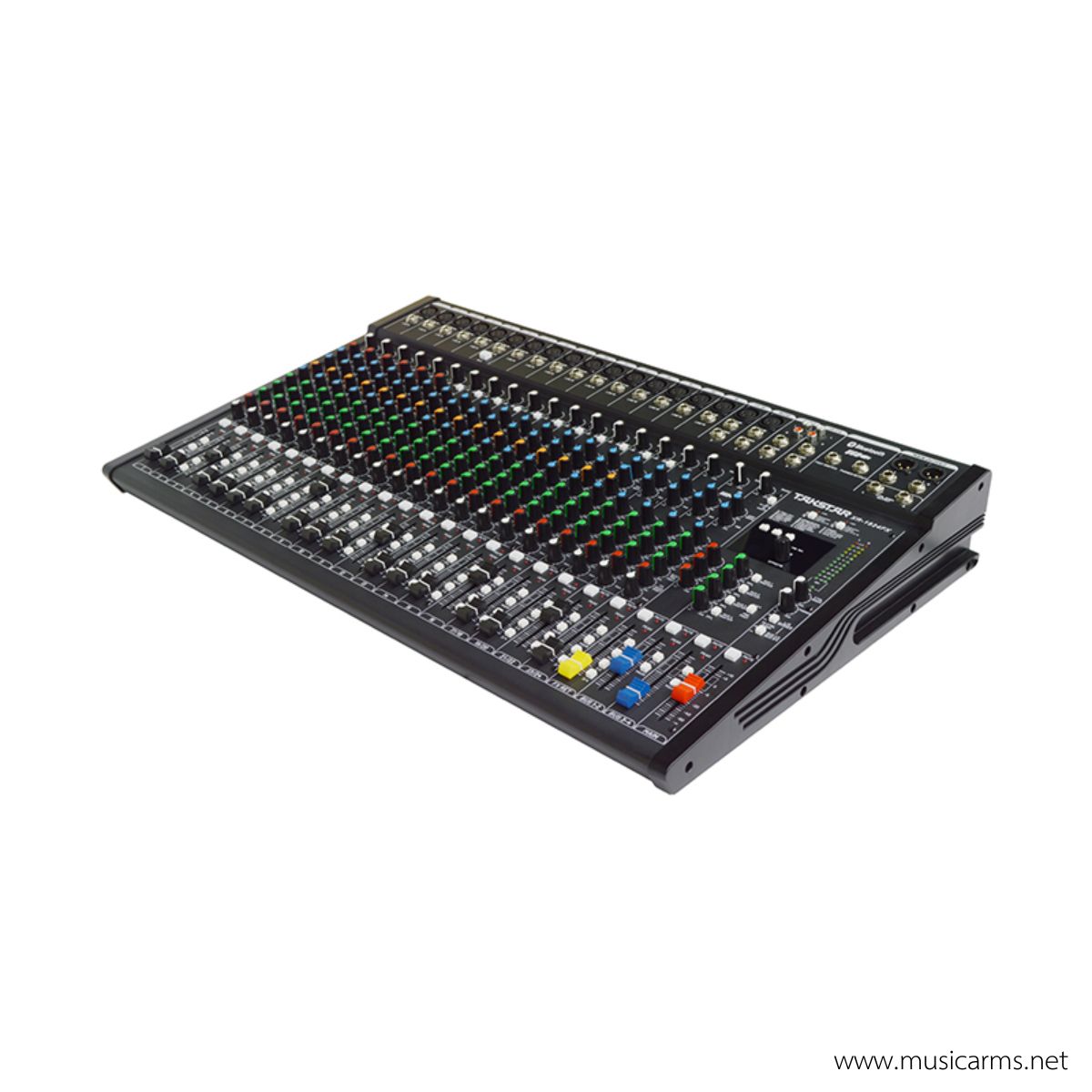

Takstar XR-1824FX (2023) Analog Mixer

The Takstar XR-1824FX (2023 model) is a large-format analog mixer designed for professional audio applications, including concerts, auditoriums, and studio recording. It features a comprehensive suite of modern upgraded features.

Key Features

• Input Channels: Supports up to 18 channels, divided into 16 Mono channels (XLR Mic/Line) and an additional Stereo channel.

• Built-in Compressor: The first 6 channels have a built-in compressor to help stabilize volume levels (ideal for vocals or instruments with wide dynamic range).

• Modern Connectivity:

  • Bluetooth: Supports wireless music playback from smartphones or tablets.

  • USB-A: For playing MP3 music files directly from a flash drive.

  • USB-B (Audio Interface): Functions as a sound card, connecting to a computer for recording audio (stereo output) or playing music from computer programs.

• Professional DSP Effects: Comes with 16 digital effect programs (16 FX Presets) such as Reverb and Echo, all pre-tuned for practical use.

• Equalizer: * Channel EQ: Adjustable in 3 frequency bands (High, Mid, Low)

  • Main EQ: Features a 9-band graphic equalizer for adjusting the overall tone at the main output.

Applications

• Live music events: Suitable for medium to large bands that require numerous microphone inputs.

• Event/Auditorium: Supports various connection options, including wired and Bluetooth.

• Home Studio: Easily record audio to your computer via USB without needing a separate audio interface for general recording tasks.

Technical specifications

ข้อมูลทางเทคนิค (Specifications)
