TANNOY Reveal 502 Active Studio Monitor 1PCS.

ยี่ห้อ : TANNOY
รุ่น :  TANNOY Reveal 502 ตู้ลำโพง Active Speaker
การจัดส่ง ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 4,500 บาท

5,000 บาท ประหยัด10%
การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ TANNOY Reveal 502 Active Studio Monitor 1PCS.ผ่านline สั่งซื้อ TANNOY Reveal 502 Active Studio Monitor 1PCS.ผ่าน messenger



  • Custom tweaked by TANNOY’s in-house speaker guru, Dr. Paul Mills, the active cross-over filters of REVEAL 502 have absolutely impeccable timing.
  • This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to sit in with you during mixing sessions.
  • If you’re anything like us, you’re not only working on mixes but also listening to your favorite music! REVEAL 502 gives you the ultimate pathway for both.
  • With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup – no need for external interfaces


Product Features

  • Reference monitor ideal for desktop recording or monitoring in personal studios
  • 105 Watt custom bi-amped design delivers premium tonal clarity from a compact enclosure
  • 5″ custom high-efficiency low frequency driver for extended bass response
  • 1″ soft-dome ‘Poke-Resistant’ tweeter for detailed high frequency reproduction
  • Accurately tuned front-firing bass port allows near-wall placement and ensures optimal low frequency performance
  • Ultra-wide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix
  • Rubberized foam base provides acoustic isolation
  • Adjustable equalization to match your listening environment

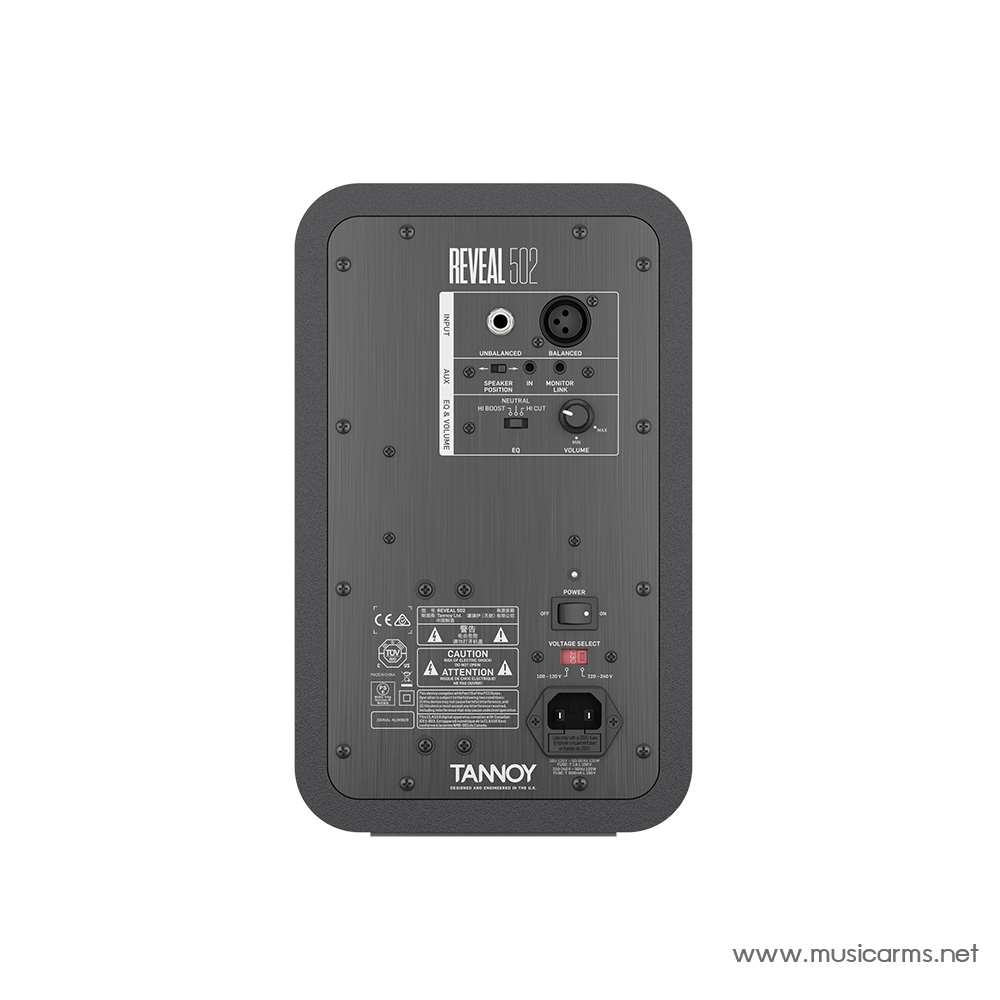

  • Balanced XLR input and unbalanced 1/4″ TS input for maximum flexibility
  • 1/8″ stereo input with monitor link facility for connection of mobile devices (cable included)
  • Tannoy – 90 years of British audio innovation
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.



  • Frequency Response :49 Hz -43 kHz
  • Max SPL :108 dB

Membrane Sizes

  • LF/Mid Range :5″ (130 mm)
  • HF :1″ Soft Dome (25 mm)

Bi-amp Output Power, RMS

  • Power Output :75 Watts
  • LF/Mid Range :50 Watts
  • HF :25 Watts
  • THD :< 0.7 %

Input Types and Impedances

  • Balanced :XLR, 20 kOhm
  • Unbalanced :¼” Jack, 10 kOhm
  • AUX Link :Mini Jack, 10 kOhm
  • AUX Link Output :Mini Jack

EQ Options

  • HF EQ Settings :-1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
  • Crossover Frequency :2.3 kHz
  • Low Frequency Alignment :Optimized Front Port

Cabinet Dimensions

  • HxWxD, inches :11.8 x 7.2 x 9.4
  • HxWxD, mm :300 x 184 x 238
