TASCAM DR-60DMKII

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Tascam
รุ่น :  Tascam DR-60DMKII ชุดบันทึกเสียง Recording Set
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 8,990 บาท

การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ TASCAM DR-60DMKIIผ่านline สั่งซื้อ TASCAM DR-60DMKIIผ่าน messenger

Description

DR-60DMKII

TASCAM’s DR-60DmkII, an update of the award winning DR-60D, is the audio recording solution for on-set filmmakers and videographers. The streamlined design fits perfectly under a DSLR camera rig, without relying on bulky recorders or the limited audio quality of the camera’s microphone in. The DR-60DmkII is the next generation of 4-track solid-state recording, based on TASCAM’s decades of recording innovation. The upgraded HDDA microphone preamps provide up to 64dB of gain, capturing every nuance of a performance. Up to four channels at a time can be recorded to the internal SD Card, at up to 96kHz/24-bit WAV file resolution. Two of the mic inputs utilize locking XLR connectors with 48V phantom power, the other two use an 1/8” stereo connector for wireless and lavaliere

A Camera Output sends the mic mix to the camera for later synchronization, and a Camera Input is provided for monitoring playback. An additional headphone out and line out assist the crew during filming. The DR-60DmkII is designed for low-noise operation, including soft touch buttons and dedicated gain controls.

Multiple recording modes are available on the DR-60DmkII. Four-Channel Mode records all four microphone inputs. Dual Recording is an alternate setting, capturing a copy of your audio at a lower level for a distortion-free safety track. Menus and operation are well laid out, owing to decades of innovative recording design. Reach beyond the limited performance of your camera’s audio to capture the other half of your film. At a cost less than competing preamps, the TASCAM DR-60DmkII is the ultimate 4-track recorder designed for filmmakers, television, live events and web broadcast.



Tascam DR-60D MKII Recorder Features

  • Four-track WAV or BWAV recording up to 96kHz/24-bit

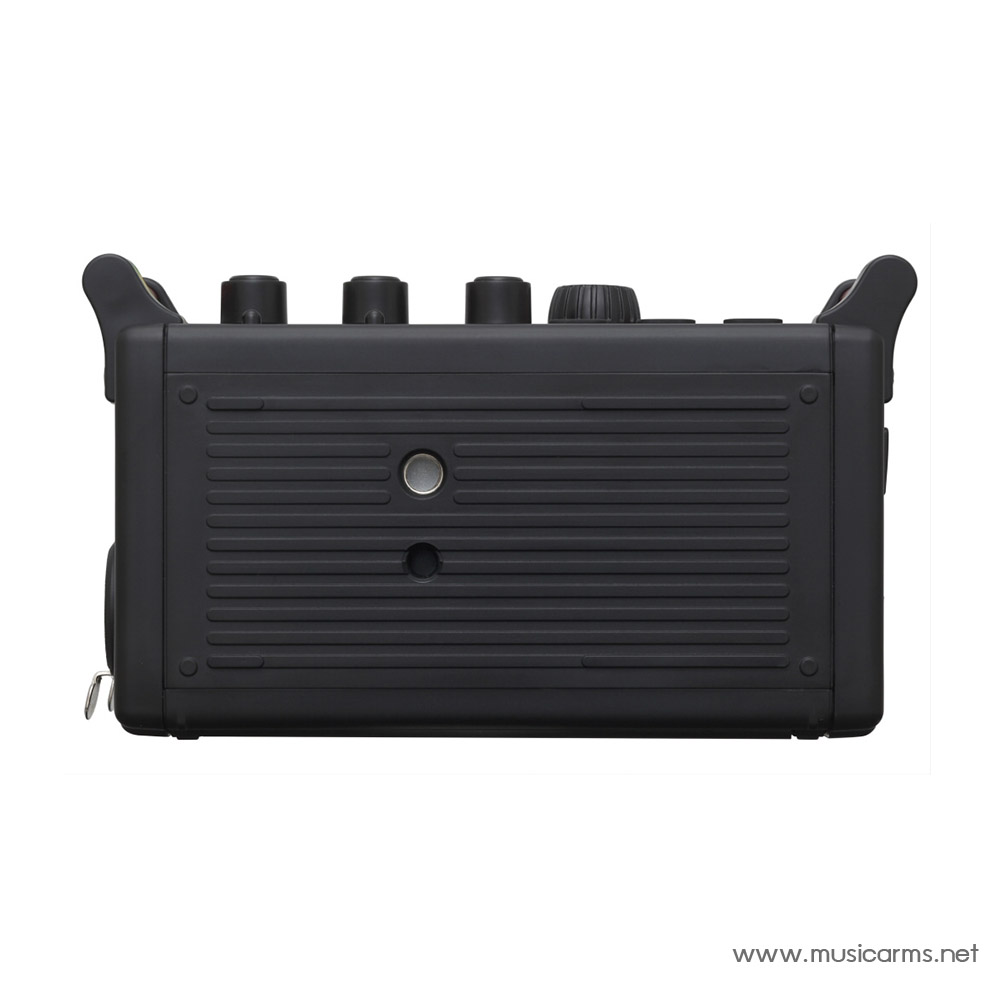

  • Designed to attach to DSLR camera with top and bottom tripod mounts
  • Easy-to-use interface with switches instead of menus
  • Dual record mode captures a safety track so there’s a backup in case of overload
  • High-quality microphone preamps, analog/digital converters, and recording format (BWAV) – much better than the camera audio specs
  • Improved microphone preamp with up to 64dB of gain
  • Camera output pads down to mic level so it doesn’t overload the camera
  • Records to SD card media
  • Individual headphone and line outputs
  • Slate function plays a tone for easier syncronization with camera audio

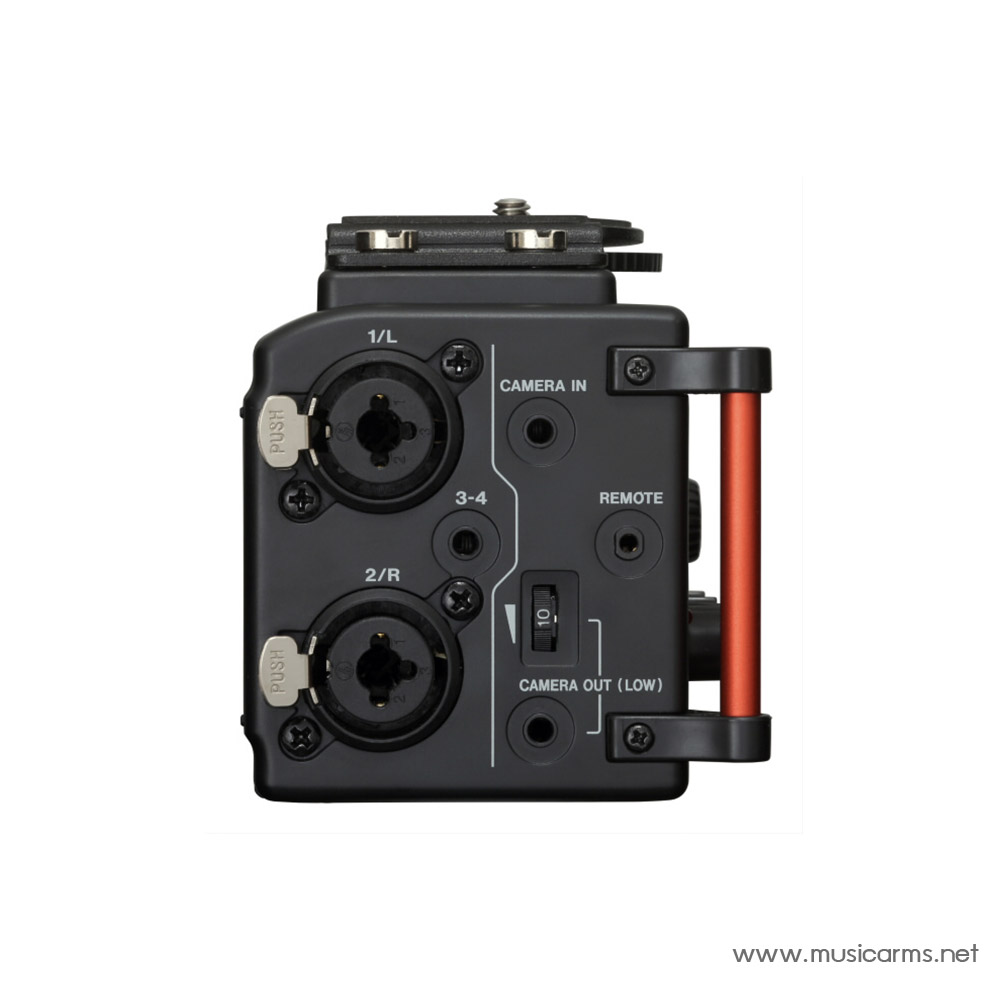

  • Two XLR/1/4″ combination jacks plus stereo 1/8″ mini jack
  • Powered via AA batteries or USB input

Specification

Recording Media SD card (64 MB to 2 GB), SDHC card (4 to 32 GB)
WAV/BWF 44.1, 48, 96 kHz/ 16-, 24-bit
Number of Channels 4 (2x stereo)
Connectors 2x Combination XLR/TRS (XLR = 1: ground, 2: hot, 3: cold)
1x 1/8″ (3.5 mm) microphone input stereo mini jack with plug-in power
1x 1/8″ (3.5 mm) camera input stereo mini jack
Input Impedance XLR/TRS Set to Mic/Mic + Phantom: 2 kOhms
XLR/TRS Set to Line: 10 kOhms
1/8″ Mic Input: 10 kOhms
1/8″ Camera Input: 10 kOhms
Phantom Power XLR/TRS Set to Mic/Mic + Phantom: 48 V +/-4 V(10 mA/CH) / 24 V +/-4 V(10 mA/CH)
Maximum Input Level XLR/TRS Set to Mic/Mic + Phantom: 0 dBu
XLR/TRS Set to Line: + 24 dBu
1/8″ Mic Input: +10 dBV
1/8″ Camera Input: +6 dBV
Standard Input Level XLR/TRS Set to Line: + 4 dBu
1/8″ Camera Input: -10 dBV
Minimum Input Level XLR/TRS Set to Mic/Mic + Phantom: -72 dBu
1/8″ Mic Input: -50 dBV
Microphone Input Gain XLR/TRS Set to Mic/Mic + Phantom:
Low: +11 dB
Mid: +36 dB
High: +52 dB
High PLUS: +64 dB
1/8″ Mic Input:
Low: +3 dB
High: +26 dB
Connectors 1x 1/8″ (3.5 mm) camera out stereo mini jack
1x 1/8″ (3.5 mm) line out stereo mini jack
Output Impedance Camera Out: 200 ohms
Line Out: 200 ohms
Standard Output Level Camera Out: -50 dBV
Line Out: -10 dBV
Maximum Output Level Camera Out: -30 dBV
Line Out: +10 dBV
Connector 1/8″ (3.5 mm) stereo mini jack
Maximum Output Level 50 mW + 50 mW
Type Mini-B type
Format USB 2.0 high speed mass storage class
Connector 2.5 mm TRS jack for optional remote
Power Sources 4x AA batteries (Alkaline or Ni-MH)
USB bus power
Optional AC Adapter
Optional external battery pack
Power Consumption 5.4 W
Battery Operation Time Recording 2 channels of 44.1 kHz/16-bit WAV
Alkaline Batteries (EVOLTA): 2.5 hours (approximate, with phantom power); 4.5 hours (approximate, with no phantom power)
Ni-MH Batteries (eneloop): 3 hours 15 minutes (approximate, with phantom power); 5 hours (approximate, with no phantom power)
Ni-MH Batteries (eneloop pro): 3 hours 45 minutes (approximate, with phantom power); 6 hours (approximate, with no phantom power)
Windows OS: Windows XP, Vista, 7, 8
CPU: Pentium 300 MHz or better
RAM: 128 MB or more
USB: 2.0 recommended
Mac OS: OS X 10.2 to 10.8
CPU: Power PC, iMac, G3, G4, or better
RAM: 64 MB or more
USB: 2.0 recommended
Frequency Response 20 Hz to 20 kHz +0.5/-2 dB (line in or mic in to line out, Fs 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.5/-3 dB (line in or mic in to line out, Fs 96 kHz, JEITA)
Distortion 0.02% or less (line in or mic in to line out Fs 44.1/48/96 kHz, JEITA)
Signal to Noise Ratio 92 dB or more (line in or mic in to line out Fs 44.1/48/96 kHz, JEITA)
Equivalent Input Noise -120 dBu or more
Operating Temperature 32 to 140°F (0 to 40°C)
Dimensions (W x H x D) 5.2 x 3.7 x 3.1″ (133.0 x 93.2 x 78.0 mm)
Weight 1.1 lb (510 g), without batteries
