Tascam Sonicview 24 มิกเซอร์ดิจิตอล รองรับสูงสุด 44 อินพุต 22 บัส FPGA 96kHz

The Tascam Sonicview 24 is a high powered mixing desk with motorised faders per channel, assignable function keys and a state of the art triple screen design.

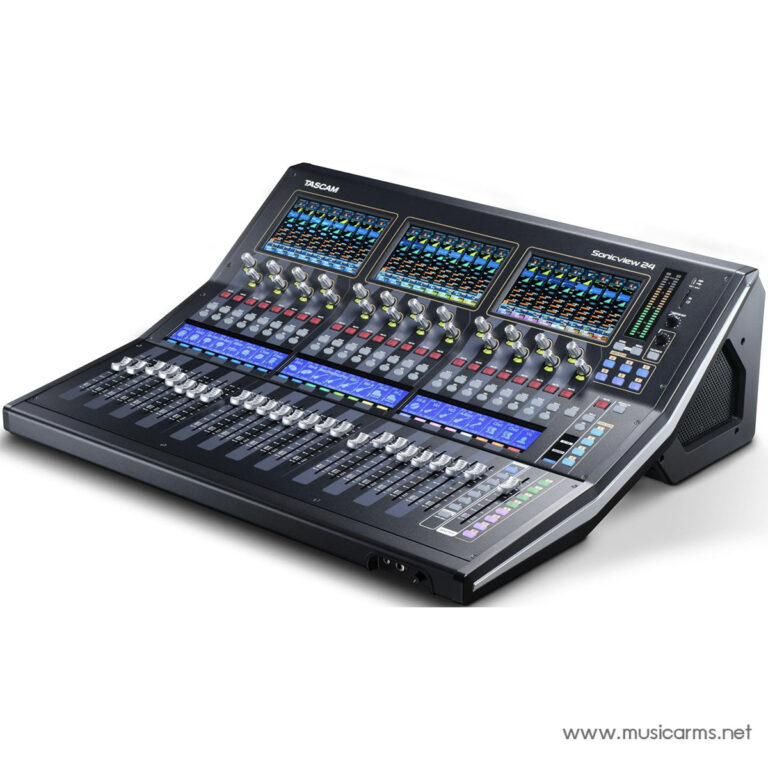

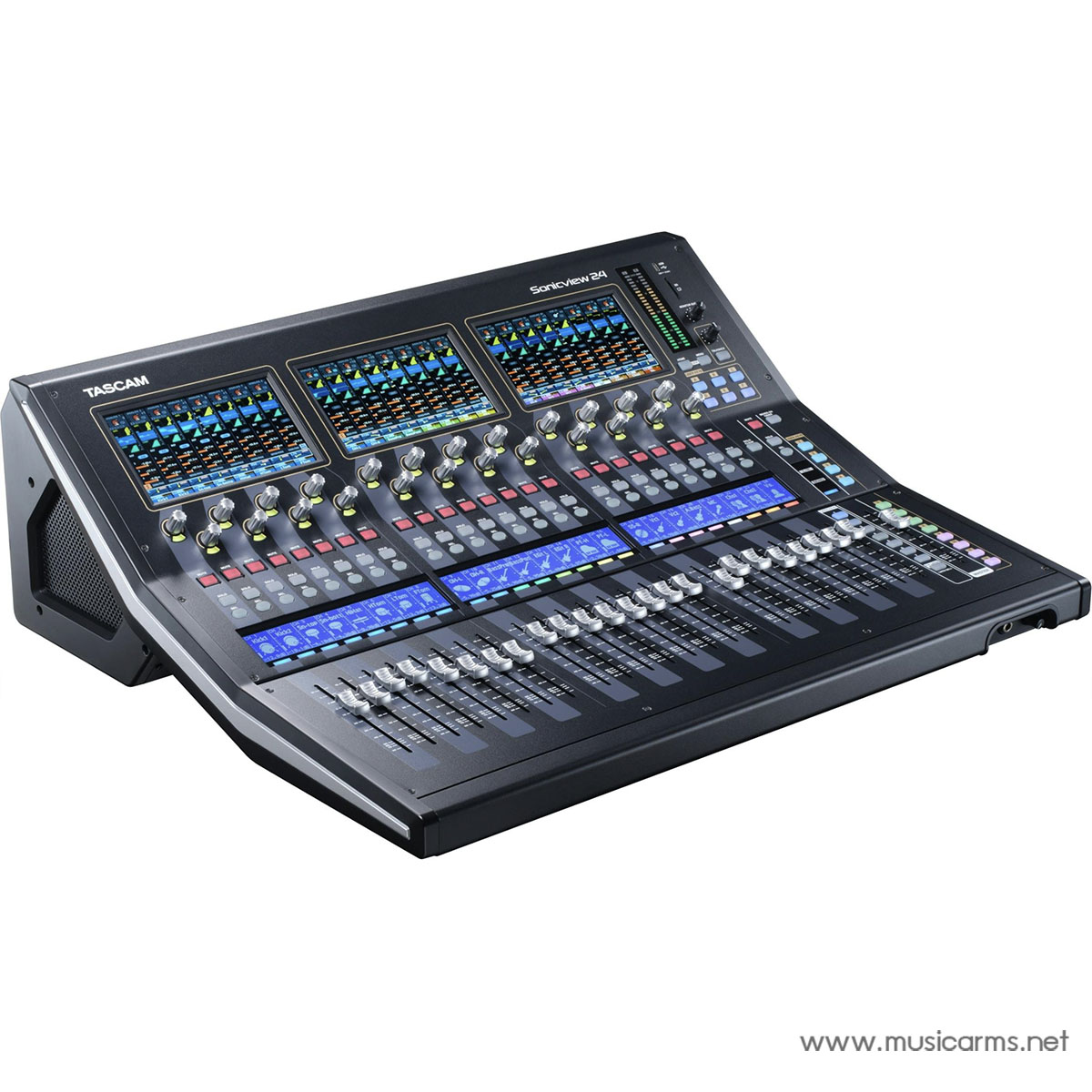

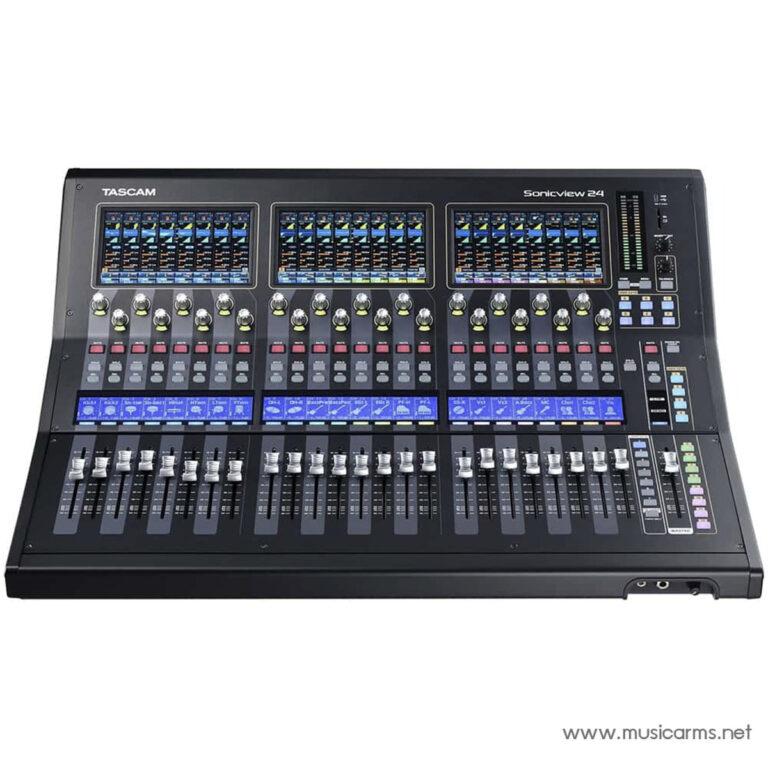

The Tascam Sonicview 24 offers motorised channel faders in three banks of eight, plus a motorised fader for the main stereo bus. Above each bank of channel faders is a colour touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip. Save fader settings and instantly recall them later to continue where you left off. Check levels in a mix or submix at a glance and adjust them during mixdown with either the physical faders or the touchscreen. Your changes will be instantly updated in both.

Thanks to a 54-bit floating-point FPGA mixing engine, Tascam Sonicview delivers the finest audio performance in its class with continuous, high-definition 32-bit/96-kHz sampling and 32-bit analogue-to-digital converters. The mixing engine’s float-point processing makes it possible to flexibly change levels without compromising resolution, while ensuring ultra-low latency, even in analogue-to-analogue connections. The result is no-compromises performance, including with Dante networks and in-line monitoring systems, for pristine tracking, mixing, and playback.

There’s much more to Sonicview than meets the eye. Internally, these recording consoles have a generous 40 mono channels and two stereo channels so you can fly-in backing tracks to make a small vocal band sound huge. You can also accommodate additional physical audio inputs via the expansion slots for larger ensembles, manage sources from every part of a venue via the Dante network, and mix dozens of DAW tracks. Eight DCAs enable you to easily control groups of channels. Programmable layer keys select which custom combination of channels and output buses are controlled by the motorised faders. Start working on a mix, save your fader settings, and continue mixing later – thanks to the motor faders, you’ll pick up exactly where you left off.

Key Features:

• Built-In USB Audio Interface and Stereo Recording:
  The built in 32-in-32-out USB audio interface allows you to capture every channel into your DAW of choice. This is fantastic for bands and engineers looking to high quality audio for live performance releases but also for studios. This also gives the ability of virtual soundchecks, in the unlucky event that a band member is caught up or there’s not enough time to do a soundcheck, stream the recording of a previous show to the same channels and compete a soundcheck so it’s tweaks when the band comes on rather than a full line check. Lastly, the desks main out can be recorded to the front SD card slot as a stereo mix.
• Dante-Enabled For Superior Networking:
  dante audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, houses of worship, and much more.Sonicview consoles can serve as the audio center of these systems, thanks to a built-in 64-in/64-out Dante interface that supports Dante Domain Manager and have AES67 and SMPTE ST 2110 interoperability. Two Dante ports enable redundant streams.
• It’s a lovely VIEW:
  Visual Interactive Ergonomic Workflow, or VIEW for short allows you to work the way you want with three different set ups:
  Channel Strip: Monitor and control eight adjacent channels and view them as virtual channel strips like on an analogue mixer.
  2. Module View: Monitor and control any three sets of parameters for one single channel.
  3. Individual View: Monitor and control a selection of functions for any channel or group of channels.
• Remote Control and Offline Editing:
  Wherever you are, fixing an issue or just checking the mix if you can’t put the console at the centre of the room, you can remain in control of your mix. Use an iPad to control the mix from anywhere. With the motorized faders your mix will be where you left it when you return to the desk.

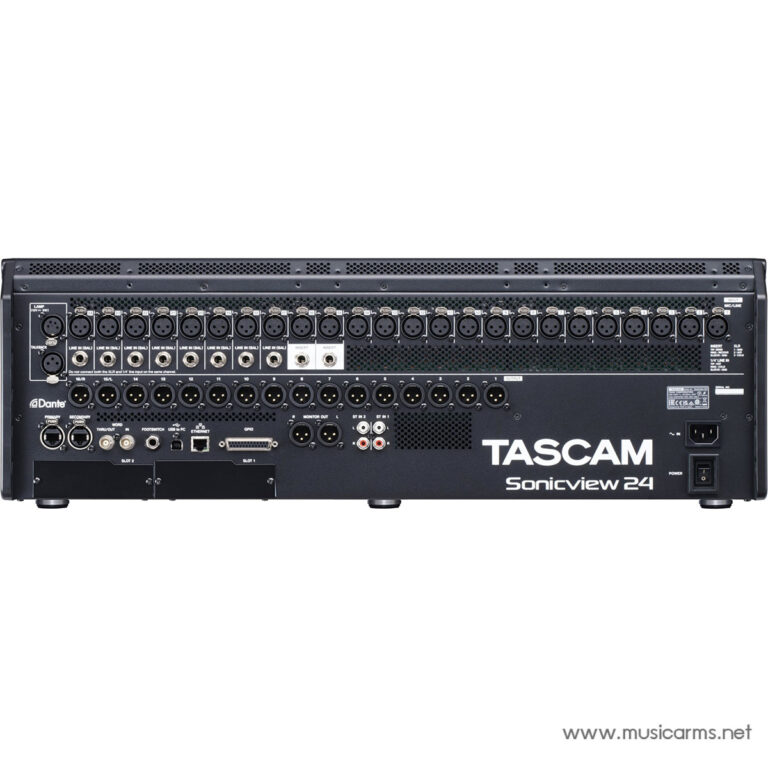

• Analogue Inputs:
  – 24 Channels (1-24 Balanced XLR, 15+16 Insert 1/4″, 17-24 Line In 1/4″)
  – 2x Stereo RCA
  – 1x World Clock In
  – 1x Footswitch
  – 1x Talkback Mic (XLR)
  – 1x Lamp (4pin 12v 5W)
• Analogue Outputs:
  – 2x Main Monitor (XLR)
  – 16x XLR (15+16 Stereo L+R)
  – 1x World Out/Thru
  – 1x Stereo Headphones 1/4″ Jack
• Digital Inputs/Outputs
  – 1x USB Type B (32 Inputs + 32 Outputs)
  – Sample Rates: 48kHz, 96kHz
  – Bit Depth: 32 bit
  – Dante Primary/secondary: ehterCON Cat5e compatible
  – Dante Channels: 64 (48kHz), 32 (96kHz)
• Operating System for connected computers:
  – USB Audio interface: 64-bit Windows or Mac compatible computer with a USB 2.0
  – Remote control: 64-bit Windows or Mac compatible computer with network access or Apple iPad.
• Storage media
  – SDHC cards (8–32 GB, Class 10 or better)
  – SDXC cards (64–128 GB, Class 10 or better)
  – USB flash drives (8–128 GB, playback only)
• File systems
  – SDHC card, USB storage: FAT32
  – SDXC card, USB storage: exFAT
• Recording/playback formats
  – WAV/BWF: Recording: 48 kHz, 96 kHz, 24 bit, 2 channels Playback: 48 kHz, 96 kHz, 16/24 bit, 2 channels
  – MP3 Playback: 44.1 kHz, 48 kHz, 32–320 kbit/s
  – AAC Playback: 44.1 kHz, 48 kHz, 64–320 kbit/s
• Power supply and other specifications
  – Main displays: 3x 7-inch (17,8 cm) colour touchscreens, 800 × 480 px
  – Channel displays: 3x monochrome LC displays, 384 × 68 px
  – Mains power: AC 100–240 V, 50/60 Hz
  – Power consumption: 85 W
• Overall dimensions (width × height × depth) 691mm × 228mm × 554mm
• Weight: 18 kg
• Permissible operating temperature range: 0–40 °C

อินพุตอนาล็อก

• อินพุต 24 แชนเนล:
  • XLR แบบบาลานซ์: 1-24
  • Insert 1/4″: 15+16
  • Line In 1/4″: 17-24
• สเตอริโอ RCA: 2 ชุด
• World Clock In: 1 ช่อง
• Footswitch: 1 ช่อง
• Talkback Mic (XLR): 1 ช่อง
• Lamp (4pin 12v 5W): 1 ช่อง

เอาต์พุตอนาล็อก

• Main Monitor (XLR): 2 ช่อง
• XLR: 16 ช่อง (15+16 สเตอริโอ L+R)
• World Out/Thru: 1 ช่อง
• Stereo Headphones 1/4″ Jack: 1 ช่อง

อินพุต/เอาต์พุตดิจิทัล

• USB Type B: 1 ช่อง (32 อินพุต + 32 เอาต์พุต)
• Sample Rates: 48kHz, 96kHz
• Bit Depth: 32 บิต
• Dante Primary/Secondary: รองรับ etherCON Cat5e
• Dante Channels: 64 ช่อง (ที่ 48kHz), 32 ช่อง (ที่ 96kHz)

ระบบปฏิบัติการสำหรับคอมพิวเตอร์ที่เชื่อมต่อ

• USB Audio interface: คอมพิวเตอร์ที่รองรับ Windows 64-bit หรือ Mac ที่มี USB 2.0
• Remote Control: คอมพิวเตอร์ที่รองรับ Windows 64-bit หรือ Mac ที่มีการเชื่อมต่อเครือข่าย หรือ Apple iPad

สื่อจัดเก็บข้อมูล

• SDHC cards: 8–32 GB, Class 10 หรือดีกว่า
• SDXC cards: 64–128 GB, Class 10 หรือดีกว่า
• USB flash drives: 8–128 GB (เล่นได้อย่างเดียว)

ระบบไฟล์

• SDHC card, USB storage: FAT32
• SDXC card, USB storage: exFAT

รูปแบบการบันทึก/เล่น

• WAV/BWF:
  • บันทึก: 48 kHz, 96 kHz, 24 บิต, 2 แชนเนล
  • เล่น: 48 kHz, 96 kHz, 16/24 บิต, 2 แชนเนล
• MP3 Playback: 44.1 kHz, 48 kHz, 32–320 kbit/s
• AAC Playback: 44.1 kHz, 48 kHz, 64–320 kbit/s

แหล่งจ่ายไฟและข้อมูลจำเพาะอื่นๆ

• จอแสดงผลหลัก: จอสัมผัสสีขนาด 7 นิ้ว (17.8 ซม.) 3 จอ, ความละเอียด 800 × 480 px
• จอแสดงผลแชนเนล: จอ LC ขาวดำ 3 จอ, ความละเอียด 384 × 68 px
• ไฟหลัก: AC 100–240 V, 50/60 Hz
• การใช้พลังงาน: 85 W
• ขนาดโดยรวม (กว้าง × สูง × ลึก): 691 มม. × 228 มม. × 554 มม.
• น้ำหนัก: 18 กก.
• ช่วงอุณหภูมิการทำงานที่อนุญาต: 0–40 °C
